带电作业快速电线连接器( Insulated Jumpers 绝缘跳线夹,绝缘引流线,引流线,跳线夹)
Jumper device for the live line (hotline), jumper clamper or by-bass jumper

高压危险!要注意防电保护!请检查是否与您的要求相符!
Danger High Voltage! Attention to anti-power prevention! Please check if it meets your requirements!

绝缘跳线夹作用
带电作业快速电线连接器( Insulated Jumpers?绝缘跳线夹,绝缘引流线,引流线,跳线夹),方便快捷连接用电设备两端的线路,作用在于:
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, connects lines of the two ends of consumer conveniently and swiftly.it is used in:

  1. 1) 在带电检修线路中,能高效快速连接用电设备两端的线路,更换用电设备,使电网快速保持畅通。

1) the live line (hotline) servicing to connect lines of the two ends of the consumer quickly and high efficiently, so as to keep the power grid working while having the consumer replaced.
2)在带电安装用电设备(如变压器)时,不需切断主线电源,快速连通主线和新的用电设备,可临时或长期使用。
2) the live line (hotline) consumer installing to connect the main line with new consumer for tentative or long time use without shutting off the main line power.
带电作业快速电线连接器( Insulated Jumpers?绝缘跳线夹,绝缘引流线,引流线,跳线夹)广泛用于电网、电厂、配电站、矿山、大型船舶、工地等电力检修和安装。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper is widely used in electric power overhauling and installing of power grid, power plant, power substation, mine, large ship, construction site and so on.

规格表(JB是大夹头,JS是小夹头)?
Specification Table(JB means big clamping chuck, JS means small clamping chuck))

产品规格
Product No.

大持续电流(A)
Current

相对相电压/相对地电压
Withstand Voltage(KV)

总长(米)
Total Length(m)

夹头长(mm)
Clamping chuck length(mm)

手柄颜色
Color of hand shank

2754/JS15203

200

15/10

3

350

透明Transparent

2755/JS15253

250

15/10

3

350

透明Transparent

2756/JS15303

300

15/10

3

350

透明Transparent

2757/JS15403

400

15/10

3

350

透明Transparent

2754/JB15203

200

15/10

3

350

透明Transparent

2755/JB15253

250

15/10

3

350

透明Transparent

2756/JB15303

300

15/10

3

350

透明Transparent

2757/JB15403

400

15/10

3

350

透明Transparent

21300/JB25253

250

15/10

3

350

透明Transparent

21060/JB25303

300

25/15

3

350

透明Transparent

21300/JS25253

250

25/15

3

350

透明Transparent

21060/JS25303

300

25/15

3

350

透明Transparent

2059/JB35253

250

35/20

3

350

透明Transparent

4370/JB35303

300

35/20

3

350

透明Transparent

带电作业快速电线连接器,具有安全可靠快速的特点。?
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, has the features of safety, reliability and rapidity. It has been widely used in the United States military for power repairing with the international first-class quality.
带电作业快速电线连接器( Insulated Jumpers?绝缘跳线夹,绝缘引流线,引流线,跳线夹)在不脱离设计构思前提下,任何变型和改进都属于本公司保护范围。任何单位和个人生产、销售同类产品都属违法行为,本公司可追究法律责任。?
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, has got the China utility model patent, any change or improvement get out from our design concept falls into the prevention of the patent. Any production or sale by company or personally is unlawful act. We will investigate and affix the legal liability.?

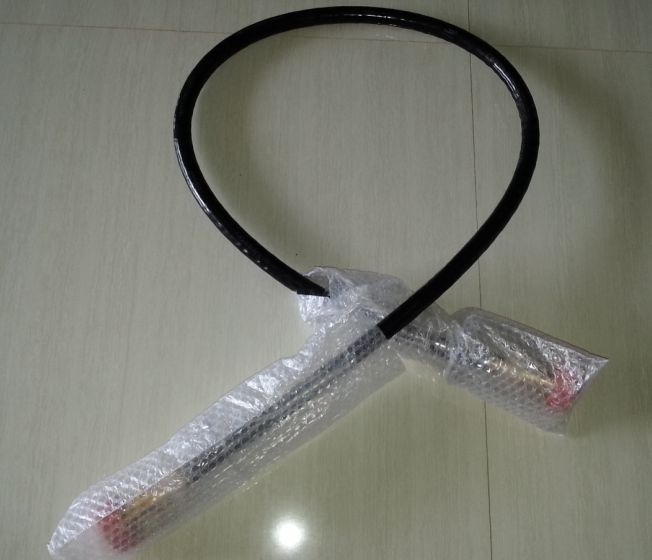

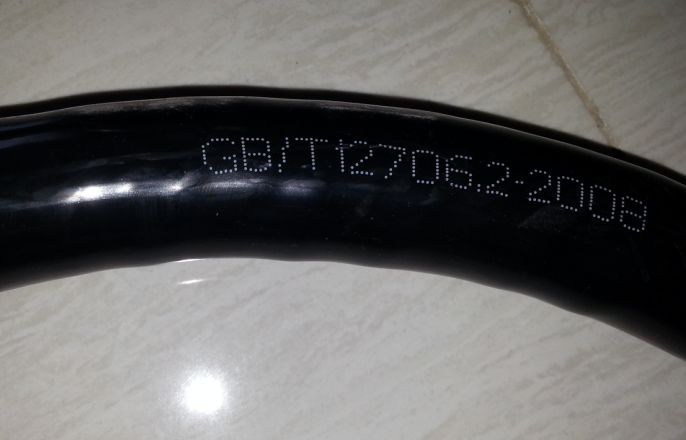

绝缘电缆:采用专用材料制作,具有耐高压、份量轻、抗老化、耐磨、线体柔软、寿命长、使用方便等优点。电缆经23倍额定交流高压测试。?
Insulated Cable :Adopt special material, has the features of high voltage resistance, anti-aging, bad smell resistance, abrasion resistance, light weight, soft line body, long life and convenient use. All the cables won’t be broken-down for high voltage test of 2 to 3 times rated AC. Standard length is 3 meters, other length of cables on request.

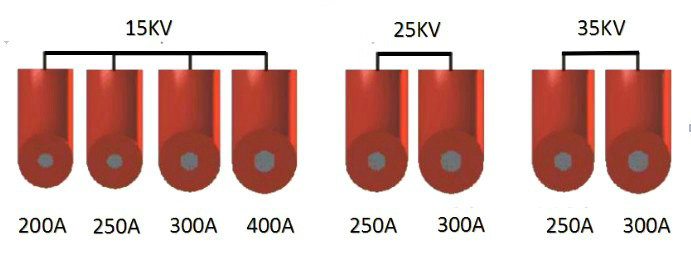

带电作业快速电线连接器( Insulated Jumpers?绝缘跳线夹,绝缘引流线,引流线,跳线夹)有8种主线尺寸可供选择,电压为ф-ф15kv?ф-ф25kvф-ф35kv?
Jumper device for the live line (hotline), jumper clamper or by-bass jumper, has 8 types of main line scopes, and use voltage is 15KV, 25KV, 35KV.

绝缘跳线夹手柄和爪部特性及图示

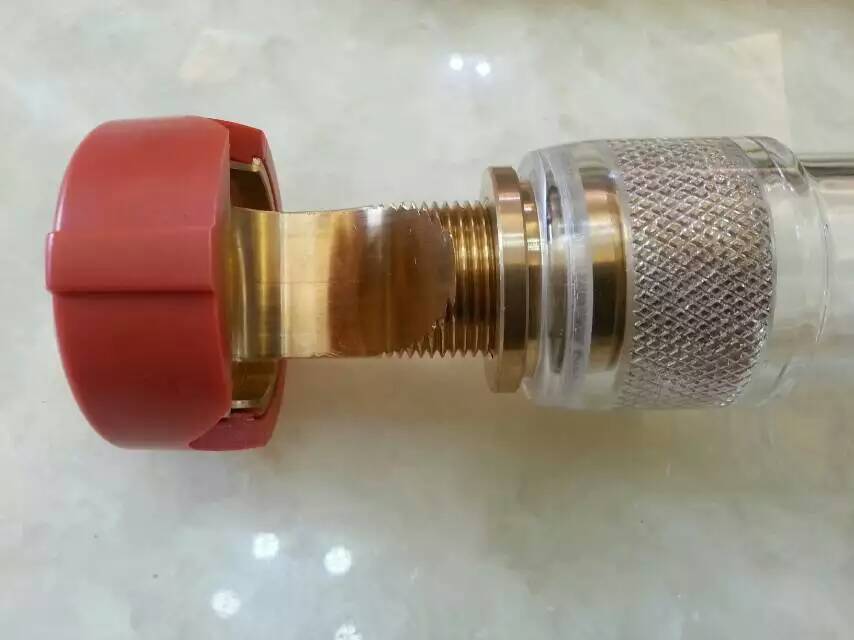

绝缘跳线夹:不仅提供良好的抓力,而且能够抵抗氧化和蚀痕作用。
Jumper device for the live line (hotline), jumper clamper or by-bass jumper not only to provide excellent grasping force, but also to resist the role of ozone aging and erosion.

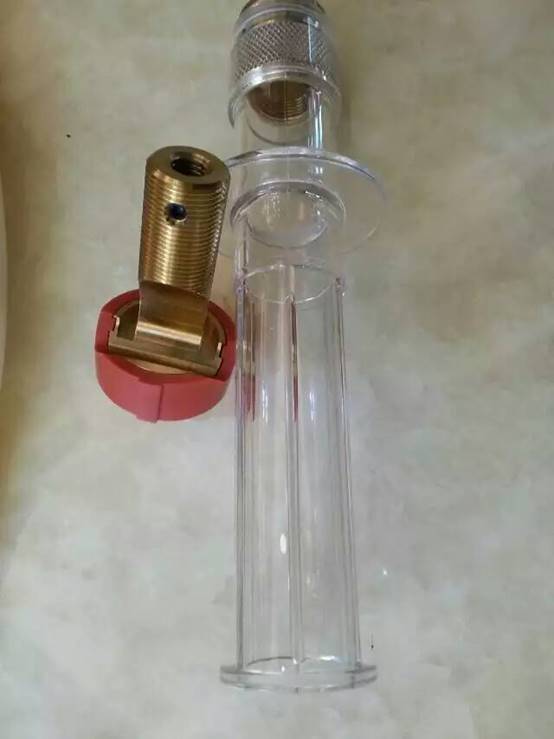

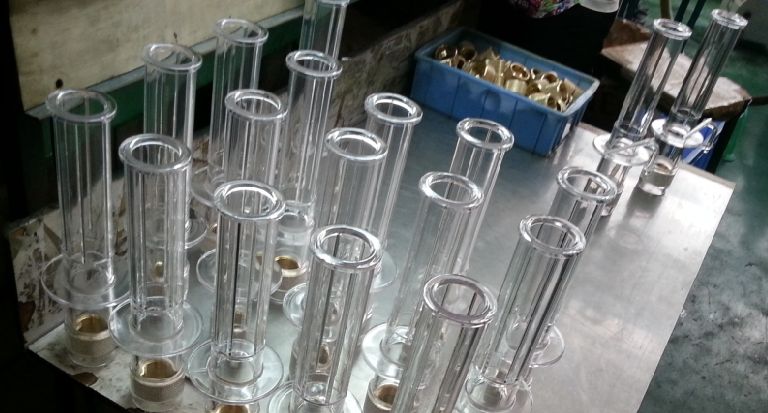

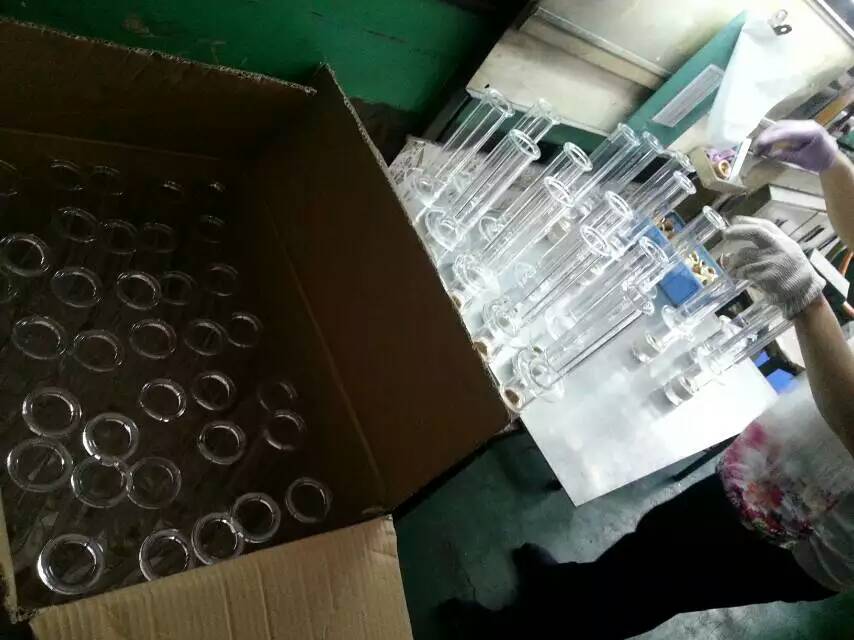

手柄:采用绝缘透明防弹玻璃制作,可清楚查看通电时内部情况,有良好的绝缘性能, 还有很高的强度和韧性,100米落地测试不破裂。
The hand shank is made of transparent proof glass, through which you can clearly observe the inside status while power on. It has good insulating property, high intensity and toughness. It passed the 100meters drop test which assure unbroken while using.

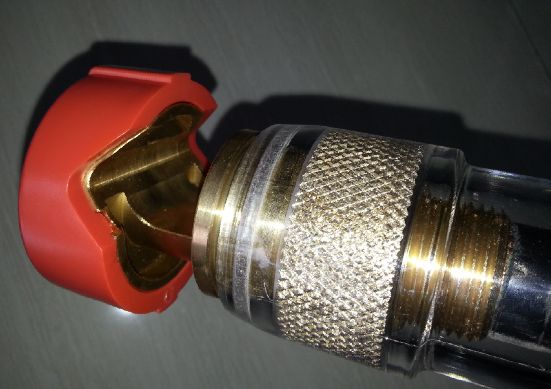

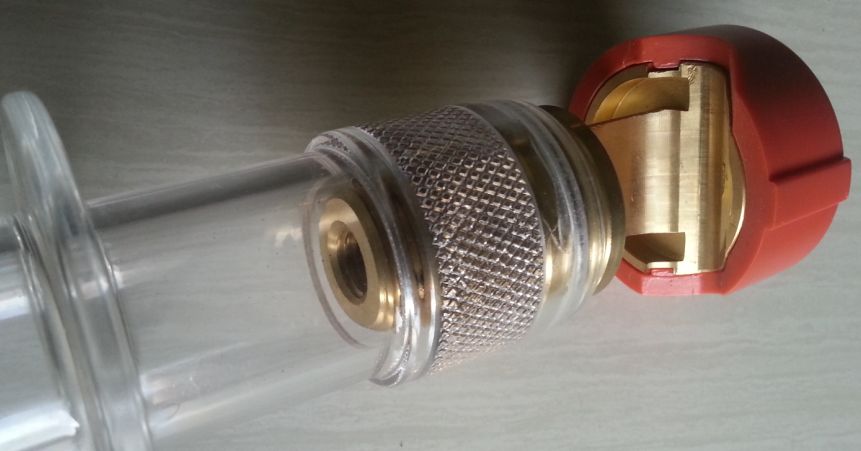

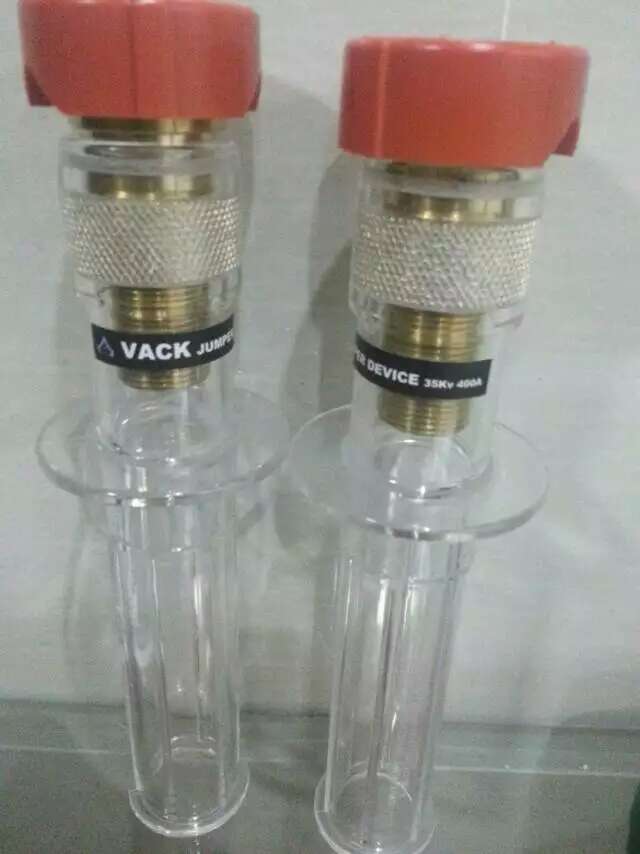

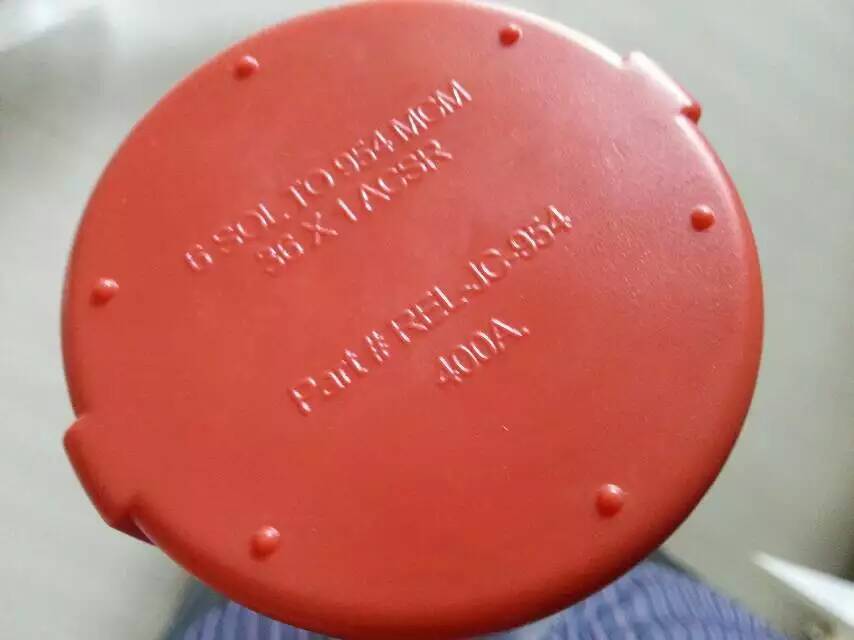

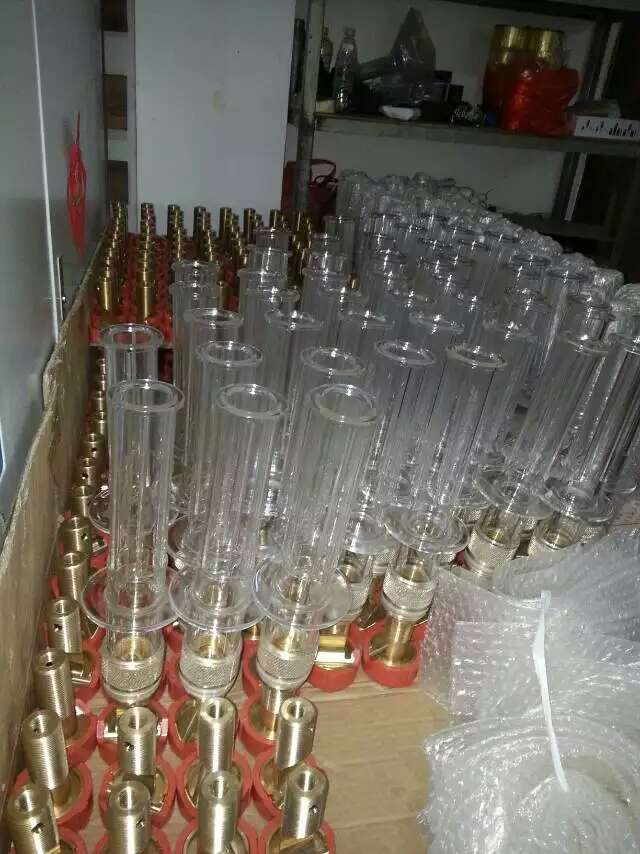

主体和爪部采用铜合金材料精密加工,250小时盐雾测试不变色,5年后还光亮如新。主线范围4mm到32mm。 大使用电压35KV。
954MCM/477MCM clamping chuck: precision machined with copper alloy, on-discoloring for 250H salt fog test. Main line scopes from 4MM to 32MM.Maximum using voltage 35KV.

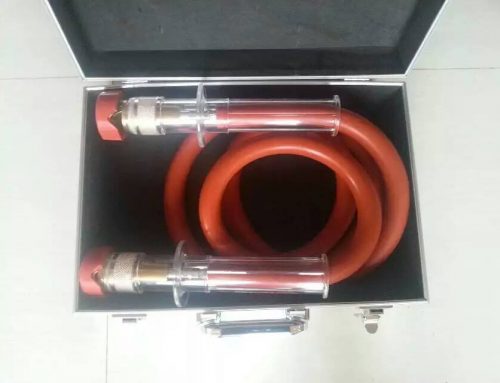

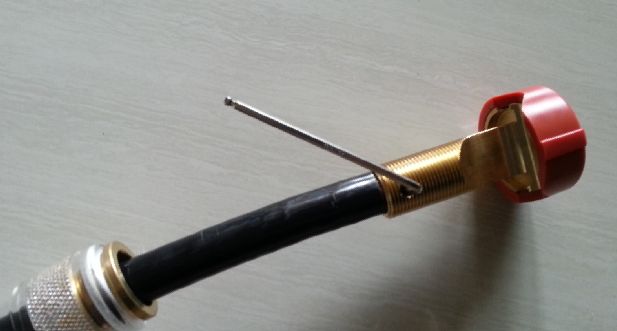

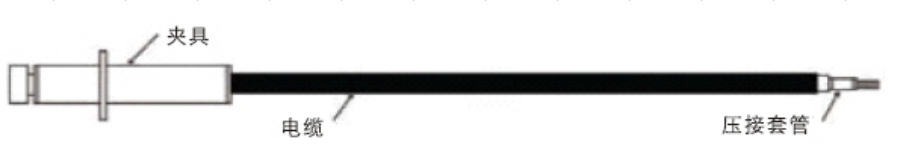

跳线组用绝缘跳线缆和5/8—11UNC螺纹压接套管组成。装配好的销售套件由3个基本组成部分,一对夹头、一对压线套管、一条3米长的绝缘电缆。
Jumper device consists of insulating jumper cable and 5/8 – 11UNC thread crimping sleeve. The assembled kit for sales consists of 3 basic components, one pair of wire casing, one pair of chuck and a 3 meter long insulating cable.

?
