带断路器CPM的电容器
CPM系列通过将FML电容器连接到自动断路器而形成。
其结构有利于电容器在需要单独补偿电动机和变压器的安装中的连接。它提供安全保护,防止瞬变和永久性过载。
Capacitor with breaker CPM
CPM series are formed by connecting a FML capacitor to an automatic circuit breaker.
Its construction facilitates connection of the capacitor in installations where individual compensation of motors and transformers is required. It offers secure protection against transients and permanent overloads.
额定电压 | 230/440 V |
频率 | 50 Hz – 60 Hz |
绝缘等级 | 3 kV rms / 15 kV波峰 |
最大。过压 | 1.1 Un(8小时/天) |
最大。过流 | 1.3In |
温度范围 | -40 / +55?C |
安装 | 内部 |
断路电压为415V | ≤125A(MCB):10 kA > 125 A(MCCB):50 kA |
颜色 | RAL 7035 |
根据要求提供其他功率,电压和频率。
Rated voltage | 230/440 V |
Frequency | 50 Hz – 60 Hz |
Insulation level | 3 kV rms/15 kV crest |
Max. overvoltage | 1.1 Un (8 h/day) |
Max. overcurrent | 1.3 In |
Temperature range | -40/+55 ?C |
Installation | Interior |
Breaking capacity in at 415V | ≤125 A (MCB): 10 kA >125 A (MCCB): 50 kA |
Colour | RAL 7035 |
Other powers, voltages and frequencies on request.

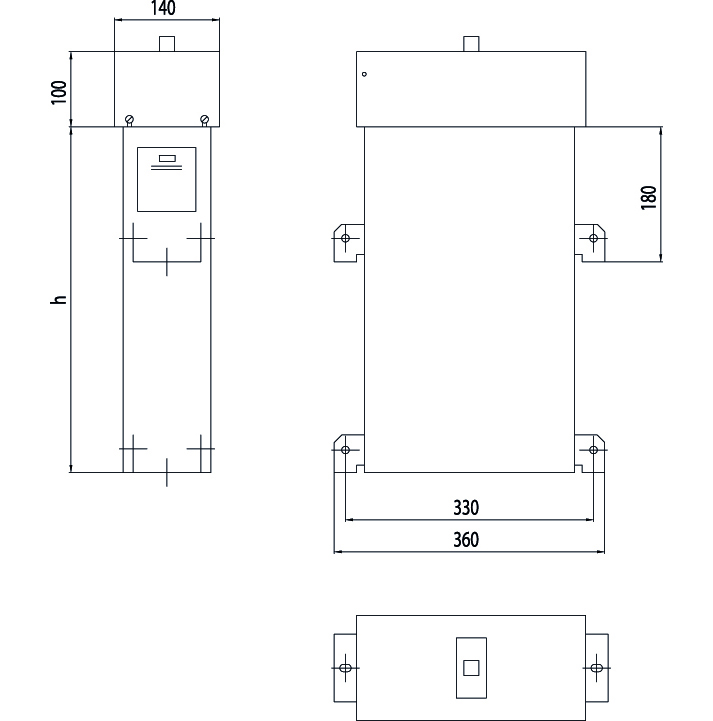

Part number | Interruptor (A) | Qn (kvar) | Un (V) | In (A) | h (mm) | Weight (kg) |
CPM4405 | 16 | 5 | 440 | 7.2 | 270 | 7 |
CPM4407 | 20 | 7.5 | 440 | 10.8 | 270 | 8 |
CPM4410 | 25 | 10 | 440 | 14.4 | 270 | 8 |
CPM4415 | 32 | 15 | 440 | 21.7 | 270 | 9 |
CPM4420 | 40 | 20 | 440 | 28.9 | 270 | 10 |
CPM4425 | 50 | 25 | 440 | 36.1 | 270 | 10 |
CPM4430 | 63 | 30 | 440 | 43.3 | 270 | 11 |
CPM4440 | 80 | 40 | 440 | 57.7 | 270 | 12 |
CPM4450 | 100 | 50 | 440 | 72.2 | 270 | 16 |
CPM4460 | 125 | 60 | 440 | 86.6 | 460 | 18 |
CPM4475 | 160 | 75 | 440 | 108.3 | 460 | 20 |
CPM4480 | 160 | 80 | 440 | 115.5 | 460 | 22 |
CPM2305 | 25 | 5 | 230 | 12.5 | 270 | 9 |
CPM2307 | 32 | 7.5 | 230 | 18.8 | 270 | 10 |
CPM2310 | 40 | 10 | 230 | 25.1 | 270 | 10 |
CPM2315 | 50 | 15 | 230 | 37.7 | 270 | 11 |
CPM2320 | 80 | 20 | 230 | 50.2 | 270 | 16 |
CPM2325 | 100 | 25 | 230 | 62.8 | 270 | 17 |
CPM2330 | 100 | 30 | 230 | 75.3 | 270 | 18 |
CPM2340 | 160 | 40 | 230 | 100.4 | 460 | 20 |
Other constructions, powers, tensions and frequencies to consult.
