AS120-2
电池供电的液压切割工具,最大120 mm
设计用于切割铝和铜电缆

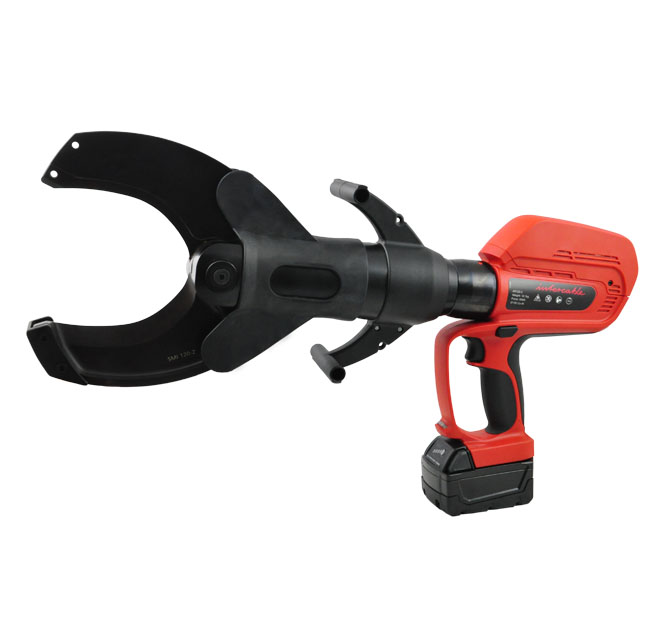

AS120-2
Battery Operated Hydraulic Cutting Tool up to 120 mm
Designed to cut aluminium and copper cables
技术特征
?打开无尽的旋转切割头
?带双液压缸的高速进给
?结构轻巧紧凑
?可变速度,用于定位工具
?在每个位置手动返回可能
?压力释放按钮,单手操作(两侧,
左手和右手操作员)
?便携式,功能携带腰带和肩带
?符合人体工程学的双组分手柄,重量平衡,
操作简便,安全
?LED用于照亮工作区域
?绝缘和冲击持久的塑料外壳
?高性能LI-ION电池18V,具有高容量和短
充电时间
?燃油表显示剩余电量
?运行时间增加2倍
保修期:3年或20,000个工作周期
| 切割直径 | 120毫米 |
|---|---|
| 切削力 | 60 kN |
| 运营压力 | 700巴(70MPa) |
| 电池电压 | 18 v |
| 电池容量 | 3,0啊 |
| 工具重量 | 9,6公斤 |
| 工具尺寸 | 651 x 331 x 95毫米 |
| 描述 | 订单号。 | 外形尺寸 | Weigth |
|---|---|---|---|
| 切削刀具AS120-2 | AS120-2 | 575 x 460 x 112毫米 | 12,1公斤 |
| 可移动的切割刀片 | SMI120-2 | – | 1,3千克 |
| 刀导板 | MFI120-2 | 140克 |
Technical Characteristics
? Open endless rotating cutting head
? High speed feed with double hydraulic cylinder
? Light and compact structure
? Variable speed for positioning of the tool
? In each position manual return possible
? Pressure release button with single handed operations (on both sides,
for left- and right handed operators)
? Portable, features carry belt and shoulder strap
? Ergonomic 2-component handle with weight balance for easy and safe
operation
? LED for illuminating the work area
? Insulating and shock persistent plastic housing
? High performance LI-ION Battery 18V with high capacity and short
charging time
? Fuel gauge displays remaining charge
? Up to 2x more run time
Warranty: 3 years or 20,000 work cycles
| Cutting diameter | 120 mm |
|---|---|
| Cutting force | 60 kN |
| Operating pressure | 700 bar (70MPa) |
| Battery voltage | 18?V |
| Battery capacity | 3,0?Ah |
| Tool weight | 9,6 kg |
| Tool dimensions | 651 x 331 x 95 mm |
| Description | Order No. | Dimensions | Weigth |
|---|---|---|---|
| Cutting Tool?AS120-2 | AS120-2 | 575 x?460 x?112 mm | 12,1?kg |
| Moveable cutting blade | SMI120-2 | – | 1,3 kg |
| Knife guiding plate | MFI120-2 | 140 g |
