HSI85
手动液压切割工具，最大85 mm
设计用于切割铝和铜电缆

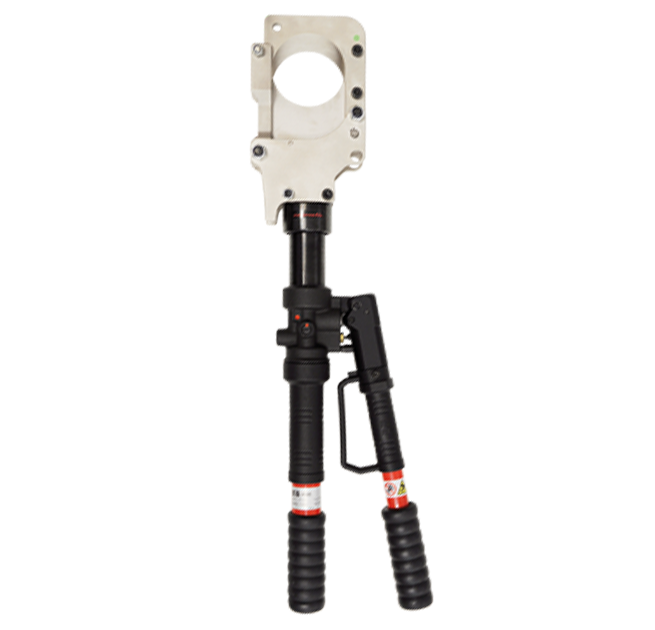

HSI85
Hand Operated Hydraulic Cutting Tool up to 85 mm
Designed to cut aluminium and copper cables
Technical Characteristics
? Snap closure cutting head with guidance for the cutting blades, rotates 270°
? Quick feed with double hydraulic cylinder
? Light and compact structure
? Manual return at any position by turning the main handle
? Single hand use by innerside handle
| Cutting diameter | 85 mm |
|---|---|
| Cutting force | 70 kN |
| Operating pressure | 700 bar (70MPa) |
| Tool weight | 7,3 kg |
| Tool dimensions | 203 x 697 x 64?mm |
| Description | Order No. | Dimensions | Weigth |
|---|---|---|---|

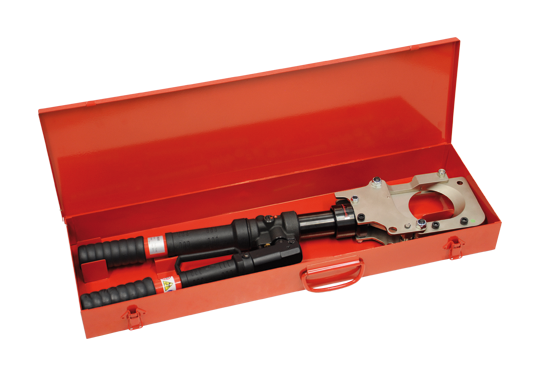

| Set?Cutting Tool?HSI85 | HSI85 | 700 x?230 x?75 mm | 13,1?kg |
| Fixed cutting blade | GMPS85 | – | 600 g |
| Moveable cutting blade | SMPS85 | – | 400 g |
