PS120
液压切割头可达120 mm
设计用于切割铝，铜和铠装电缆

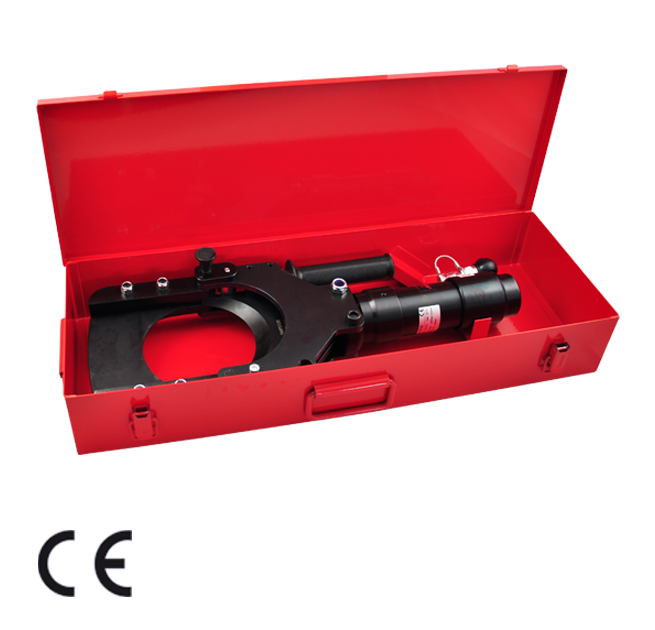

PS120
Hydraulic Cutting Head up to 120 mm
Designed to cut aluminum, copper and armoured cables
Technical Characteristics
? Cutting head with snap closure and guidance for the cutting blades
? Sturdy and compact structure, cutting head body made ??entirely in aluminum
? Quick make snap lock connection and non-detachable dust cap
? The unit must be operated through 700 bar hydraulic pump to reach
compression force of 60 kN
? Very good handling
| Cutting diameter | 120 mm |
|---|---|
| Cutting force | 135 kN |
| Operating pressure | 700 bar (70MPa) |
| Tool weight | 8,1 kg |
| Tool dimensions | 218 x 536 x 80?mm |
| Description | Order No. | Dimensions | Weight |
|---|---|---|---|
| Cutting Head?PS120 | PS120 | 610 x?400 x 140 mm | 10,6?kg |
| Fixed?cutting blade | GMI120 | – | 300 g |
| Moveable cutting blade | SMI120 | – | 520?g |
