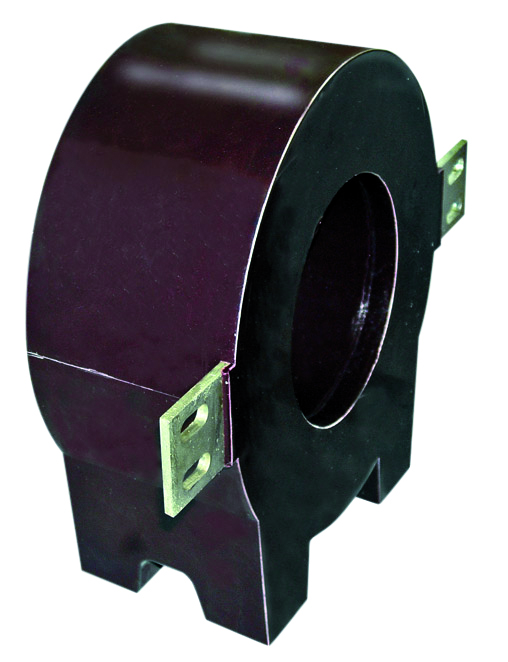

HV Inrush Currect Reactors ICR 260/330
需要浪涌电流电抗器来限制电容器连接中产生的跨电流。
HV Inrush Currect Reactors ICR 260/330
Inrush current reactors are required to limit the transiert current produced in the connection of capacitors.
| 安装 | 室内室外 |
| IMAX | 1.43 x In |
| 额定短持续时电流 | 43 x英寸/秒 （根据要求X kA /秒） |
| 动态电流 | 2.5 lth |
| 绝缘等级 | 12 kV（28/75） |
| 温度等级 | B级 |
根据要求提供其他功率，电压和频率。
| Installation | Indoor & Outdoor |
| Imax | 1.43 x In |
| Rated short duration current | 43 x In/sec. (X kA/sec. on request) |
| Dynamic current | 2.5 lth |
| Insulation level | 12 kV (28/75) |
| Temperature class | Class B |
Other powers, voltages and frequencies on request.

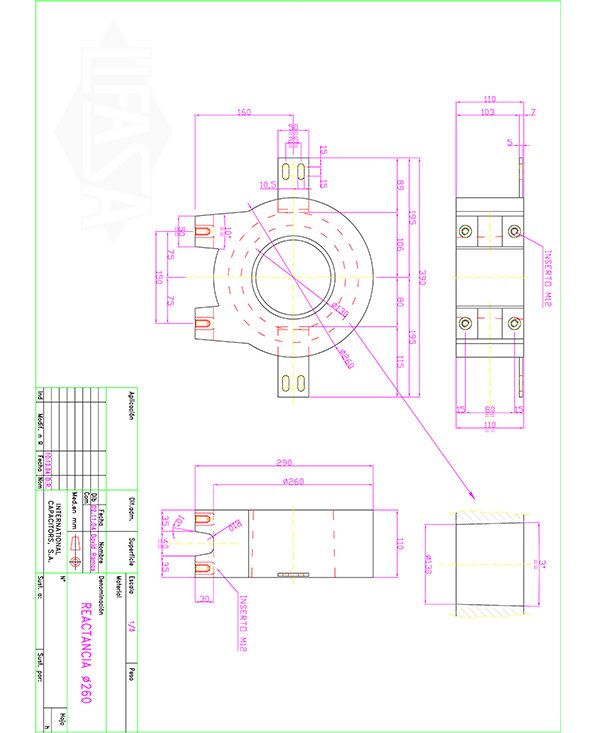

| Type ICR 260: | ||||
| Code | I (A) | L (uH) | Weight (kg) | |
| ATB08036 | 50 | 350 | 13 | 346 |
| ATB08037 | 60 | 250 | 14 | 341 |
| ATB08038 | 100 | 100 | 16 | 346 |
| ATB08039 | 125 | 50 | 14 | 341 |
| ATB08040 | 175 | 30 | 14 | 34 |

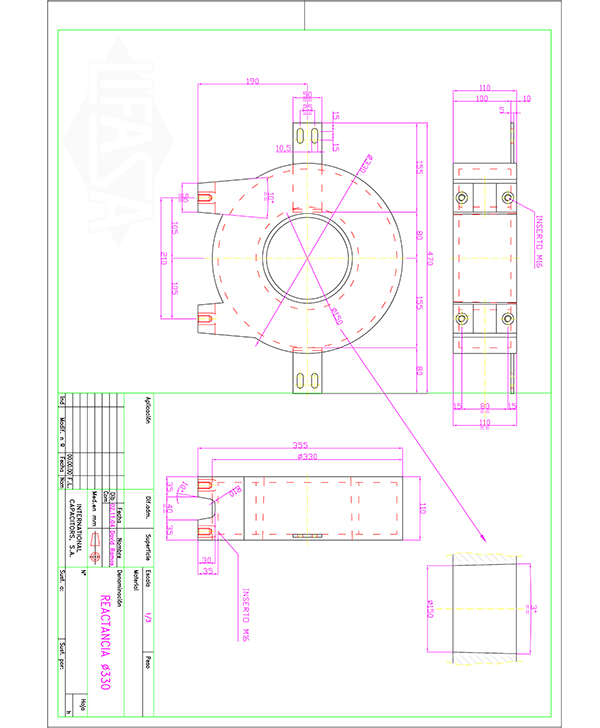

| Type ICR 330: | ||||
| Code | I (A) | L (uH) | Weight (kg) | |
| ATB08041 | 60 | 450 | 20 | 402 |
| ATB08042 | 75 | 350 | 21 | 402 |
| ATB08043 | 90 | 250 | 26 | 402 |
| ATB08044 | 125 | 100 | 22 | 402 |
| ATB08045 | 200 | 50 | 22 | 402 |
| ATB08046 | 250 | 30 | 23 | 402 |
| Accessories – BIL : 17.5KV / 24KV / 36KV | ||
| Code | Description | |
| ATB11019 | 17,5KV Insulator | Indoor |
| ATB11036 | 24KV Insulator | Indoor |
| ATB11047 | 36KV Insulator | Indoor |
| ATB11062 | 17,5KV Insulator | Outdoor |
| ATB11063 | 24KV Insulator | Outdoor |
| ATB11056 | 36KV Insulator | Outdoor |
| ATB18000 | ICR-260 adapter | |
| ATB08031 | ICR-330 adapter | |
