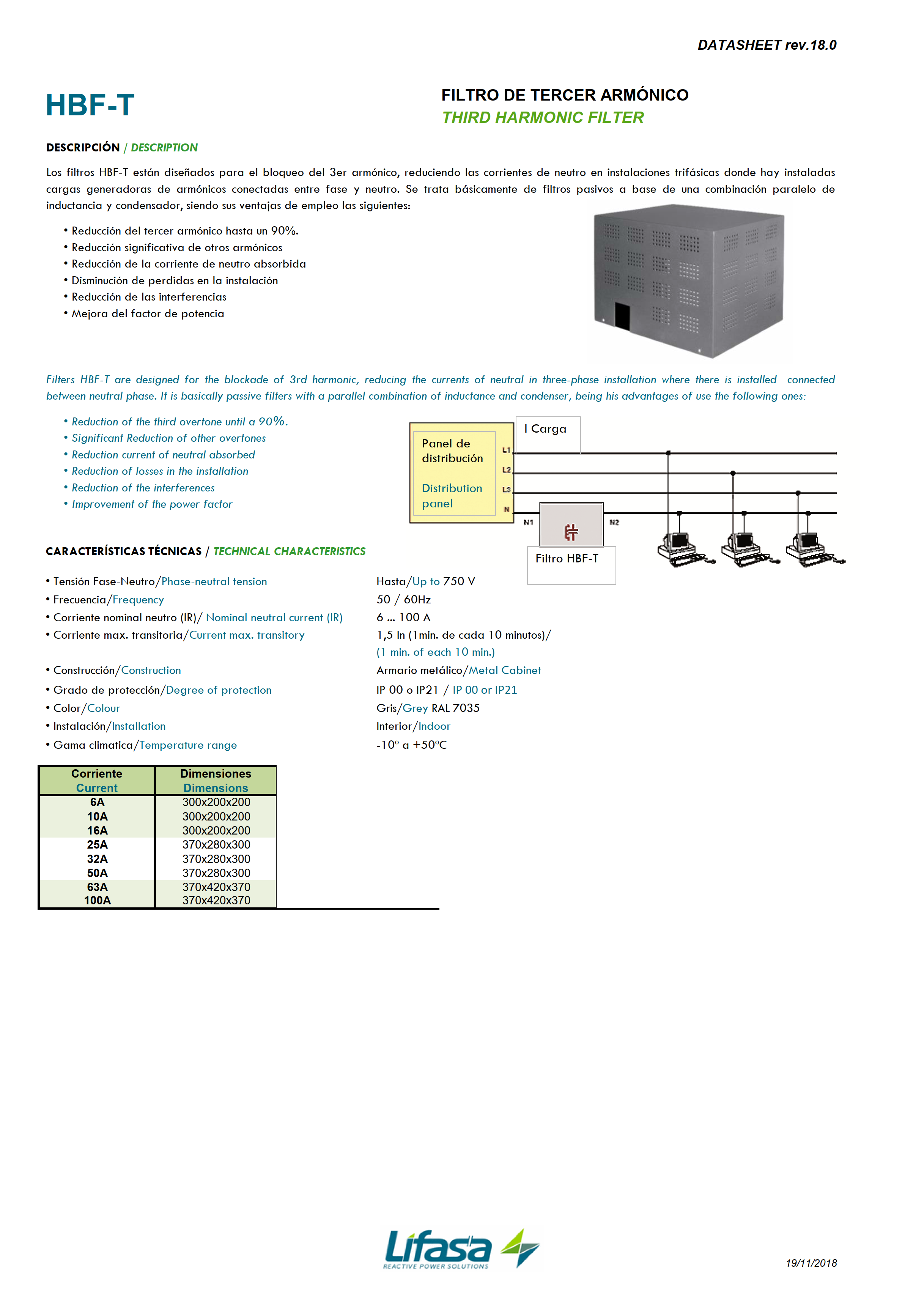

三次谐波滤波器HBF-T
滤波器HBF-T设计用于阻断三次谐波,减少三相安装中的中性线电流,其中安装在中性相之间。它基本上是无源滤波器,具有电感和电容器的并联组合,是他使用以下器件的优点:
- 减少第三个泛音直到90%。
- 显着减少其他泛音。
- 中性吸收的还原电流。
- 减少安装中的损失。
- 减少干扰。
- 提高功率因数。
Third Harmonic Filter HBF-T
Filters HBF-T are designed for the blockade of 3rd harmonic, reducing the currents of neutral in three-phase installation where there is installed connected between neutral phase. It is basically passive filters with a parallel combination of inductance and condenser, being his advantages of use the following ones:
- Reduction of the third overtone until a 90%.
- Significant Reduction of other overtones.
- Reduction current of neutral absorbed.
- Reduction of losses in the installation.
- Reduction of the interferences.
- Improvement of the power factor.
相中性张力 | 高达750 V |
频率 | 50 / 60Hz |
标称中性线电流(IR) | 6 … 100 A. |
最大电流?短暂的 | 1,5英寸(每10分钟1分钟) |
施工 | 金属柜 |
防护等级 | IP 00 / IP21 |
颜色 | 灰色RAL 7035 |
安装 | 室内 |
温度范围 | -10?至+50?C |
保护 | IP21 |
根据要求提供其他功率,电压和频率。
Phase-neutral tension | Up to 750 V |
Frequency | 50 / 60Hz |
Nominal neutral current (IR) | 6 … 100 A |
Current max. transitory | 1,5 In(1 min. of each 10 min.) |
Construction | Metal Cabinet |
Degree of protection | IP 00/IP21 |
Colour | Grey RAL 7035 |
Installation | Indoor |
Temperature range | -10? to +50?C |
Protection | IP21 |
Other powers, voltages and frequencies on request.
型号 | 电流 | 尺寸 |
HBF-T | 6A | 300x200x200 |
10A | 300x200x200 | |
16A | 300x200x200 | |
25A | 370x280x300 | |
32A | 370x280x300 | |
50A | 370x280x300 | |
63A | 370x420x370 | |
100A | 370x420x370 |
