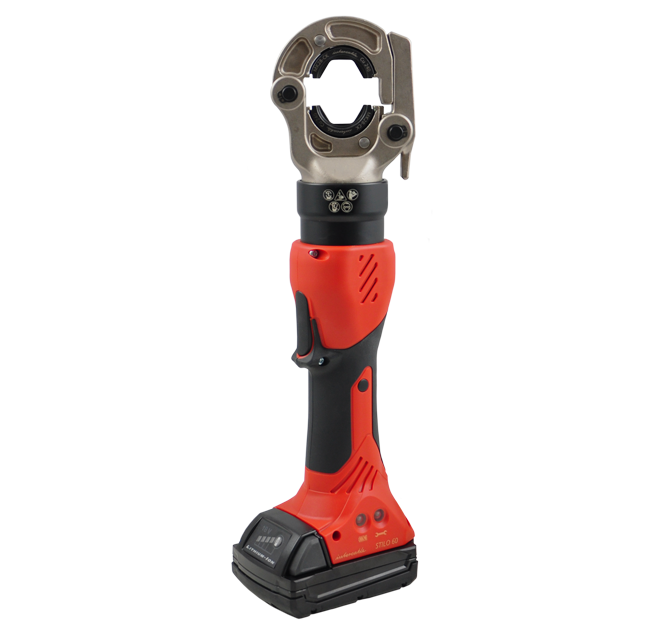

Stilo60
电池供电液压压接工具 – 60 kN
设计用于压接端子和连接器,最大可达300mm?电缆横截面
Stilo60
Battery Operated Hydraulic Crimping Tool – 60 kN
Designed to crimp terminals and connectors up to a maximum of 300 mm? cable cross sections
技术特征
?非常轻巧紧凑的结构
?符合人体工程学的双组件手柄,适用于单手抗疲劳工作
?旋转360°,可在狭窄空间内轻松操作
?电子压接周期控制和监控
?手动退货
?迷你USB端口:
– 输出所有循环(压缩曲线)和故障消息
– 维护控制
– 软件包容性
?电池状态控制可直接在电池上读取
压缩部分最大 | 300平方毫米 |
---|---|
压缩力 | 60 kN |
运营压力 | 650 bar(65MPa) |
最大。行程 | 17毫米 |
电池电压 | 18 v |
电池容量 | 1,5啊 |
工具重量 | 3,3公斤 |
工具尺寸 | 383 x 124 x 81毫米 |
描述 | 订单号。 | 外形尺寸 | Weigth |
---|---|---|---|
设置压接工具 | STILO60 | 560 x 357 x 118毫米 | 6,3公斤 |
设备
- 电池供电液压压接工具60kN
- 电池锂离子18V 1.5Ah(RA12)
- 充电器
- USB电缆和软件(CD)
- 塑料外壳
- 用于压接模具的塑料外壳
Technical Characteristics
? Very light and compact structure
? Ergonomic 2-Component handle for one-handed fatigue-proof working
? Rotation 360° allows easy operation also in confined spaces
? Electronic crimping cycle control and monitoring
? Manual return
? Mini USB-port:
– Output of all cycles (compression curves) and fault messages
– Maintenance control
– Software inclusive
? Battery state control is readable directly on the battery
Compression section max. | 300 mm? |
---|---|
Compression force | 60 kN |
Operating pressure | 650 bar (65MPa) |
Max. stroke | 17 mm |
Battery voltage | 18 V |
Battery capacity | 1,5 Ah |
Tool weight | 3,3 kg |
Tool dimensions | 383 x 124 x 81 mm |
Description | Order No. | Dimensions | Weigth |
---|---|---|---|
Set Crimping Tool | STILO60 | 560?x 357 x 118??mm | 6,3?kg |
SET Equipment
- Battery-operated hydraulic crimping tool 60kN
- Battery Li-Ion 18V 1.5Ah (RA12)
- Battery charger
- USB-cable and Software (CD)
- Plastic case
- Plastic case for crimping dies
