带有标准接触器BATLVF120滤波器的自动电容器组
配件：漏电保护。
Automatic capacitor banks with filters with standard contactors BATLVF120
Accessories: Leakage protection.
| 额定电压 | 440 V 50 Hz – 60 Hz |
| 调节器 | 主 |
| 工作计划 | 10个选项 |
| 电容器 | 型号POLB HD 7％ |
| 反应堆 | 输入INR / INA |
| 保护步骤 | 断路器 |
| 防护等级 | IP21 |
| 颜色 | 灰色RAL 7035 |
| 安装 | 室内 |
| 部件 | 地板安装 |
| 外部TI | ?/ 5（不包括在内） |

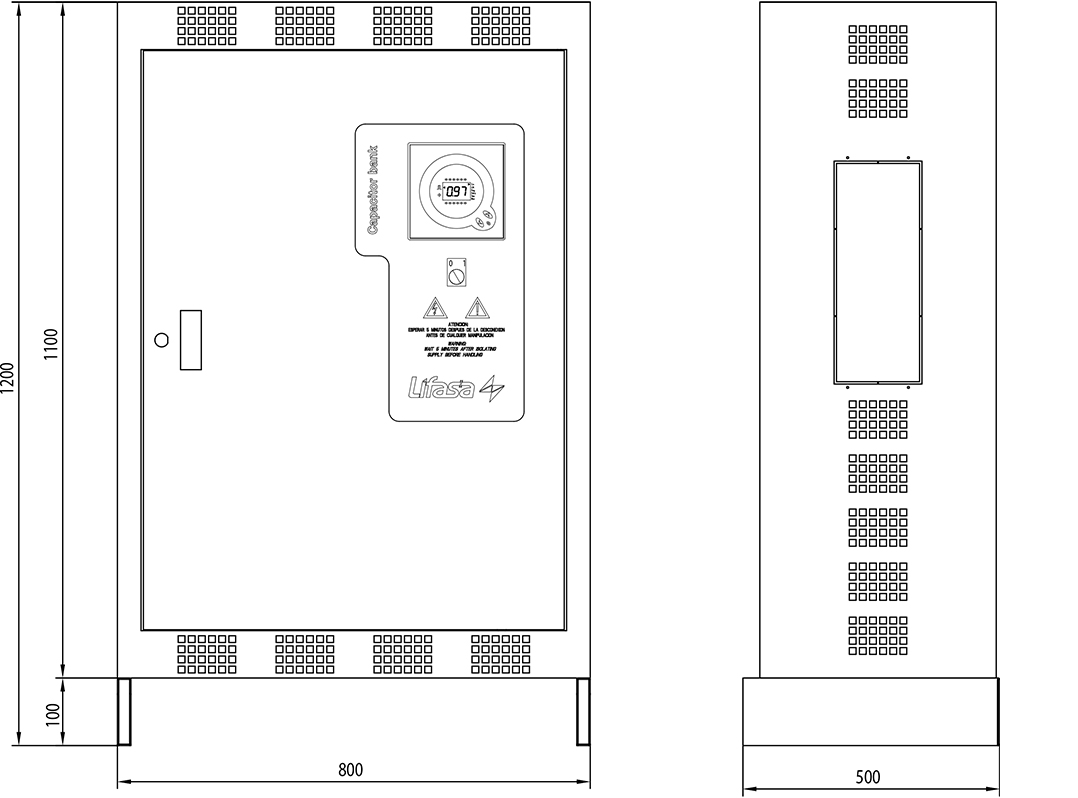

| 外形尺寸 | 800x1200x500mm |
根据要求提供其他功率，电压和频率。
| Rated voltages | 440 V 50 Hz – 60 Hz |
| Controller | Master |
| Working program | 10 options |
| Capacitors | Type POLB HD 7% |
| Reactors | Type INR/INA |
| Protection steps | Circuit breaker |
| Degree of protection | IP21 |
| Colour | Grey RAL 7035 |
| Installation | Indoor |
| Assembly | Floor mounting |
| External TI | ?/5 (not included) |
| Dimensions | 800x1200x500mm |
Other powers, voltages and frequencies on request.
| Part number | Qn(kvar) 440V | Composition | Steps | Program | Qn(kvar) 400V | Weight(kg) |
| BATLVF12440250 | 25 | 2×6.25+12.5 | 4×6.25 | 1.1.2. | 20.7 | 80 |
| BATLVF12440312 | 31.25 | 6.25+2×12.5 | 5×6.25 | 1.2.2. | 25.8 | 82 |
| BATLVF12440437 | 43.75 | 6.25+12.5+25 | 7×6.25 | 1.2.4. | 36.2 | 84 |
| BATLVF12440500 | 50 | 2×12.5+25 | 4×12.5 | 1.1.2. | 41.3 | 85 |
| BATLVF12440625 | 62.5 | 12.5+2×25 | 5×12.5 | 1.2.2. | 51.7 | 86 |
| BATLVF12440750 | 75 | 2×12.5+2×25 | 6×12.5 | 1.1.2. | 62 | 90 |
| BATLVF12440875 | 87.5 | 12.5+3×25 | 7×12.5 | 1.2.2. | 72.3 | 95 |
| BATLVF12440900 | 90 | 2×15+2×30 | 6×15 | 1.1.2. | 74.4 | 104 |
| BATLVF12441050 | 105 | 15+3×30 | 7×15 | 1.2.2. | 86.8 | 121 |
| BATLVF12441200 | 120 | 4×30 | 4×30 | 1.1.1. | 99.2 | 128 |
