绝缘钢芯铝绞线剪线钳

产品介绍:

·用于钢芯铝绞线的切割

·绝缘玻璃纤维钢手柄内填入防火防潮绝缘泡沫,安全耐用

·剪切口无毛刺

·剪切硬线流畅,尽可能保证切割顺利进行

ACSR16mm,钢缆16mm,铝缆24.5mm,软钢棒11mm,线绳16mm

规格型号:

产品编号说明重量(kg)
10-202全套切刀2.72
10-203替换手柄1.36

参数排版不规则,请参考上方图片上的参数。

INSULATED RATCHET CUTTERS
For cutting ACSR and Soft Wire conductors
Powerful lightweight ratchet cutter
Cutting heads are interchangeable
Operates in any position
Handle folds to store in 6 canister
Upper roller minimizes shaft deflection
Parts are standardized for easy replacement
Insulated fiberglass shaft and operating rod for maximum
safety and durability
Overhead – Provides cleans cuts for splicing conductors
Underground – Operates in a 5 wide trench
RATCHET CUTTER
COMPLETE WITH
A11055 ACSR HEAD
RATCHET CUTTER
COMPLETE WITH A11056
SOFT WIRE CUTTER HEAD
FT CAT NO LBS CAT NO LBS CASE
5 11-005 9.0 11-015 9.0 01-005
6 11-006 10.0 11-016 9.8 01-006
8 11-008 10.6 11-018 10.7 01-008
10 11-010 11.5 11-020 11.6 01-010

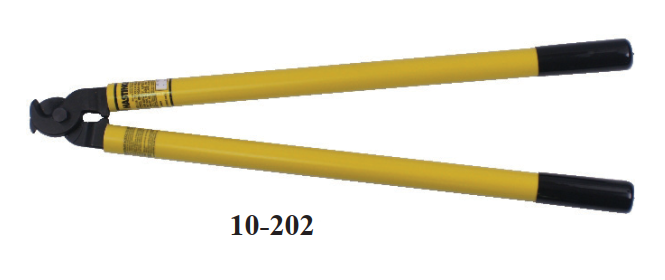

ACSR CABLE CUTTER WITH INSULATED
FIBERGLASS HANDLES
For cutting ACSR Cable, Soft Wire, Hard Wire
Replaceable fiberglass handles with blade
Handles filled with unicellular foam core
Smooth shear action cutter assures easy installation
of splicing sleeves
Handle length 27 Overall length 31 br /> CAT NO DESCRIPTION ACSR CABLE COPPER CABLE ALUMINUM
CABLE
LBS
10-202 COMPLETE
CUTTER
5/8 DIAMETER
336.4
5/8 DIAMETER
350 MCM
1 DIAMETER
750 MCM
6.0
10-203 REPLACEMENT HANDLE WITH BLADE 3.0

CUTTER HEADS
A11056 for soft wire – 1000 MCM Aluminum / 500 MCM Copper
A11055 for ACSR to 666-24/7 strand
