中型手动式棘轮切刀
中型手动式棘轮切刀
- 尺寸小于传统链形棘轮切刀
- 两种模式可选（软质导线或钢芯铝绞线）
- 重量轻·紧凑·分离式剪切头（热处理刀口）
- 可用于狭窄，受限制区域（电缆沟，检修孔等）
- 开启，关闭钳口为可调式
- 棘轮驱动机械装置可使手柄载重负荷将至最低
- 钢芯铝绞线上端刀头配有防护罩以防止飞屑
型号规格：
| 产品型号 | 描述 | 剪口最大张开范围 | 最大剪切能力 | 重量（kg） | 全长（cm） |
| 10-205 | 用于剪切钢芯铝绞线 | 5.08cm | 556ACSR/750kcmil | 1.9 | 48.26 |
| 10-206 | 用于剪切软质导线 | 6.03cm | 2000mcm | 1.8 | 47.63 |
| 10-207 | 用于剪切钢芯铝绞线 | 4.76cm | 954ACSR | 2.6 | 58.42 |
| 01-4001 | 配套工具箱 | 0.45 | 55.88 |

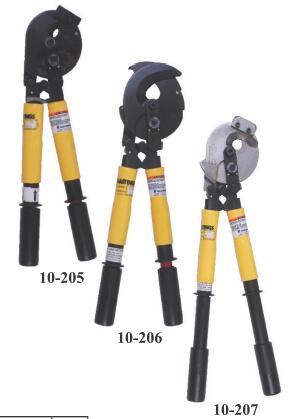

HAND OPERATED RATCHET CUTTERS
?? Three models to choose from
?? Soft Wire and ACSR
?? Smaller than the typical chain style ratchet cutter
?? Larger than the hand held style for inside electricians
?? Light weight
?? Offset cutting head
?? Selection lever to open or close jaws
?? Ratchet drive mechanism requires less force and leverage when
cutting
?? Handle plunger allows for fast advance or fast retraction
?? Heat treated jaws on all three models
?? ACSR Cutters include a keeper on the upper jaw to prevent
blade separation while cutting
?? Note: These cutters are not insulated live line tools.? Do not use
these cutters on energized conductor.
CAT NO | DESCRIPTION | OVERALL LENGTH | MAXIMUM JAW OPENING | MAXIMUM CABLE CUT | LBS |
10-205 | RATCHET CUTTER, ACSR | 19” | 2” | 556 ACSR / 750 KCMIL | 4.3 |
10-206 | RATCHET CUTTER, SOFT WIRE | 18.75” | 2.375” | 2000 MCM | 4.0. |
10-207 | RATCHET CUTTER, ACSR | 23” | 1.875” | 954 ACSR | 5.7 |
?01-4001 | ?CASE FOR 10-205 AND 10-206 | ?2.0 | |||
01-4002 | CASE FOR 10-207 | 2.0 | |||
