Multi-Purpose 6-in-1 Tool
1000
- Cuts and strips 8-22 AWG solid and 10-26 AWG stranded wire with built-in, knife-type wire cutter
- Cleanly shears machine screws
- Measures machine screw sizes
- Crimps insulated terminals and connectors
- Gauges wire sizes
- Plastic covered handles for comfort
多功能六合一工具
1000
- 切割和剥离8-22 AWG实心和10-26 AWG绞合线，内置刀形线切割器
- 干净地剪切机器螺丝
- 测量机器螺丝尺寸
- 压接绝缘端子和连接器
- 测量线尺寸
- 塑料有盖手柄舒适

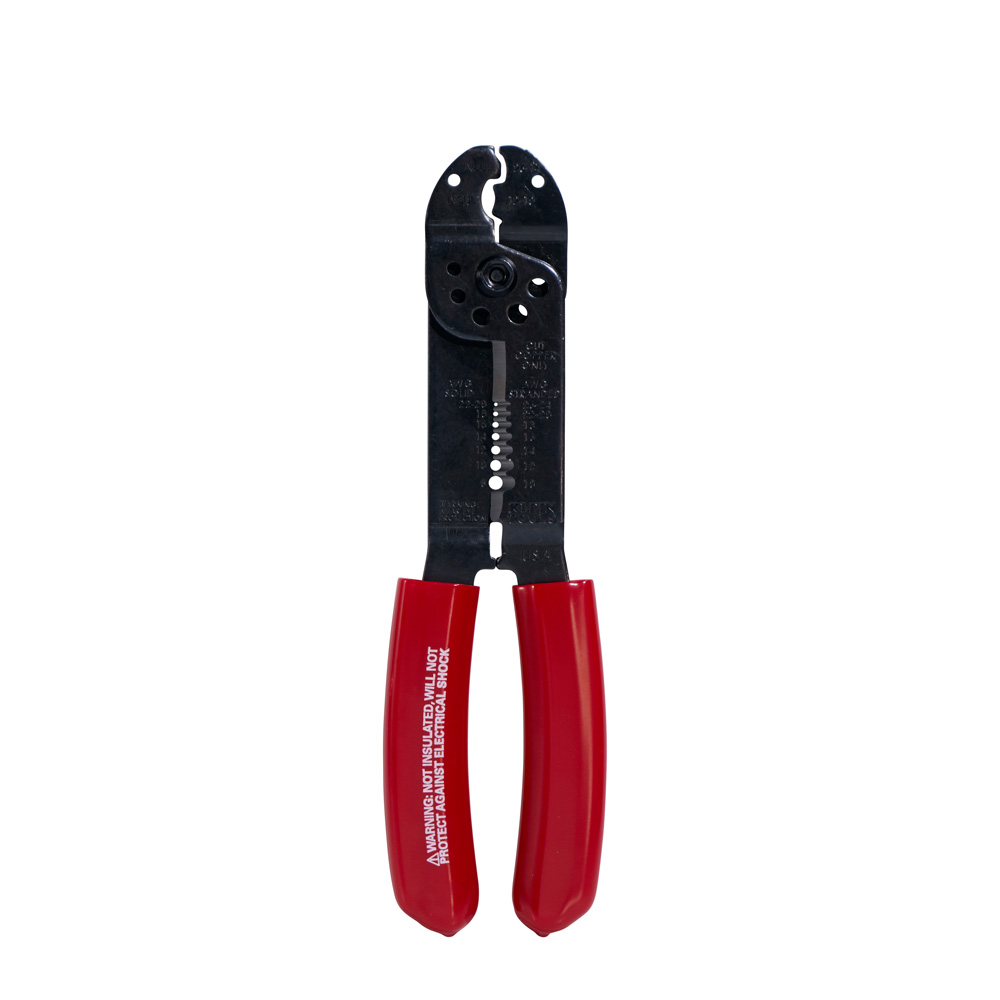

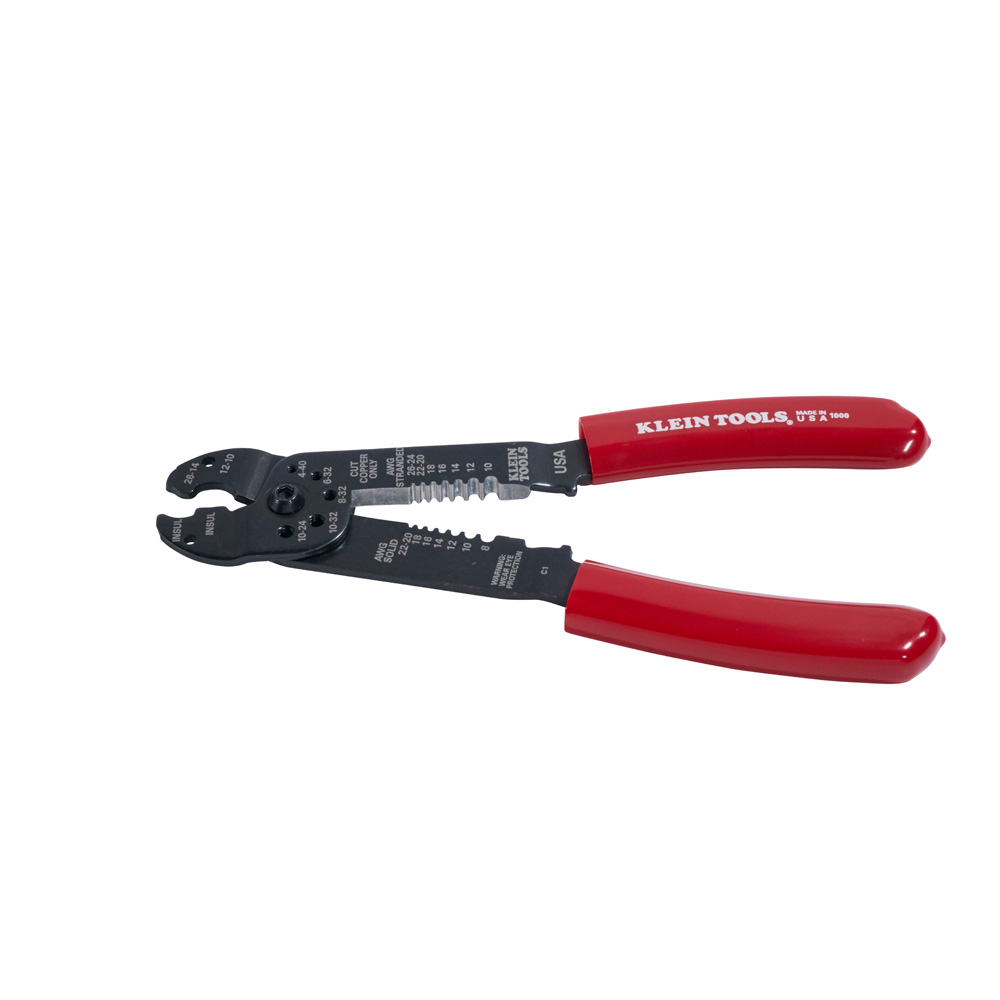

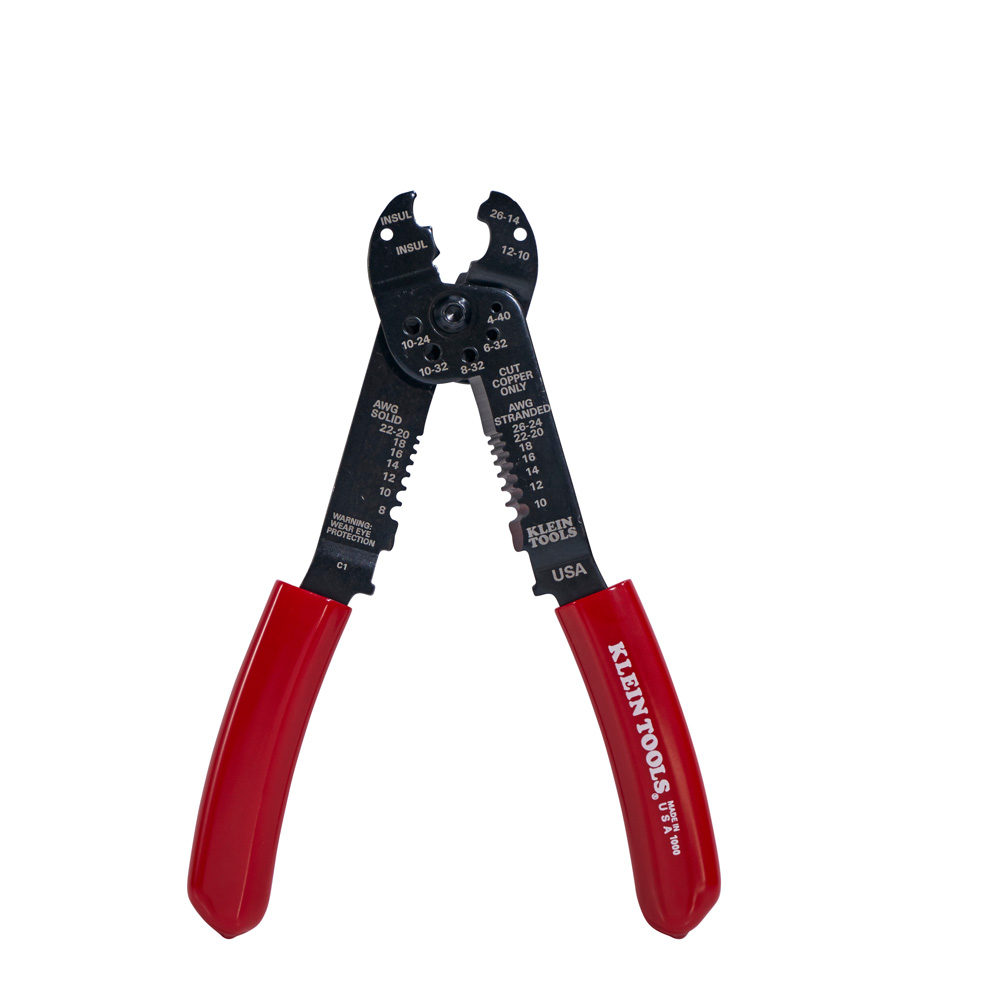

This Multi-Purpose tool performs 6 different functions with the same tool. It gauges, cuts and strips wire, measures and shears machine screws and crimps insulated terminals and connectors. Use the threaded holes to easily measure the size of a machine screw and cut it if needed. The plastic-covered handles are cushioned for added comfort.
Specifications
Application:
Cuts and Strips Wires
Strips and Cuts:
8-22 AWG Solid (6.0 mm-0.34 mm), 10-26 AWG Stranded (4.0 mm-1.0 mm)
Screw Shearing:
4-40, 6-32, 8-32, 10-24, 10-32
Crimping Capacity:
10-22 AWG
Cutting Capacity:
8-22 AWG Solid, 10-26 AWG Stranded
Overall Length:
7.75” (196.9 mm)
Handle Color:
Red
Weight:
0.44 lb (0.20 kg)
UPC:
092644744006
WARNINGS
- Always wear approved eye protection.
- NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
- Never use on or near live electrical circuits.
该多用途工具使用相同的工具执行6种不同的功能。它测量，切割和剥离电线，测量和剪切机器螺钉和压接绝缘端子和连接器。使用螺纹孔可以轻松测量机器螺钉的尺寸，并在需要时进行切割。塑料覆盖的手柄采用缓冲设计，增加了舒适感。
产品规格
应用：
切割和剥离电线
条带和切口：
8-22 AWG实心（6.0mm-0.34mm），10-26 AWG绞合（4.0mm-1.0mm）
螺丝剪切：
4-40,6-32,8-32,10-24,10-32
压接能力：
10-22 AWG
切割能力：
8-22 AWG固体，10-26 AWG搁浅
总长度：
7.75英寸（196.9毫米）
处理颜色：
红色
重量：
0.44磅（0.20千克）
UPC：
092644744006
警告
- 始终佩戴认可的护目镜。
- 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
- 切勿在带电电路上或附近使用。
