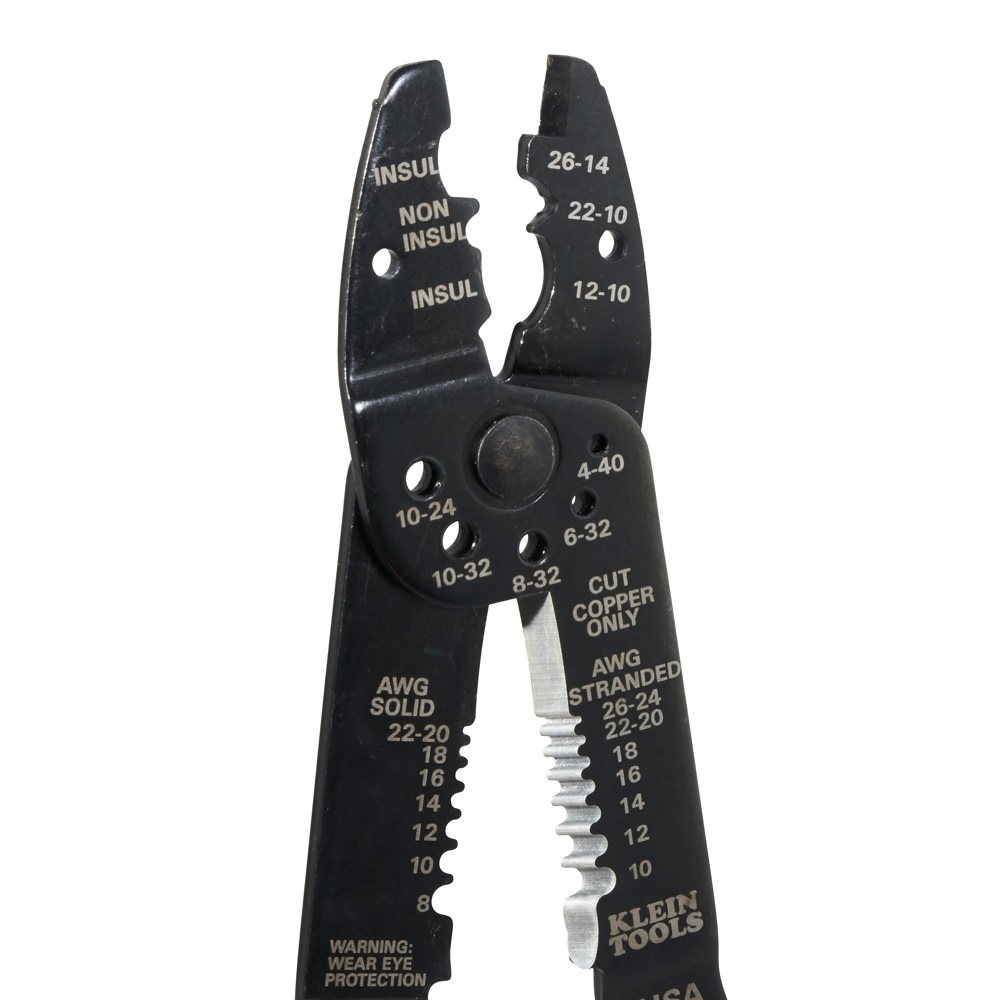

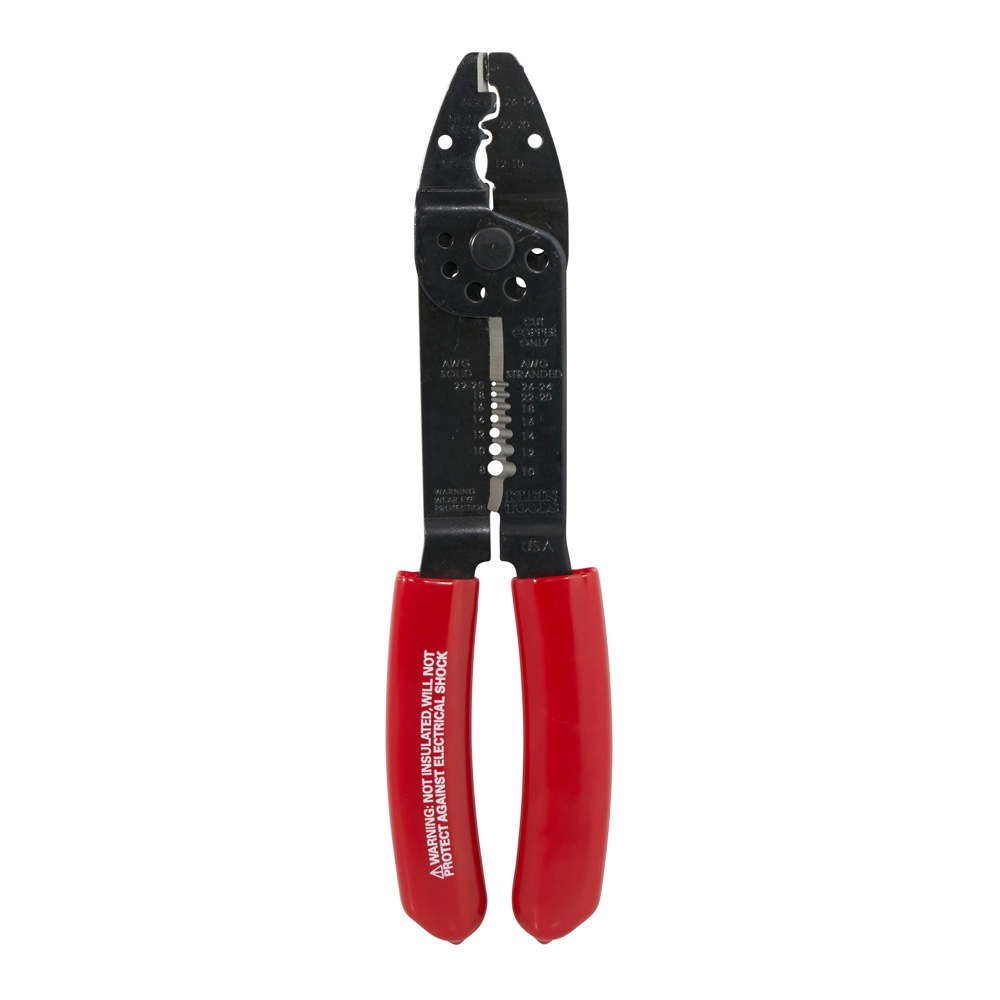

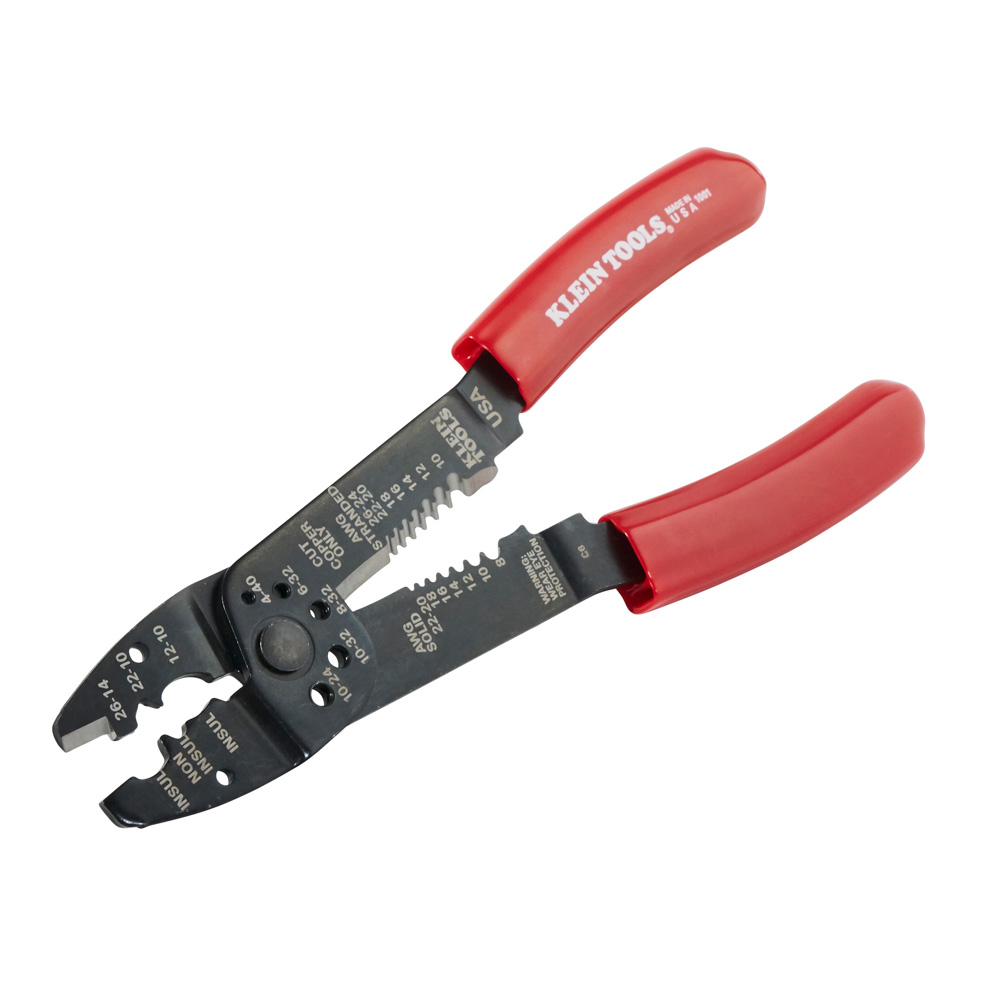

Multi-Purpose Electricians Tool 8-22 AWG

1001

  • Two wire cutters double the utility of this tool
  • Crimps 7-8 mm insulated and non-insulated terminals, lugs and splices
  • Cuts and strips 8-22 AWG solid and 10-26 AWG stranded wire
  • Cleanly shears bolts
  • Pivot nut adjusts tension
  • Full-sized, plastic-covered cushioned handles for comfort
  • Wire cutter in nose and below pivot
  • Crimping dies color-coded for easy identification

多功能电工工具8-22 AWG

1001

  • 两个剪线钳使这个工具的效用翻倍
  • 压接7-8毫米绝缘和非绝缘端子，接线片和接头
  • 切割和剥离8-22 AWG实心和10-26 AWG绞合线
  • 干净地剪断螺栓
  • 枢轴螺母调节张力
  • 全尺寸塑料覆盖软垫手柄，带来舒适感
  • 剪线在鼻子和下面的枢轴
  • 压接模具采用颜色编码，便于识别
Specifications
Application:
Cuts and Strips 8 – 22 AWG Solid and 10-26 AWG Stranded Wire; Shears Bolts; Crimps 7-8 mm Terminals, Lugs and Splices
Strips and Cuts:
8-22 AWG Solid (6.0 mm-0.34 mm), 10-26 AWG Stranded (4.0 mm-1.0 mm)
Screw Shearing:
4-40, 6-32, 8-32, 10-24, 10-32
Crimping Capacity:
10-22 AWG
Cutting Capacity:
8-22 AWG Solid, 10-26 AWG Stranded
Overall Length:
8.5” (215.9 mm)
Handle Color:
Red
Weight:
0.47 lb (0.21 kg)
UPC:
092644744013
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
  • Never use on or near live electrical circuits.
产品规格
应用：
切割和剥离8 – 22 AWG实心和10-26 AWG绞合线;剪螺栓;压接7-8 mm端子，接线片和接头
条带和切口：
8-22 AWG实心（6.0mm-0.34mm），10-26 AWG绞合（4.0mm-1.0mm）
螺丝剪切：
4-40,6-32,8-32,10-24,10-32
压接能力：
10-22 AWG
切割能力：
8-22 AWG固体，10-26 AWG搁浅
总长度：
8.5英寸（215.9毫米）
处理颜色：
红色
重量：
0.47磅（0.21千克）
UPC：
092644744013
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
  • 切勿在带电电路上或附近使用。
