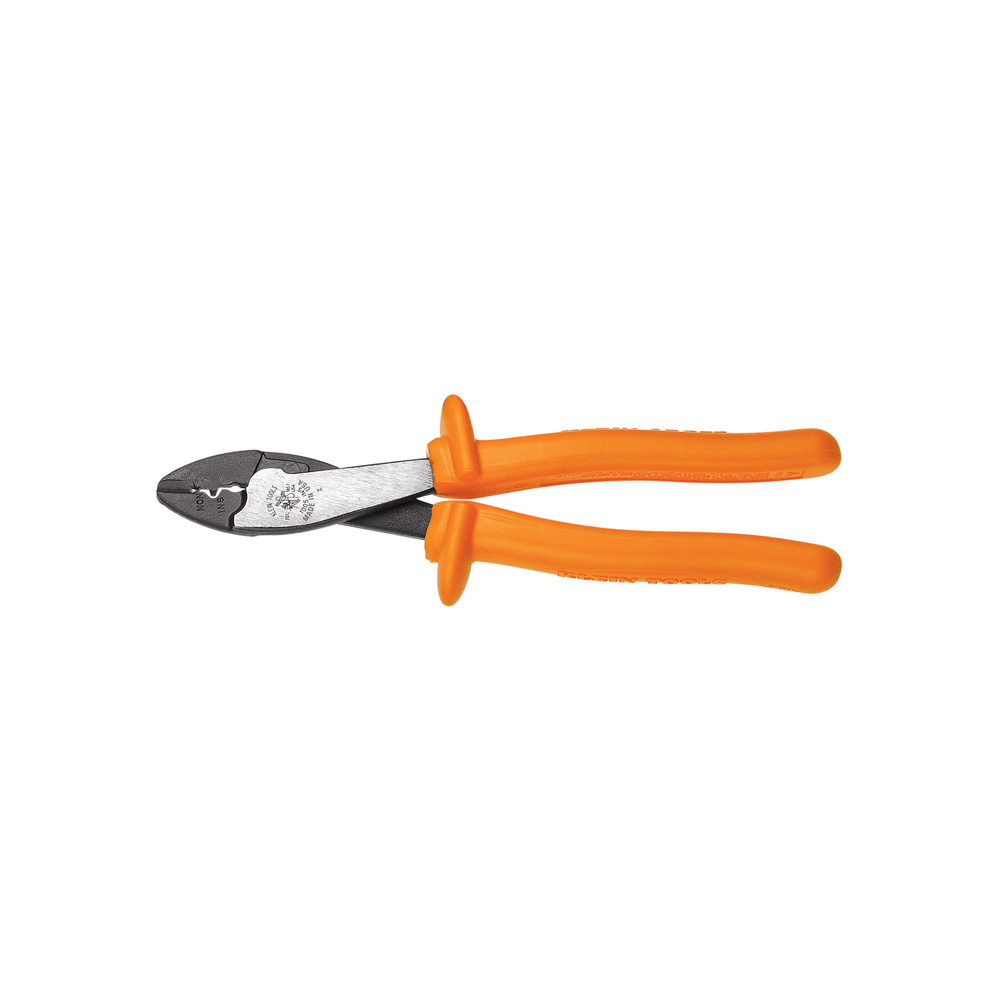

Insulated Crimping/Cutting Tool

1005-INS

  • For insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • A flame retardant, impact-resistant, bright orange outer coating
  • Tapered nose designed for working in confined spaces
  • Crimping dies marked for insulated and non-insulated solderless terminals and connectors
  • Accommodates wire from No. 10 to 22 AWG
  • Wire cutter in nose
  • Integral guards help prevent hand contact with conductive parts

绝缘压接/切割工具

1005-INS

  • 用于绝缘工具,并清楚标明官方的1000伏额定值符号
  • 两层绝缘层可提供电击保护
  • 厚厚的,坚韧的高介电白色内涂层粘合在工具上
  • 阻燃,抗冲击,亮橙色外涂层
  • 锥形鼻设计用于在狭窄空间内工作
  • 压接模具标记为绝缘和非绝缘无焊端子和连接器
  • 可容纳10至22 AWG的电线
  • 剪线钳在鼻子里
  • 整体防护装置有助于防止手与导电部件接触
Specifications
Application:
10-22 AWG Insulated and Non-Insulated Solderless Terminals and Connectors
Special Features:
Flame Retardant and Impact Resistant Handle
Material:
Induction Hardened Steel
Insulated:
Yes
Joint Type:
Hot-Riveted
Nose Type:
Tapered
Crimps:
10-22 AWG
Handle Color:
Orange
Handle Finish:
2-Layer
Handle Material:
High-Dielectric Plastic Cushion Grip
Overall Length:
9.75” (247.7 mm)
Weight:
1.0 lb (0.5 kg)
UPC:
092644742057
WARNINGS
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
产品规格
应用:
10-22 AWG绝缘和非绝缘无焊端子和连接器
特殊功能:
阻燃和抗冲击手柄
材料:
感应淬火钢
绝缘:
关节类型:
热铆接
鼻型:
圆锥
卷曲:
10-22 AWG
处理颜色:
橙子
处理完成:
2层
手柄材质:
高介电塑料缓冲夹
总长度:
9.75英寸(247.7毫米)
重量:
1.0磅(0.5千克)
UPC:
092644742057
警告
  • 如果工具有可能与带电源接触,则仅使用标有上述官方国际1000伏额定值符号的工具。
  • 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
  • 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
  • 佩戴认可的眼睛保护。
  • 由于水分,薄膜或其他表面污染物具有导电性,因此Klein绝缘工具必须保持清洁,干燥且无任何表面污染物。
  • 使用前请务必检查工具。如果绝缘材料以任何方式损坏,则销毁工具。
