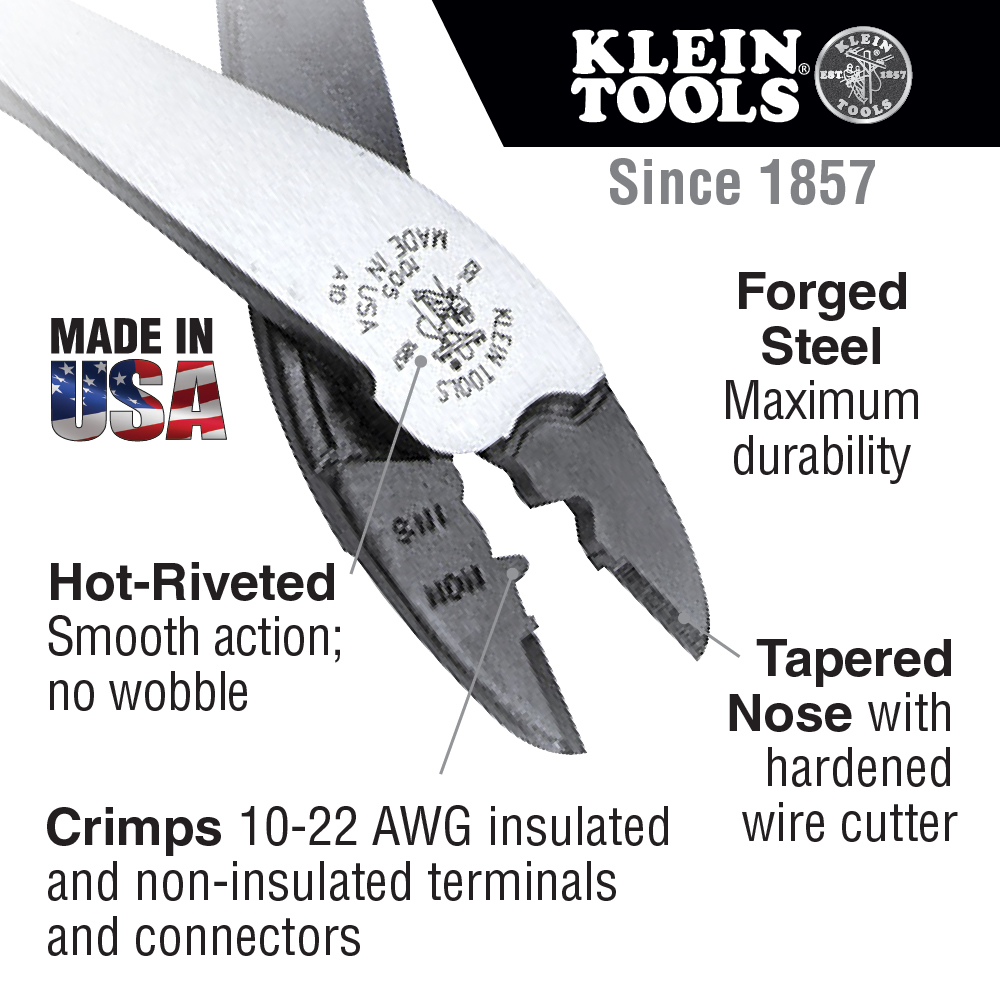

Crimping and Cutting Tool for Connectors
1005
- Crimps 10 to 22 AWG insulated and non-insulated terminals
- Specially hardened wire cutter in nose
- Tapered nose design for working in confined spaces
- Crimping die marked for insulated and non-insulated solderless terminals and connectors
- Plastic-dipped, cushioned handles for comfort
连接器用压接和切割工具
1005
- 压接10至22 AWG绝缘和非绝缘端子
- 鼻子用硬化线切割机
- 锥形鼻设计适合在狭窄空间内工作
- 压接模具标记为绝缘和非绝缘无焊端子和连接器
- 塑料浸渍,软垫手柄,舒适

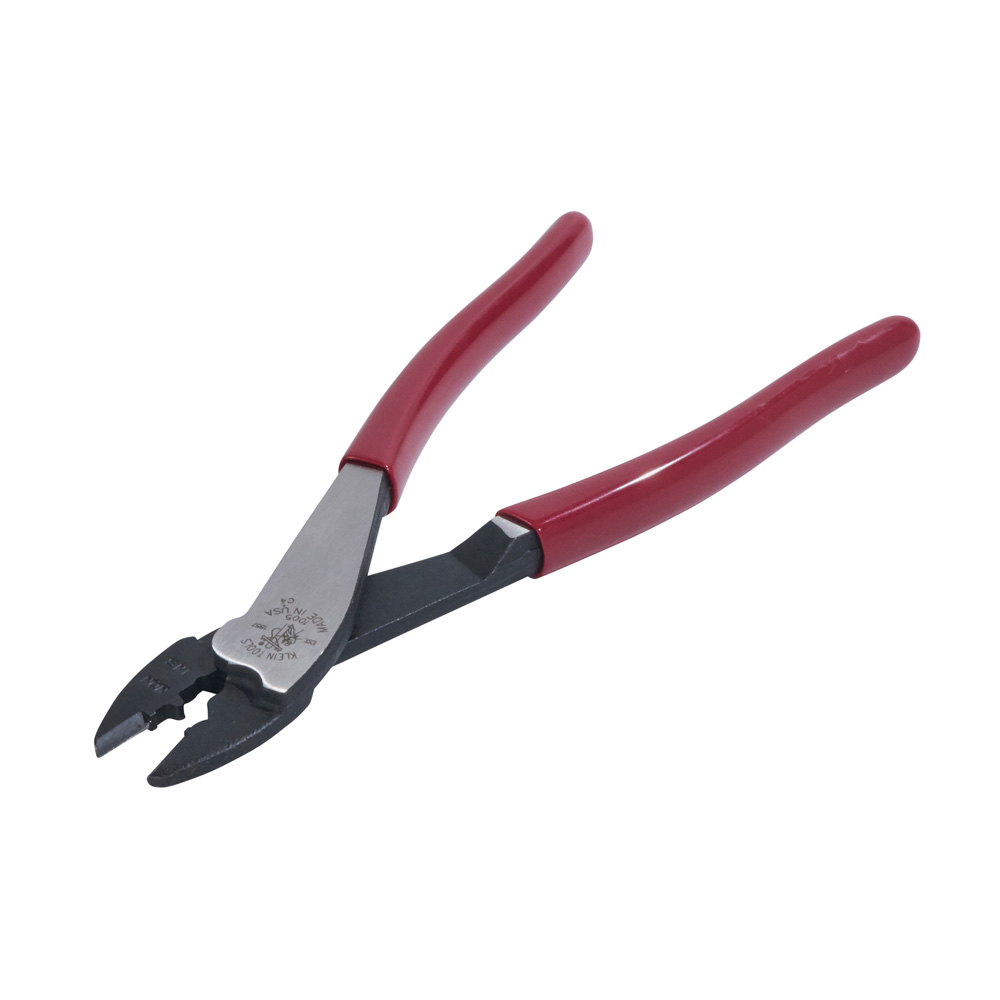

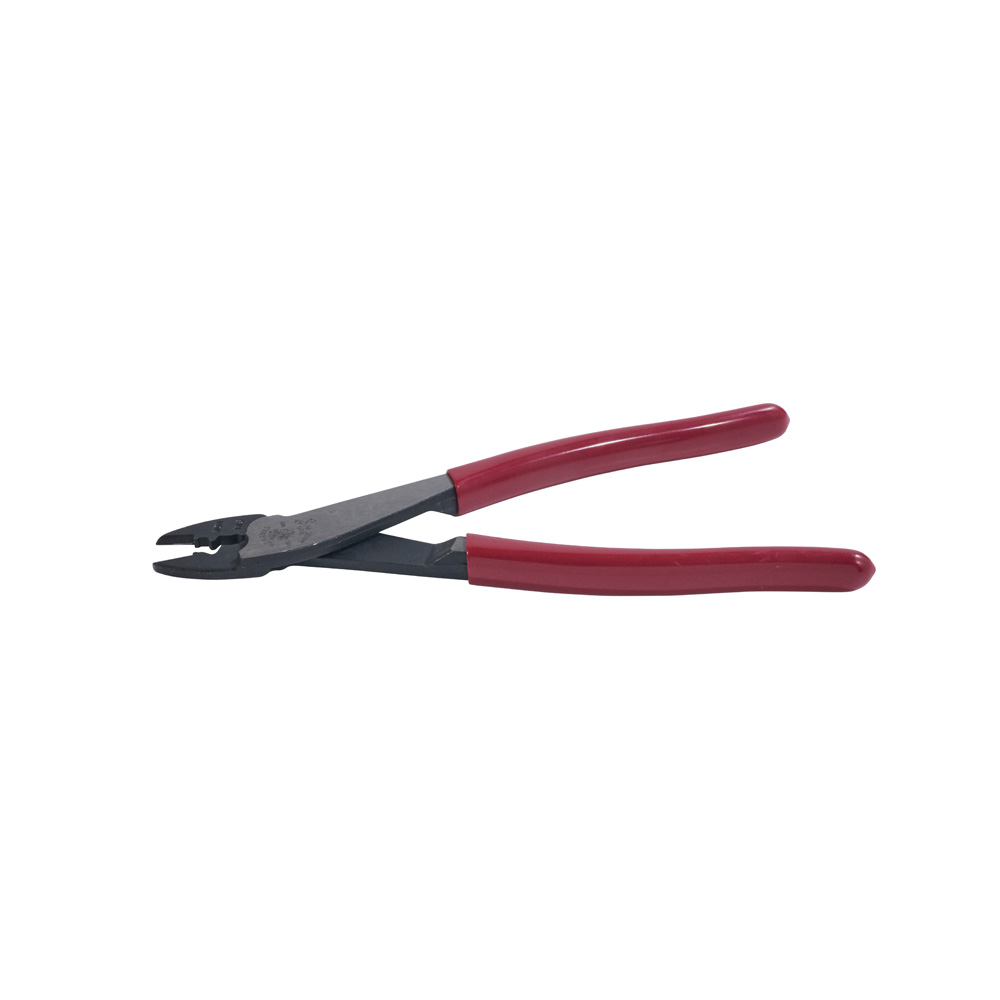

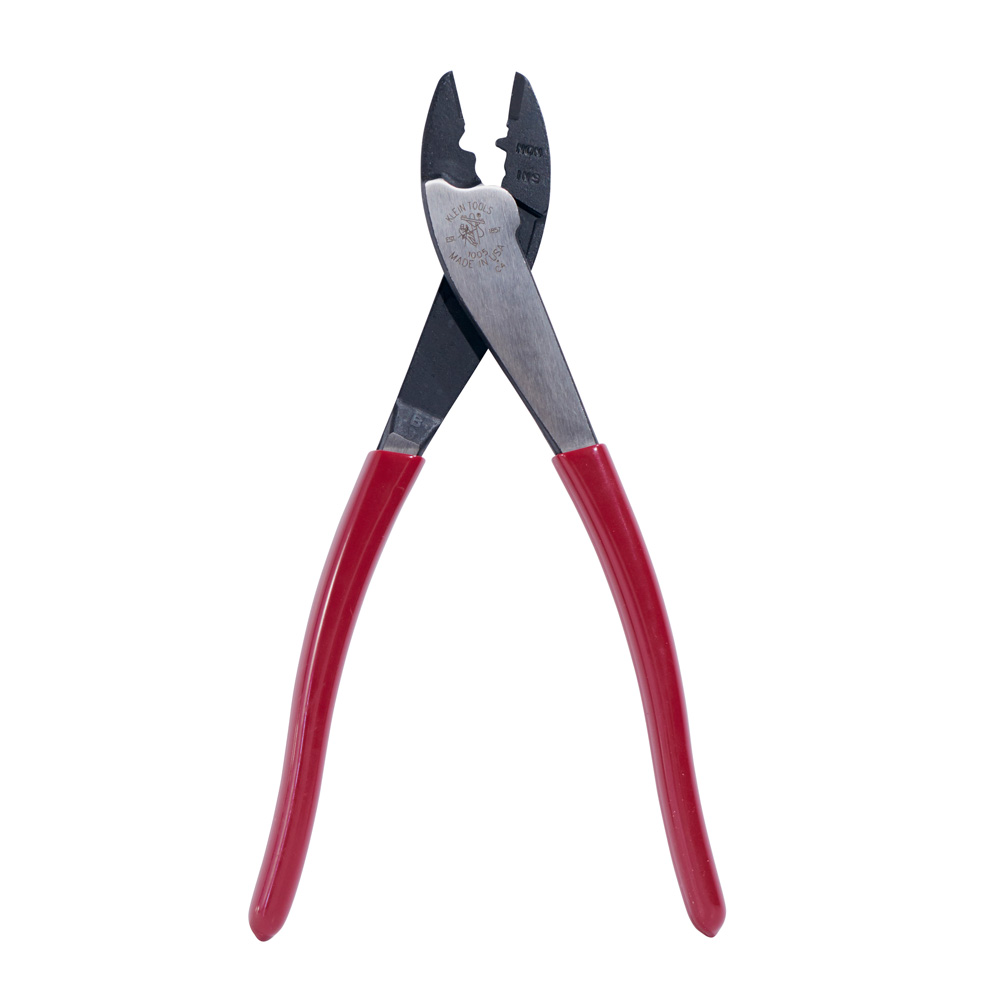

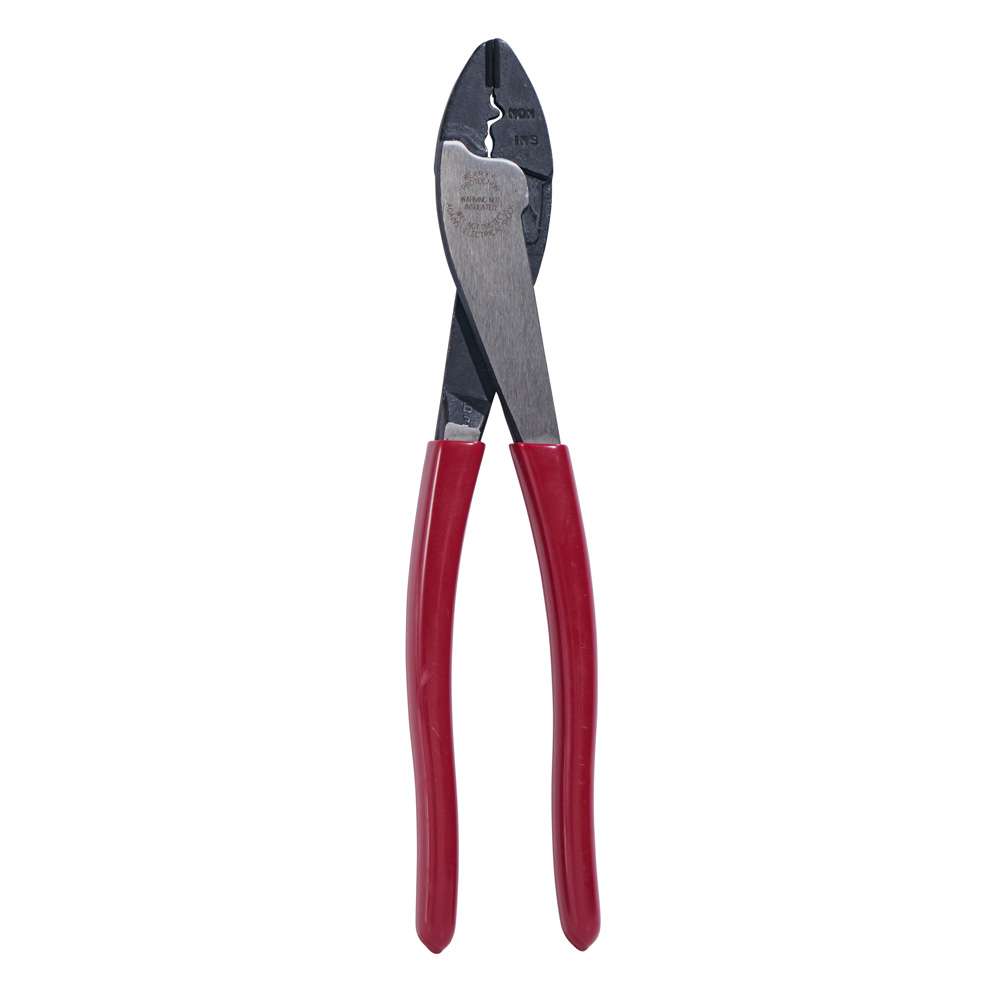

The Klein Tools Crimping and Cutting Tool crimps both insulated and non-insulated 10-22 AWG terminals and connectors. The tapered nose which is great when working in tight spaces. The wire cutter in the nose specially hardended for long life.
Specifications
Application:
Cuts and Crimps Wire 10-22 AWG
Cutting Capacity:
10-22 AWG
Crimps:
10-22 AWG (4.0 mm?-0.34 mm?) Insulated and Non-Insulated terminals
Handle Color:
Red
Handle Finish:
Plastic-Dipped
Overall Length:
9.75” (247.7 mm)
Weight:
0.80 lb (0.36 kg)
UPC:
092644742040
WARNINGS
- Always wear approved eye protection.
- NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
Klein工具压接和切割工具可压接绝缘和非绝缘10-22 AWG端子和连接器。锥形鼻子在狭小空间工作时很棒。鼻子中的剪线器经过特殊硬化处理,使用寿命长。
产品规格
应用:
切割和压接电线10-22 AWG
切割能力:
10-22 AWG
卷曲:
10-22 AWG(4.0mm?-0.34mm?)绝缘和非绝缘端子
处理颜色:
红色
处理完成:
塑料浸
总长度:
9.75英寸(247.7毫米)
重量:
0.80磅(0.36千克)
UPC:
092644742040
警告
- 始终佩戴认可的护目镜。
- 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
