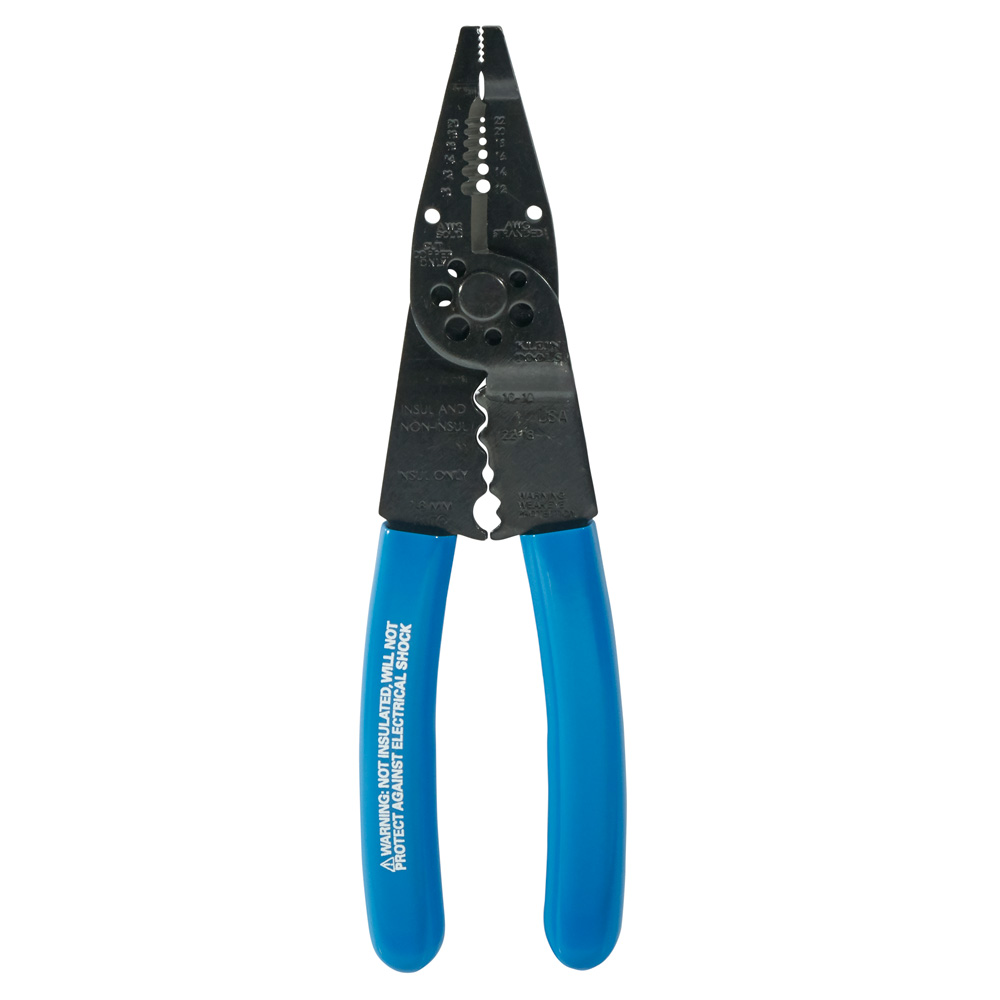

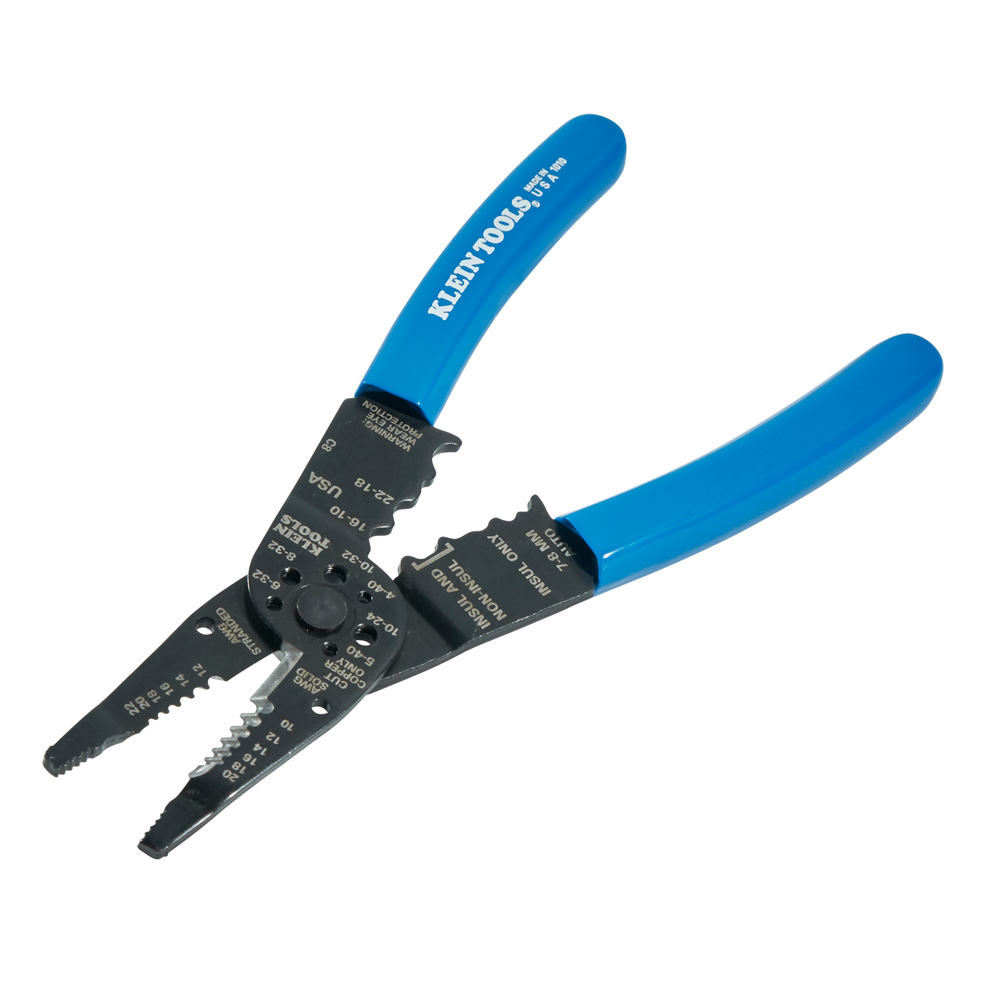

Long-Nose Multi-Purpose Tool

1010

  • Easily cuts and strips 10-22 AWG wire
  • Narrow, serrated plier jaws pull, loop and bend wire
  • Cleanly shears 4-40, 5-40, 6-32, 10-32 and 10-24 screws
  • Cutters and strippers are in front of the pivot to easily reach into tight places
  • Crimps insulated, non-insulated terminals and 7-8 mm ignition terminals
  • Plastic-covered cushioned handles for comfort

长鼻多用途工具

1010

  • 轻松切割和剥离10-22 AWG电线
  • 狭窄的锯齿形钳口拉动,环绕和弯曲金属丝
  • 清洁地剪切4-40,5-40,6-32,10-32和10-24螺钉
  • 刀具和剥离器位于枢轴前方,可轻松伸入狭窄的位置
  • 压接绝缘,非绝缘端子和7-8 mm点火端子
  • 塑料覆盖软垫手柄,舒适

The Klein Tools Long Nose All-Purpose Tool handles a wide range of functions, from wire and bolt cutting to stripping and crimping. The cutting and stripping holes are positioned in front of the pivot to easily fit into tight spaces. Plastic-covered cushioned handles make this tool comfortable to use.

Specifications
Application:
10 – 20 AWG, 12 – 22 AWG
Strips and Cuts:
10-20 AWG Solid, 12-22 AWG Stranded
Screw Shearing:
4-40, 5-40, 6-32, 8-32, 10-32, 10-24
Crimping Capacity:
10-22 AWG
Cutting Capacity:
10-20 AWG Solid, 12-22 AWG Stranded
Overall Length:
8.25” (209.6 mm)
Handle Color:
Blue
Weight:
0.43 lb (0.20 kg)
UPC:
092644744044
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
  • Never use on or near live electrical circuits.

Klein Tools长鼻子多用途工具可处理各种功能,从电线和螺栓切割到剥离和压接。切割和剥离孔位于枢轴前方,可轻松安装在狭小空间内。塑料覆盖的软垫手柄使这款工具使用起来舒适。

产品规格
应用:
10 – 20 AWG,12 – 22 AWG
条带和切口:
10-20 AWG固体,12-22 AWG搁浅
螺丝剪切:
4-40,5-40,6-32,8-32,10-32,10-24
压接能力:
10-22 AWG
切割能力:
10-20 AWG固体,12-22 AWG搁浅
总长度:
8.25”(209.6 mm)
处理颜色:
蓝色
重量:
0.43磅(0.20千克)
UPC:
092644744044
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
  • 切勿在带电电路上或附近使用。
