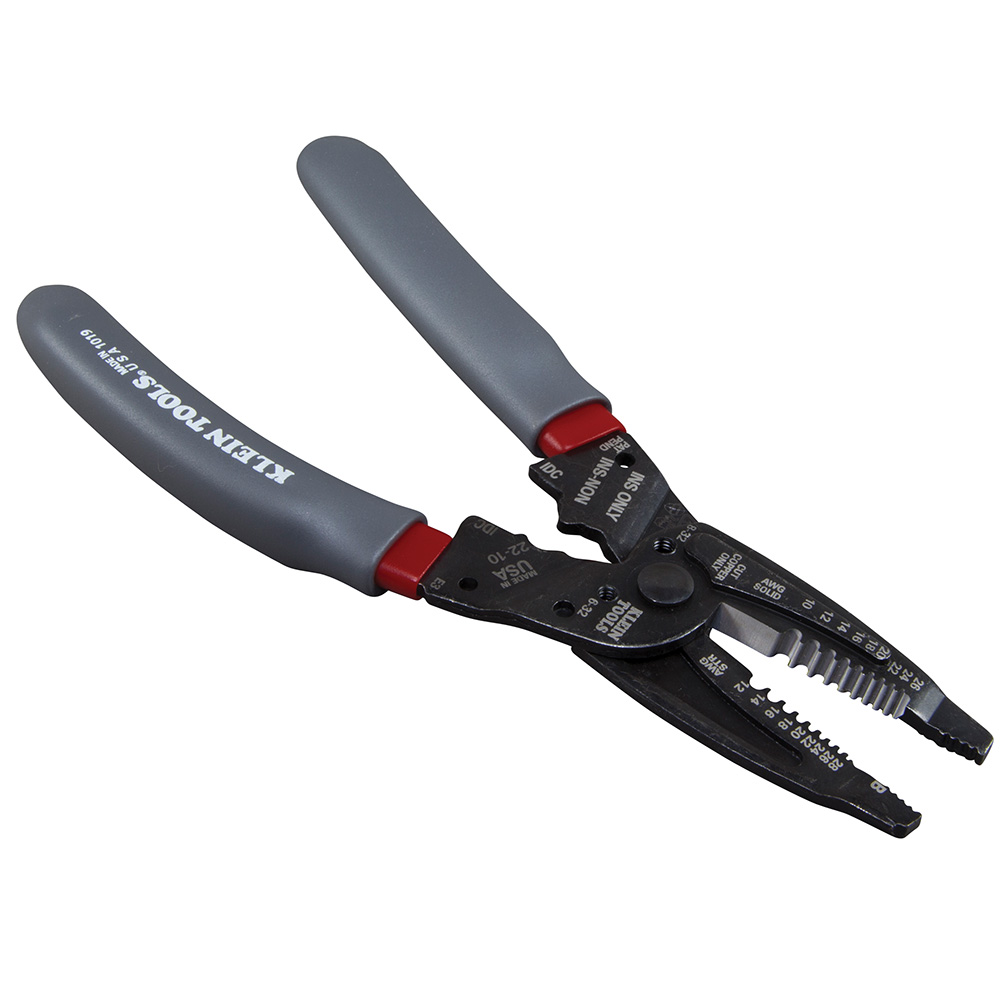

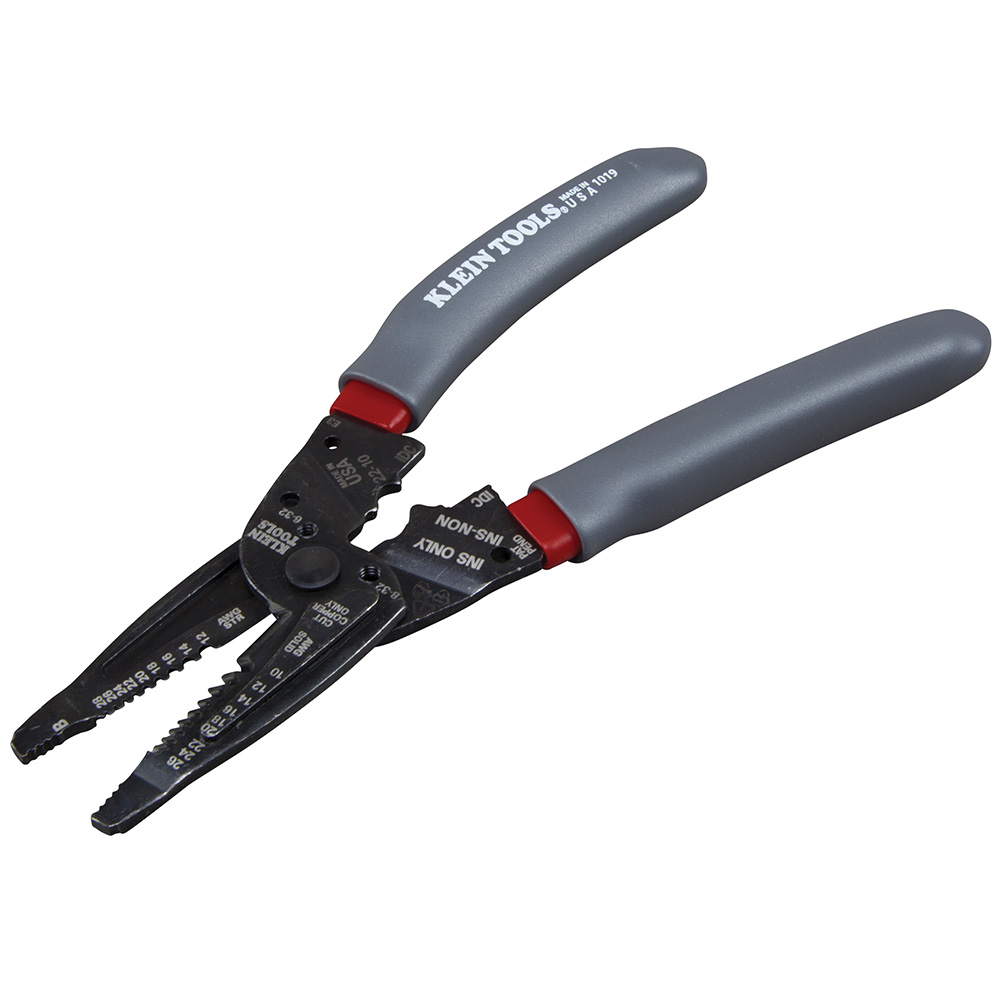

Klein-Kurve Wire Stripper/Crimper Multi-Tool

1019

  • Strips 10-26 AWG solid and 12-28 AWG stranded wire
  • Crimps 10-22 AWG insulated and non-insulated terminals
  • Crimps B connectors

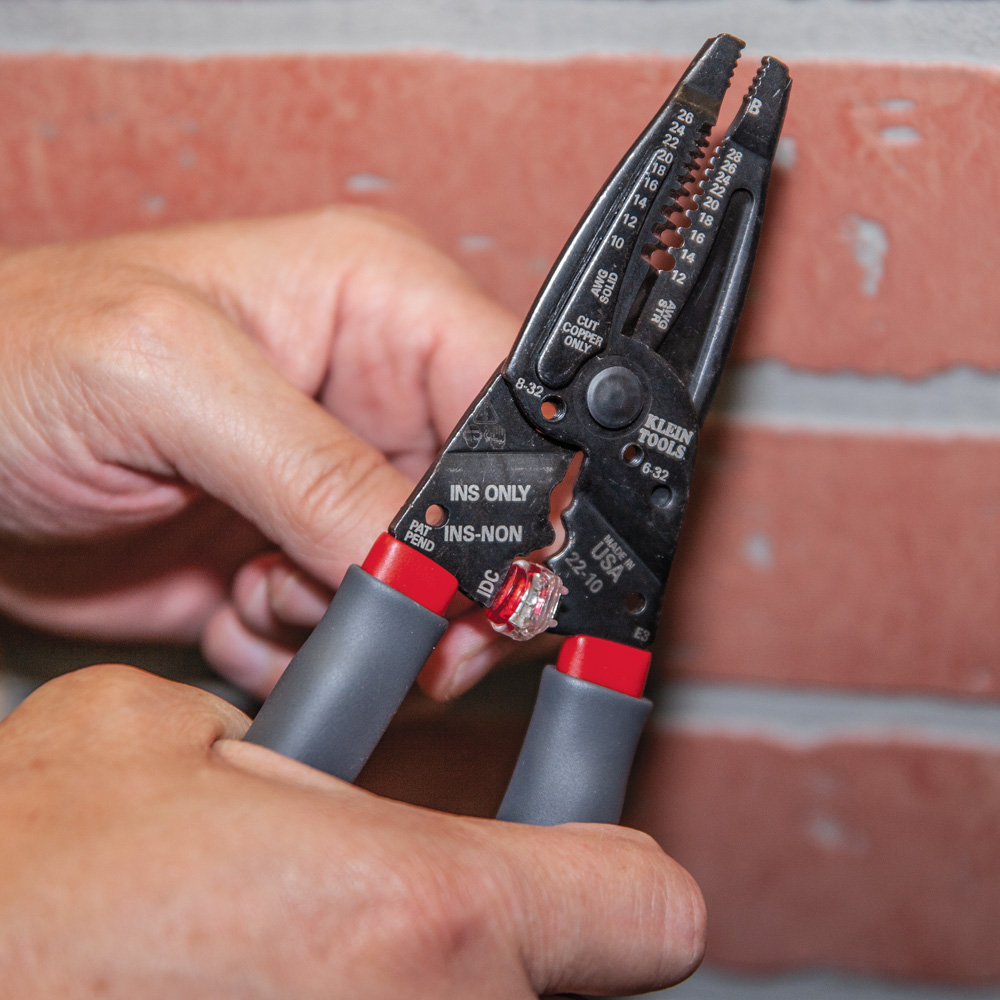

  • Crimps Scotchlok IDC connectors
  • Reinforced head reduces flex
  • Cleanly shears 6-32 and 8-32 screws
  • Precision shear-type cutting blades for easier cutting
  • Loops and twists wire
  • Double dipped Klein Kurve comfort grips
  • Made in U.S.A.

Klein-Kurve剥线钳/压接机多工具

1019

  • 剥离10-26 AWG实心和12-28 AWG绞合线
  • 压接10-22 AWG绝缘和非绝缘端子
  • 压接B连接器
  • 压接Scotchlok IDC连接器
  • 加强头减少弯曲
  • 干净地剪6-32和8-32螺丝
  • 精密剪切型切割刀片,便于切割
  • 循环和扭曲线
  • 双浸KleinKurve舒适握把
  • 美国制造

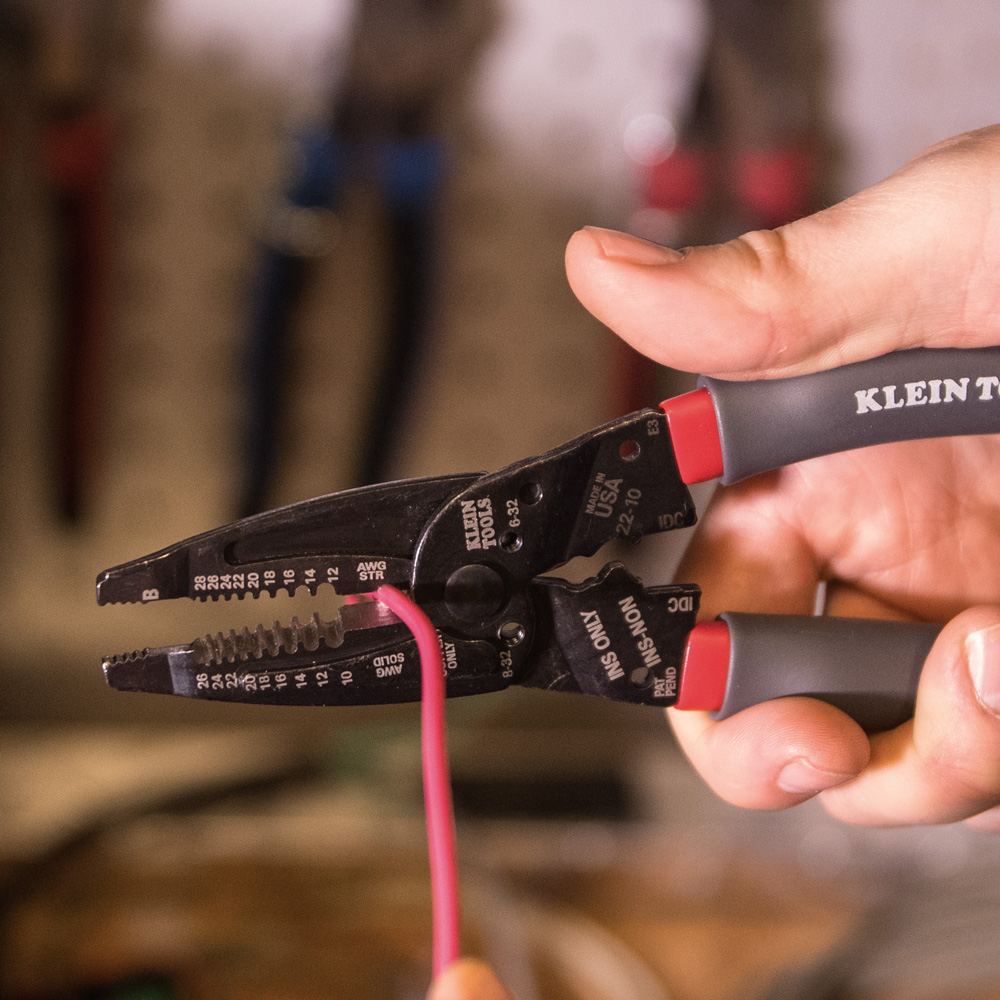

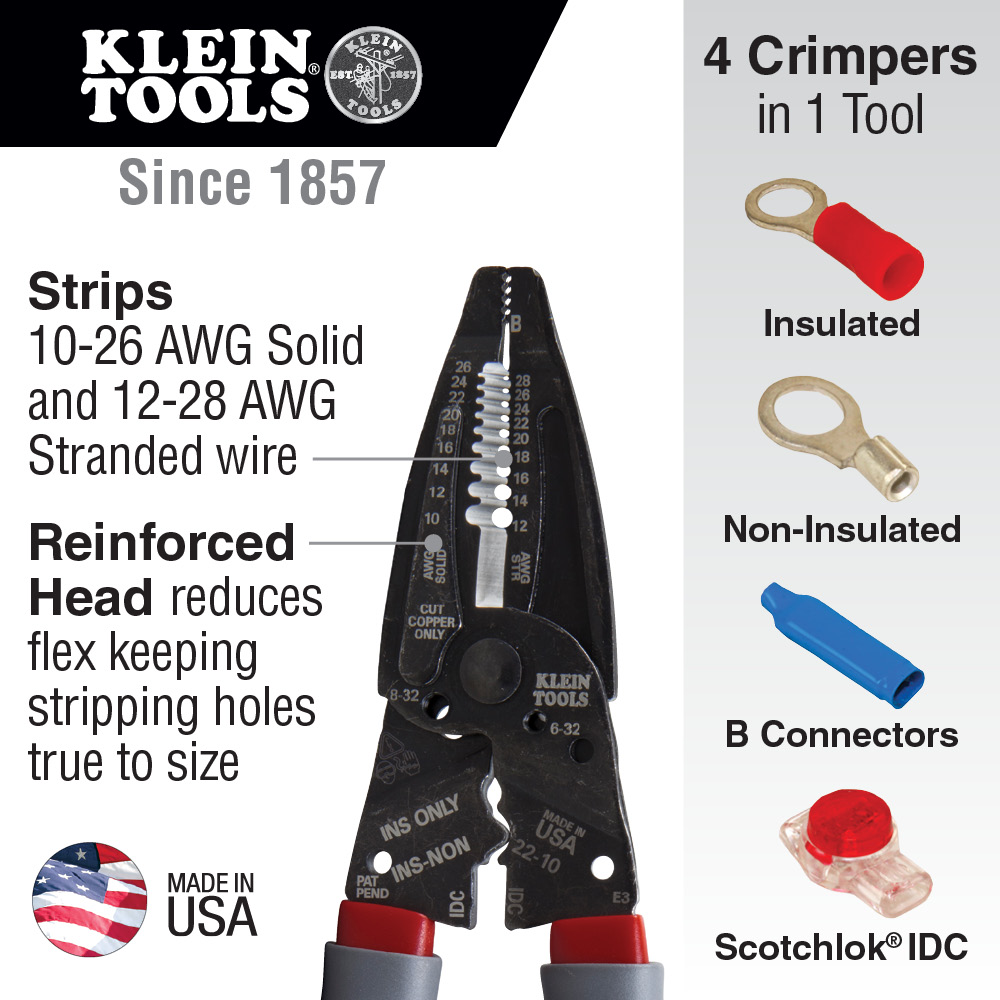

Strip, cut, twist, shear and crimp with one tool. Features four dedicated crimpers for B connectors, insulated and non-insulated terminals plus Scotchlok IDC connectors. This versatile tool twists, loops and strips 10-26 AWG solid and 12-28 AWG stranded wires and cleanly shears 6-32 and 8-32 screws. The reinforced head reduces flex keeping stripping holes sharp. The design is optimized for ideal leverage when stripping and crimping.

Specifications
Type:
Multi Tool
Application:
Cuts, Strips and Crimps Wires
Special Features:
4 Crimpers in One Tool
Material:
Steel
Strips and Cuts:
10-26 AWG Solid and 12-28 AWG Stranded
Screw Shearing:
6-32 and 8-32
Crimping Capacity:
10-22 AWG Insulated and Non-insulated Terminals; B-Connectors; Scotchlok IDC Connectors
Cutting Capacity:
10-26 AWG Solid and 12-28 AWG Stranded
Overall Length:
7.75” (196.9 mm)
Handle Color:
Gray/Red
Weight:
0.34 lb (0.15 kg)
UPC:
092644745072
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
  • Never use on or near live electrical circuits.
  • DO NOT use to cut steel wire.

使用一个工具剥离,切割,扭曲,剪切和压接。具有四个压接器,用于B连接器,绝缘和非绝缘端子以及Scotchlok IDC连接器。这种多功能工具可以扭曲,缠绕和剥离10-26 AWG实心和12-28 AWG绞合线,并可以干净地剪切6-32和8-32螺钉。增强头减少了弯曲保持剥离孔的锐利。该设计经过优化,可在剥离和压接时实现杠杆作用。

产品规格
类型:
多功能工具
应用:
切割,剥离和压接电线
特殊功能:
4个工具中的压接器
材料:
条带和切口:
10-26 AWG固体和12-28 AWG搁浅
螺丝剪切:
6-32和8-32
压接能力:
10-22 AWG绝缘和非绝缘端子;?B-连接器;?Scotchlok IDC连接器
切割能力:
10-26 AWG固体和12-28 AWG搁浅
总长度:
7.75英寸(196.9毫米)
处理颜色:
灰色/红色
重量:
0.34磅(0.15千克)
UPC:
092644745072
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
  • 切勿在带电电路上或附近使用。
  • 切勿用于切割钢丝。
