Insulated Wire Stripper and Cutter

11045-INS

  • Individually dielectrically tested
  • Gauges, cuts, strips and loops wire
  • Spring-loaded for self-opening
  • Compact, lightweight wire-stripping, cutting tool
  • Narrow nose fits into tight places
  • Hardened spring steel with precision-ground stripping holes for easy removal of insulation

绝缘剥线钳和切割机

11045-INS

  • 单独进行介电测试
  • 仪表,切割,条带和环线
  • 弹簧式自动开启
  • 紧凑,轻巧的剥线,切割工具
  • 狭窄的鼻子适合狭窄的地方
  • 硬化弹簧钢,带有精密研磨的剥离孔,便于拆除绝缘层

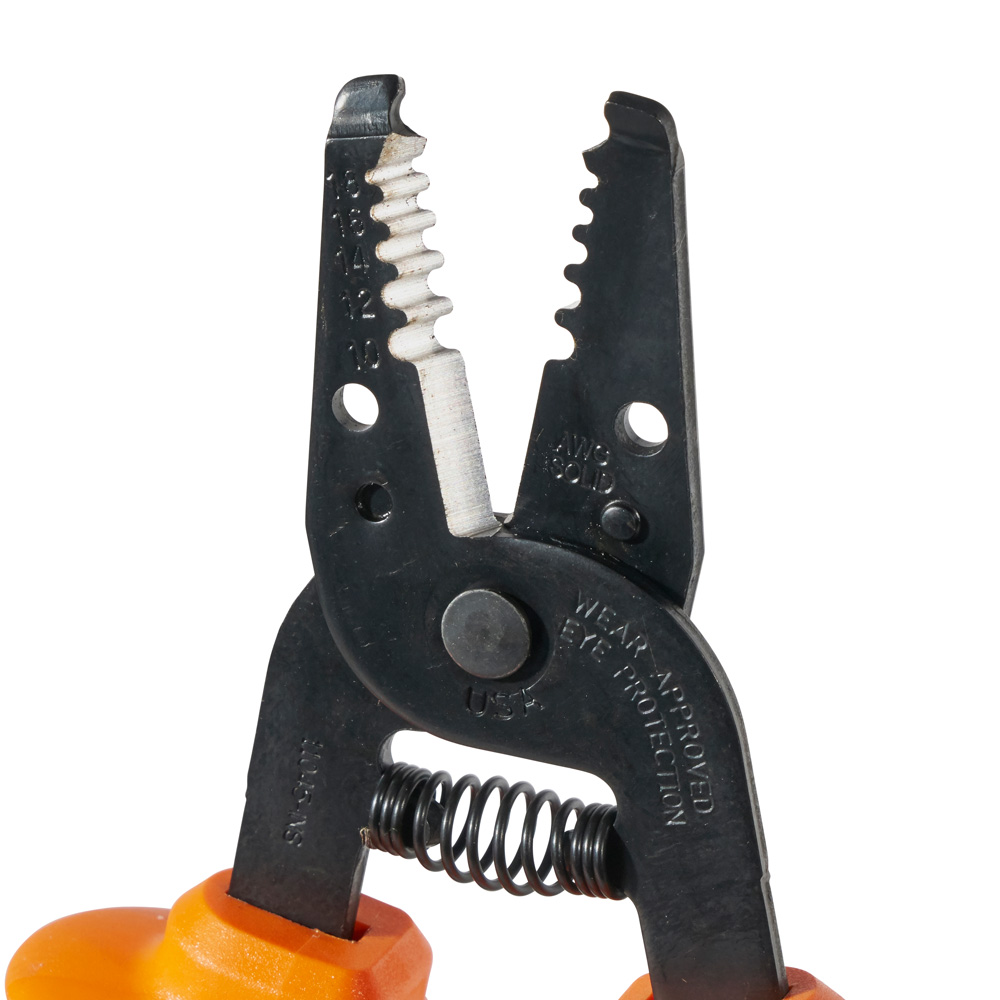

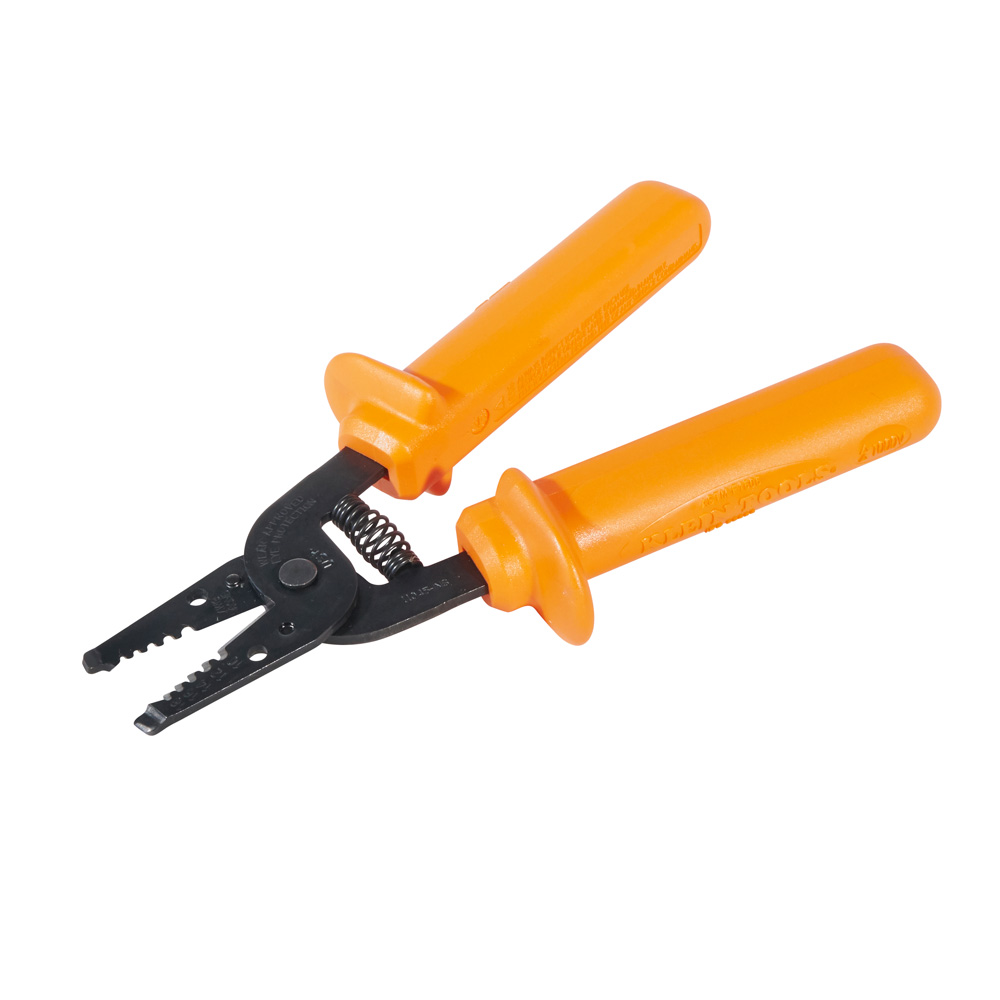

This compact, lightweight wire-stripping, cutting tool cuts, strips, loops and gauges 10-18 AWG solid wire. Dual layer orange-over-white insulation protects against electric shock. Insulated tools are clearly marked with the official 1000-volt rating symbol. Hardened spring steel with precision-ground stripping holes for easy removal of insulation.

Specifications
Application:
Cuts, Strips, Loops and Gauges 10-18 Solid Wire
Special Features:
Compact and Lightweight, Spring Loaded For Self Opening
Material:
Steel
Insulated:
Yes
Strips and Cuts:
10, 12, 14, 16, 18 Solid AWG (4.0 mm?, 2.5 mm?, 1.5 mm?, 1.0 mm?, 0.75 mm?)
Overall Length:
7” (177.8 mm)
Handle Color:
Orange
Handle Finish:
2-Layer
Weight:
0.60 lb (0.27 kg)
UPC:
092644740497
WARNINGS
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.

这种紧凑,轻质的剥线,切割工具切割,条带,环和仪表10-18 AWG实心线。双层橙色 – 白色绝缘可防止电击。清楚地标有官方的1000伏额定符号。硬化弹簧钢,带有精密研磨的剥离孔,便于拆除绝缘层。

产品规格
应用:
切割,剥离,循环和量规10-18实心线
特殊功能:
紧凑轻巧,弹簧加载自开式
材料:
绝缘:
条带和切口:
10,12,14,16,18 Solid AWG(4.0mm?,2.5mm?,1.5mm?,1.0mm?,0.75mm?)
总长度:
7”(177.8 mm)
处理颜色:
橙子
处理完成:
2层
重量:
0.60磅(0.27千克)
UPC:
092644740497
警告
  • 如果工具有可能与带电源接触,则仅使用标有上述官方国际1000伏额定值符号的工具。
  • 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
  • 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
  • 佩戴认可的眼睛保护。
  • 由于水分,薄膜或其他表面污染物具有导电性,因此Klein绝缘工具必须保持清洁,干燥且无任何表面污染物。
  • 使用前请务必检查工具。如果绝缘材料以任何方式损坏,则销毁工具。
