Wire Stripper/Cutter (10-18 AWG Solid)

11045

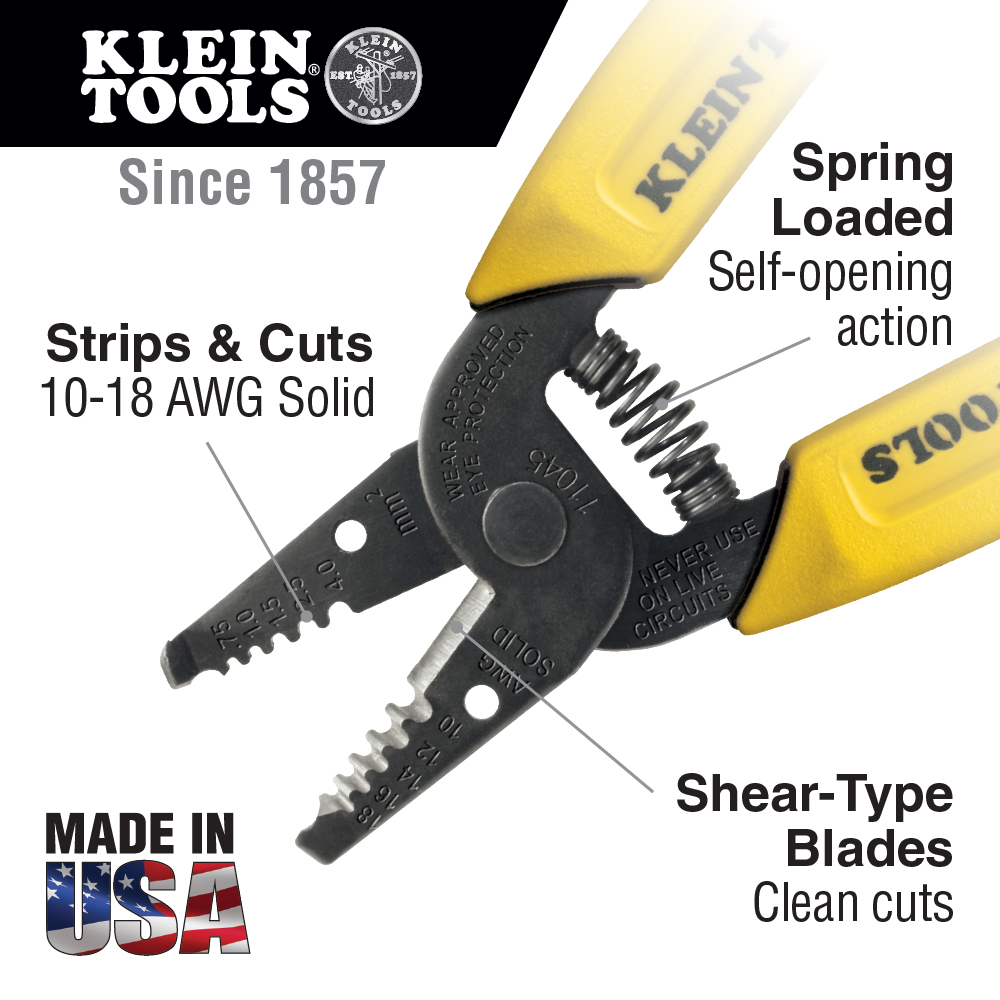

  • Cuts, strips, loops and gauges 10-18 AWG solid wire
  • Spring-loaded action for self-opening
  • Easy-to-read wire gauge markings on both sides for stripping in either direction
  • Hardened steel with precision ground stripping holes
  • Wire looping and bending holes
  • Black-oxide finish resists corrosion
  • Textured handles provide a firm, comfortable grip
  • Color-coded handles: red indicates stranded wire, yellow indicates solid wire
  • Shear-type cutting blades for clean cuts.

剥线钳/切割机（10-18 AWG固体）

11045

  • 切割，条带，环和量规10-18 AWG实心线
  • 弹簧加载自行开启动作
  • 易于读取的两侧线规标记，可在任一方向上剥离
  • 淬硬钢，带精密地面剥皮孔
  • 线圈和弯曲孔
  • 黑色氧化处理可抵抗腐蚀
  • 纹理手柄提供牢固，舒适的抓握
  • 颜色编码的手柄：红色表示绞合线，黄色表示实心线
  • 剪切式切割刀片，用于清洁切割。

This compact, lightweight wire-stripping and cutting tool is designed to cut 10 – 18 AWG solid wire. The precision-ground stripping holes cleanly cut wire and aid in easy removal of insulation. A narrow nose helps this tool fit easily into tight places.

Specifications
Application:
10 – 18 AWG Solid (4.0 mm? – 0.75 mm?)
Strips and Cuts:
10-18 AWG Solid (4.0 mm?-0.75 mm?)
Overall Length:
6.25” (158.8 mm)
Handle Color:
yellow
Weight:
0.27 lb (0.12 kg)
UPC:
092644740459
WARNINGS
  • Do NOT use to cut steel wire or bolts
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

这种紧凑，轻巧的剥线和切割工具设计用于切割10 – 18 AWG实心线。精密研磨的剥皮孔可以干净地切割钢丝，有助于轻松去除绝缘层。狭窄的鼻子有助于此工具轻松适应狭窄的地方。

产品规格
应用：
10 – 18 AWG固体（4.0mm? – 0.75mm?）
条带和切口：
10-18 AWG实心（4.0mm?-0.75mm?）
总长度：
6.25”（158.8 mm）
处理颜色：
黄色
重量：
0.27磅（0.12千克）
UPC：
092644740459
警告
  • 切勿用于切割钢丝或螺栓
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
