Project Description

Wire Stripper/Cutter for 8-16 AWG Stranded Wire

11049

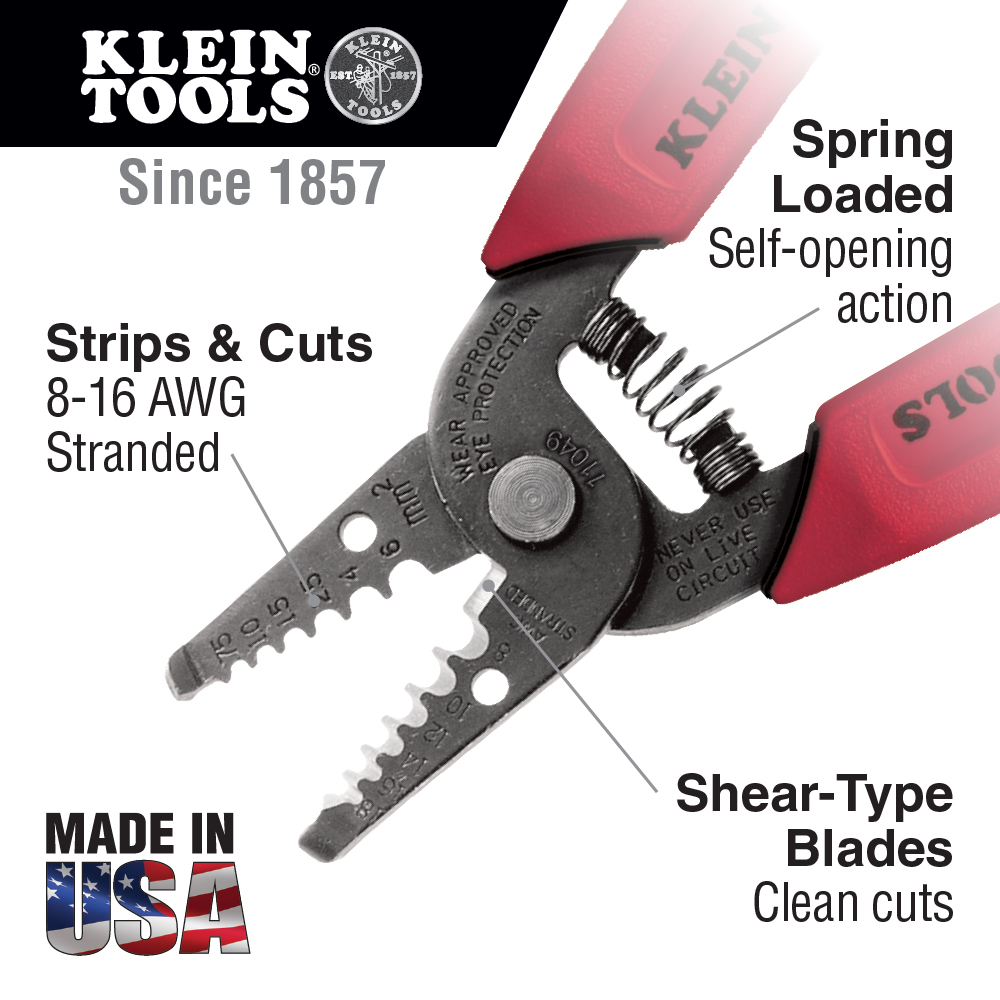

  • Cuts, strips, loops and bends solid and stranded wire
  • Strips 8-16 AWG stranded wire
  • Narrow nose fits into tight places
  • Wire looping and bending holes
  • Spring-loaded action for self-opening
  • Hardened steel with precision ground stripping holes
  • Color-coded handles: red indicates stranded wire, yellow indicates solid wire
  • Black-oxide finish resists corrosion
  • Do not use for cutting steel wire or bolts

用于8-16 AWG绞合线的剥线器/切割器

11049

  • 切割,剥离,环绕并弯曲实心和绞合线
  • 剥线8-16 AWG绞线
  • 狭窄的鼻子适合狭窄的地方
  • 线圈和弯曲孔
  • 弹簧加载自行开启动作
  • 淬硬钢,带精密地面剥皮孔
  • 颜色编码的手柄:红色表示绞合线,黄色表示实心线
  • 黑色氧化处理可抵抗腐蚀
  • 不要用于切割钢丝或螺栓

The Wire Stripper/Cutter cuts, strips, loops, and gauges 8 – 16 AWG stranded wire. Metric sizes are 6.0 – 1.0 mm2. The bi-layer handle provides added structure, superior palm-fit and comfort. Easy-to-read wire gauge markings on both sides for stripping in either direction.

Specifications
Application:
8 – 16 AWG Stranded (6 mm? – 1.0 mm?)
Strips and Cuts:
8-16 AWG Stranded (6 mm?-1.0 mm?)
Overall Length:
6.25” (158.8 mm)
Handle Color:
Red
Weight:
0.27 lb (0.12 kg)
UPC:
092644110498
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
  • DO NOT use to cut steel wire or bolts.

剥线器/切割器切割,剥离,环形和测量8 – 16 AWG绞合线。公制尺寸为6.0 – 1.0 mm2。双层手柄提供额外的结构,手掌贴合性和舒适性。易于读取的两侧线规标记,可在任一方向上剥离。

产品规格
应用:
8 – 16 AWG绞合(6mm? – 1.0mm?)
条带和切口:
8-16 AWG绞合(6mm?-1.0mm?)
总长度:
6.25”(158.8 mm)
处理颜色:
红色
重量:
0.27磅(0.12千克)
UPC:
092644110498
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
  • 切勿用于切割钢丝或螺栓。
