Project Description

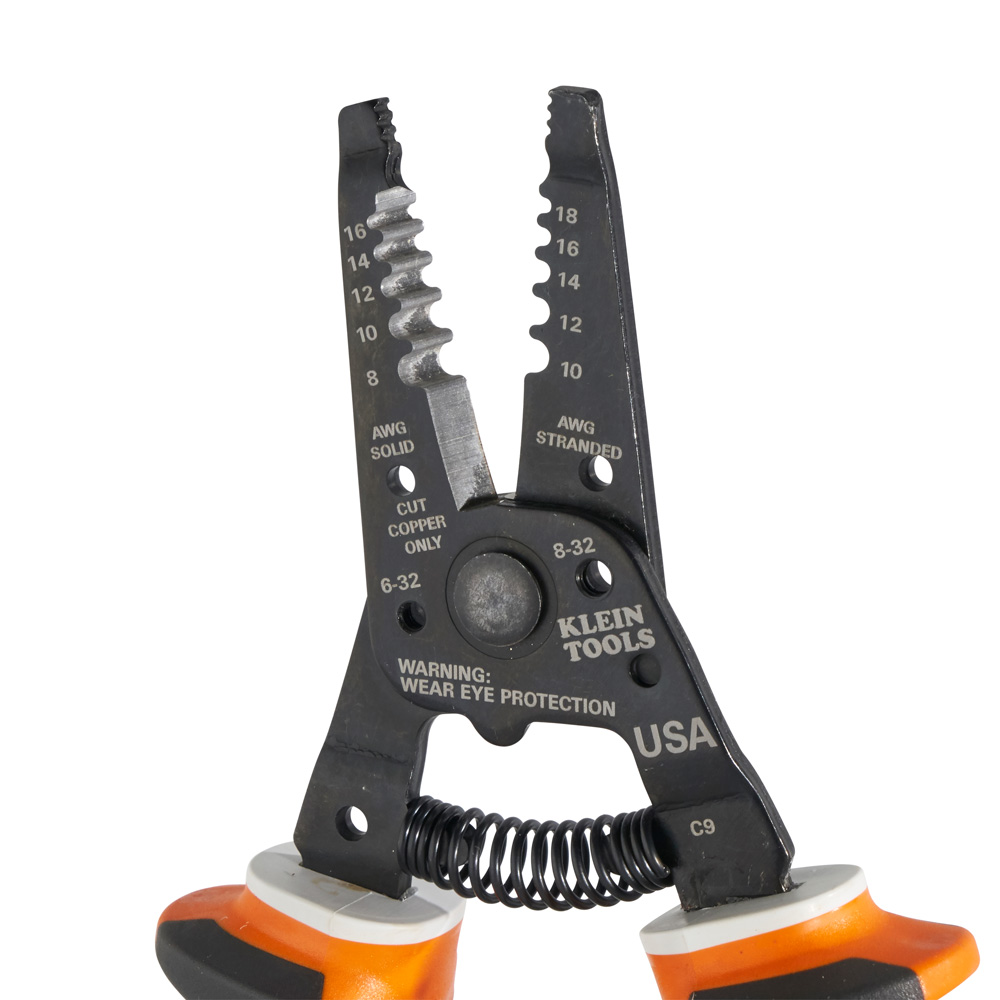

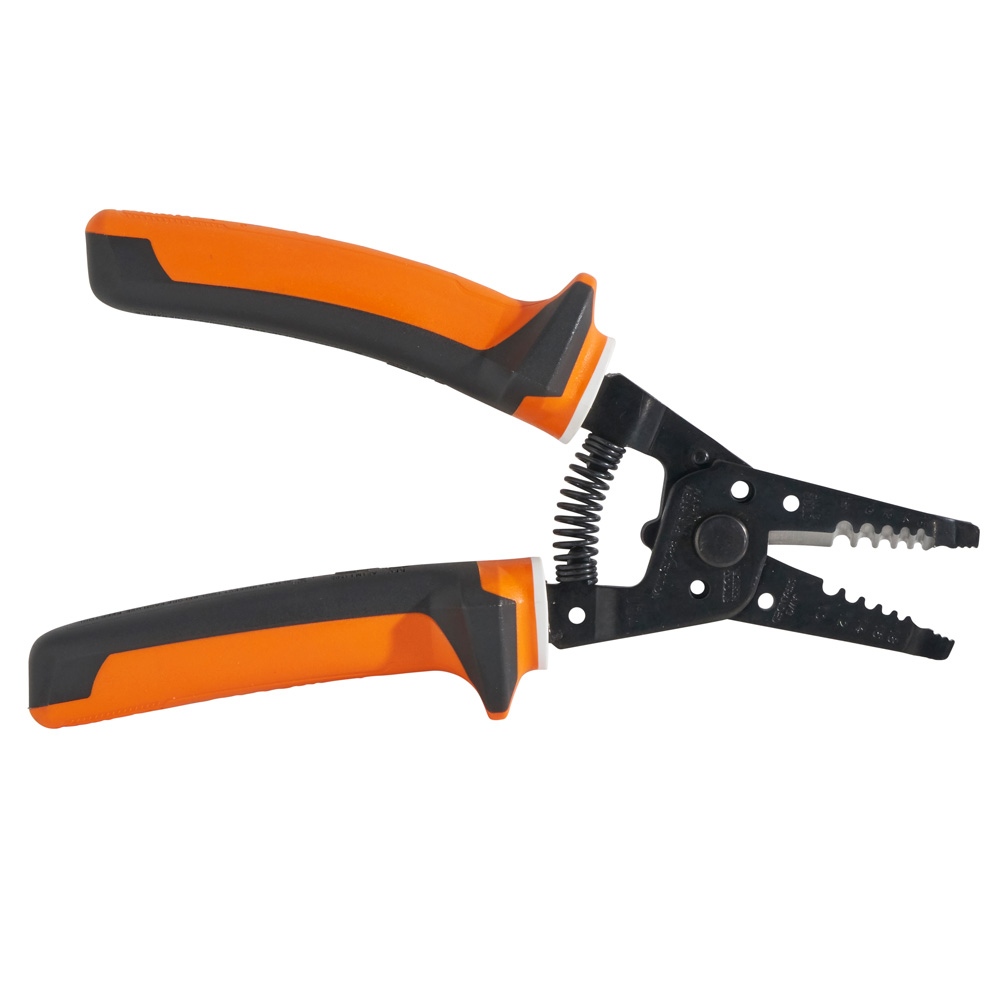

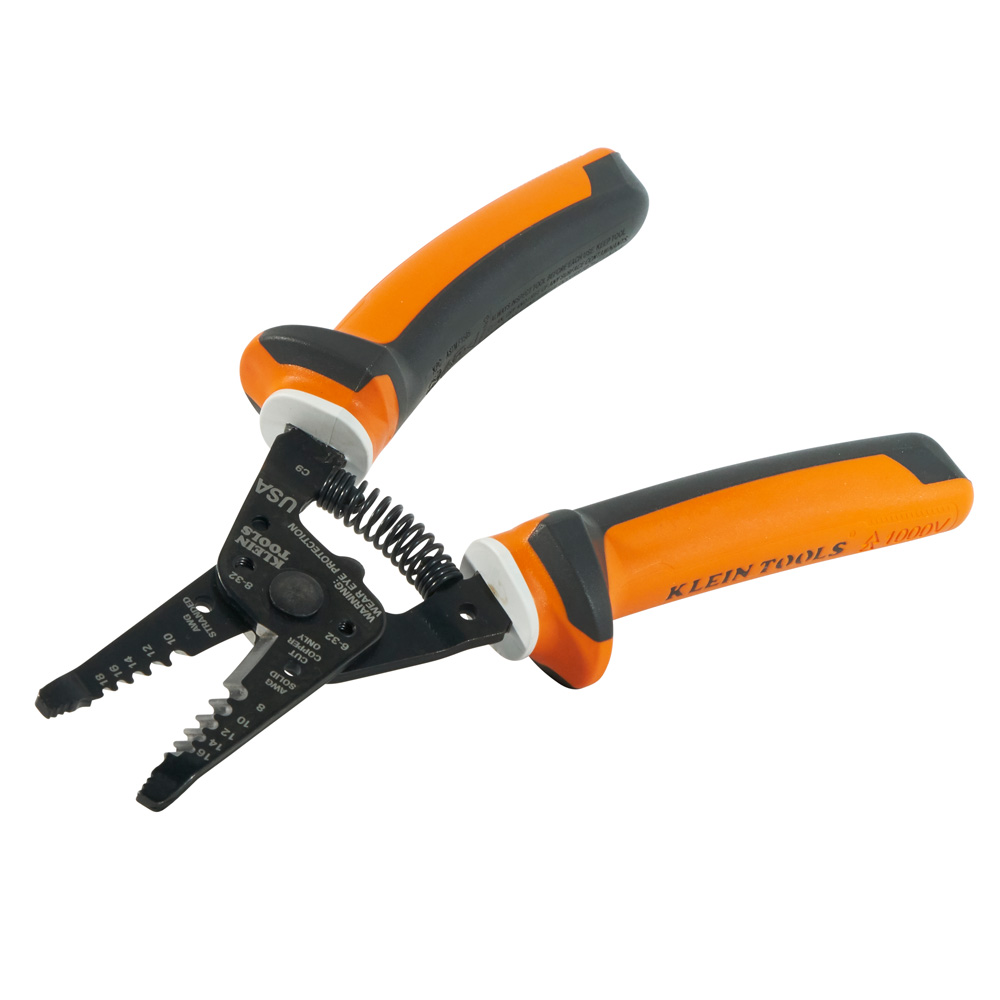

Insulated Wire Stripper/Cutter

11054EINS

  • 1000 V Rated for safety on the job
  • Cuts, strips, loops and gauges both solid and stranded wire
  • Spring loaded for self-opening; serrated nose for easy bending, shaping and pulling of wire
  • Cleanly shears 6-32 and 8-32 screws; do not use for cutting steel wire
  • Unique three-part insulation with white underlayer provides a warning sign that insulation may be compromised
  • Multi-color, sleek design with small thumbguards for ease of handling and easy storage in your toolbelt

绝缘剥线钳/切割机

11054EINS

  • 1000 V额定工作安全性
  • 实心和绞合线的切割,条带,环和量规
  • 弹簧装自行开启;?锯齿状的鼻子,易于弯曲,成型和拉动线材
  • 清洁地剪6-32和8-32螺丝;?不要用于切割钢丝
  • 带有白色底层的三件式绝缘材料提供了绝缘可能受损的警告信号
  • 多色,时尚的设计,带有小拇指,便于操作,便于存放在工具带中
  • 耐用的模制绝缘材料

Klein Tools Electrician’s Insulated Solid and Stranded Stripper is 1000V rated and for safety on the job. The multi-color, sleek design with small thumbguards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised.

Specifications
Application:
8-16 AWG Solid and 10-18 AWG Stranded Copper Wire and Shearing 6-32 and 8-32 Screws
Special Features:
Compact and Lightweight, Spring Loaded For Self Opening
Material:
Steel
Insulated:
Yes
Strips and Cuts:
8-16 AWG Solid (8.4 mm?-1.3 mm?), 10-18 AWG Stranded (5.3 mm?-0.82 mm?)
Screw Shearing:
6-32 and 8-32
Overall Length:
8” (203.2 mm)
Handle Color:
Orange/Gray
Handle Finish:
3-Layer
Weight:
0.50 lb (0.23 kg)
UPC:
092644740107
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
  • Always inspect your tools before use.
  • Always wear approved eye protection.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Keep tool clean, dry and free of any surface contaminants.
  • Destroy tool if the insulation is damaged in any way.

Klein Tools Electrician的绝缘固体和绞合剥离器具有1000V额定电压,可确保工作安全。多色,时尚的设计和小拇指,便于操作和存放。带有白色底层的三部分绝缘层提供了绝缘可能受损的警告信号。耐用的模制绝缘材料。

产品规格
应用:
8-16 AWG实心和10-18 AWG绞合铜线和剪切6-32和8-32螺钉
特殊功能:
紧凑轻巧,弹簧加载自开式
材料:
绝缘:
条带和切口:
8-16 AWG实心(8.4mm?-1.3mm?),10-18 AWG绞合(5.3mm?-0.82mm?)
螺丝剪切:
6-32和8-32
总长度:
8”(203.2 mm)
处理颜色:
橙/灰
处理完成:
3层
重量:
0.50磅(0.23千克)
UPC:
092644740107
警告
  • 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
  • 如果工具有可能与带电源接触,则仅使用标有国际1000伏额定等级符号的工具。
  • 使用前请务必检查工具。
  • 始终佩戴认可的护目镜。
  • 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
  • 保持工具清洁,干燥,无任何表面污染物。
  • 如果绝缘材料受到任何损坏,请销毁工具。
