Katapult Solid and Stranded Wire Stripper/Cutter

11063W

  • Cuts and strips 8-20 AWG solid and 10-22 AWG stranded wire with ease

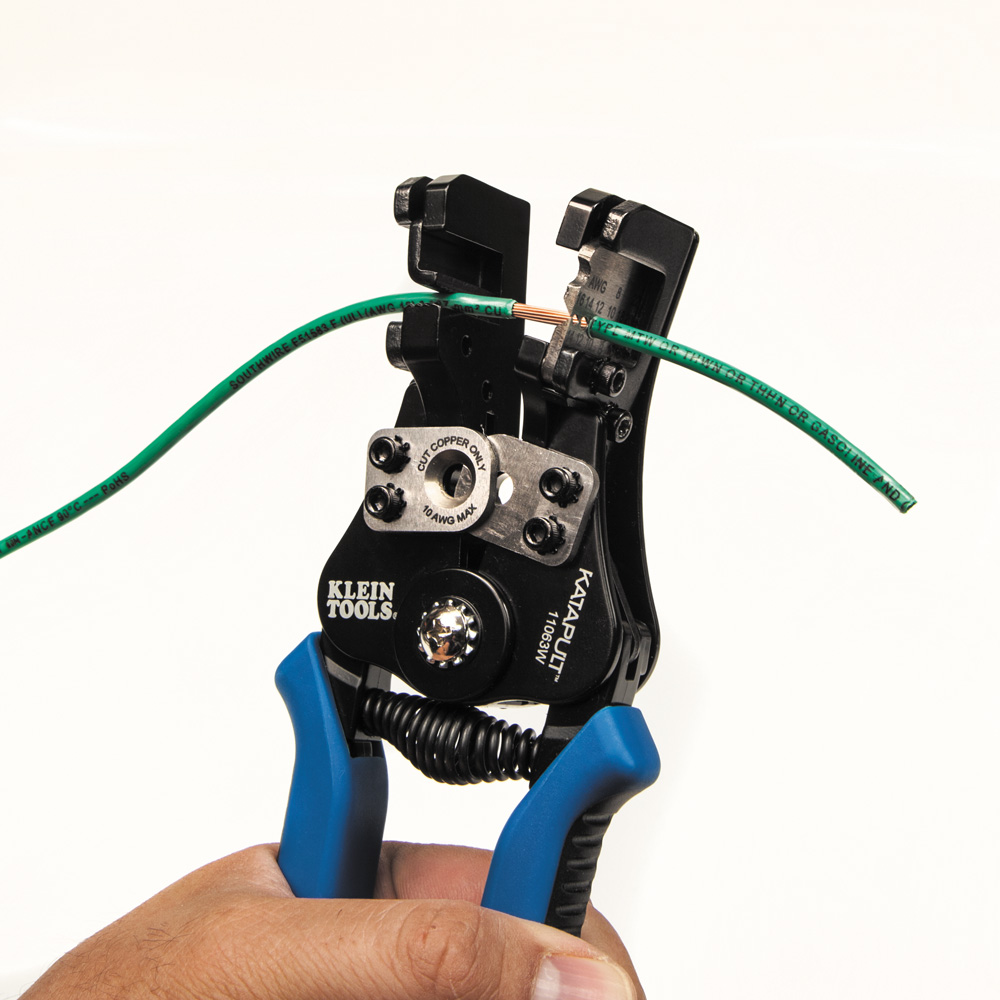

  • Compound action stripping: grip and strip via single-action squeezing motion
  • Precision machined stripping holes easily remove insulation without damaging the wire
  • Removes up to 1-Inch (25 mm) in length of the insulation layer (jacket layer) in a single step
  • Tension loaded wire-grip gently holds the cable while retaining cable geometry
  • Cast alloy chassis with heavy-duty Ecoat finish for corrosion resistance and durability

Katapult固体和绞线剥线钳/切割机

11063W

  • 切割并剥离8-20 AWG实心和10-22 AWG绞合线
  • 复合动作剥离：通过单动挤压动作进行抓握和剥离
  • 精密加工的剥皮孔可轻松去除绝缘层而不会损坏电线
  • 一步可去除长度达1英寸（25毫米）的绝缘层（护套层）
  • 张力加载的线夹轻轻固定电缆，同时保持电缆几何形状
  • 铸造合金底盘，采用重型Ecoat表面处理，具有耐腐蚀性和耐用性

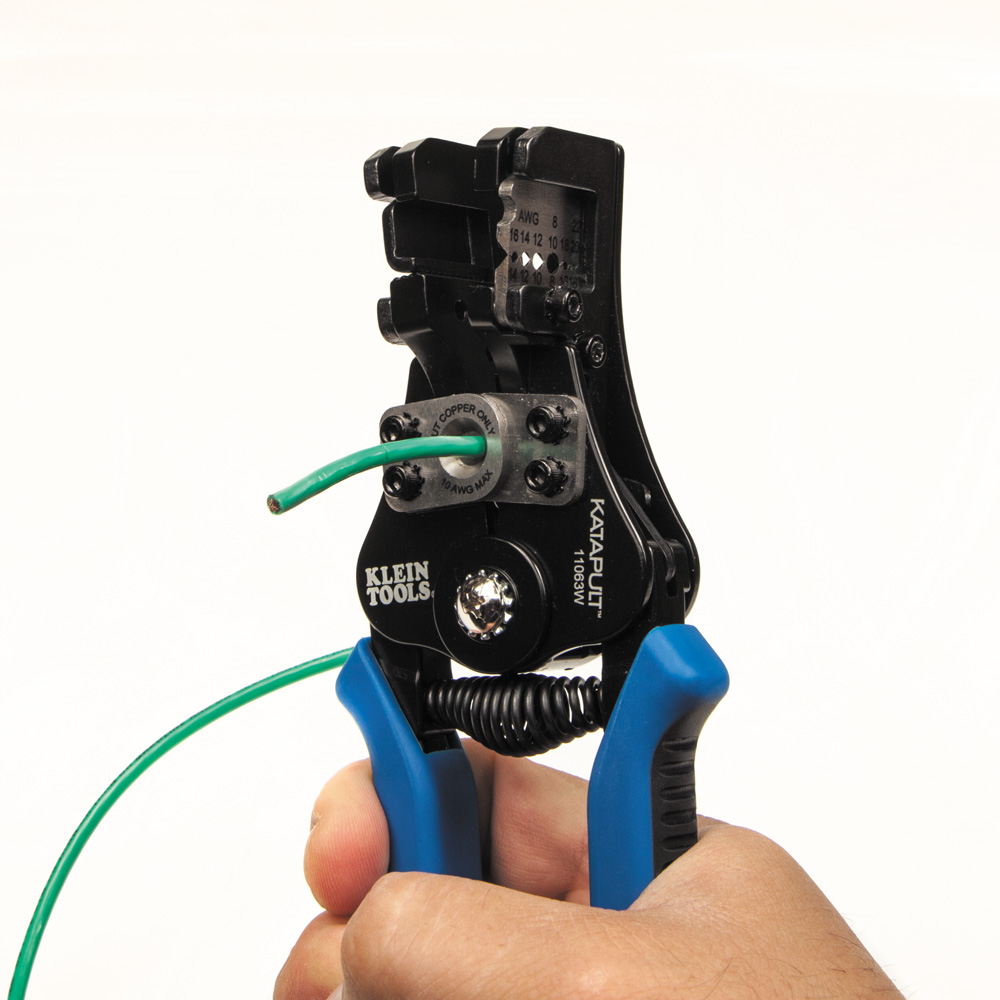

Klein Tools’ popular Katapult tool is now a stripper and cutter, too. Use the built-in cutting hole to cleanly cut 8-20 AWG solid and 10-22 AWG stranded wire, while the stripping head allows you to easily grip and strip just by squeezing the handle. Made of cast alloy with a heavy-duty Ecoat finish for corrosion resistance and durability.

Specifications
Application:
Strips and Cuts 8 – 20 AWG solid (6.0 mm? – 0.34 mm?), 10-22 AWG stranded (6.0 mm? – 0.34 mm?)
Material:
Cast Alloy Chassis with Heavy-Duty Ecoat Finish
Strips and Cuts:
8 – 20 AWG Solid, 10 – 22 AWG Stranded
Hold-Open Spring:
Yes
Overall Length:
6.594” (167.5 mm)
Handle Color:
Blue/Black
Weight:
0.75 lb (0.34 kg)
UPC:
092644420016
WARNINGS
  • Always wear approved eye protection.
  • Never use on or near live electrical circuits.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Klein Tools的流行Katapult工具现在也是一个剥离器和切割器。使用内置切割孔可以干净地切割8-20 AWG实心和10-22 AWG绞合线，而剥头可以通过挤压手柄轻松抓住和剥离。由铸造合金制成，具有重型Ecoat表面处理，具有耐腐蚀性和耐用性。

产品规格
应用：
剥线和切割8 – 20 AWG实心（6.0mm? – 0.34mm?），10-22 AWG绞合（6.0mm? – 0.34mm?）
材料：
铸造合金底盘，采用重型Ecoat表面处理
条带和切口：
8 – 20 AWG固体，10 – 22 AWG搁浅
Hold-Open Spring：
是
总长度：
6.594”（167.5 mm）
处理颜色：
蓝黑
重量：
0.75磅（0.34千克）
UPC：
092644420016
警告
  • 始终佩戴认可的护目镜。
  • 切勿在带电电路上或附近使用。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
