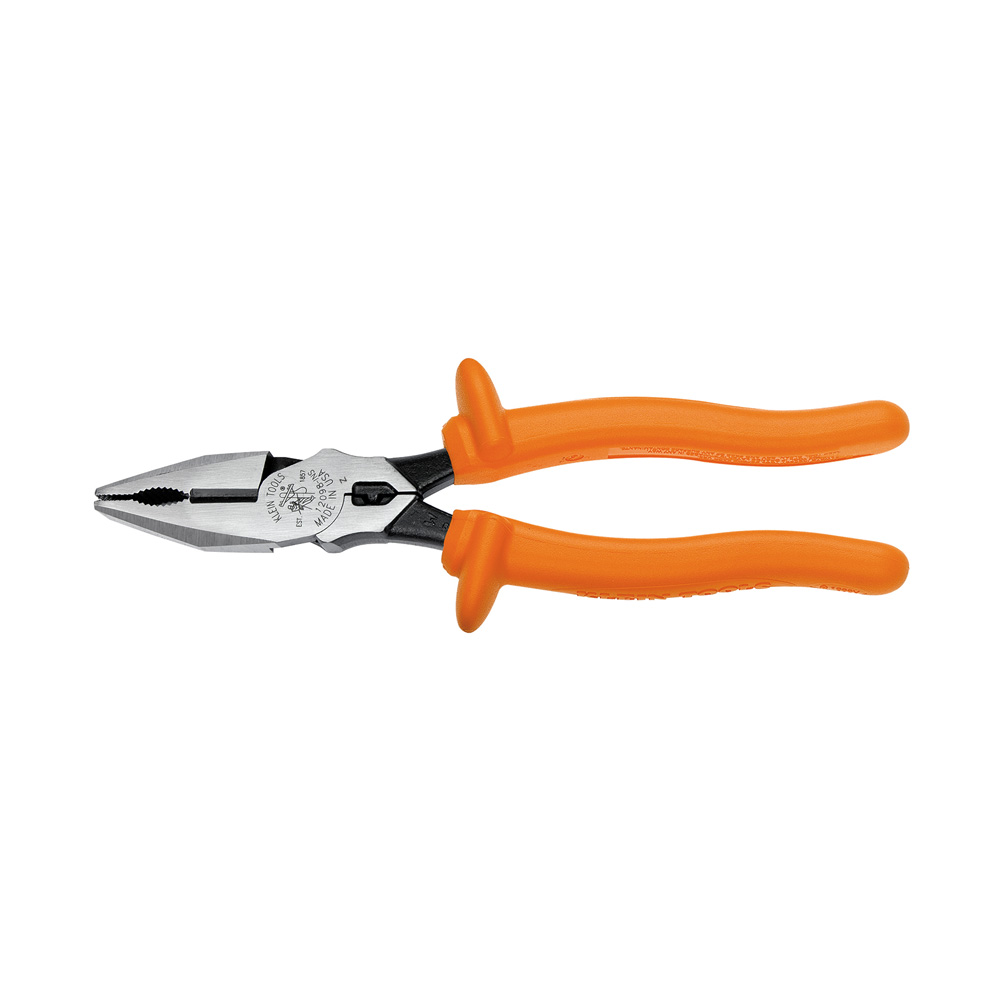

Insulated Universal Combination Pliers, 8-Inch

12098-INS

  • Two layers of insulation provide protection against electric shock
  • Quickly installs and removes spring-tension hose clamps
  • High-leverage design has 35-percent more cutting power
  • Grips with either side or end of jaws for work in confined areas
  • Precision machined pipe-grip for greater gripping power
  • Flame retardant, impact-resistant, bright orange outer coating
  • Integral guards help prevent hand contact with conductive parts
  • Crimping die behind hinge for superior leverage crimping non-insulated connectors, lugs and terminals
  • Induction hardened cutting knives for long life
  • Clearly marked with the official 1000-volt rating symbol

绝缘通用组合钳，8英寸

12098-INS

  • 两层绝缘层可提供电击保护
  • 快速安装和拆卸弹簧张力软管夹
  • 高杠杆设计提高了切割能力
  • 握住钳口的任一侧或末端，以便在狭窄的区域内工作
  • 精密加工的管道夹具，提供更大的抓握力
  • 阻燃，抗冲击，亮橙色外涂层
  • 整体防护装置有助于防止手与导电部件接触
  • 铰链后面的压接模具，用于杠杆压接非绝缘连接器，接线片和端子
  • 感应淬火切割刀，使用寿命长
  • 清楚地标有官方的1000伏额定值符号

Be protected from up to 1,000 volts of electric current when working near energized sources with Klein’s 8-Inch Insulated Universal Combination Pliers. These pliers offer flame-retardant handles, a toothed pipe grip and a high-leverage crimping die.

Specifications
Type:
High-Leverage Pliers
Application:
ACSR, Screws, Nails and Most Hardened Wires
Special Features:
Integral Guards Help Prevent Hand Contact With Conductive Parts
Overall Length:
8.875” (225.4 mm)
Material:
Induction Hardened Steel
Nose Type:
Universal
Jaw Length:
1.781” (45.2 mm)
Jaw Width:
1.031” (26.2 mm)
Jaw Thickness:
17/32” (13.5 mm)
Knife Length:
0.75” (19.1 mm)
Cut Style:
Side-Cutting
Joint Type:
Hot-Riveted
Handle Color:
Orange
Handle Finish:
2-Layer
Insulated:
Yes
Weight:
1.0 lb (0.5 kg)
UPC:
092644700934
WARNINGS
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection. Always inspect your tools before use. Do not use if orange coating cracks, breaks or becomes damaged. Destroy tool if white layer shows through orange layer.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.

使用Klein的8英寸绝缘通用组合钳在受电源附近工作时，可保护高达1,000伏的电流。这些钳子提供阻燃手柄，齿形管夹和高杠杆压接模具。耐用的模制绝缘材料。

产品规格
类型：
高杠杆钳
应用：
ACSR，螺钉，钉子和大多数硬化线
特殊功能：
整体防护装置有助于防止手接触导电部件
总长度：
8.875”（225.4 mm）
材料：
感应淬火钢
鼻型：
普遍
下颚长度：
1.781”（45.2 mm）
下颚宽度：
1.031”（26.2 mm）
下颚厚度：
17/32”（13.5 mm）
刀长：
0.75英寸（19.1毫米）
剪裁风格：
侧切
关节类型：
热铆接
处理颜色：
橙子
处理完成：
2层
绝缘：
是
重量：
1.0磅（0.5千克）
UPC：
092644700934
警告
  • 如果工具有可能与带电源接触，则仅使用标有上述官方国际1000伏额定值符号的工具。
  • 只要有可能，在工作或周围工作之前，始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
  • 当可能接触带电源时，请勿触摸工具的未绝缘部分或任何导电物体。
  • 佩戴认可的眼睛保护。使用前请务必检查工具。如果橙色涂层破裂，破裂或损坏，请勿使用。如果白色层通过橙色层显示，则销毁工具。
  • 使用前请务必检查工具。如果绝缘材料以任何方式损坏，则销毁工具。
  • 由于水分，薄膜或其他表面污染物具有导电性，因此Klein绝缘工具必须保持清洁，干燥且无任何表面污染物。
