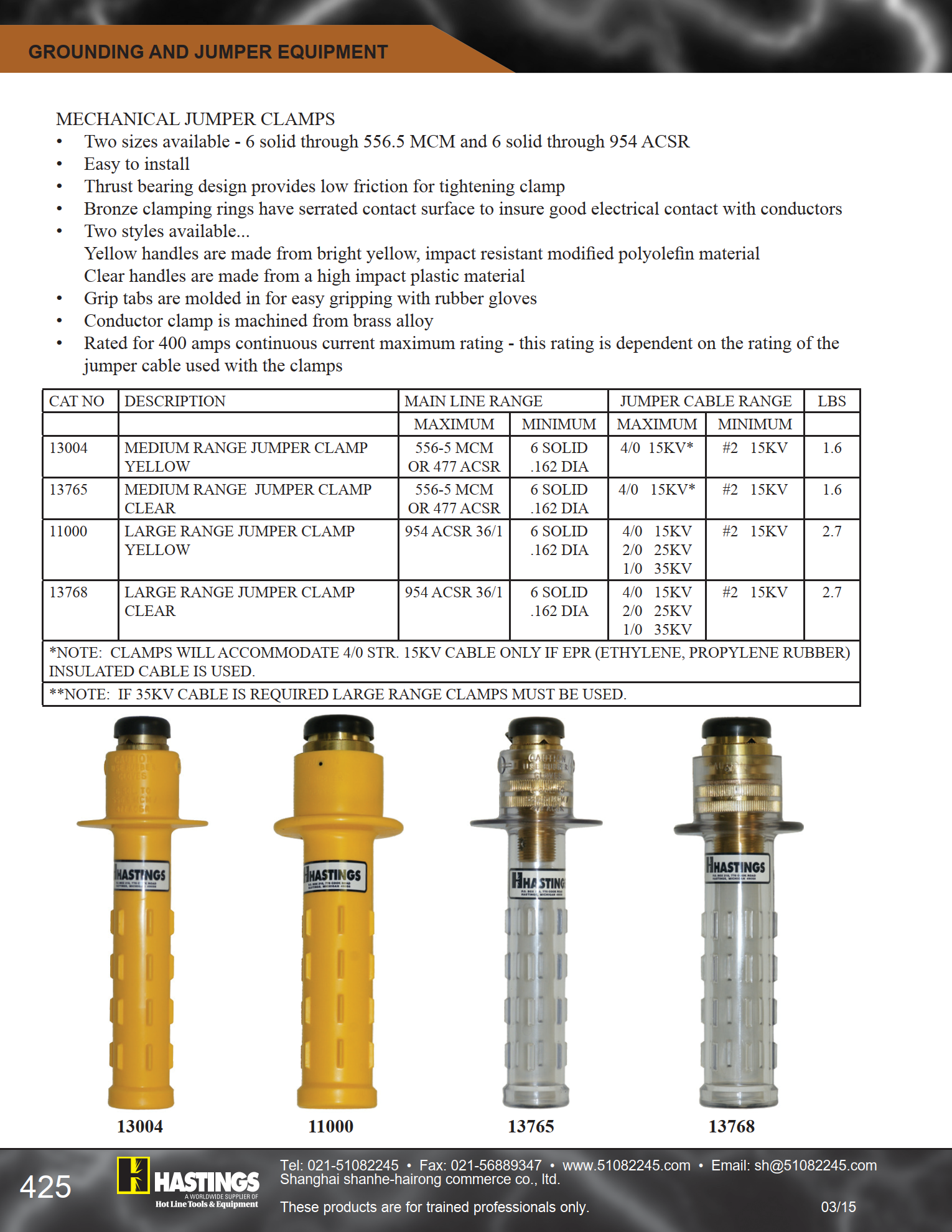

MECHANICAL JUMPER CLAMPS
? Two sizes available – 6 solid through 556.5 MCM and 6 solid through 954 ACSR
? Easy to install
? Thrust bearing design provides low friction for tightening clamp
? Bronze clamping rings have serrated contact surface to insure good electrical contact with conductors
? Two styles available…
Yellow handles are made from bright yellow, impact resistant modified polyolefin material
Clear handles are made from a high impact plastic material
? Grip tabs are molded in for easy gripping with rubber gloves
? Conductor clamp is machined from brass alloy
? Rated for 400 amps continuous current maximum rating – this rating is dependent on the rating of the jumper cable used with the clamps
CAT NO DESCRIPTION MAIN LINE RANGE JUMPER CABLE RANGE LBS
MAXIMUM MINIMUM MAXIMUM MINIMUM
13004 MEDIUM RANGE JUMPER CLAMP YELLOW

556-5 MCM? OR 477 ACSR

6 SOLID? .162 DIA

4/0 15KV* #2 15KV 1.6

13765 MEDIUM RANGE JUMPER CLAMP? CLEAR

556-5 MCM? OR 477 ACSR

6 SOLID? .162 DIA

4/0 15KV* #2 15KV 1.6

11000 LARGE RANGE JUMPER CLAMP? YELLOW

954 ACSR 36/1 6 SOLID .162 DIA

4/0 15KV
2/0 25KV
1/0 35KV

#2 15KV 2.7

13768 LARGE RANGE JUMPER CLAMP? CLEAR

954 ACSR 36/1 6 SOLID .162 DIA

4/0 15KV
2/0 25KV
1/0 35KV

#2 15KV 2.7

*NOTE: CLAMPS WILL ACCOMMODATE 4/0 STR. 15KV CABLE ONLY IF EPR (ETHYLENE, PROPYLENE RUBBER)? INSULATED CABLE IS USED.
**NOTE: IF 35KV CABLE IS REQUIRED LARGE RANGE CLAMPS MUST BE USED.
