Project Description

1/4英寸驱动器x 5英寸旋转头快速释放棘轮

  • 72齿齿轮可产生仅5度的工作摆动弧
  • 圆头可旋转270度至任何驱动角度
  • 锁定,快速释放的驱动器柄脚可防止插槽脱落
  • 耐腐蚀的全抛光镀铬表面
  • 舒适的模制手柄,带柔软防滑手柄

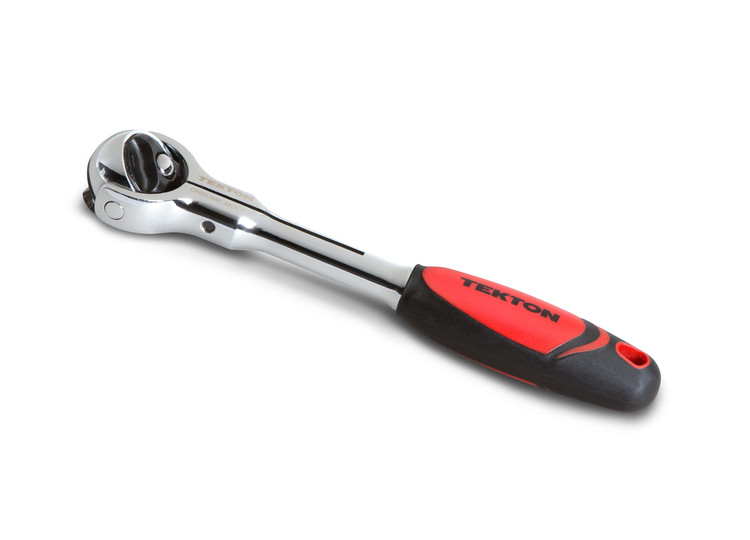

1/4 Inch Drive x 5 Inch Swivel Head Quick-Release Ratchet

Item #1490
  • 72-tooth gear produces a working swing arc of just 5 degrees
  • Round head swivels 270-degrees to any drive angle
  • Lock-on, quick-release drive tang prevents dropped sockets
  • Corrosion-resistant fully polished chrome plated finish
  • Comfortable molded handle with soft, nonslip grip

产品描述 Description



270°?Swivel Head

Pivoting through a continuous 270-degree sweep, the round swivel head lets you approach your work from any angle. Since there are no preset positions, you can even move fluidly around obstructions encountered along the path of your handle swing.

72齿齿轮= 5°回转弧


72-Tooth Gear?= 5° Swing Arc

The 72-tooth ratcheting system offers a concise 5-degree swing arc that works in tight spaces. Single pawl maintains 15 teeth in contact with the gear at all times, ensuring that it won’t slip or skip under stress.


  • 套筒通过定位球和锁定销锁定在棘轮柄上,以防止其掉落或脱落。
  • 按下释放按钮,可使承窝轻松脱离柄脚,甚至可以单手更换承窝。

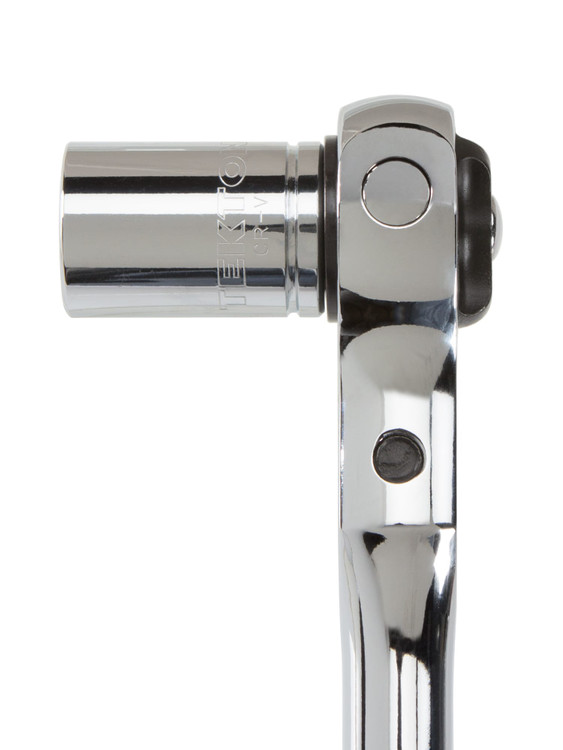

Lock-On,?Quick-Release Drive

  • Sockets are locked onto the ratchet tang by a detent ball and locking pin so that they can’t fall or be pulled off.
  • Pressing the release button allows the sockets to easily drop off the tang, making even one-handed socket changes possible.

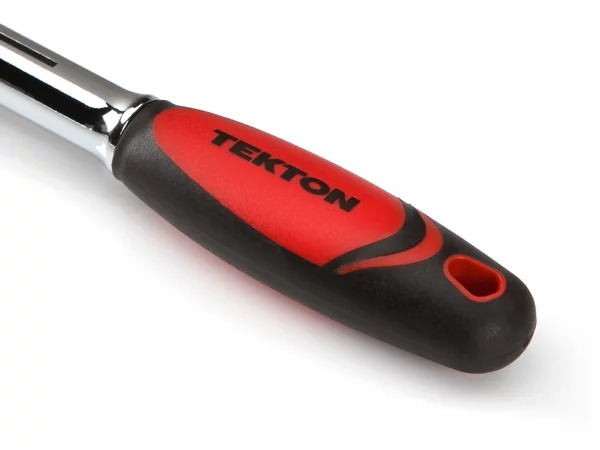

Comfortable,?Nonslip Handle

Two-material molded handle has soft grips for nonslip control, even with greasy hands.

产品参数 Specs

Country of OriginTaiwan,China


1/4 Inch Drive x 5 Inch Swivel Head Quick-Release Ratchet

A. Length6.0 in.
B. Width1.2 in.
C. Height1.0 in.
D. Head Thickness0.55 in.
E. Working Length5.5 in.
F. Head Sweep270°
Weight0.31 lb.
Tooth Count72
