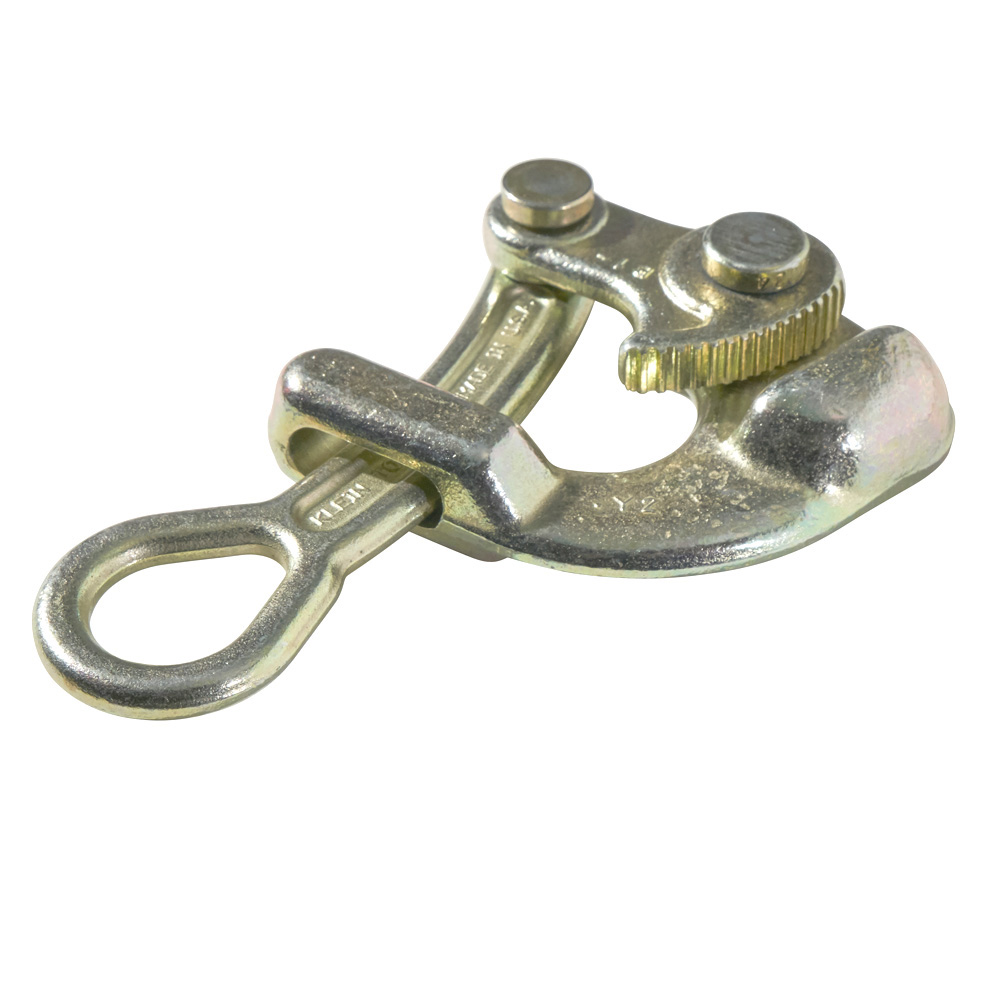

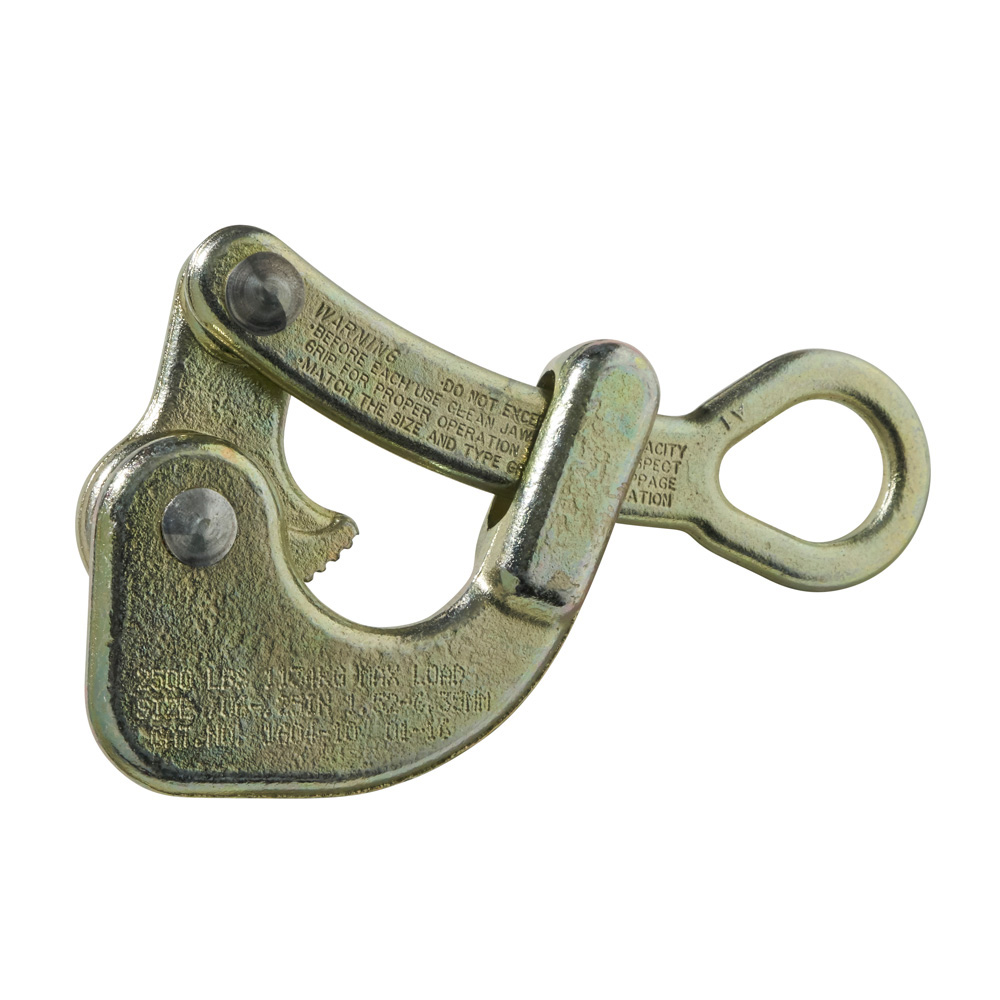

Havens? Cable Grip 0.25-Inch Capacity

1604-10

  • Designed for use when light, compact grip is desired and where conductor damage is not a factor
  • Works with Messenger and Guy Strand cable diameter range of 0.06-Inch to 0.25-Inch (1.52 mm – 6.35 mm)
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
  • Maximum safe load of 2,500 lbs (1,134 kg)
  • Approximate weight of each is 1-pound

Havens 电缆夹具0.25英寸容量

1604-10

  • 设计用于需要轻便,紧凑的抓地力且导体损坏不是因素的场合
  • 与Messenger和Guy Strand配合使用,电缆直径范围为0.06英寸至0.25英寸(1.52毫米–6.35毫米)
  • 滚花钳口的夹持压力适用于1/4英寸(6.35 mm)电缆区域
  • 安全载荷2,500磅(1,134千克)
  • 每个的近似重量是1磅

Klein Tools’ 1604 Series Messenger and Guy Strand Haven’s Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Specifications
Overall Length:
6.5” (165.1 mm)
Cable Type:
Messenger and Guy Strand
Cable Diameter:
0.06” to 0.25” (1.52 to 6.35 mm)
Jaw Type:
Aggressive
Maximum Safe Load:
2500 lb (1134 kg)
Weight:
0.95 lb (0.43 kg)
UPC:
092644472022
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Klein Tools的1604系列斜挎包和Guy Strand Haven’s Grips设计用于需要轻巧紧凑的握把,以及电缆变形不是因素的场合。建议将它们与钢绞线一起使用。所有Klein手柄均采用定制的锻造钢制造,经过机械加工和热处理,具有耐用性。每个手柄都经过单独手动检查和启动,以确保正常工作。握把也经过严格测试并拉至额定负载,以确保质量和可靠性。

产品规格
总长度:
6.5英寸(165.1毫米)
电缆类型:
信使和盖斯斯特兰德
电缆直径:
0.06英寸到0.25英寸(1.52到6.35毫米)
颚类型:
激进
最大安全载荷:
2500磅(1134千克)
重量:
0.95磅(0.43千克)
UPC:
092644472022
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
