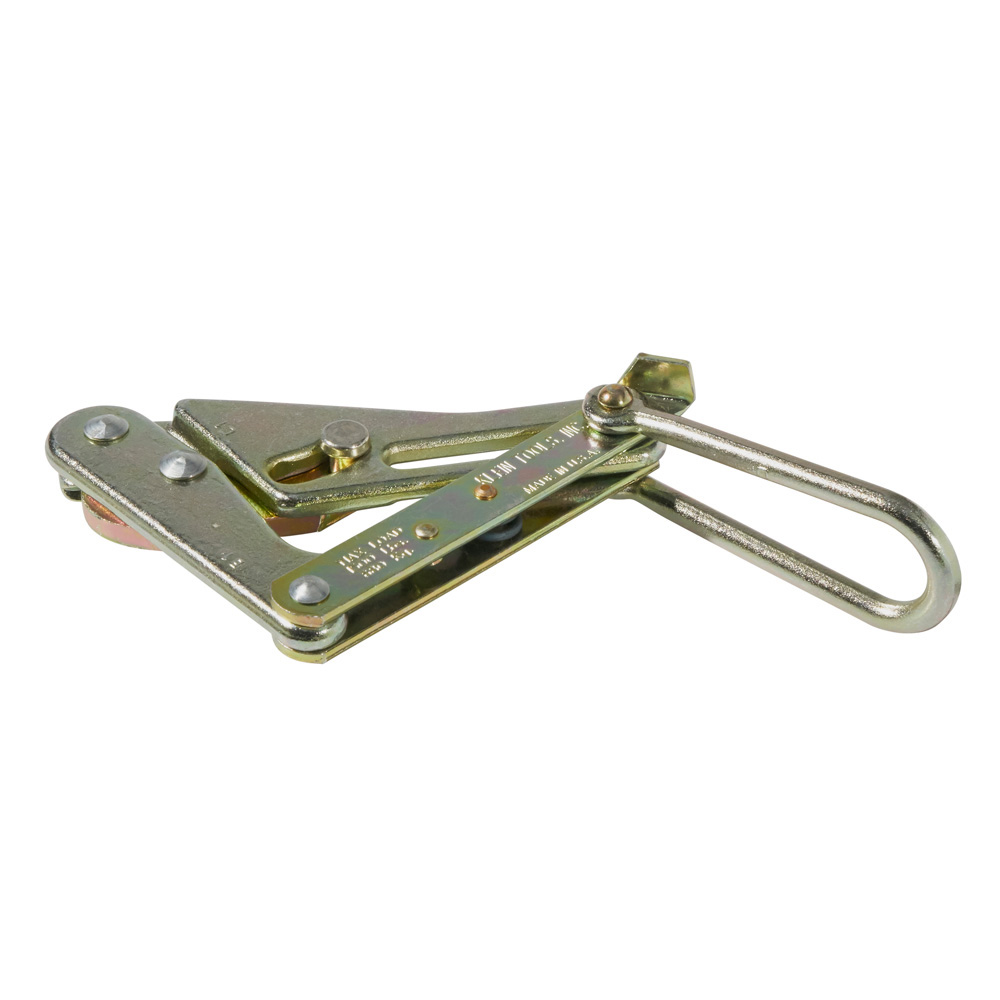

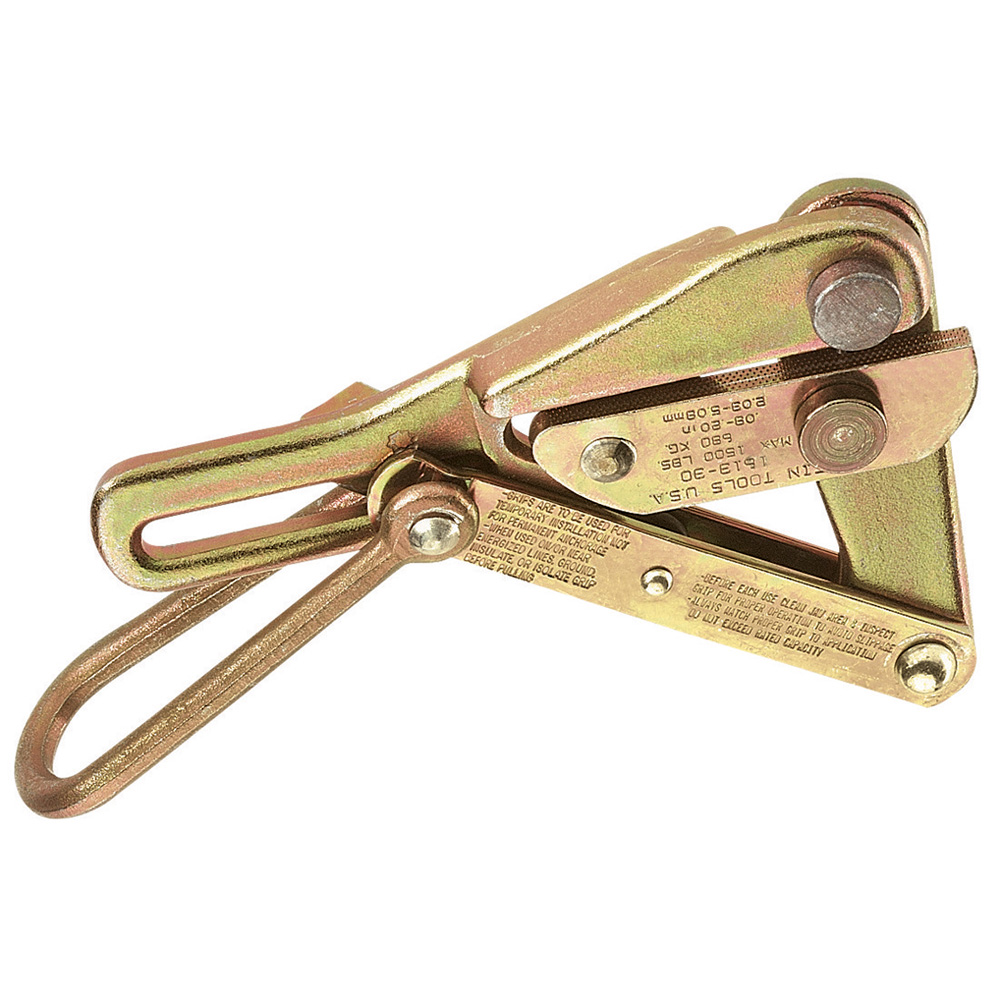

Chicago? Grip for Bare Wire
1613-30
- Lightweight, cost-effective grip for solid and stranded #8 AWG to #6 AWG bare copper wire
- Works within 0.08 to 0.20-Inch (2.0 to 5.1 mm) cable diameter range
- Single ”V” groove jaw
- Max Safe Load of 1500-Pound (680 kg)
- 3-Inch jaw length
芝加哥 裸线夹子
1613-30
- 重量轻,经济实惠的固定和搁浅#8 AWG至#6 AWG裸铜线
- 适用于0.08至0.20英寸(2.0至5.1毫米)电缆直径范围
- 单”V”凹槽钳口
- 安全载荷1500磅(680千克)
- 3英寸钳口长度
Klein Tools’ 1613 Series Bare Wire Chicago Grips are designed to work with solid and stranded bare wire from 0.08-Inch to 0.20-Inch (2 mm to 5.1 mm). All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Specifications
Cable Type:
Copper, Steel
Cable Diameter:
0.08” to 0.20” (2.03 to 5.08 mm)
Jaw Type:
Single V
Jaw Length:
3” (76.2 mm)
Maximum Safe Load:
1500 lb (680 kg)
Weight:
1.5 lb (0.7 kg)
UPC:
092644470127
WARNINGS
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
Klein Tools的1613系列裸线芝加哥夹具设计用于从0.08英寸到0.20英寸(2毫米到5.1毫米)的实心和绞合裸线。所有Klein手柄均采用定制的锻造钢制造,经过机械加工和热处理,具有耐用性。每个手柄都经过单独手动检查和启动,以确保正常工作。握把也经过严格测试并拉至额定负载,以确保质量和可靠性。
产品规格
电缆类型:
铜,钢
电缆直径:
0.08英寸到0.20英寸(2.03到5.08毫米)
颚类型:
单V
下颚长度:
3”(76.2 mm)
安全载荷:
1500磅(680千克)
重量:
1.5磅(0.7千克)
UPC:
092644470127
警告
- 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
- 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
- 不要超过额定容量。
- 始终将适当尺寸和类型的手柄与应用相匹配。
- 把手用于临时安装,而不是用于永久性锚固。
