Project Description

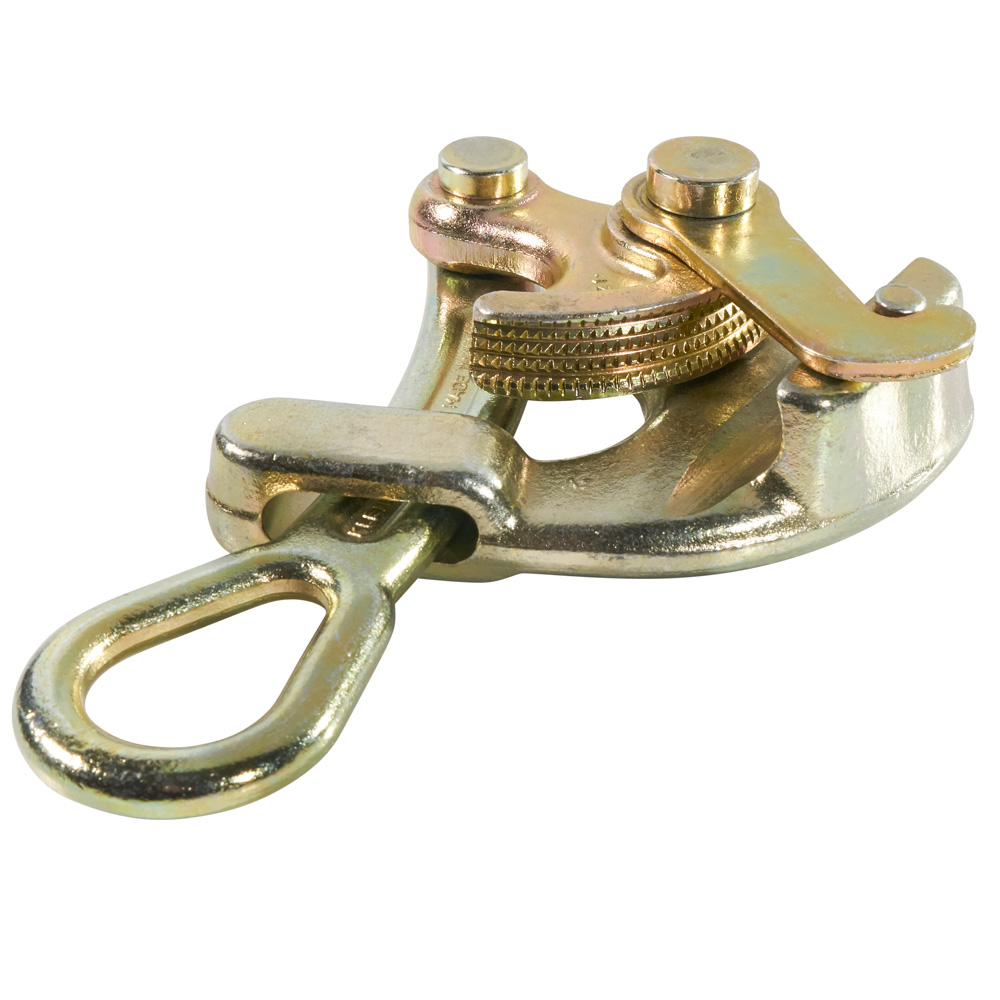

Havens? Grip for Wire Rope 0.88-Inch

162520-7/8

  • Designed for use when light, compact grip is desired and where conductor damage is not a factor
  • Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range
  • Max Safe Load of 8000 lb (3629 kg)
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
  • Swing latch helps hold cable in the jaw

Havens 用于钢丝绳的夹具0.88英寸

162520-7 / 8

  • 设计用于需要轻便,紧凑的抓地力且导体损坏不是因素的场合
  • 适用于0.38至0.88英寸(9.65至22.35 mm)钢丝绳电缆直径范围
  • 最大安全载荷8000磅(3629千克)
  • 滚花钳口的夹持压力适用于1/4英寸(6.35 mm)电缆区域
  • 摆动闩锁有助于将电缆固定在钳口中

The Klein Tools 1625 Series Wire Rope Haven’s Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. This grip also comes with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Specifications
Cable Type:
Wire Rope
Cable Diameter:
0.38” to 0.88” (9.65 to 22.35 mm)
Jaw Type:
Aggressive
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
3.4 lb (1.5 kg)
UPC:
092644472220
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Klein Tools 1625系列钢丝绳避风套为需要轻巧紧凑的抓地力而且不会导致电缆变形的设计而设计。此手柄还配有一个摆动闩锁,有助于将电缆固定在钳口中。所有Klein手柄均采用定制的锻造钢制造,经过机械加工和热处理,具有耐用性。每个手柄都经过单独手动检查和启动,以确保正常工作。握把也经过严格测试并拉至额定负载,以确保质量和可靠性。

产品规格
电缆类型:
钢丝绳
电缆直径:
0.38”到0.88”(9.65到22.35 mm)
颚类型:
激进
最大安全载荷:
8000磅(3629千克)
重量:
3.4磅(1.5千克)
UPC:
092644472220
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
