Chicago? Grip Type B Strand Puller

1659-5AT

  • Similar to Bell-System type ”B” strand puller
  • Designed to pull 1/4-Inch (6.35 mm) figure-8 telephone cable
  • Max Safe Load of 5000 lbs (2268 kg)
  • Serpentine grooves grip insulation on strand, preventing slippage
  • 0.20-Inch to 0.37-Inch (5.08 to 9.40 mm) cable diameter range

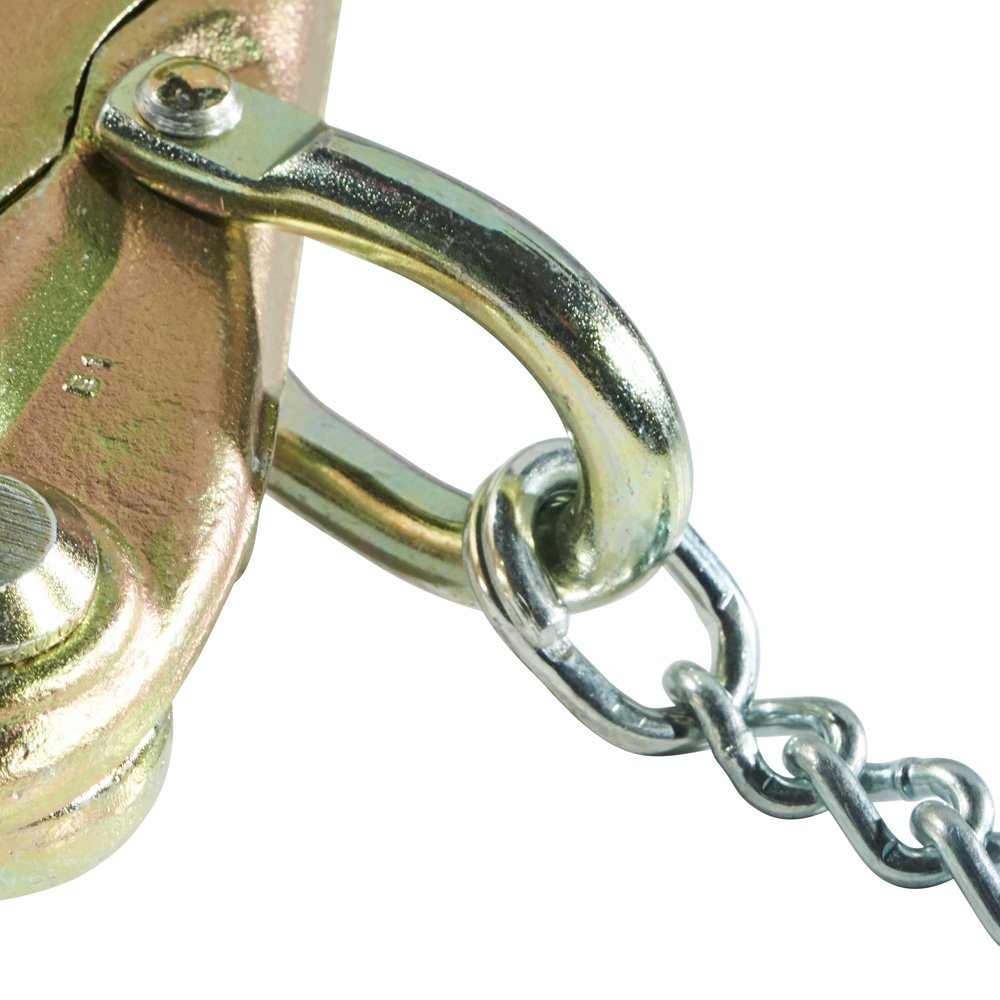

  • Equipped with chain, toggle, and shackle

Chicago GripType B钢绞线

1659-5AT

  • 类似于Bell-System型”B”拉线器
  • 设计用于拉动1/4英寸(6.35 mm)8字形电话线
  • 最大安全载荷5000磅(2268千克)
  • 蛇形凹槽夹住钢绞线上的绝缘层,防止滑动
  • 0.20英寸至0.37英寸(5.08至9.40毫米)电缆直径范围
  • 配有链条,肘节和卸扣

The Klein Tools 1659-5AT Chicago Grip is similar to a Bell-System type -InchB-Inch Strand Puller. It is designed to pull 1/4-Inch figure-8 telephone cable. Plus, it is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Specifications
Type:
”B” Strand Puller
Application:
1/4” Figure-8 Telephone Cable
Special Features:
Equipped With a Chain, Toggle and Shackle
Cable Type:
Steel Strand
Cable Diameter:
0.20” to 0.37” (5.08 to 9.4 mm)
Jaw Type:
Round – Serpentine
Jaw Length:
5” (127.0 mm)
Maximum Safe Load:
5000 lb (2268 kg)
Weight:
6.7 lb (3.03 kg)
UPC:
092644471209
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

Klein Tools 1659-5AT Chicago Grip类似于Bell-System型-InchB-Inch Strand Puller。它设计用于拉动1/4英寸8字形电话线。此外,它还配有链条,拨动开关和卸扣,以防止手柄脱落。所有Klein手柄均采用定制的锻造钢制造,经过机械加工和热处理,具有耐用性。每个手柄都经过单独手动检查和启动,以确保正常工作。握把也经过严格测试并拉至额定负载,以确保质量和可靠性。

产品规格
类型:
”B”Strand Puller
应用:
1/4”图-8电话线
特殊功能:
配有链条,Toggle和Shackle
电缆类型:
钢绞线
电缆直径:
0.20英寸至0.37英寸(5.08至9.4毫米)
颚类型:
圆形 – 蛇纹石
下颚长度:
5”(127.0 mm)
最大安全载荷:
5000磅(2268千克)
重量:
6.7磅(3.03千克)
UPC:
0926444712??09
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
