Project Description

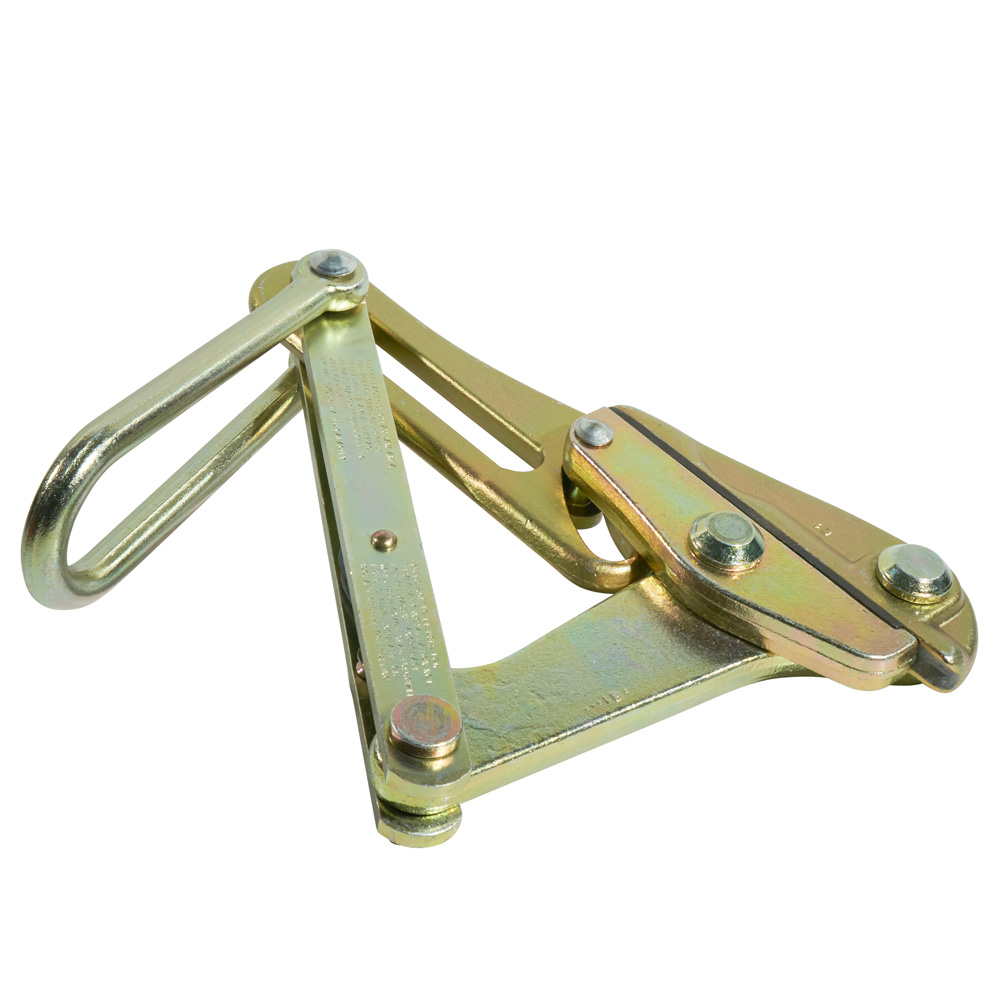

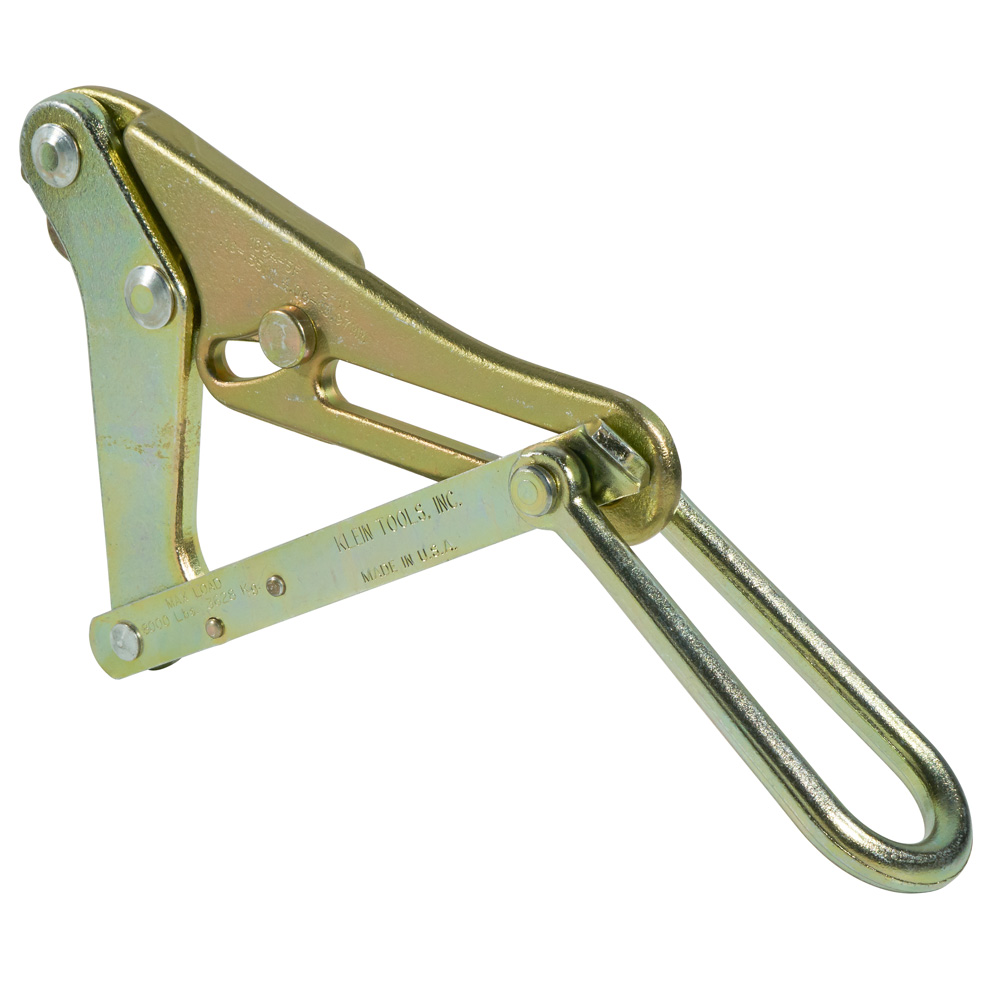

Grip for High Strength Cable

1684-5F

  • Designed for cable sizes from 0.16-Inch (4.06 mm) to 0.55-Inch (13.97 mm)
  • Double ”V” grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
  • For larger conductors, see our grips with round inside-jaw contour
  • Similar to Cat. No. 1684-5 except with a file inserted in jaw for extra gripping power. Replacement file No. 578 and screws No. 573 are also available

高强度电缆夹具

1684-5F

  • 适用于0.16英寸(4.06 mm)至0.55英寸(13.97 mm)的电缆
  • 双“V”槽提供四点接触,减少滑动的可能性并提供电线和电缆的正确对齐
  • 对于较大的导体,请参阅我们的带有圆形内颚轮廓的夹具
  • 与类似目录第1684-5号,除了在颚部插入锉刀以获得额外的抓握力。也可提供替换文件No.578和螺钉No.573

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.16-Inch to 0.55-Inch (4.06 – 13.97 mm). Double -InchV-Inch grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable.

Specifications
Application:
Extra-High-Strength Cables, Messenger, Guy Strand
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.16” to 0.55” (4.06 to 13.97 mm)
Jaw Type:
Single V with File Insert
Jaw Length:
5” (127.0 mm)
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
6.4 lb (2.9 kg)
UPC:
092644479465
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

设计用于铝,铜,防风雨涂层电线,PVC覆盖导体和信使和绞线。芝加哥式握把设计用于0.16英寸至0.55英寸(4.06 – 13.97毫米)的电缆尺寸。双-InchV-Inch凹槽可提供四点接触,减少滑动的可能性并提供电线和电缆的正确对齐。

产品规格
应用:
特别高强度电缆,信使,Guy Strand
电缆类型:
飞机,EHS,信使,Guy Strand
电缆直径:
0.16英寸至0.55英寸(4.06至13.97毫米)
颚类型:
单V带文件插入
下颚长度:
5”(127.0 mm)
安全载荷:
8000磅(3629千克)
重量:
6.4磅(2.9千克)
UPC:
092644479465
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
