Project Description

Chicago? Grip Coated Guy Wire

16845C

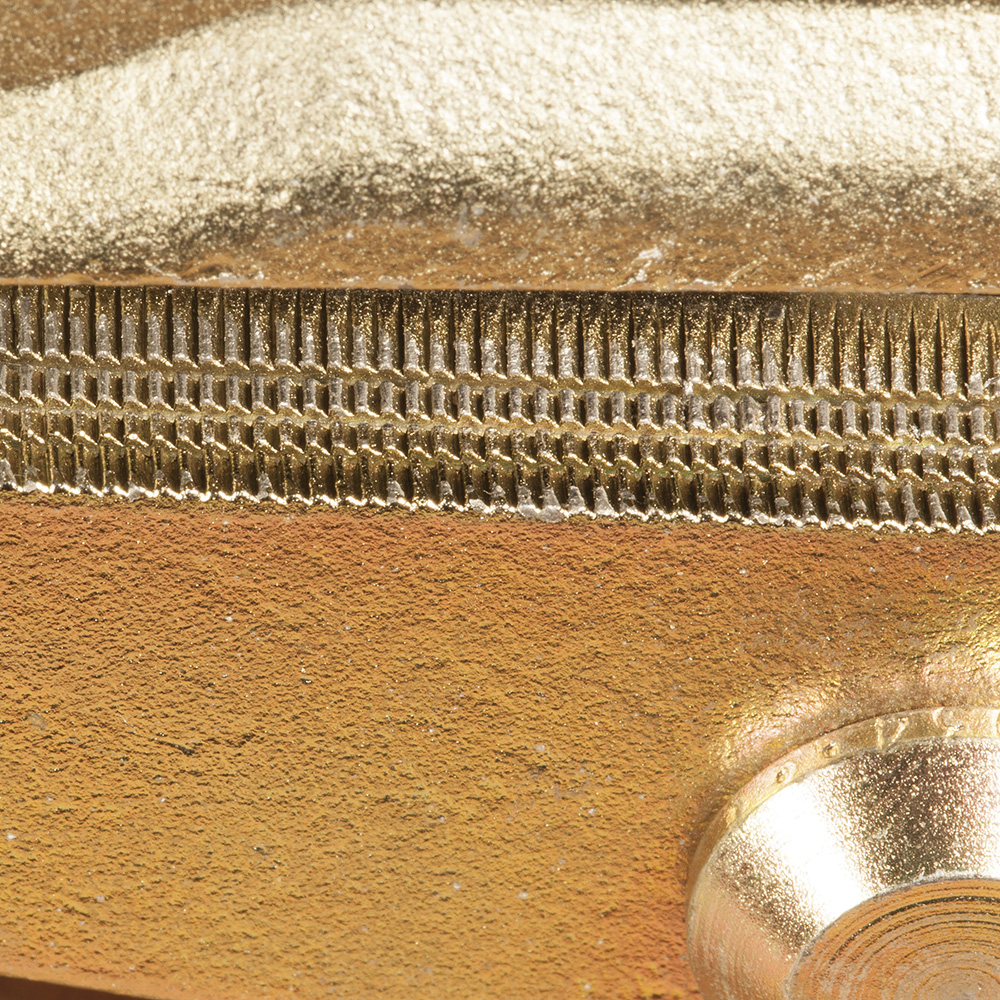

  • Sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
  • 5” jaw length increases surface area contact with the cable, minimizing cable damage
  • Designed for cable sizes 0.218-Inch to 0.55-Inch ((5.54 mm to 13.97 mm)
  • Maximum Safe Load is 8000-pound (3629 kg)

Chicago Grip Coated Guy Wire

16845C

  • 锯齿形颚型材可抵抗拉链和EHS电缆上的镀锌涂层
  • 5”钳口长度增加了与电缆接触的表面积,减少了电缆损坏
  • 设计用于0.218英寸至0.55英寸((5.54 mm至13.97 mm)的电缆尺寸
  • 安全载荷为8000磅(3629千克)

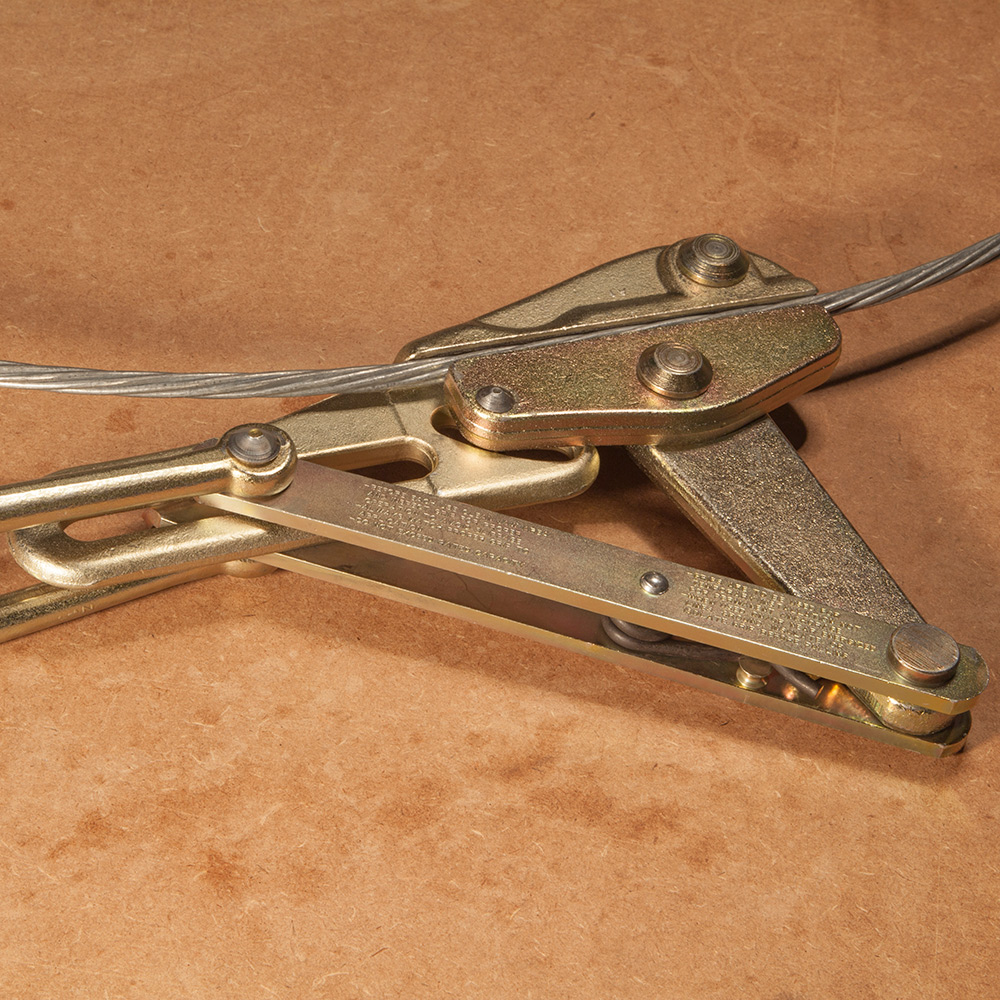

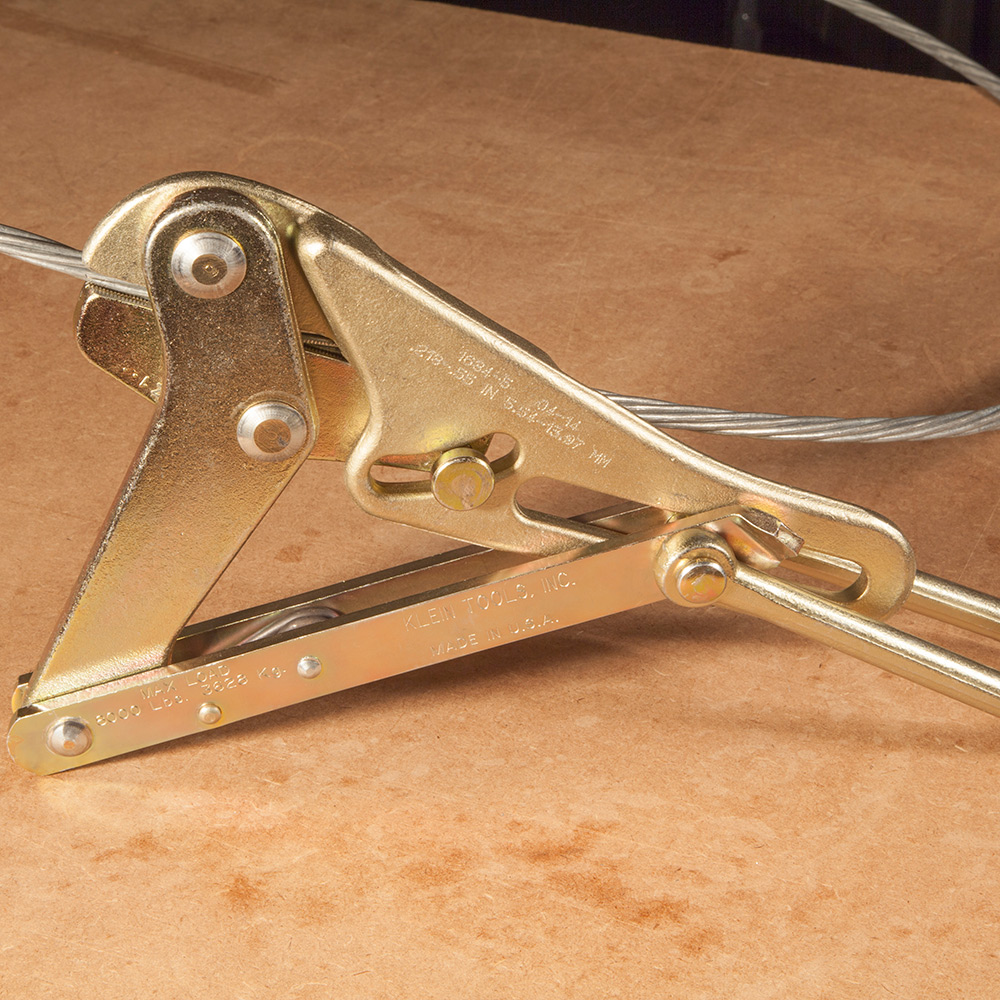

This Chicago Grip is designed specifically to work with coated guy wire. This authentic Klein Grip is manufactured, inspected and tested in the USA. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability.

Specifications
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.218” to 0.55” (5.54 to 13.97 mm)
Jaw Type:
Aggressive
Jaw Length:
5” (127.0 mm)
Maximum Safe Load:
8000 lb (3629 kg) EHS Specific
Weight:
6.0 lb (2.7 kg)
UPC:
092644479458
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.

这款Chicago Grip 为与涂层拉索配合使用而设计。这款 Klein Grip在美国制造,检验和测试。Klein手柄采用落锤锻造,美国钢材制成,并经过热处理,具有强度和耐用性。

产品规格
电缆类型:
飞机,EHS,信使,Guy Strand
电缆直径:
0.218英寸至0.55英寸(5.54至13.97毫米)
颚类型:
激进
下颚长度:
5”(127.0 mm)
最大安全载荷:
8000磅(3629千克)EHS特定
重量:
6.0磅(2.7千克)
UPC:
092644479458
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
  • 把手用于临时安装,而不是用于永久性锚固。
