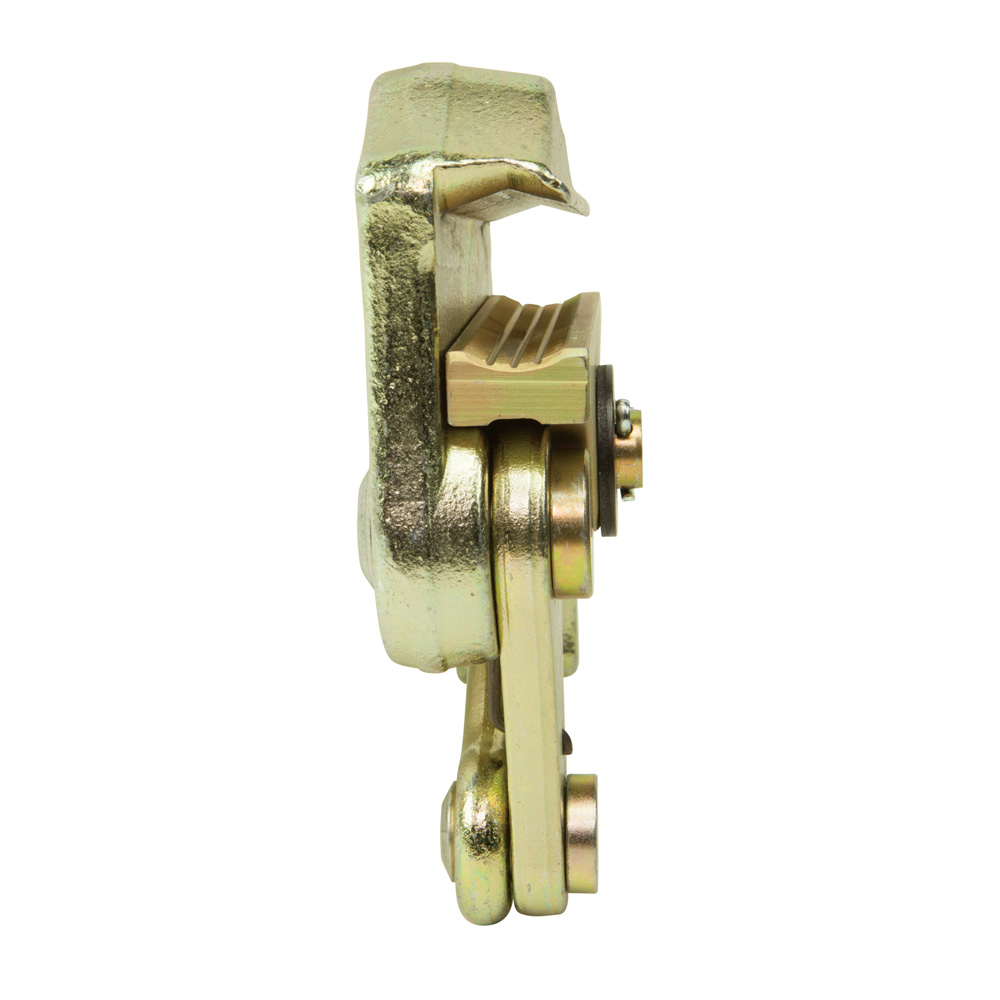

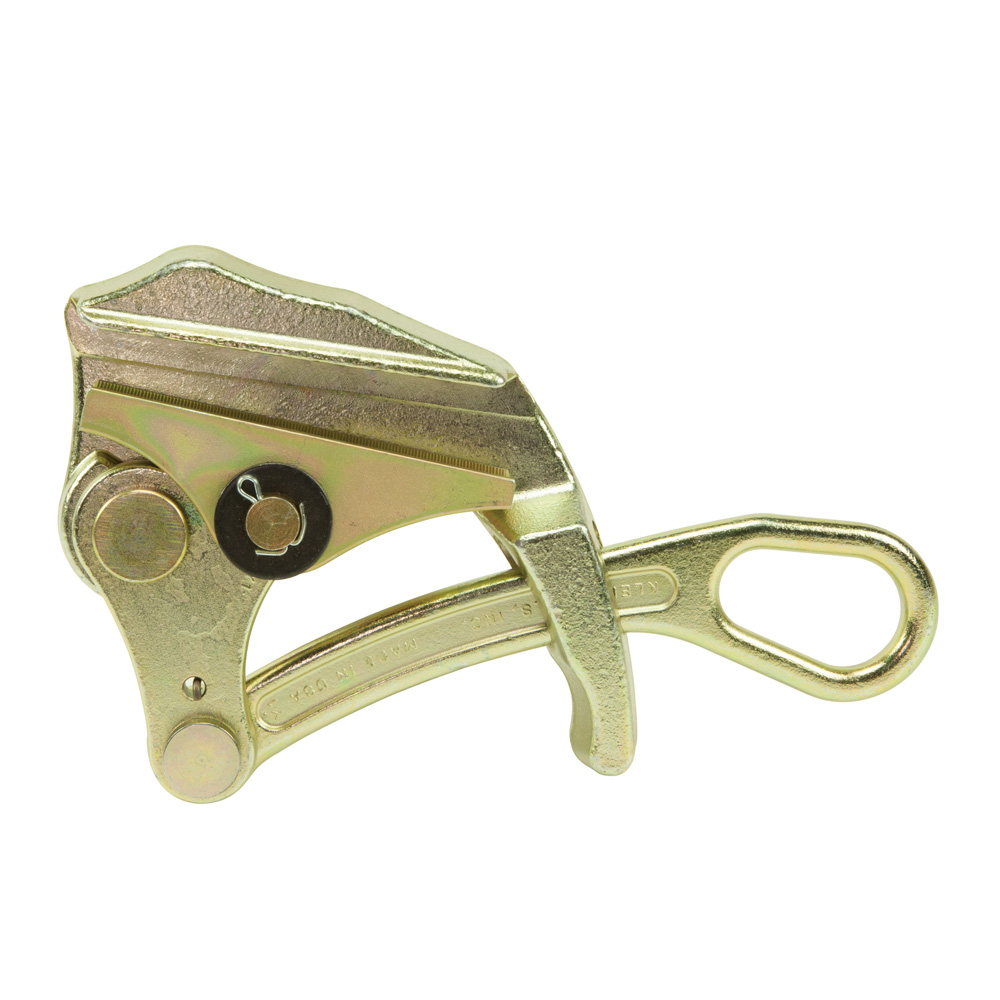

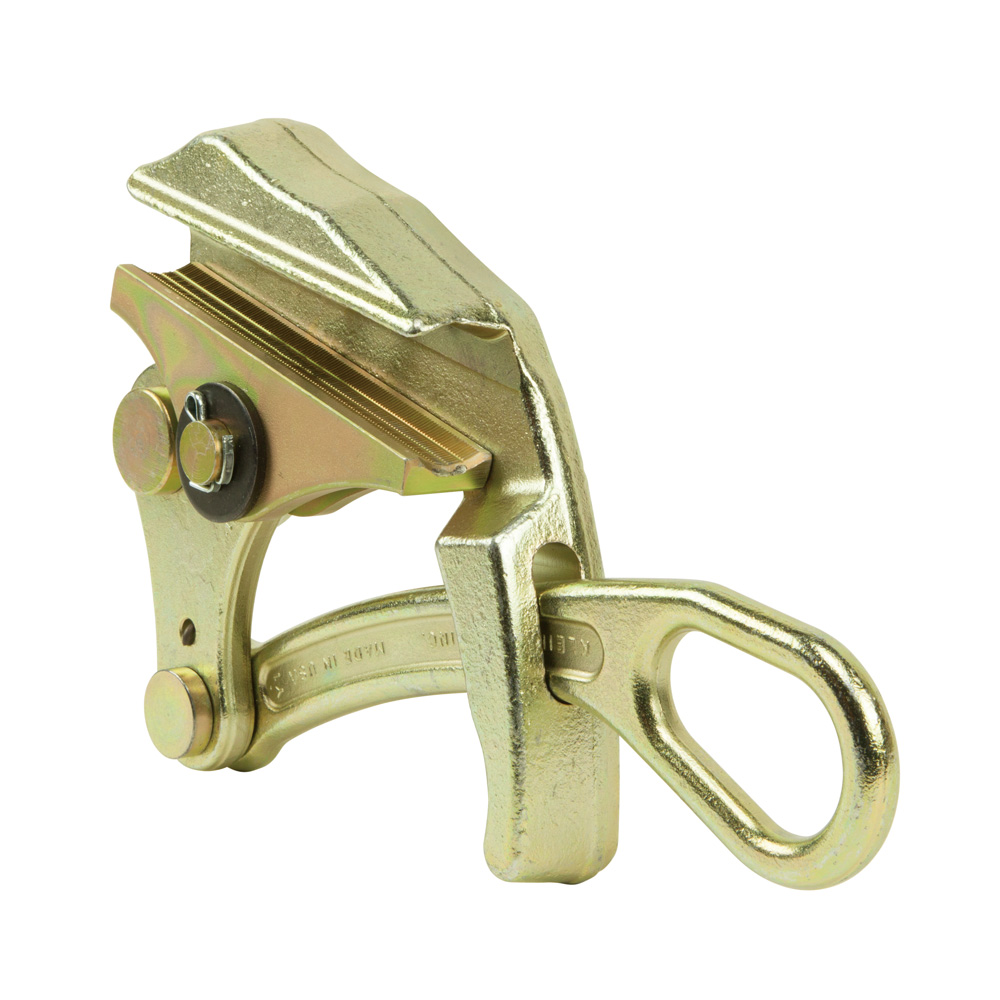

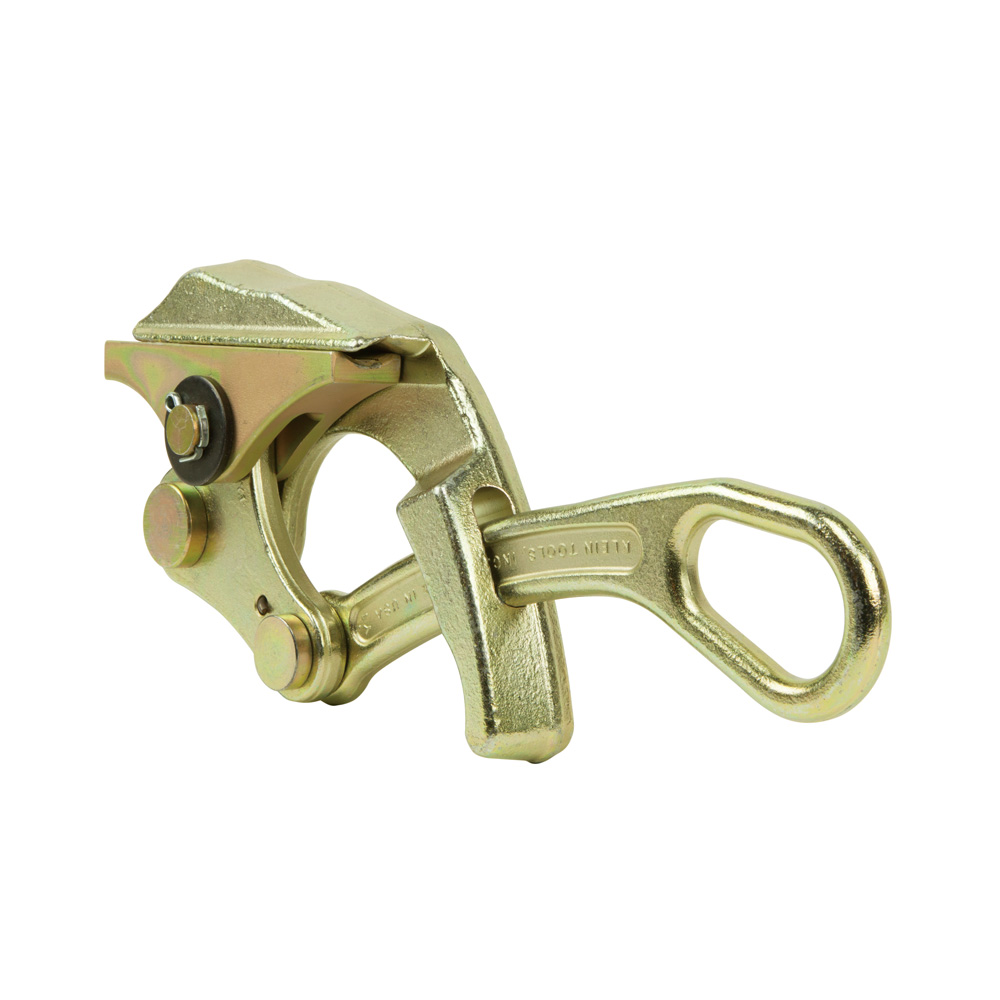

Parallel Jaw Grip for Coated Guy Strand

1685-50C

  • Pulls 5/16-Inch to 3/4-Inch steel cables
  • For use on guy strand and EHS cable sizes from 0.3 to 0.8 inches (8 – 20 mm)
  • Sawtooth jaw profile resists build-up from galvanized coating on guy strand and EHS cables
  • Spring helps maintain cable position in grips jaw
  • 5-Inch (127 mm) jaw length increases surface area contact with the cable

涂层盖子钢绞线的平行钳夹?拉缆夹

1685-50C

  • 将5/16英寸拉至3/4英寸钢缆
  • 适用于绞线和EHS电缆尺寸0.3至0.8英寸(8 – 20 mm)
  • 锯齿形颚型材可抵抗拉链和EHS电缆上的镀锌涂层
  • 弹簧有助于保持夹钳下颚的电缆位置
  • 5英寸(127 mm)钳口长度增加了与电缆的表面积接触

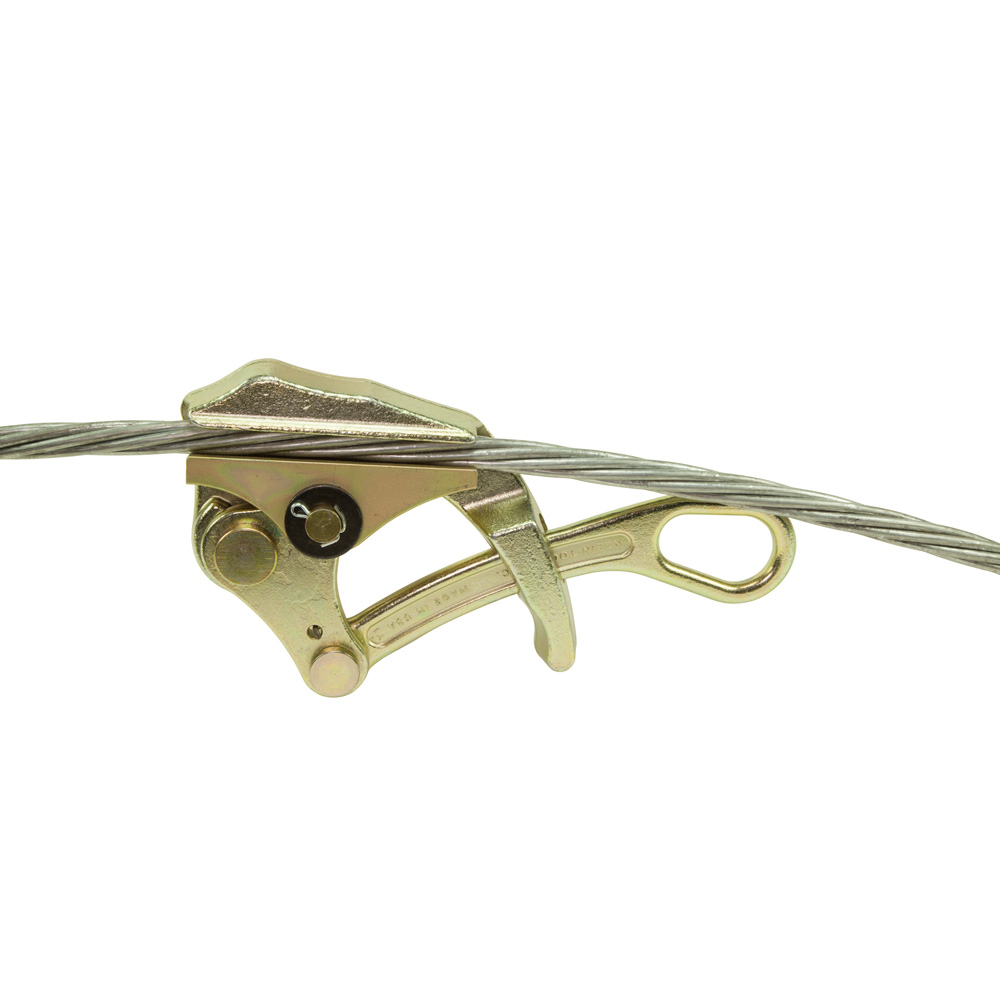

This lightweight, compact grip pulls guy strand and EHS cable sizes from 0.3-Inch to 0.8-Inch (8 to 20 mm). Designed with a round inside-jaw contour for maximum contact to minimize conductor damage. The aggressive jaw prevents slipping on guy strand. Spring-loaded for easy one-handed operation.

Specifications
Type:
Compact
Application:
Wire Pulling
Special Features:
Round Inside-jaw Contour
Overall Length:
11.365” (288.7 mm)
Cable Type:
Guy Strand, EHS, Coated
Cable Diameter:
0.300” to 0.800” (7.62 to 20.30 mm)
Jaw Type:
Round – Serrated
Jaw Length:
5” (127 mm)
Maximum Safe Load:
10000 lbs (4536 kg)
Weight:
7.0 lb (3.2 kg)
UPC:
092644471704
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.

这款轻巧紧凑的手柄可将拉链和EHS电缆尺寸从0.3英寸拉至0.8英寸(8至20毫米)。采用圆形内颚轮廓设计,可实现很大程度的接触,从而 下巴可防止滑倒。弹簧式,便于单手操作。

产品规格
类型:
紧凑
应用:
拉线
特殊功能:
圆形内颚轮廓
总长度:
11.365”(288.7 mm)
电缆类型:
涂上EHS的Guy Strand
电缆直径:
0.300”至0.800”(7.62至20.30 mm)
颚类型:
圆形 – 锯齿形
下颚长度:
5英寸(127毫米)
最大安全载荷:
10000磅(4536千克)
重量:
7.0磅(3.2千克)
UPC:
092644471704
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
