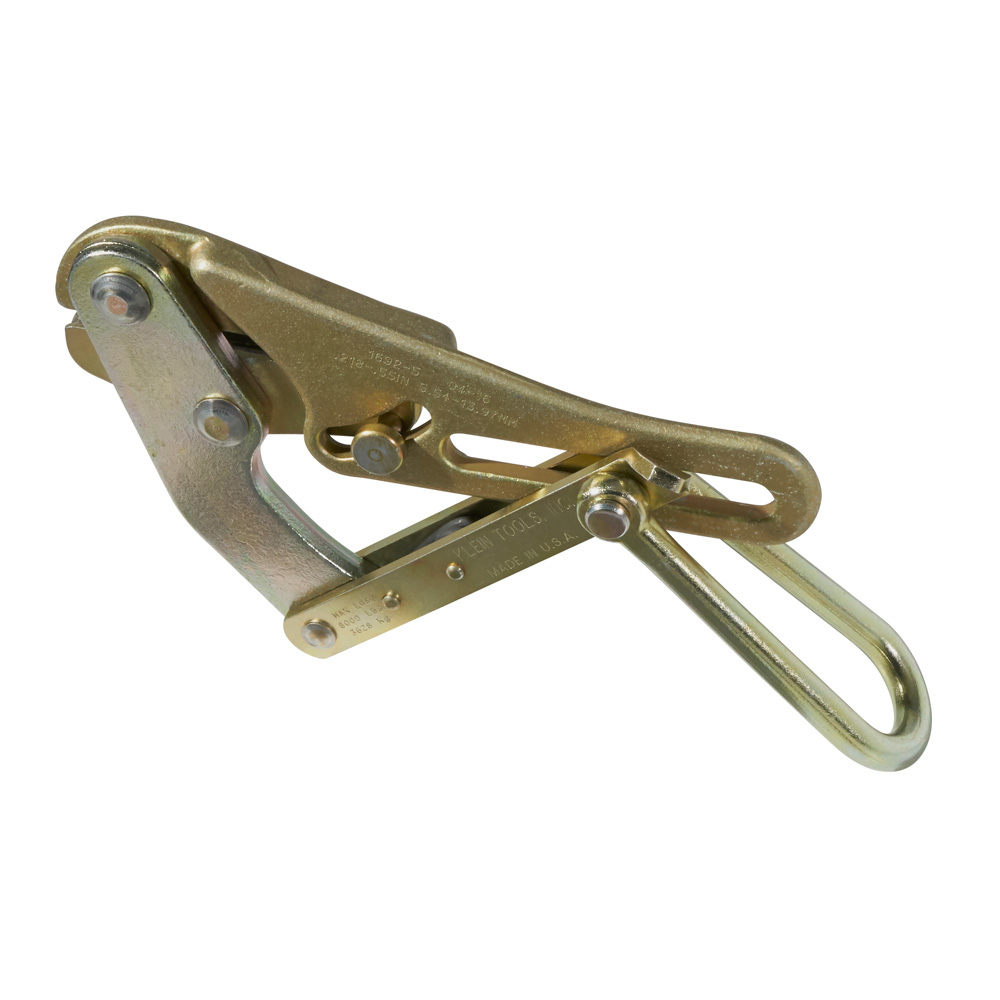

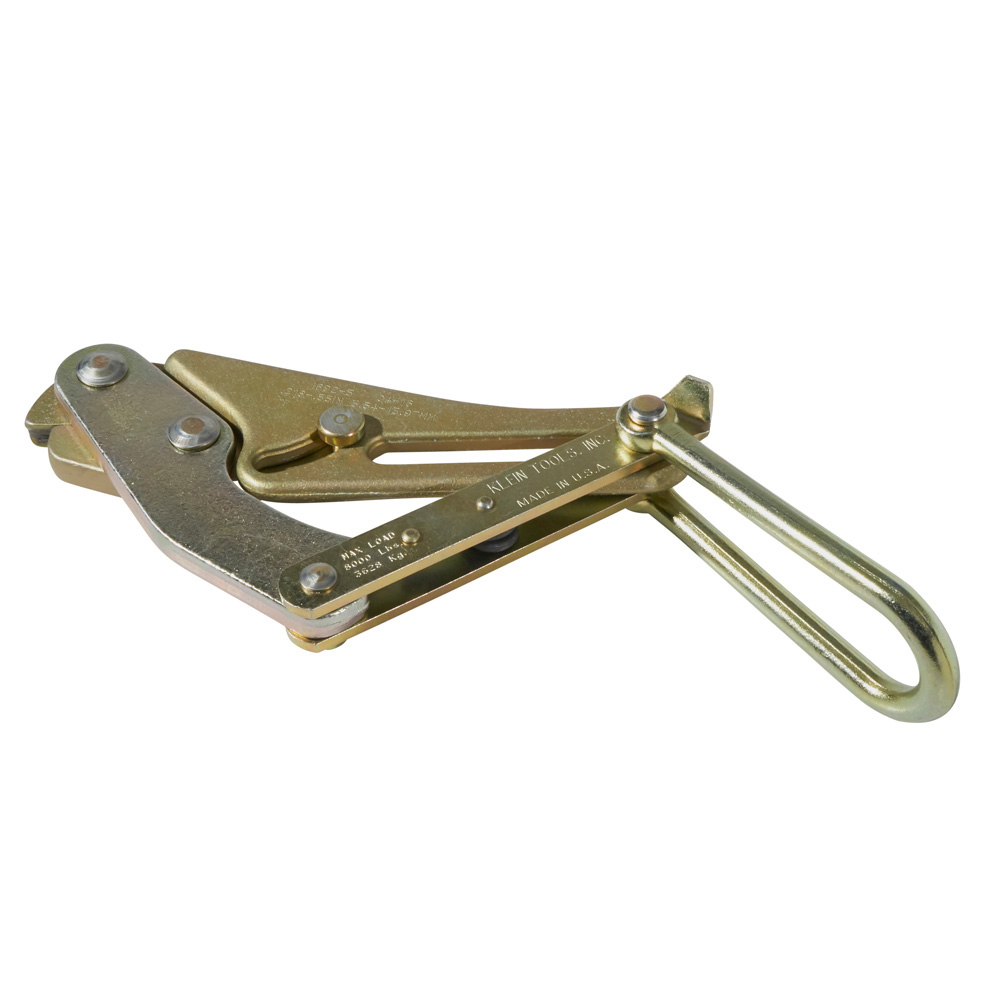

Grip for High Strength Cables 0.218-Inch
1692-5
- Designed for cable sizes from .218-Inch (5.54 mm) to 0.550-Inch (13.97 mm)
- Double ”V” grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- For larger conductors, see our grips with round inside-jaw contour
高强度电缆夹子0.218英寸
1692-5
- 设计用于.218-Inch（5.54 mm）至0.550-Inch（13.97 mm）的电缆尺寸
- 双“V”槽提供四点接触，减少滑动的可能性并提供电线和电缆的正确对齐
- 对于较大的导体，请参阅我们的带有圆形内颚轮廓的夹具
Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. The Chicago style grip was designed for cable sizes from 0.12-Inch to 1.0-Inch (3.10 to 25.4 mm). When pulling EHS (extra-high-strength) galvanized-steel cable, the galvanizing has a tendency to coat the jaws of any grip, causing the cable to slip. Double -InchV-Inch contour reduces the possibility of slippage and damage to the cable.
Specifications
Application:
Extra-High-Strength Cables, Messenger, Guy Strand
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.218” to 0.55” (5.54 to 13.97 mm)
Jaw Type:
Double V
Jaw Length:
5” (127.0 mm)
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
5.4 lb (2.5 kg)
UPC:
092644471834
WARNINGS
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
设计用于铝，铜，防风雨涂层电线，PVC覆盖导体和信使和绞线。芝加哥式握把设计用于0.12英寸至1.0英寸（3.10至25.4毫米）的电缆尺寸。当拉动EHS（特别高强度）镀锌钢电缆时，镀锌倾向于涂覆夹具的钳口，导致电缆滑动。双-InchV-Inch轮廓减少了滑动和损坏电缆的可能性。
产品规格
应用：
特别高强度电缆，信使，Guy Strand
电缆类型：
飞机，EHS，信使，Guy Strand
电缆直径：
0.218英寸至0.55英寸（5.54至13.97毫米）
颚类型：
双V
下颚长度：
5”（127.0 mm）
安全载荷：
8000磅（3629千克）
重量：
5.4磅（2.5千克）
UPC：
092644471834
警告
- 每次使用前，清洁钳口区域并检查手柄是否正确操作以避免滑动。
- 在拉动时在通电线上/附近使用，接地，绝缘或隔离手柄。
- 不要超过额定容量。
- 始终将适当尺寸和类型的手柄与应用相匹配。
- 把手用于临时安装，而不是用于永久性锚固。
