Project Description

Parallel Jaw Grip, 0.7 to 1.3-Inch HDPE Wire

1716-60

  • Securely pulls HDPE-coated cable commonly known as ”tree wire”
  • Innovative high-traction surface grips the cable without damaging the outer jacket
  • Pulls cable diameters 0.625-Inch to 1.362-Inch (15.875 to 34.595 mm)
  • Max. Safe Load: 4000-pound (1814 kg)
  • Tough carbide grit technology withstands even the harshest jobsite conditions
  • Spring-loaded for one-handed operation and easy placement on the conductor
  • Common tree wire cable types include general cable, Hendrix aerial systems, rite lite BLL conductor and Southwire S2 covered cable

平行拉缆夹,HDPE线至1.3英寸

1716-60

  • 安全地拉动通常称为“树丝”的HDPE涂层电缆
  • 高牵引力表面可夹住电缆而不会损坏外护套
  • 将电缆直径0.625英寸拉至1.362英寸(15.875至34.595 mm)
  • 安全载荷:4000磅(1814千克)
  • 坚韧的硬质合金砂砾技术可以承受恶劣的工地条件
  • 弹簧式单手操作,易于放置在导体上
  • 常见的树木电线类型包括通用电缆,Hendrix天线系统,rite lite BLL导体和Southwire S2覆盖电缆

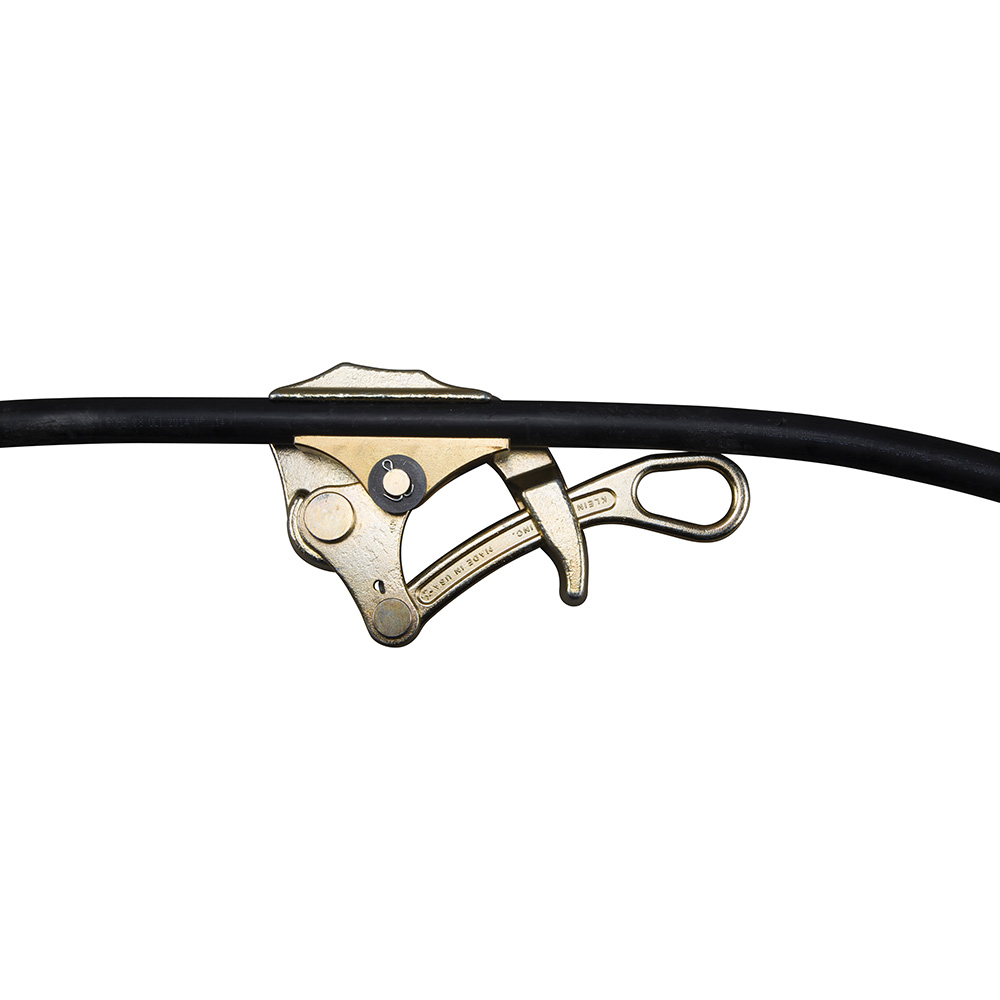

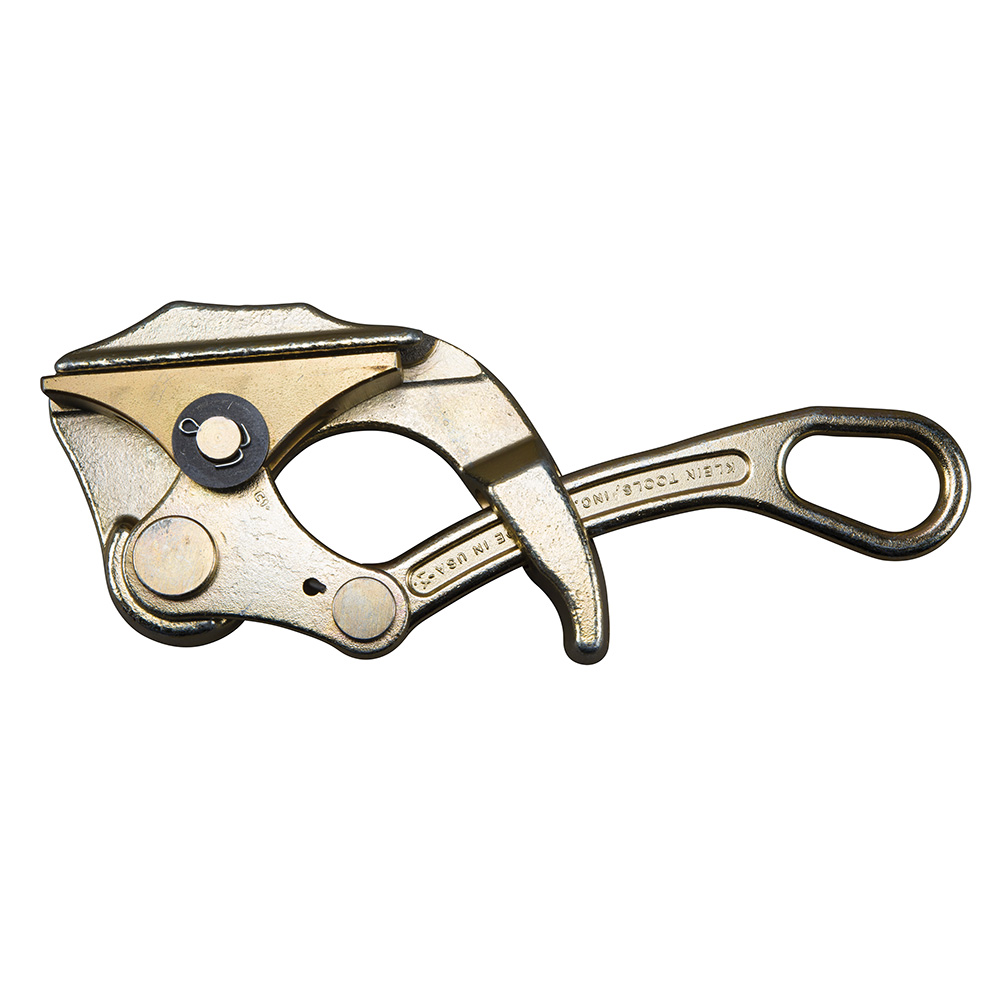

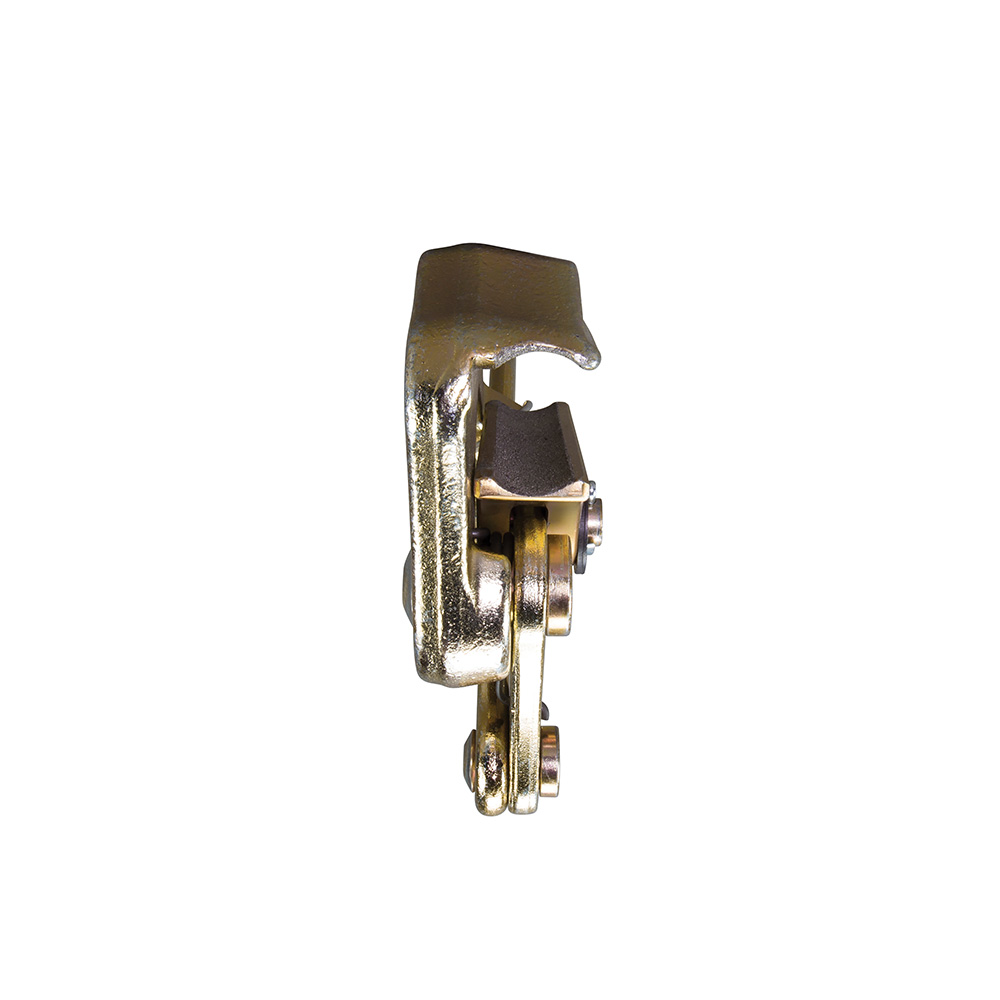

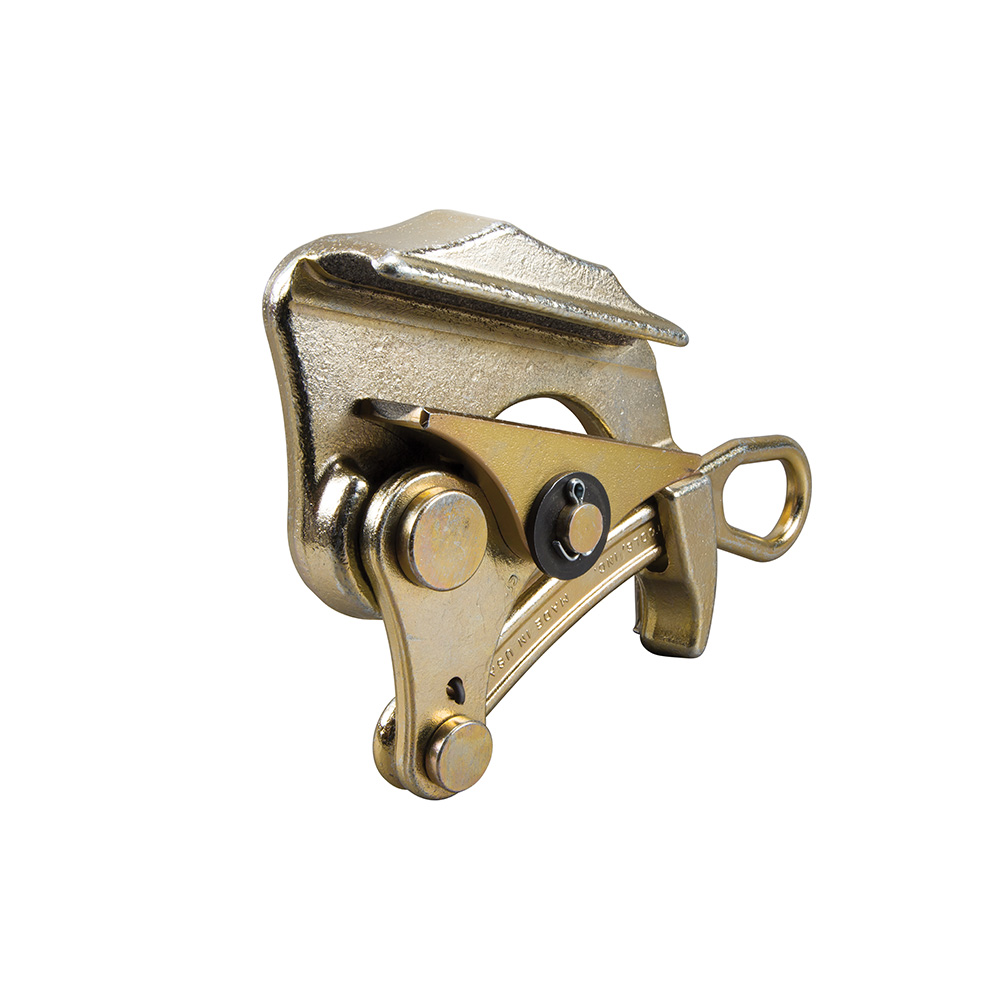

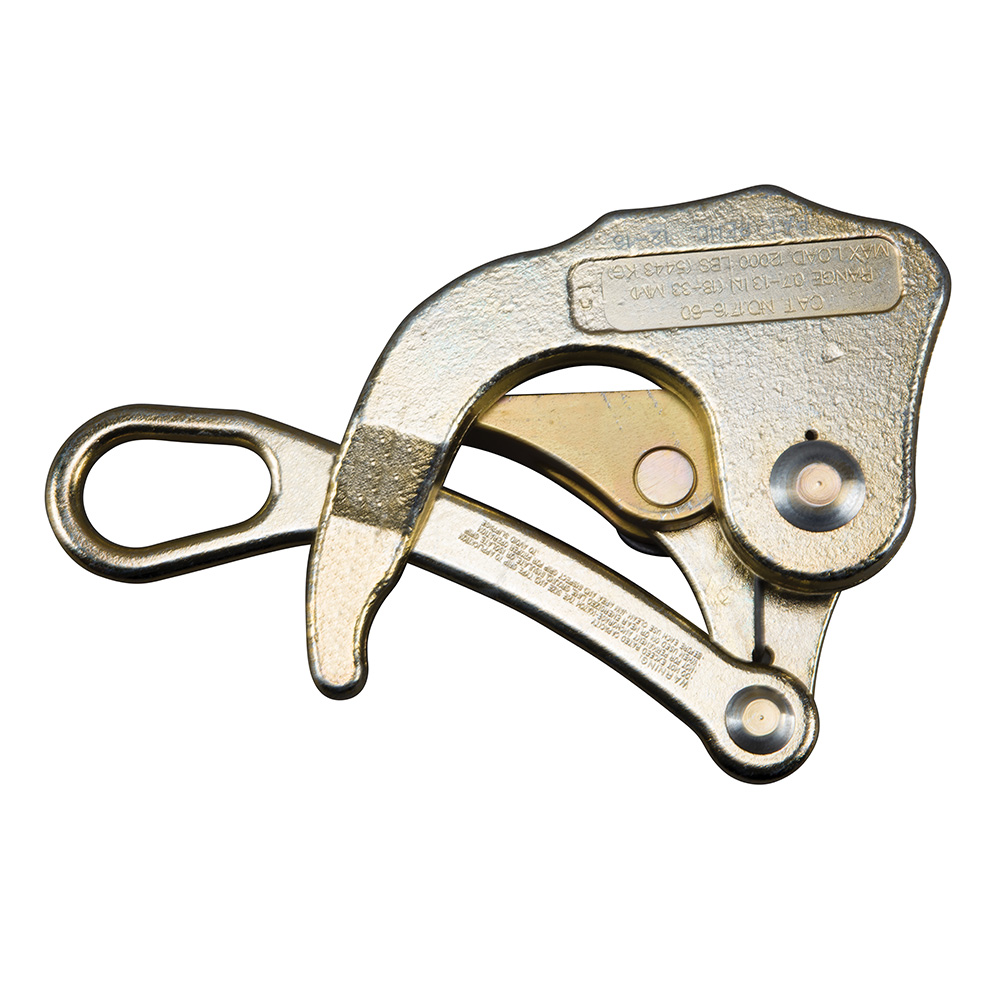

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Specifications
Cable Type:
HDPE-Coated
Cable Diameter:
0.70” to 1.30” (17.78 to 33.02 mm)
Jaw Type:
Round
Jaw Length:
5.125” (130.2 mm)
Maximum Safe Load:
12,000 lb (5443 kg)
Weight:
8.1 lb (3.7 kg)
UPC:
092644471698
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.

这种平行钳口夹具设计用于牢固地拉动湿滑的HDPE涂层电缆或树丝。高牵引力表面可以在不损坏外护套的情况下夹紧电缆。坚韧的硬质合金砂砾技术可以承受恶劣的工地条件。手柄采用弹簧加载,可单手操作,便于放置在导体上。

产品规格
电缆类型:
HDPE涂层
电缆直径:
0.70”到1.30”(17.78到33.02 mm)
颚类型:
下颚长度:
5.125”(130.2 mm)
最大安全载荷:
12,000磅(5443千克)
重量:
8.1磅(3.7千克)
UPC:
092644471698
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
