Project Description

Parallel Jaw Grip, HDPE Wire to 1.362-Inch

1716-70

  • Securely pulls HDPE-coated cable commonly known as ”tree wire”
  • Innovative high-traction surface grips the cable without damaging the outer jacket
  • Pulls cable diameters 0.625-Inch to 1.362-Inch (15.875 to 34.595 mm)
  • Max. Safe Load: 4000-pound (1814 kg)
  • Tough carbide grit technology withstands even the harshest jobsite conditions
  • Spring-loaded for one-handed operation and easy placement on the conductor
  • Common tree wire cable types include general cable, Hendrix aerial systems, rite lite BLL conductor and Southwire S2 covered cable

平行拉缆夹,HDPE线至1.362英寸

1716-70

  • 安全地拉动通常称为“树丝”的HDPE涂层电缆
  • 高牵引力表面可夹住电缆而不会损坏外护套
  • 将电缆直径0.625英寸拉至1.362英寸(15.875至34.595 mm)
  • 安全载荷:4000磅(1814千克)
  • 坚韧的硬质合金砂砾技术可以承受恶劣的工地条件
  • 弹簧式单手操作,易于放置在导体上
  • 常见的树木电线类型包括通用电缆,Hendrix天线系统,rite lite BLL导体和Southwire S2覆盖电缆

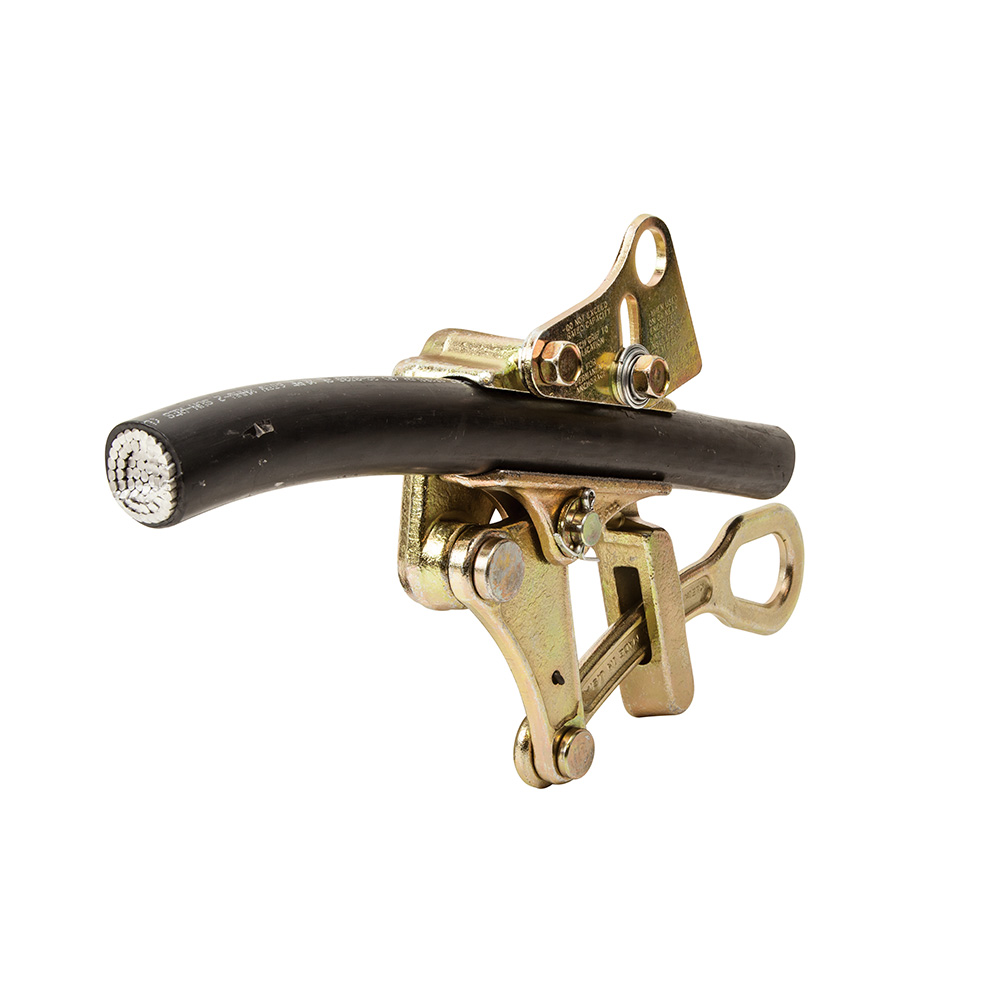

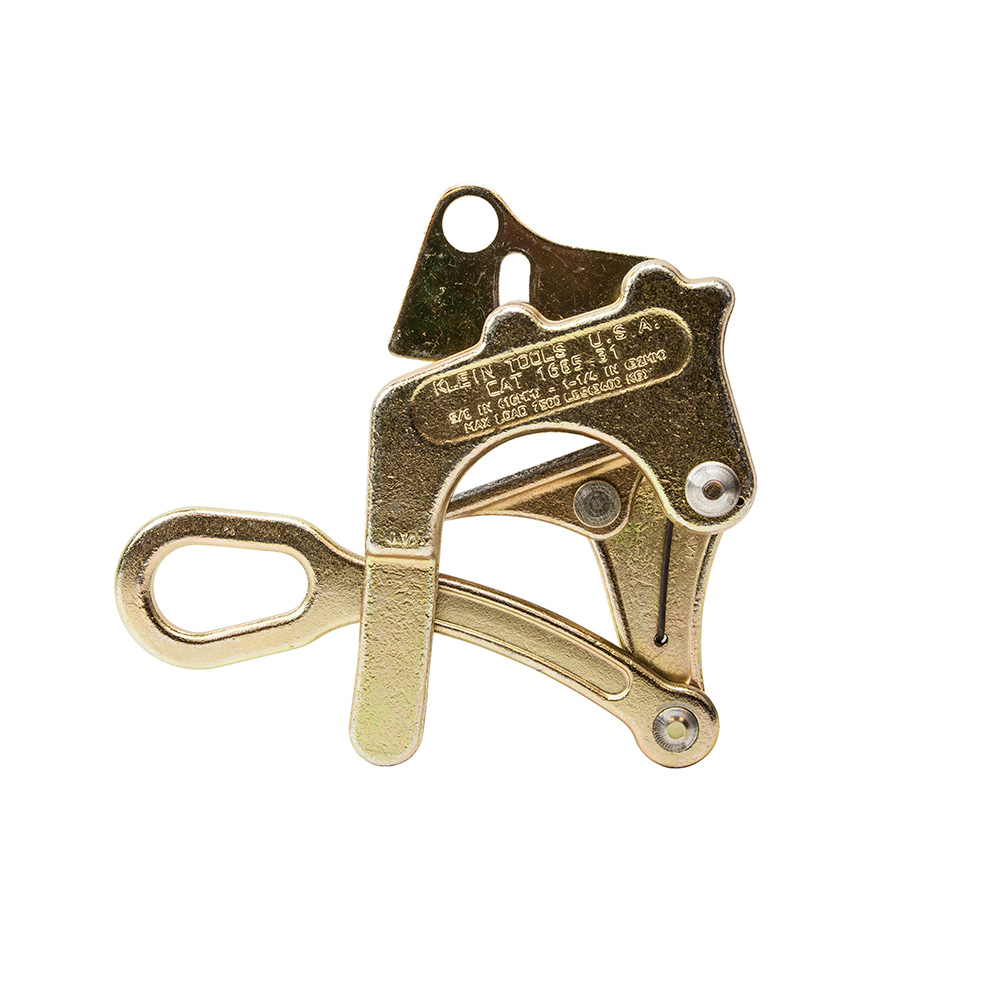

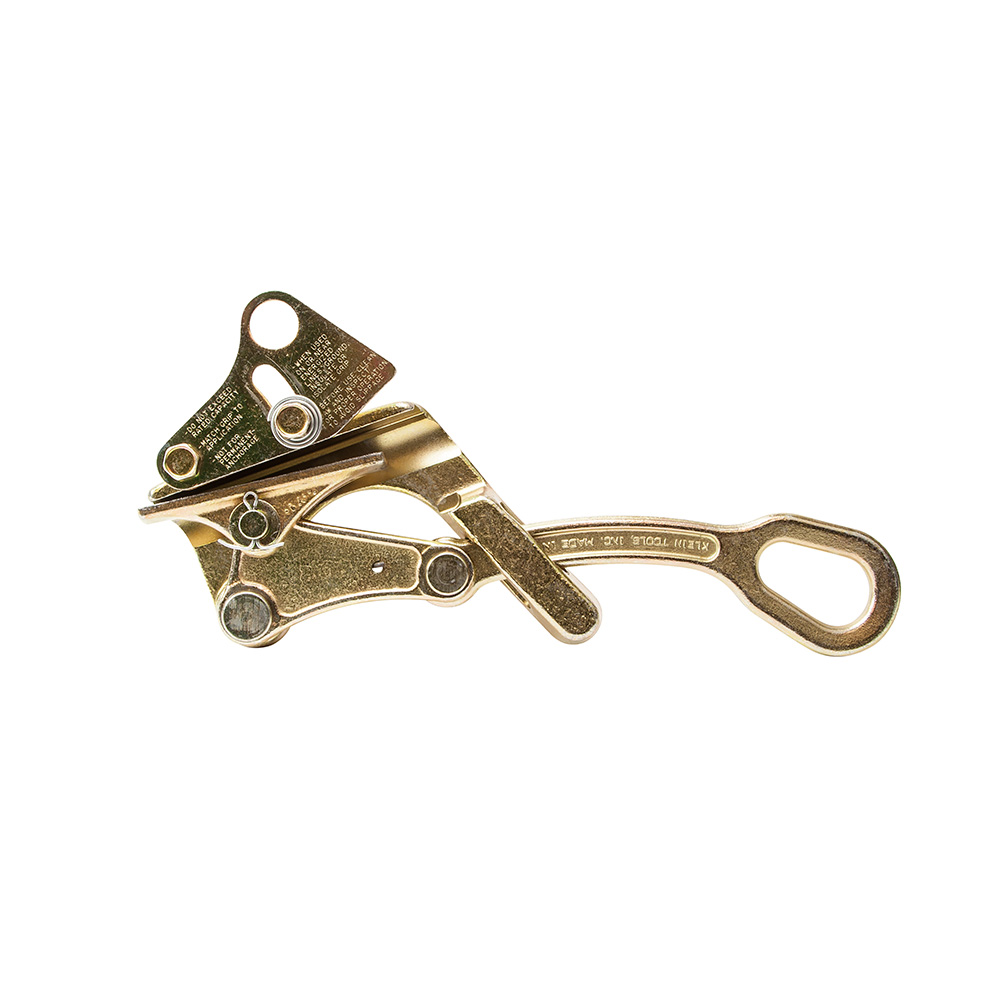

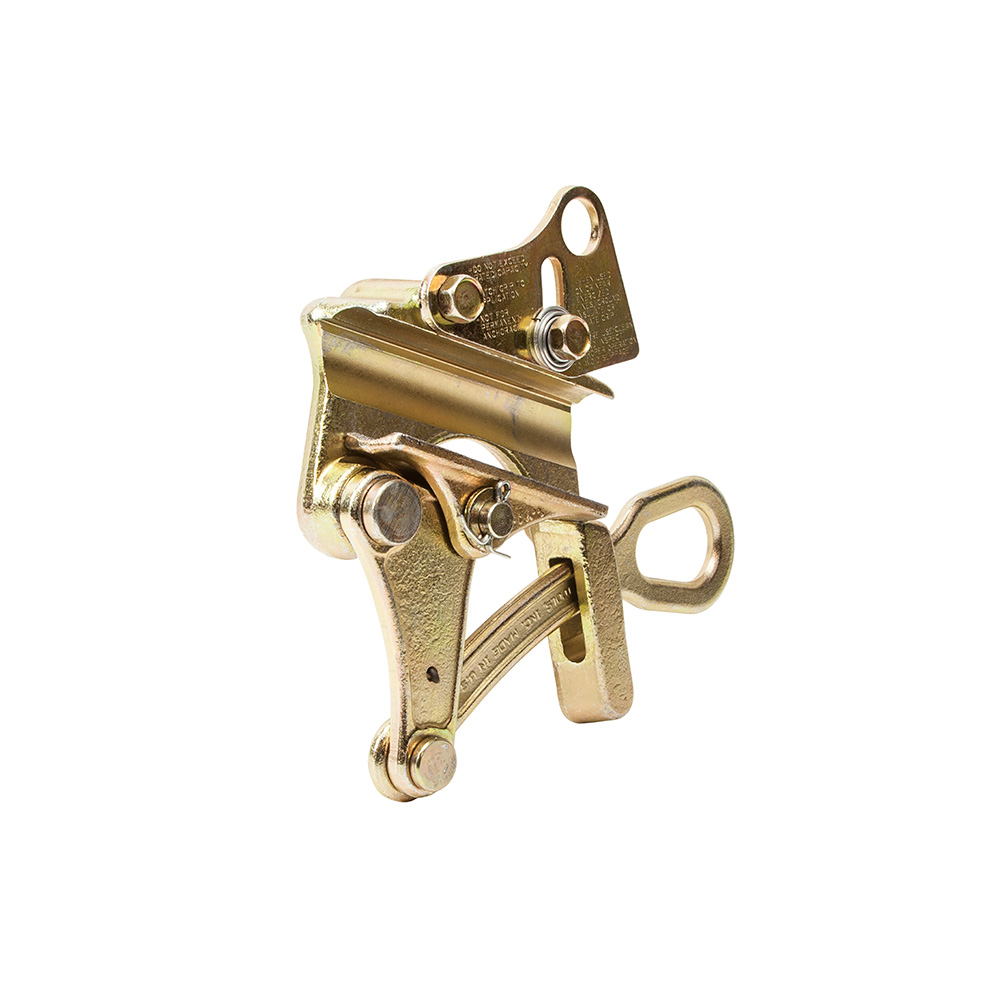

This parallel jaw grip was specifically designed to securely pull slippery HDPE-coated cable or tree wire. The innovative high-traction surface grips the cable without damaging the outer jacket. The tough carbide grit technology withstands even the harshest jobsite conditions. The grip is spring-loaded for one-handed operation and easy placement on the conductor.

Specifications
Type:
Parallel Jaw Grip
Application:
Wide Range Cable Pulling Grip
Special Features:
High Traction Grip Surface
Overall Length:
12.5” (317.5 mm)
Overall Height:
8.5” (215.9 mm)
Overall Width:
2.75” (69.9 mm)
Material:
Forged Steel
Cable Type:
HDPE-Coated
Cable Diameter:
0.625” to 1.362” (15.9 to 34.6 mm)
Jaw Length:
4.5” (114.3 mm)
Jaw Type:
Round
Maximum Safe Load:
4,000 lb (1,814 kg)
Weight:
5.10 lb (2.31 kg)
UPC:
092644471971
WARNINGS
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.

这种平行钳口夹具设计用于牢固地拉动湿滑的HDPE涂层电缆或树丝。高牵引力表面可以在不损坏外护套的情况下夹紧电缆。坚韧的硬质合金砂砾技术可以承受恶劣的工地条件。手柄采用弹簧加载,可单手操作,便于放置在导体上。

产品规格
类型:
平行钳夹
应用:
宽范围拉线夹
特殊功能:
高牵引力表面
总长度:
12.5英寸(317.5毫米)
总体高度:
8.5英寸(215.9毫米)
总宽度:
2.75英寸(69.9毫米)
材料:
锻钢
电缆类型:
HDPE涂层
电缆直径:
0.625”到1.362”(15.9到34.6 mm)
下颚长度:
4.5英寸(114.3毫米)
颚类型:
最大安全载荷:
4,000磅(1,814千克)
重量:
5.10磅(2.31千克)
UPC:
092644471971
警告
  • 每次使用前,清洁钳口区域并检查手柄是否正确操作以避免滑动。
  • 在拉动时在通电线上/附近使用,接地,绝缘或隔离手柄。
  • 不要超过额定容量。
  • 始终将适当尺寸和类型的手柄与应用相匹配。
