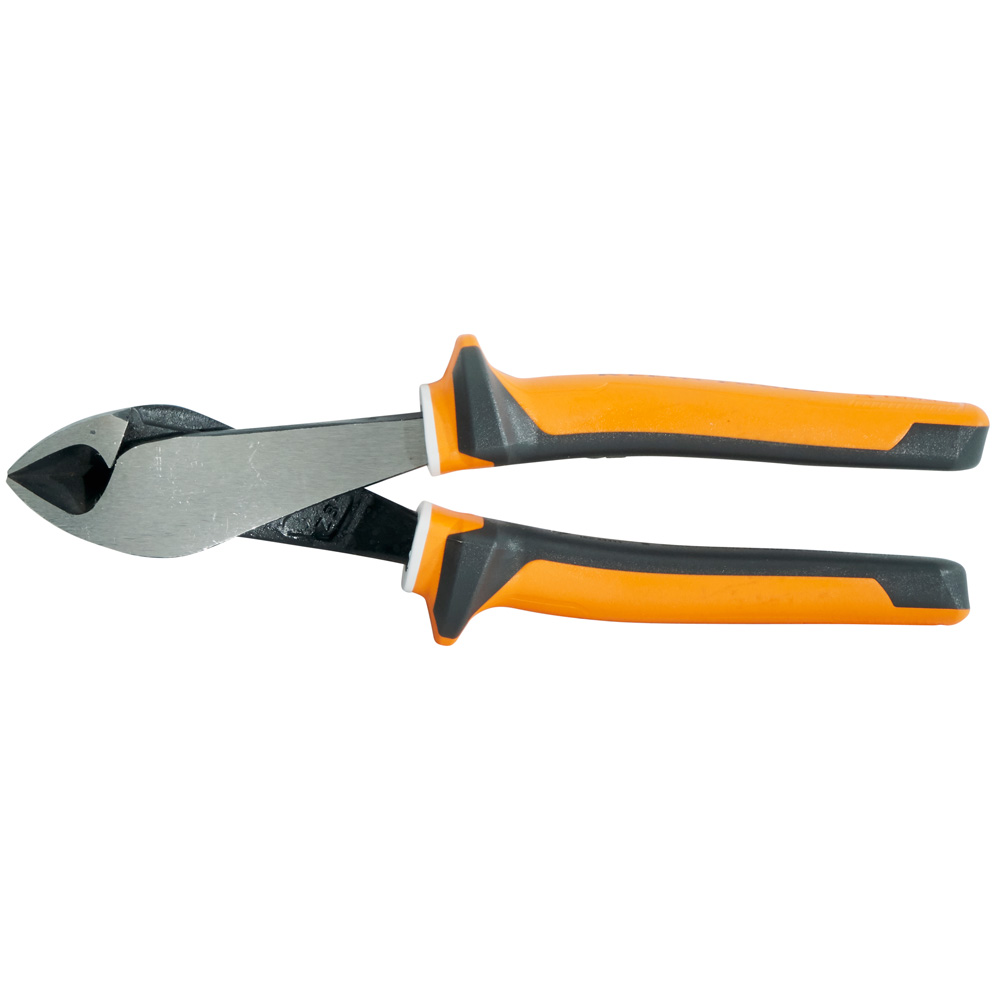

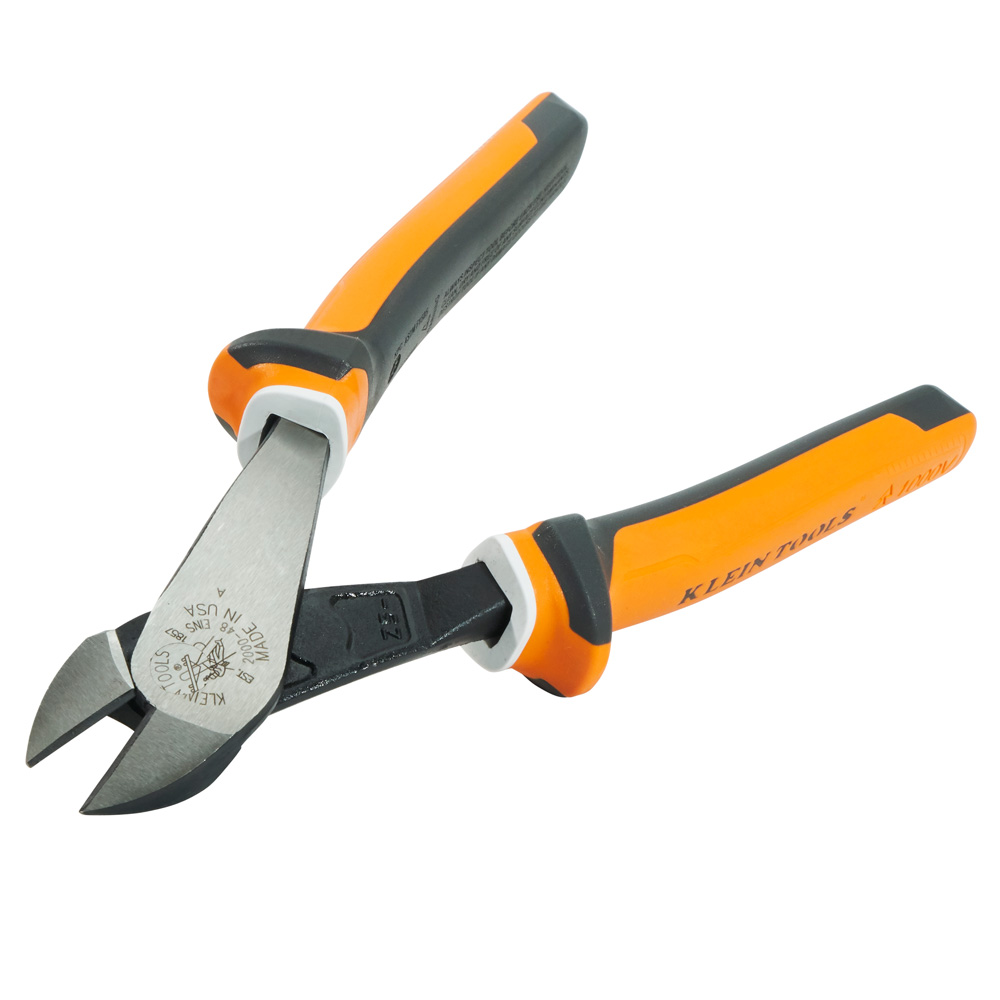

Diagonal Cutting Pliers Angled Head
200048EINS
- 1000 V Rated for safety on the job.
- Unique three-part insulation with white underlayer provides a warning sign that insulation may be compromised
- Cuts ACSR, screws, nails and most hardened wire. Induction hardened for long life
- Multi-color, sleek design with small thumbguards for ease of handling and easy storage in your toolbelt
- Hot-riveted joint for smooth action and no handle wobble
- Induction hardened for long life
对角切割钳角度头
200048EINS
- 1000 V额定工作安全性。
- 带有白色底层的三件式绝缘材料提供了绝缘可能受损的警告信号
- 切割ACSR,螺钉,钉子和大多数硬化线。感应淬火,使用寿命长
- 多色,时尚的设计,带有小拇指,便于操作,便于存放在工具带中
- 热铆接头,动作平稳,无手柄摆动
- 耐用的模制绝缘材料
- 感应淬火,使用寿命长
Klein Tools Electrician’s Insulated High-Leverage Diagonal-Cutting pliers are 1000V rated and for safety on the job. The multi-color, sleek design with small thumbguards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised.
Specifications
Type:
High-Leverage Pliers
Application:
ACSR, Screws, Nails and Most Hardened Wire
Special Features:
Flame Retardant and Impact Resistant Handle
Overall Length:
8.25” (209.6 mm)
Material:
Induction Hardened Steel
Nose Type:
Angled
Jaw Length:
0.813” (20.7 mm)
Jaw Width:
1.188” (30.2 mm)
Jaw Thickness:
13/16” (20.6 mm)
Cutting Knives:
Standard
Knife Length:
Standard
Cut Style:
Diagonal-Cutting
Joint Type:
Hot-Riveted
Handle Color:
Orange/Gray
Handle Finish:
3-Layer
Handle Length:
6.75” (171.5 mm)
Insulated:
Yes
Weight:
0.70 lb (0.32 kg)
UPC:
092644720086
WARNINGS
- Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
- Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
- Always inspect your tools before use.
- Always wear approved eye protection.
- Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
- Keep tool clean, dry and free of any surface contaminants.
- Destroy tool if the insulation is damaged in any way.
Klein Tools电工的绝缘高杠杆斜切钳具有1000V额定值,可确保工作安全。多色,时尚的设计和小拇指,便于操作和存放。带有白色底层的三部分绝缘层提供了绝缘可能受损的警告信号。耐用的模制绝缘材料。
产品规格
类型:
高杠杆钳
应用:
ACSR,螺钉,钉子和大多数硬化线
特殊功能:
阻燃和抗冲击手柄
总长度:
8.25”(209.6 mm)
材料:
感应淬火钢
鼻型:
斜角
下颚长度:
0.813”(20.7 mm)
下颚宽度:
1.188”(30.2 mm)
下颚厚度:
13/16”(20.6 mm)
切刀:
标准
刀长:
标准
剪裁风格:
对角线切割
关节类型:
热铆接
处理颜色:
橙/灰
处理完成:
3层
手柄长度:
6.75英寸(171.5毫米)
绝缘:
是
重量:
0.70磅(0.32千克)
UPC:
092644720086
警告
- 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。Klein绝缘工具的设计只是为了减少工具可能接触带电源的伤害几率。
- 如果工具有可能与带电源接触,则仅使用标有国际1000伏额定等级符号的工具。
- 使用前请务必检查工具。
- 始终佩戴认可的护目镜。
- 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
- 保持工具清洁,干燥,无任何表面污染物。
- 如果绝缘材料受到任何损坏,请销毁工具。
