Project Description

Large Cable Stripper (750-350 MCM)

21050

  • Effectively removes insulation on 350 – 750 MCM cable

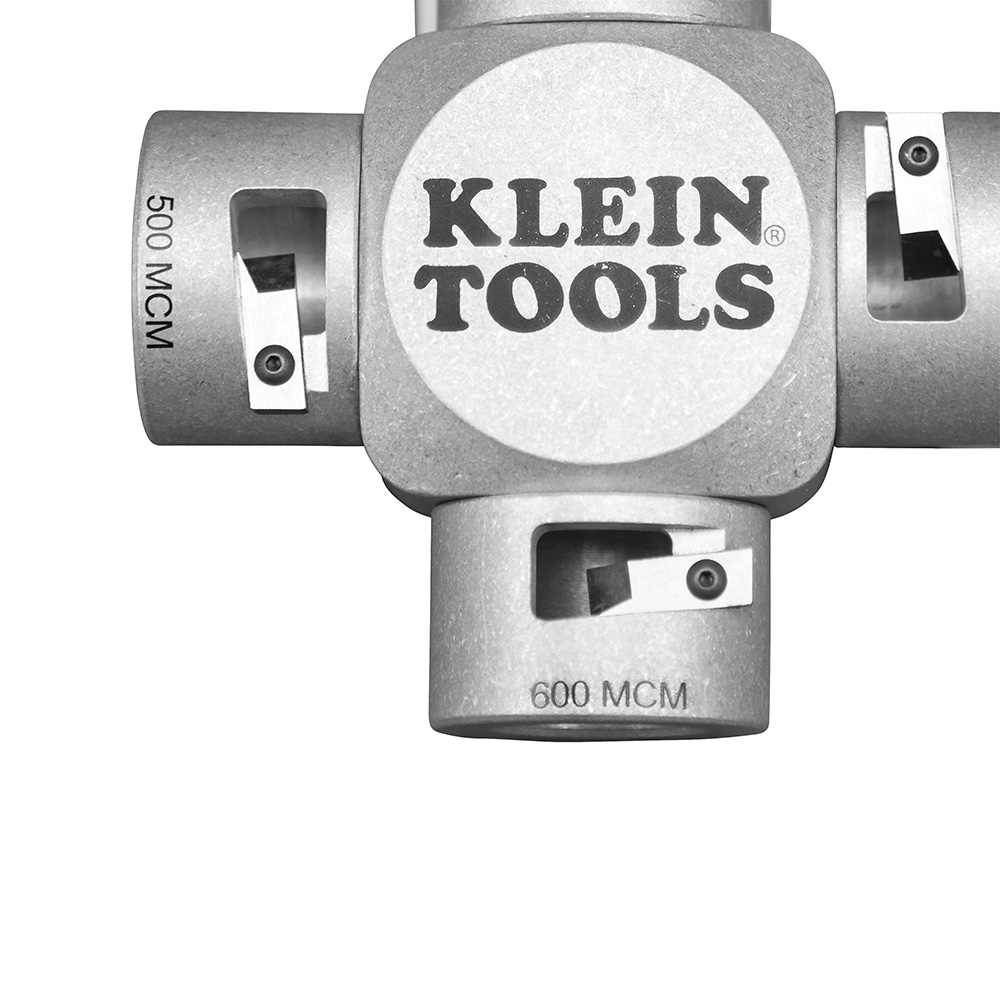

  • Clover design features 4 different wire sizes in one tool

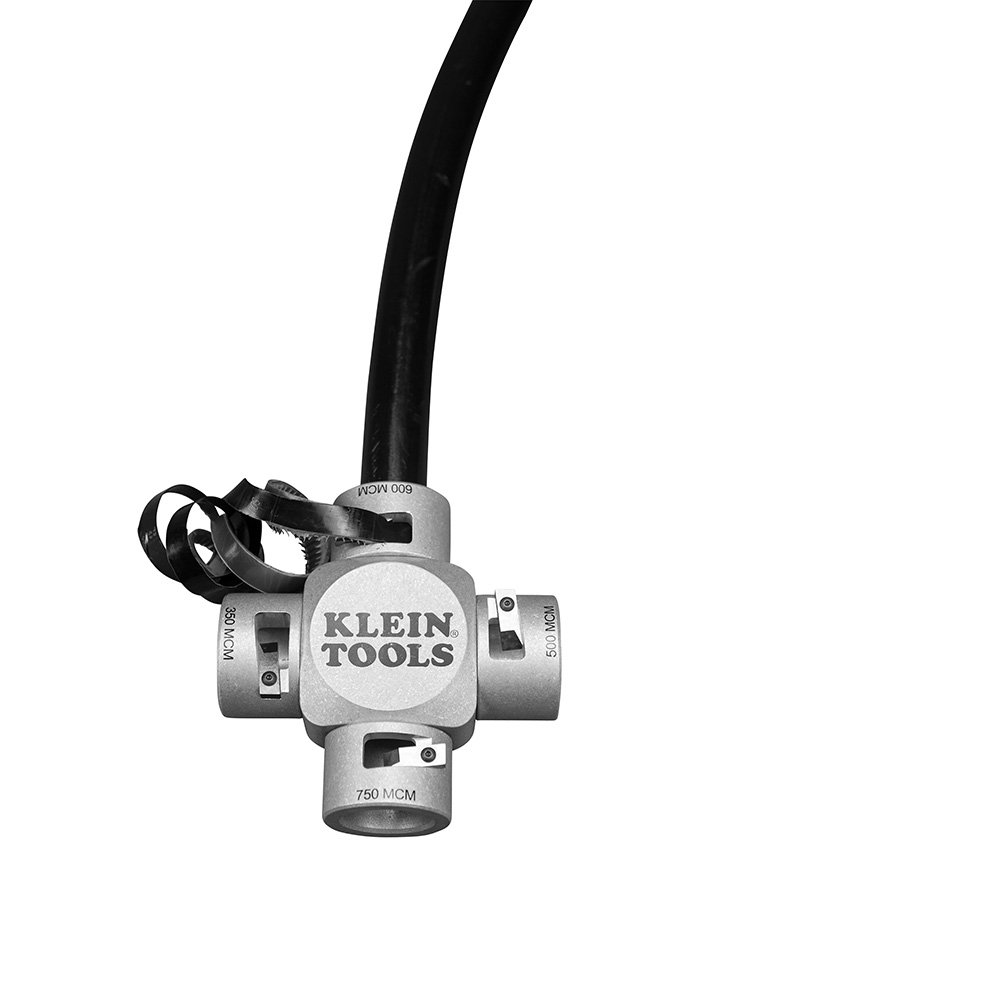

  • Just insert the cable and twist for precise, clean cuts
  • Quicker, safer and more precise than a knife
  • Robust design for longer tool life
  • Works with a variety of cable manufacturers including CME Wire and Cable, Inc., Encore Wire Corporation, United Copper Industries and Southwire Company, LLC
  • Replaceable blades and screws (Cat. No. 21051B) available for extended use

大型电缆剥线钳(750-350 MCM)

21050

  • 有效去除350 – 750 MCM电缆上的绝缘
  • 三叶草设计在一个工具中具有4种不同的线径
  • 只需插入电缆并扭转即可实现精确,干净的切割
  • 比刀更快,更安全,更精确
  • 坚固的设计,延长刀具寿命
  • 与各种电缆制造商合作,包括CME Wire and Cable,Inc.,Encore Wire Corporation,United Copper Industries和Southwire Company,LLC
  • 可更换的刀片和螺钉(目录号21051B)可供长期使用

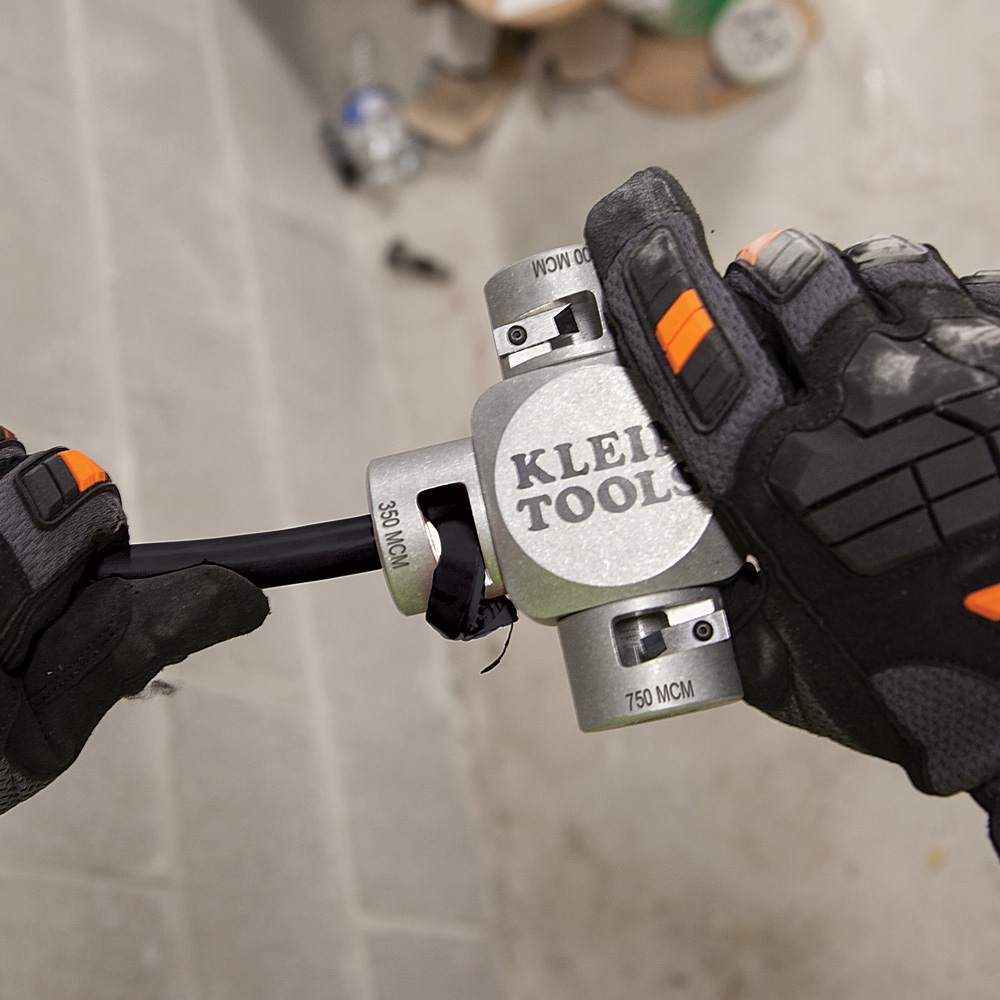

A quick and effective tool to cleanly remove the insulation on MTW/THHN/THWN-2 cable without nicking the wire. Clover design features four different sizes (350, 500, 600 and 750 MCM) in one tool. Simply insert the cable and twist for precise, clean cuts. The robust design ensures long tool life. Stripping cables has never been easier and safer.

Specifications
Type:
Large Cable
Application:
Cable Stripping
Special Features:
Clover Design Features Four Different Sizes in One Tool
Cable Size:
MTW/THHN/THWN-2
Strip Dimensions:
350MCM, 500MCM, 600MCM, 750MCM
Overall Length:
4.656” (118.3 mm)
Overall Height:
1.75” (44.5 mm)
Overall Width:
4.656” (118.3 mm)
Material:
Aluminum body, Powder Metal Blades
Weight:
1.2 lb (0.5 kg)
UPC:
092644741500
WARNINGS
  • Always wear approved eye protection.
  • NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

一种快速有效的工具,可以清洁地去除MTW / THHN / THWN-2电缆上的绝缘层,而不会划伤电线。Clover设计在一个工具中具有四种不同尺寸(350,500,600和750 MCM)。只需插入电缆并扭转即可实现精确,干净的切割。坚固的设计确保了较长的刀具寿命。

产品规格
类型:
大电缆
应用:
电缆剥皮
特殊功能:
三叶草设计在一个工具中具有四种不同的尺寸
电缆尺寸:
MTW / THHN / THWN -2-
带尺寸:
350MCM,500MCM,600MCM,750MCM
总长度:
4.656”(118.3 mm)
总体高度:
1.75英寸(44.5毫米)
总宽度:
4.656”(118.3 mm)
材料:
铝制机身,粉末金属刀片
重量:
1.2磅(0.5千克)
UPC:
092644741500
警告
  • 始终佩戴认可的护目镜。
  • 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
