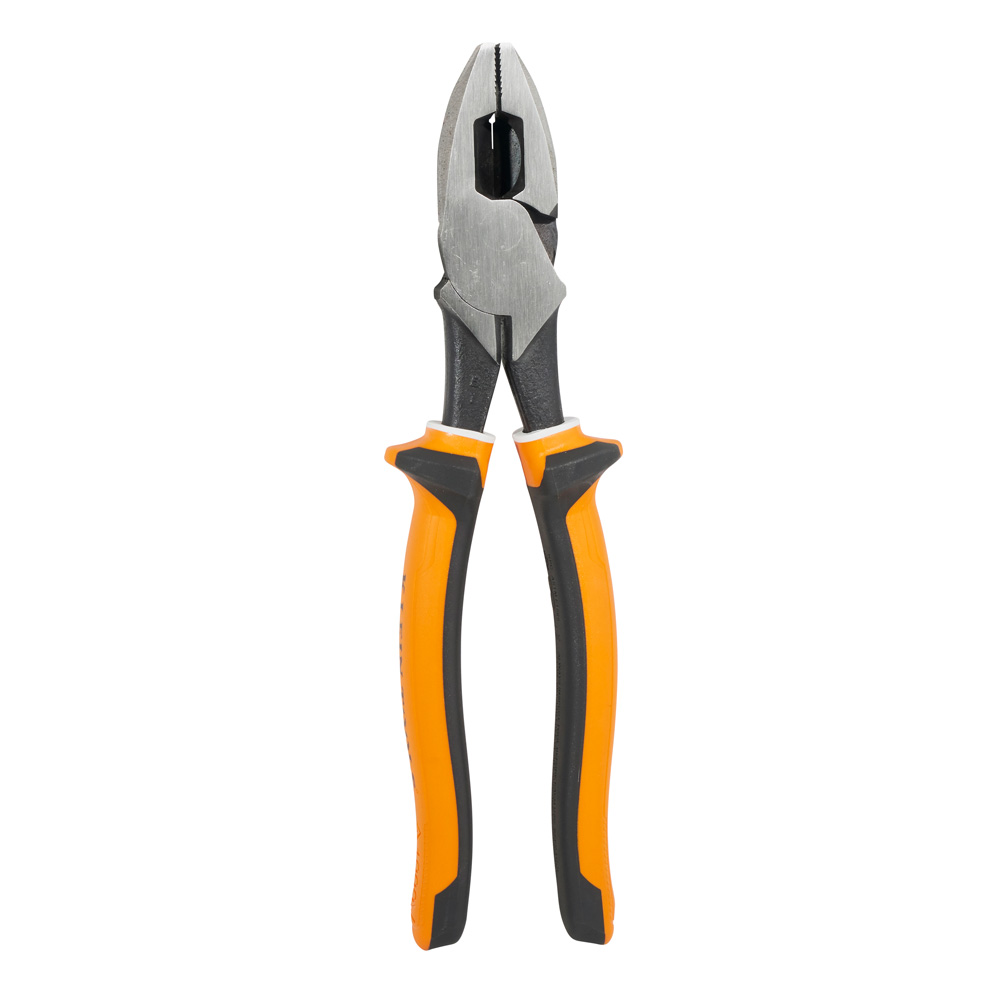

Side Cutting Pliers, Slim Handle, 9-Inch

2139NEEINS

  • 1000 V Rated for safety on the job.

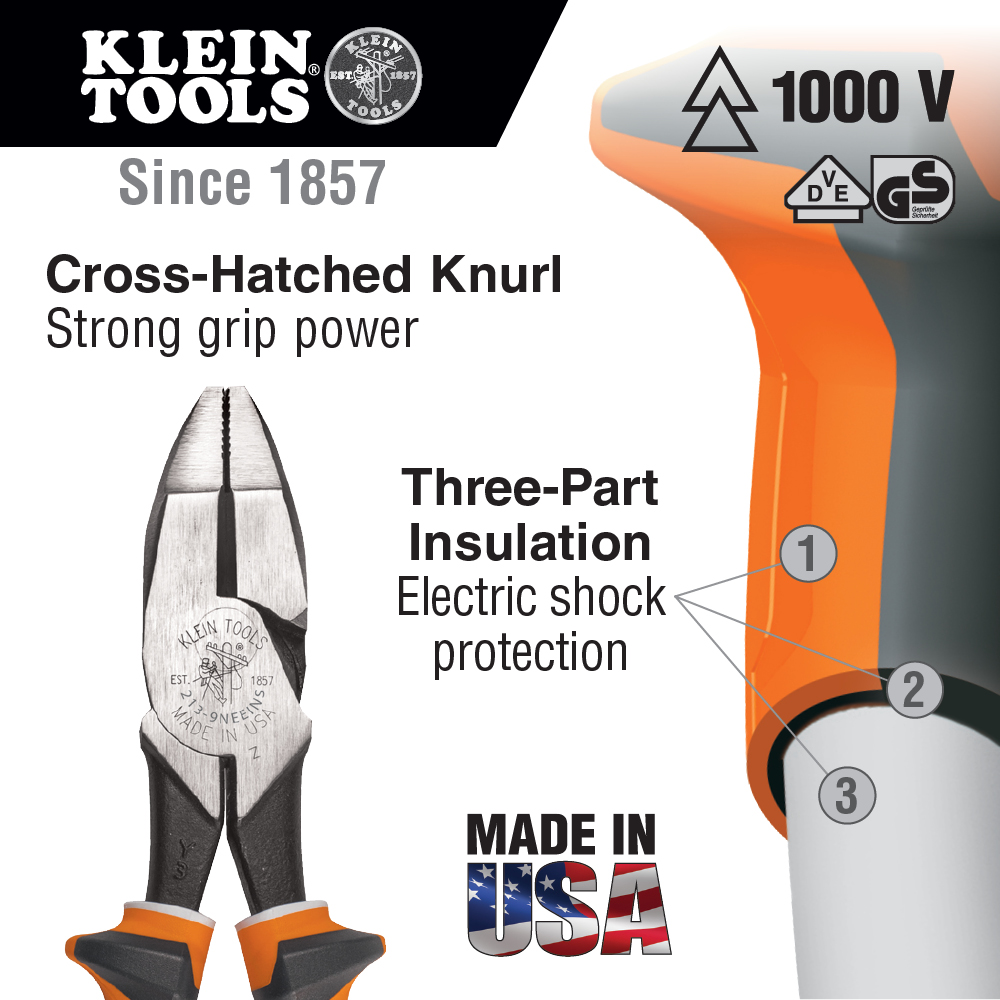

  • Unique three-part insulation with white underlayer provides warning sign that insulation may be compromised
  • Streamlined design with sure-gripping, cross-hatched knurled jaws
  • Multi-color, sleek design with small thumbguards for ease of handling and easy storage in your toolbelt
  • Custom US-made tool steel

侧切钳,薄手柄,9英寸

2139NEEINS

  • 1000 V额定工作安全性。
  • 带有白色底层的三件式绝缘材料提供了绝缘可能受损的警告标志
  • 流线型设计,带有可靠抓握,交叉影线的滚花钳口
  • 多色,时尚的设计,带有小拇指,便于操作,便于存放在工具带中
  • 耐用的模制绝缘材料
  • 定制美制工具钢

Klein Tools Electrician’s Insulated High-Leverage Side-Cutting pliers are 1000V rated and for safety on the job. The multi-color, sleek design with small thumbguards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised.

Specifications
Type:
High-Leverage Pliers
Application:
ACSR, Screws, Nails and Most Hardened Wires
Special Features:
Integral Guards Help Prevent Hand Contact With Conductive Parts
Overall Length:
9.625” (244.5 mm)
Material:
Induction Hardened Steel
Nose Type:
New England
Jaw Length:
1.594” (40.5 mm)
Jaw Width:
1.313” (33.4 mm)
Jaw Thickness:
5/8” (15.9 mm)
Knife Length:
0.781” (19.8 mm)
Cut Style:
Side-Cutting
Joint Type:
Hot-Riveted
Handle Color:
Orange/Gray
Handle Finish:
3-Layer
Insulated:
Yes
Weight:
1.3 lb (0.6 kg)
UPC:
092644701931
WARNINGS
  • Whenever possible, always de-energize lines and equipment prior to working on or around them.
  • Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
  • Always inspect your tools before use.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Keep tool clean, dry and free of any surface contaminants.
  • Destroy tool if the insulation is damaged in any way.
  • Do NOT use to pry or chisel.
  • Wear approved eye protection.

Klein Tools电工的绝缘高杠杆侧切钳具有1000V额定值,可确保工作安全。多色,时尚的设计和小拇指,便于操作和存放。带有白色底层的三部分绝缘层提供了绝缘可能受损的警告信号。耐用的模制绝缘材料。

产品规格
类型:
高杠杆钳
应用:
ACSR,螺钉,钉子和大多数硬化线
特殊功能:
整体防护装置有助于防止手接触导电部件
总长度:
9.625”(244.5 mm)
材料:
感应淬火钢
鼻型:
新英格兰
下颚长度:
1.594”(40.5 mm)
下颚宽度:
1.313”(33.4 mm)
下颚厚度:
5/8”(15.9 mm)
刀长:
0.781”(19.8 mm)
剪裁风格:
侧切
关节类型:
热铆接
处理颜色:
橙/灰
处理完成:
3层
绝缘:
重量:
1.3磅(0.6千克)
UPC:
092644701931
警告
  • 只要有可能,在工作或周围工作之前,始终要断开线路和设备的电源。
  • 如果工具有可能与带电源接触,则仅使用标有国际1000伏额定等级符号的工具。
  • 使用前请务必检查工具。
  • 当可能接触带电源时,请勿触摸工具的未绝缘部分或任何导电物体。
  • 保持工具清洁,干燥,无任何表面污染物。
  • 如果绝缘材料受到任何损坏,请销毁工具。
  • 不要用来撬或凿。
  • 佩戴认可的眼睛保护。
