Salisbury绝缘救援钩是一种十分有用的工具,适用于多种工作场所,可以将受伤的工人拖出危险区域。在有限空间内、在地下室内或电气柜和开关柜附近,这些场所 要配备这种工具。手柄为泡沫填充玻璃钢制成,绝缘性能好;带涂层的钩子经过热处理,开口为457mm。操作杆可提供的标准长度为1.8m和2.4m。其他长度可专门订购。
静电放电杆设计用于在断电后消除静电荷。该工具预先组装并包含一个U型钩,1.2m闭孔泡沫填充管式玻璃钢杆和与Salisbury1814铜制平口锯齿3级夹相连的1.8m接地铜线。也可提供0.3m长操作杆。

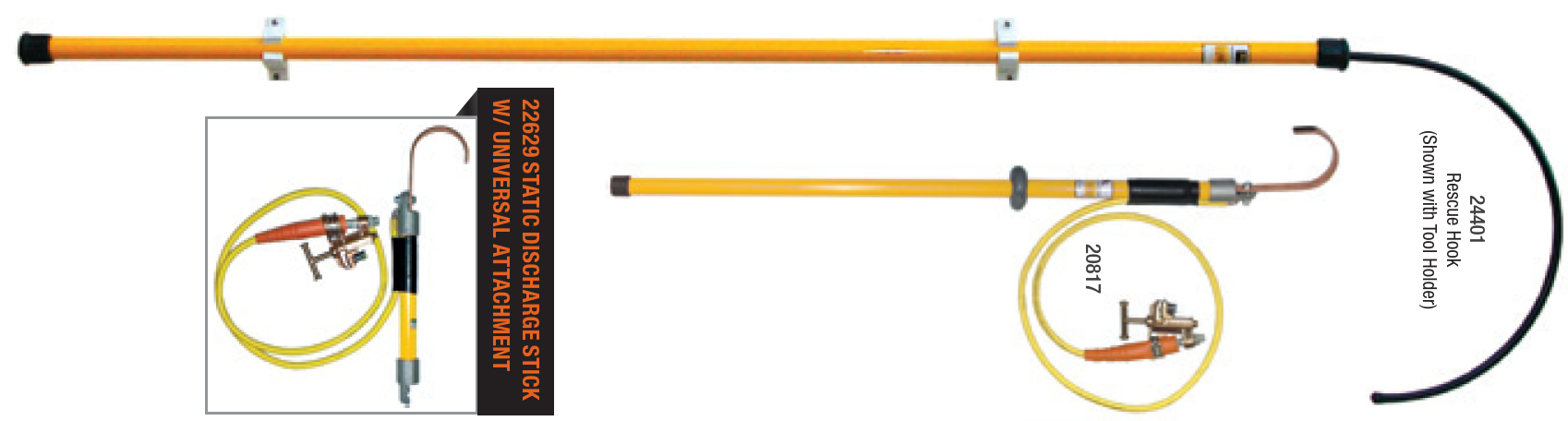

绝缘救援钩
静电放电杆和通用连接 静电放电杆
型号 尺寸 重量
(mm) (kgs)
绝缘救援钩
24401 救援钩1.8m长度 2
24403 救援钩2.4m长度 2.5
静电放电杆
20817 放电杆1.2m长度 3.6

带电操作杆和工具
I-1玻璃钢夹杆
坚固热塑顶部压接套管。EZ握紧塑料手柄。
大开口23.8mm不锈钢钩。重型橡胶端盖。 滑动开口钩
线夹操作杆采用 闭
孔泡沫填充管型玻璃钢制成。线夹操作杆可
以夹住绝大部分的作业附件,甚至可以直接
进行紧线或是安装线管、遮蔽罩、接地线、
以及跳线等具有拉环的 附件和设备,是
带电作业 要配备的工具,可以利用握柄
部位的开关推动内置的夹嘴,夹住附件后缩
回将附件牢牢的固定在操作杆的顶端。

型号 长度 重量
(m) (kgs)
外部杆棒夹杆
4010 2.54 2.8
4011 3.15 3.2
4012 3.76 3.5
添加后缀 “9864” 来订购转向杆头,添加后缀 “9840” 来
订购万能花键杆头。夹杆的订单中可要求安装这些附件,但需
要在对应的型号中添加相关的后缀号。
9840花键通用杆头 外部杆棒夹杆
49 救援钩,静电放电杆

rescUe Hook & static DiscHarge stick

insuLAteD rescue hook – Salisbury’s insulated rescue hook is an invaluable tool for any workplace. it is used to release a victim from contact. confined spaces, in vaults, or just near electrical cabinets and switch gear are some of the places where this tool is a must. insulated rescue hooks feature a foam-filled, fiberglass reinforced handle for superior electrical insulation and a coated, heat treated body hook with an 18” opening and are made in accordance with aStM Standard. the stick is available in the standard lengths of 6 and 8 feet. other lengths are available as a special order. contact us with your requirements.

stAtic DischArGe stick – the Static discharge Stick is designed to safely remove the static charge after de-energizing. this tool is pre-assembled and includes a brass alloy “U” hook, closed cell foam-filled tubular fiberglass switch stick made in accordance with aStM Standard. Static discharge sticks have
6 feet of copper grounding cable attached to a Salisbury 1814 flat jaw, grade 3, bronze serrated clamp with strain relief.
