Project Description

Safety:
Temporary personal protective equipment is designed for one purpose only, to protect the worker.
Grounding equipment should be manufactured to and maintained to the highest standards.
Standards:
Very stringent requirements are specified by the ASTM F855 standard. While this is a voluntary
standard, we design all our clamps, cables and ferrules to exceed the values of this standard.
The withstand values from ASTM are:

Grade 15 Cycle
(kA)

30 Cycle
(kA)

Cable Size
(Copper)

Continuous
Current
Rating
A RMS
1 14 10 #2 200
2 21 15 1/0 250
3 27 20 2/0 300
4 34 25 3/0 350
5 43 30 4/0 400

Quality:
Whether it’s the machining of the casting, the assembly of the clamp, or the assembly of the complete
grounding or jumper assembly, we pride ourselves in the quality of the product that is created at Hast-
ings. Every employee that handles the parts is vigilant for any quality issues.
Material:
Clamps are available in either bronze alloy or aluminum alloy metals. Great care is taken in selecting the
best materials for the performance required. The bronze alloys allow for higher strength and higher melt-
ing temperatures. Aluminum alloys allow for lighter weight and less resistance.
Experience:
Hastings works closely with the utility industry in solving grounding problems. Through our close con-
tact with our customers, we stay in touch with their needs and this guides our efforts for future product
designs. Hastings also participates in the development of industry standards.

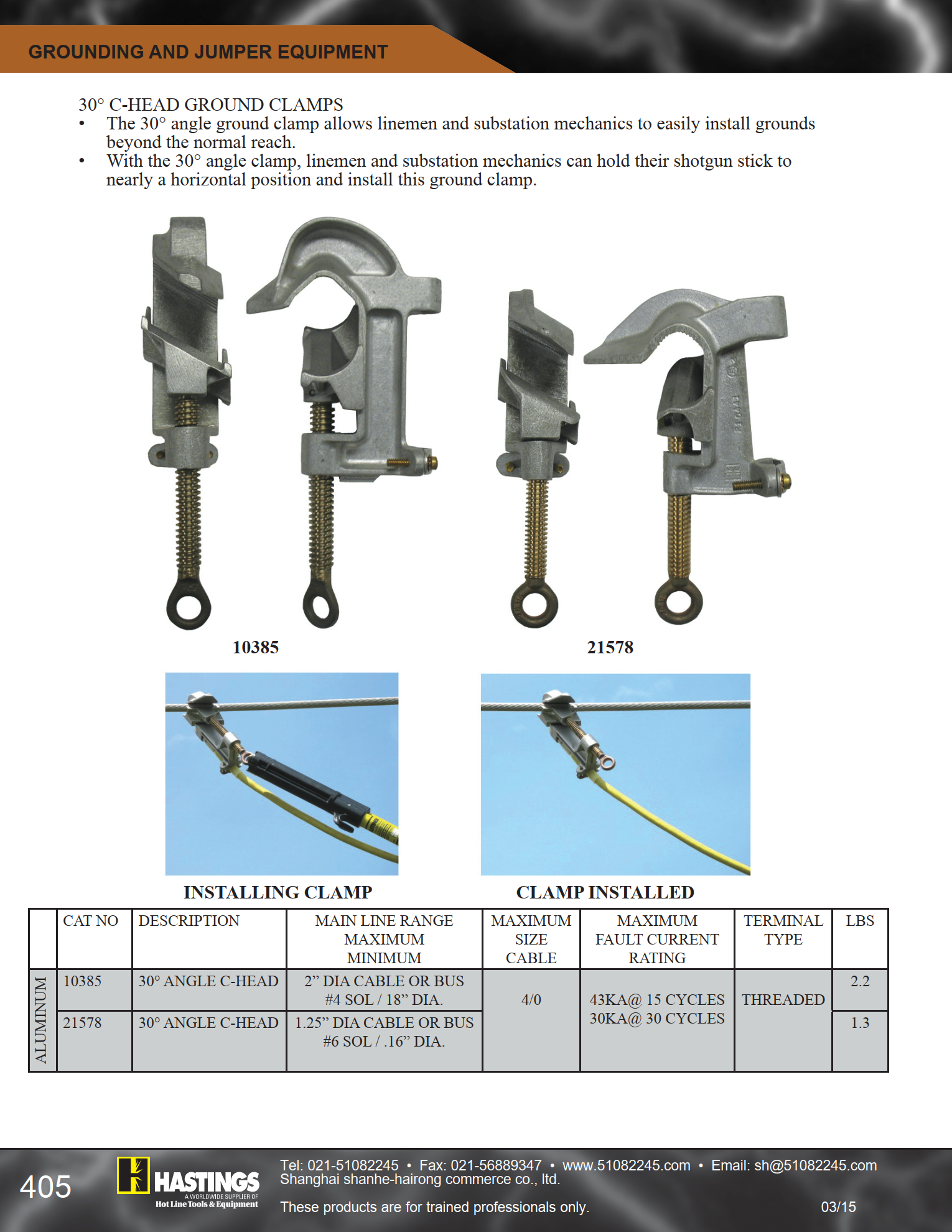

30° C-HEAD GROUND CLAMPS
? The 30° angle ground clamp allows linemen and substation mechanics to easily install grounds
beyond the normal reach.
? With the 30° angle clamp, linemen and substation mechanics can hold their shotgun stick to nearly a horizontal position and install this ground clamp.

CAT NO DESCRIPTION MAIN LINE RANGE
MAXIMUM
MINIMUM

MAXIMUM
SIZE
CABLE

MAXIMUM
FAULT CURRENT
RATING

TERMINAL
TYPE

LBS

ALUMINUM

10385 30° ANGLE C-HEAD 2” DIA CABLE OR BUS
#4 SOL / 18” DIA. 4/0 43KA@ 15 CYCLES
30KA@ 30 CYCLES? THREADED? 2.2

21578 30° ANGLE C-HEAD 1.25” DIA CABLE OR BUS
#6 SOL / .16” DIA.? 1.3
