Project Description

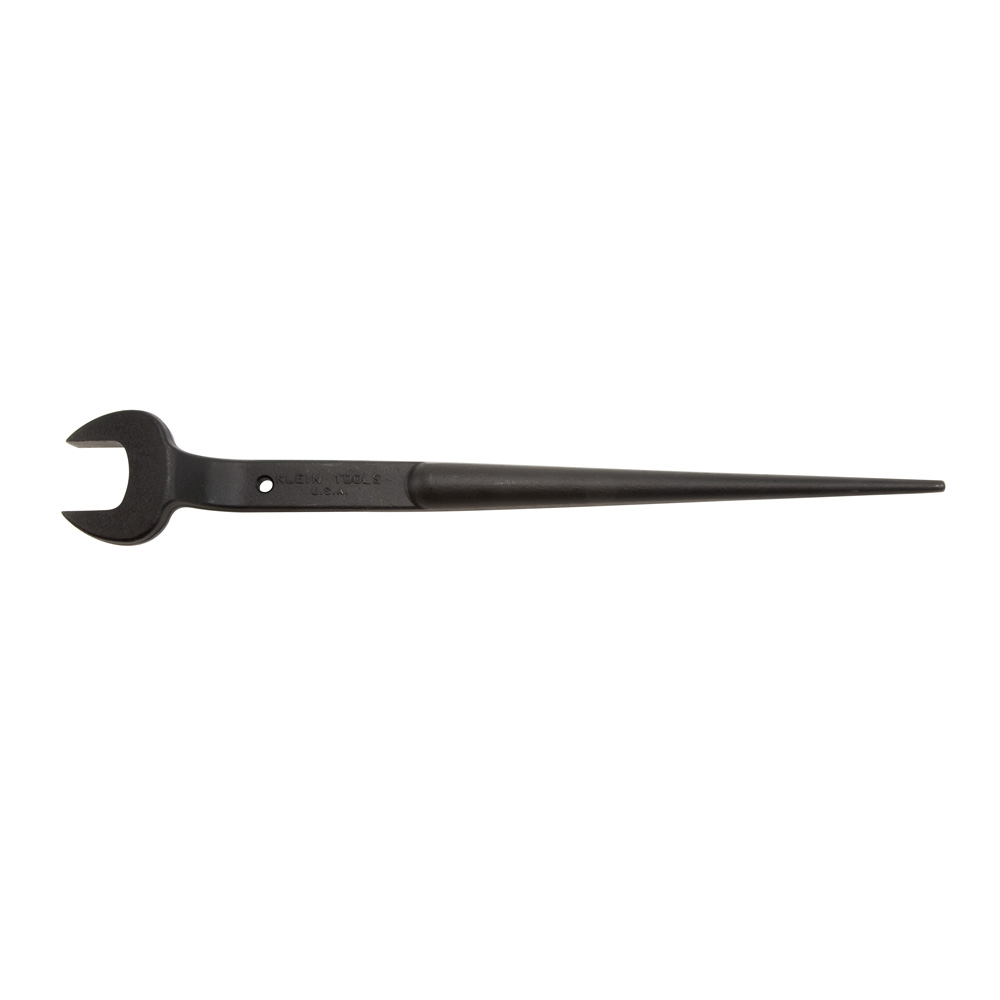

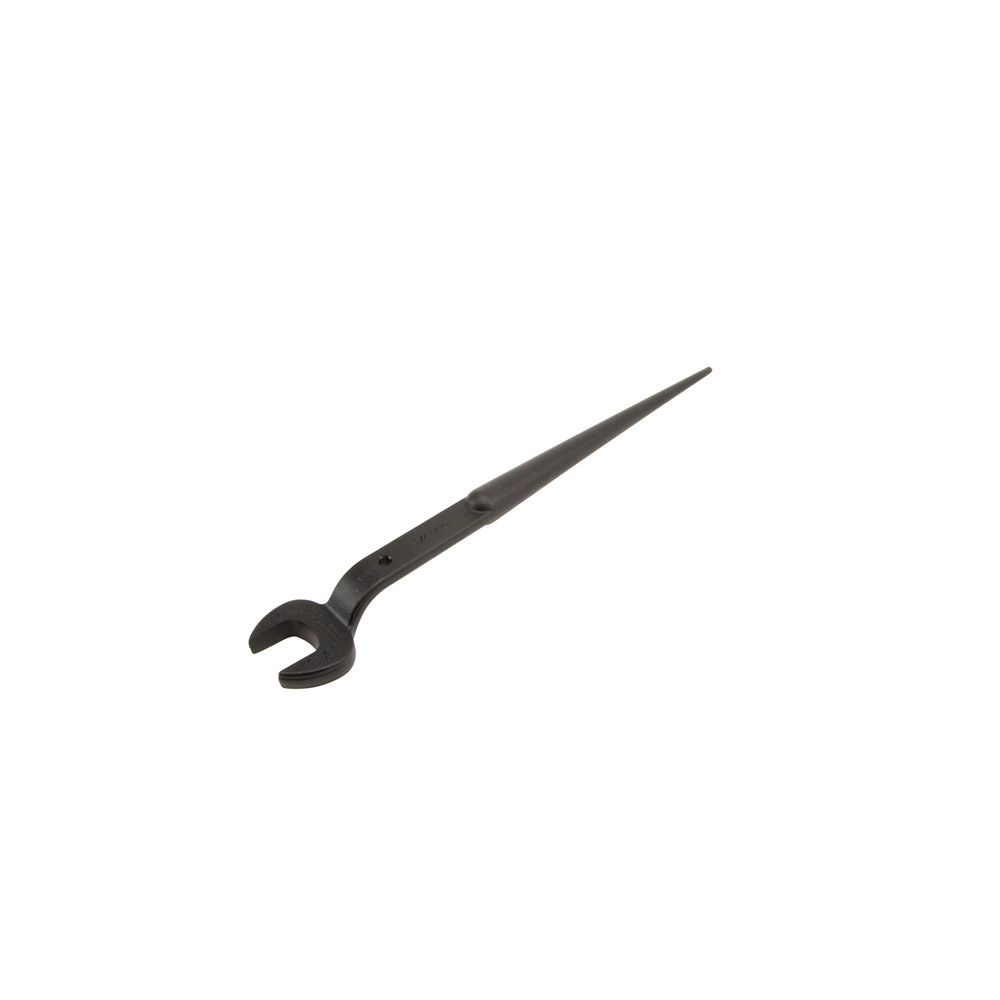

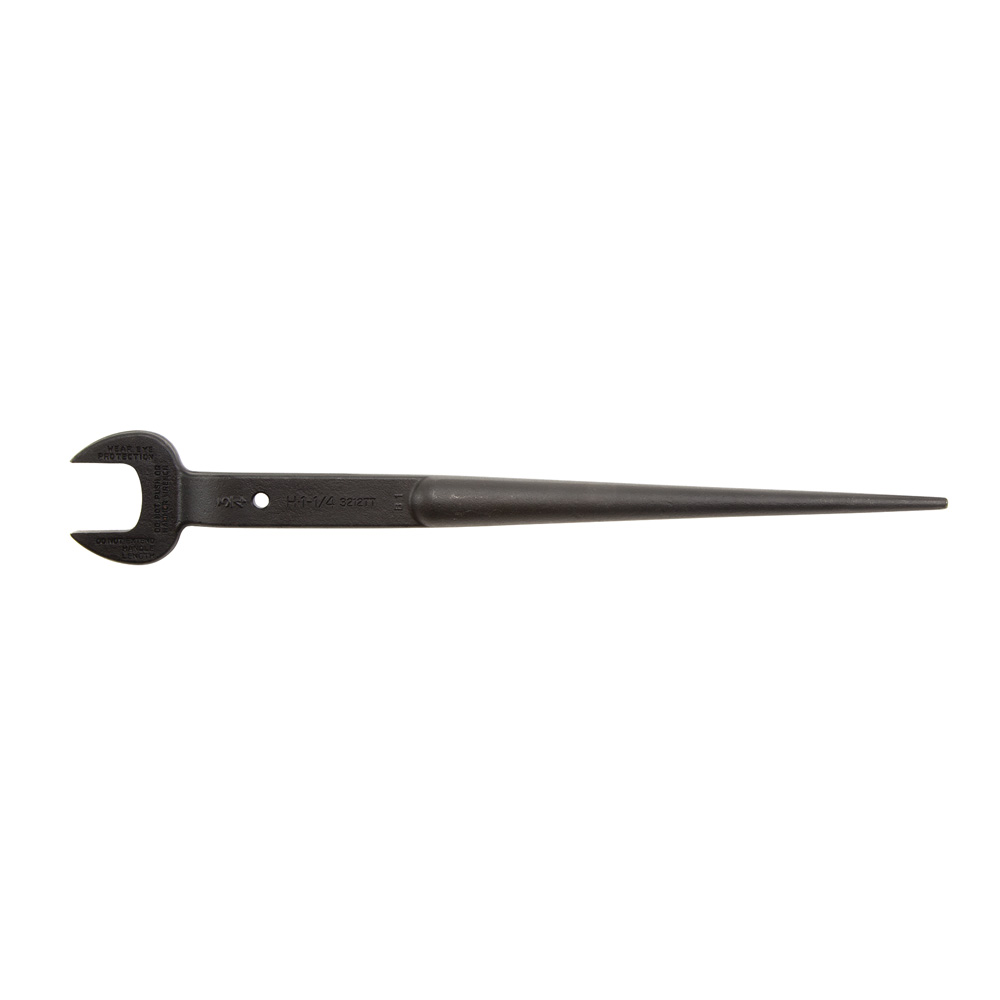

US Heavy 3/4-Inch Erection Wrench with Hole

3212TT

  • Cross-hole with no sharp edges for tethering
  • Forged from select alloy steel to withstand high-leverage and heavy loads
  • Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
  • Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
  • Extra-large hub area works on larger diameter holes better than other wrenches
  • American Bridge design
  • Tether not included

重型3/4英寸安装扳手带孔

3212TT

  • 交叉孔没有锋利的边缘用于束缚
  • 采用精选合金钢锻造,可承受高杠杆和重载荷
  • 每个扳手上都印有目录号,螺栓尺寸和标称开口尺寸,便于识别
  • 手柄的连续锥形使得衬里螺栓孔容易,并且可以在一系列螺栓和/或孔尺寸上工作而不会束缚
  • 大型轮毂区域可在较大直径的孔上工作
  • 美国桥梁设计
  • 系绳不包括在内

Forged from select alloy steel, Klein Tools’ 3/4-Inch Erection Wrench is designed to withstand high-leverage and heavy loads. For use with 3/4-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.

Specifications
Special Features:
Extra Heavy-Duty Head for Maximum Strength
Overall Length:
16.625” (422.3 mm)
Material:
Alloy Steel
Nut Type:
U.S. Heavy
Bolt Size:
3/4” (19.1 mm)
Nominal Opening:
1-1/4” (31.8 mm)
Head Width:
2.5” (63.5 mm)
Taper Diameter:
1” to 1/4” (25.4 to 6.4 mm)
Weight:
2.0 lb (0.9 kg)
UPC:
092644680717
WARNINGS
  • Always wear approved eye protection.
  • Do NOT push or hammer wrench.
  • Do NOT extend handle length.

Klein Tools的3/4英寸安装扳手采用精选合金钢锻造而成,可承受高杠杆和重载荷。对于3/4英寸螺栓和美国重型螺母类型,额外的重型头部区域提供强度和耐用性。此外,手柄的连续锥度使得易于将螺栓孔对齐。包括一个内置孔,因此在高空作业时可以系上工具。

产品规格
特殊功能:
重型头部,大强度
总长度:
16.625”(422.3 mm)
材料:
合金钢
坚果类型:
美国重型
螺栓尺寸:
3/4”(19.1 mm)
名义开放:
1-1 / 4”(31.8 mm)
头宽:
2.5英寸(63.5毫米)
锥度:
1”到1/4”(25.4到6.4 mm)
重量:
2.0磅(0.9千克)
UPC:
092644680717
警告
  • 始终佩戴认可的护目镜。
  • 不要推或锤扳手。
  • 不要延长手柄长度。
