Project Description

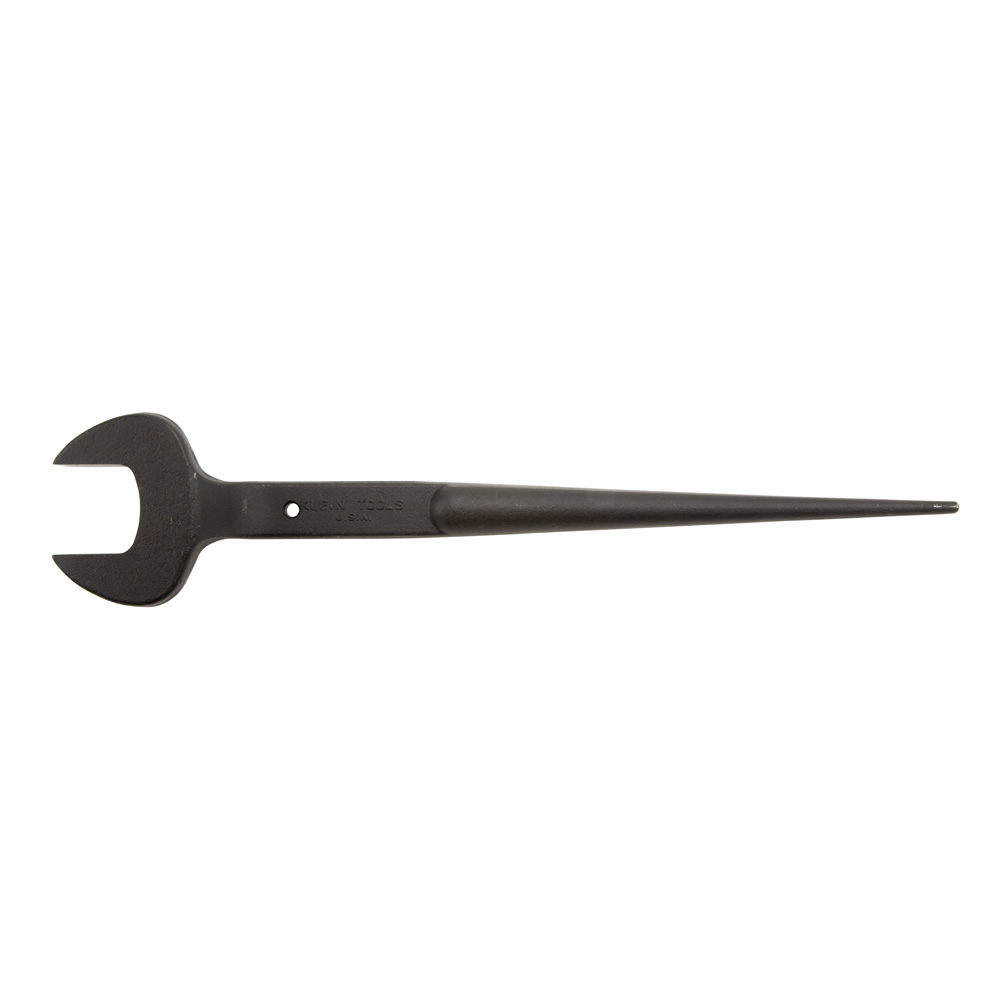

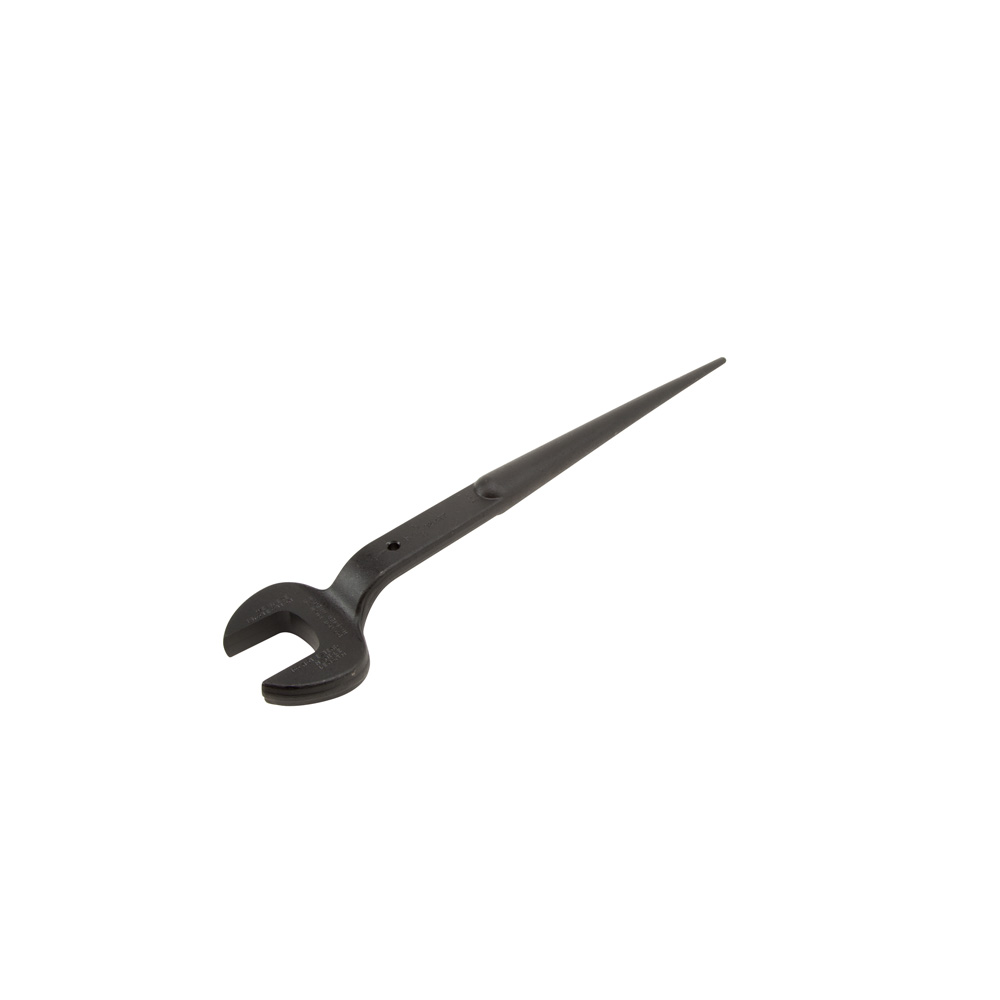

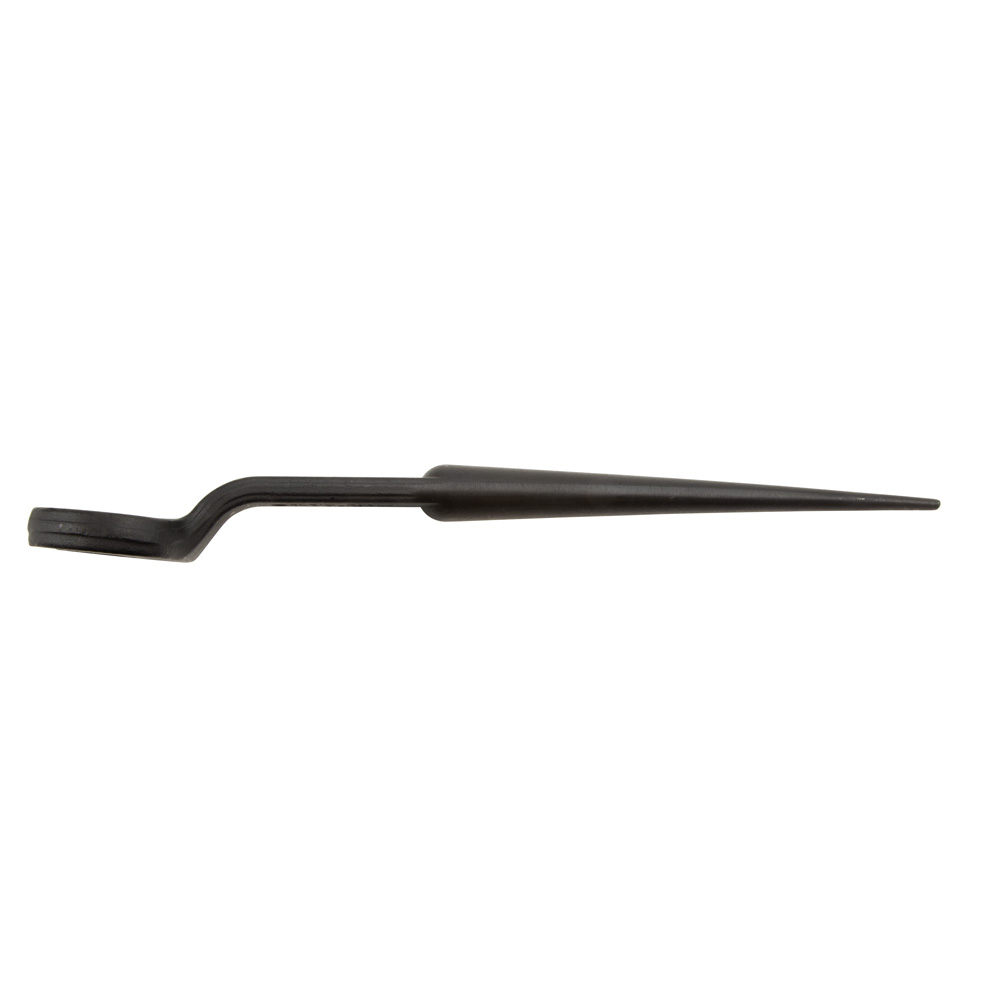

US Heavy 1” Erection Wrench with Hole

3214TT

  • Cross-hole with no sharp edges for tethering
  • Forged from select alloy steel to withstand high-leverage and heavy loads
  • Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
  • Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
  • Extra-large hub area works on larger diameter holes better than other wrenches
  • American Bridge design
  • Tether not included

美国重型1”带孔安装扳手

3214TT

  • 交叉孔没有锋利的边缘用于束缚
  • 采用精选合金钢锻造,可承受高杠杆和重载荷
  • 每个扳手上都印有目录号,螺栓尺寸和标称开口尺寸,便于识别
  • 手柄的连续锥形使得衬里螺栓孔容易,并且可以在一系列螺栓和/或孔尺寸上工作而不会束缚
  • 大型轮毂区域可在较大直径的孔上工作
  • 美国桥梁设计
  • 系绳不包括在内

Forged from select alloy steel, Klein Tools’ 1-Inch Erection Wrench is designed to withstand high-leverage and heavy loads. For use with 1-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.

Specifications
Special Features:
Extra Heavy-Duty Head for Maximum Strength
Overall Length:
18” (457.2 mm)
Material:
Alloy Steel
Finish:
Black Oxide with a Rust Preventative
Nut Type:
U.S. Heavy
Bolt Size:
1” (25.4 mm)
Nominal Opening:
1-5/8” (41.3 mm)
Head Width:
3.625” (92.1 mm)
Taper Diameter:
1-1/8” to 1/4” (28.6 to 6.4 mm)
Offset Angle:
60°
Weight:
3.4 lb (1.5 kg)
UPC:
092644680700
WARNINGS
  • Always wear approved eye protection.
  • Do NOT push or hammer wrench.
  • Do NOT extend handle length.

Klein Tools的1英寸安装扳手采用精选合金钢锻造而成,可承受高杠杆和重载荷。对于1英寸螺栓和美国重型螺母类型,额外的重型头部区域提供强度和耐用性。此外,手柄的连续锥度使得易于将螺栓孔对齐。包括一个内置孔,因此在高空作业时可以系上工具。

产品规格
特殊功能:
重型头部,大强度
总长度:
18”(457.2 mm)
材料:
合金钢
完:
黑色氧化物与防锈剂
坚果类型:
美国重型
螺栓尺寸:
1”(25.4 mm)
名义开放:
1-5 / 8”(41.3 mm)
头宽:
3.625”(92.1 mm)
锥度:
1-1 / 8”至1/4”(28.6至6.4 mm)
偏移角度:
60°
重量:
3.4磅(1.5千克)
UPC:
092644680700
警告
  • 始终佩戴认可的护目镜。
  • 不要推或锤扳手。
  • 不要延长手柄长度。
