Project Description

HVAC 8-in-1 Slide Drive Screwdriver/Nut Driver

32596

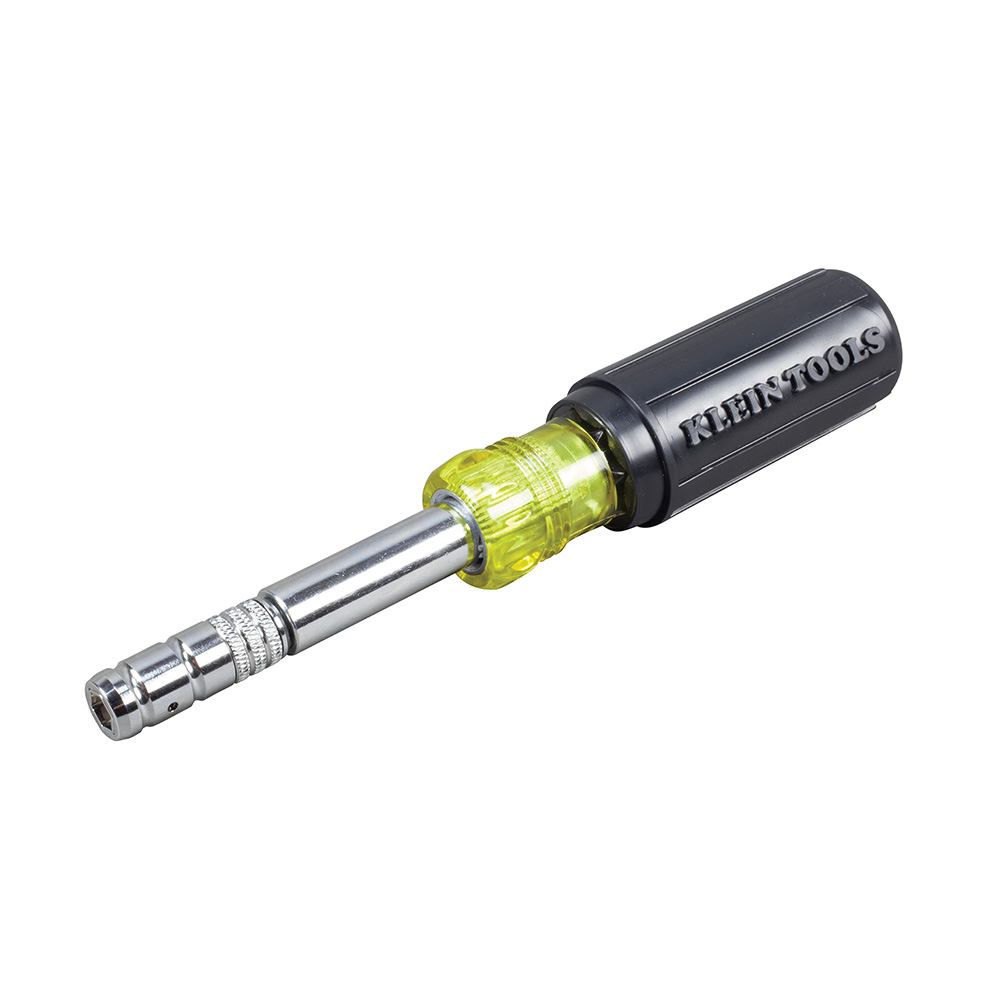

  • Unique, patented head slides back and forth to switch from 1/4-Inch to 5/16-Inch magnetic hex-head screwdriver
  • Thumb nut locks tip setting
  • Features a specialty bit for installation/removal of common TR-4 Schrader valves

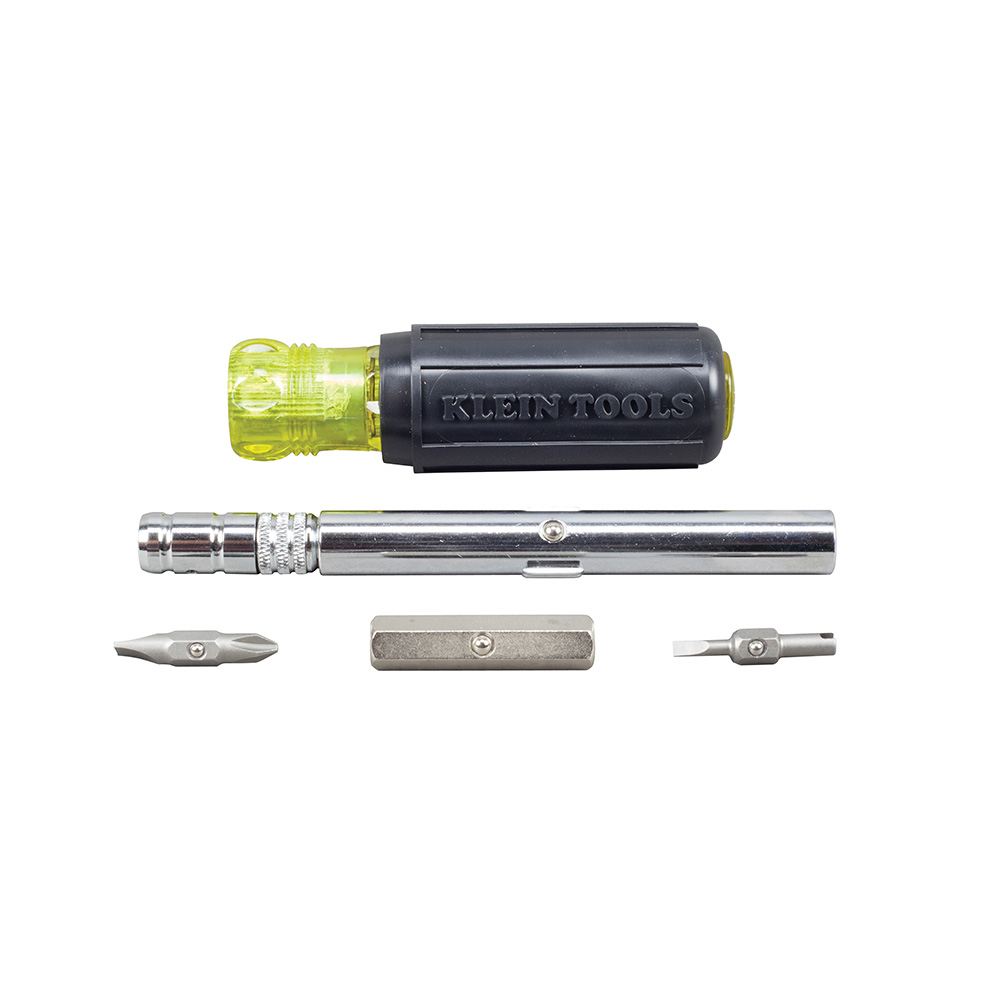

  • Includes 1/4-Inch and 3/8-Inch hollow nut drivers, as well as #2 Phillips, 1/8-Inch (3 mm) and 1/4-Inch (6 mm) slotted screwdriver tips
  • Cushion-Grip handle for greater torque and comfort
  • Great for HVAC applications including thermostat installation and control work

HVAC 8合1 Slide Drive螺丝刀/螺母扳手

32596

  • 头部前后滑动,可从1/4英寸切换到5/16英寸磁性六角头螺丝刀
  • 拇指螺母锁定尖端设置
  • 配备专用钻头,用于安装/拆卸常见的TR-4Schrader阀门
  • 包括1/4英寸和3/8英寸空心螺母驱动器,以及#2 Phillips,1/8-Inch(3 mm)和1/4英寸(6 mm)开槽螺丝刀头
  • Cushion-Grip手柄可提供更大的扭矩和舒适度
  • 适用于HVAC应用,包括恒温器安装和控制工作

Head slides back and forth to switch from 1/4-Inch to 5/16-Inch magnetic hex-head screwdriver. Convenient thumb nut locks tip setting. This HVAC multi-bit driver includes a specialty bit for the installation/removal of common TR-4 Schrader valves as well as regular 1/4-Inch and 3/8-Inch nut drivers plus Phillips/slotted double-ended bits. Offers the HVAC tech the convenience of having magnetic nut drivers on a multi-bit screwdriver.

Specifications
Application:
HVAC
Special Features:
Slide Drive
Nut Driver Sizes:
1/4” Magnetic, 5/16” Magnetic, 1/4”, 3/8”
Phillips Bits:
#2
Slotted Bits:
1/8” (3.2 mm), 1/4” (6.4 mm)
Other Bits:
Schrader Valve Core Removal
Shank Length:
3.25” (82.6 mm)
Handle Type:
Cushion-Grip
Handle Color:
Yellow/Black
Handle Length:
4.313” (109.6 mm)
Overall Length:
7.5” (190.5 mm)
Overall Height:
1.25” (31.8 mm)
Overall Width:
1.25” (31.8 mm)
Weight:
0.50 lb (0.2 kg)
UPC:
092644325960
WARNINGS
  • Always wear approved eye protection.
  • Never use on or near live electrical circuits.
  • Do NOT use to pry or chisel.

头部来回滑动,可从1/4英寸切换到5/16英寸磁性六角头螺丝刀。方便的拇指螺母锁定尖端设置。该HVAC多位驱动器包括用于安装/拆除普通TR-4Schrader阀门的钻头,以及常规1/4英寸和3/8英寸螺母驱动器以及Phillips /开槽双端钻头。为HVAC技术提供便利,在多位螺丝刀上安装磁性螺母。

产品规格
应用:
HVAC
特殊功能:
Slide Drive
坚果司机尺寸:
1/4”磁性,5/16”磁性,1/4”,3/8”
菲利普斯比特:
#2
开槽钻头:
1/8英寸(3.2毫米),1/4英寸(6.4毫米)
其他比特:
Schrader阀芯拆卸
柄长:
3.25”(82.6 mm)
手柄类型:
靠垫握
处理颜色:
黄/黑
手柄长度:
4.313”(109.6 mm)
总长度:
7.5英寸(190.5毫米)
总体高度:
1.25英寸(31.8毫米)
总宽度:
1.25英寸(31.8毫米)
重量:
0.50磅(0.2千克)
UPC:
092644325960
警告
  • 始终佩戴认可的护目镜。
  • 切勿在带电电路上或附近使用。
  • 不要用来撬或凿。
