Project Description

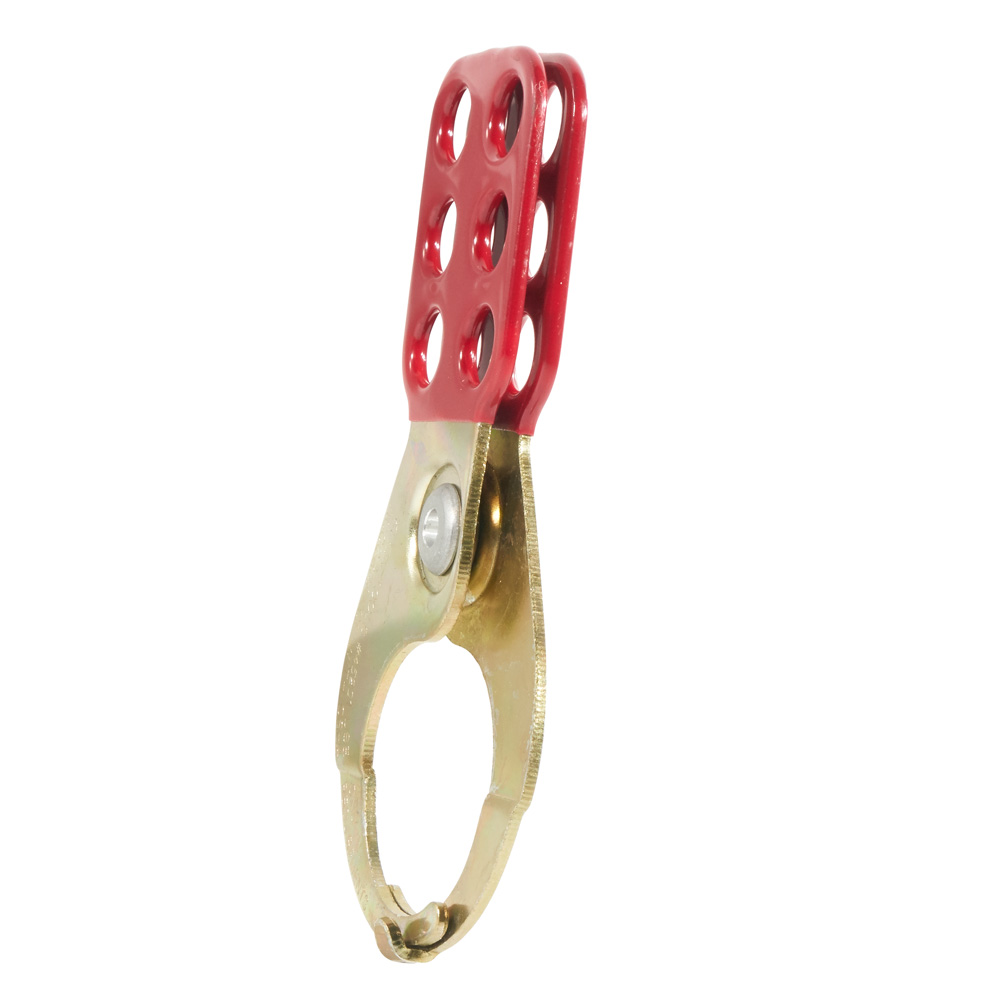

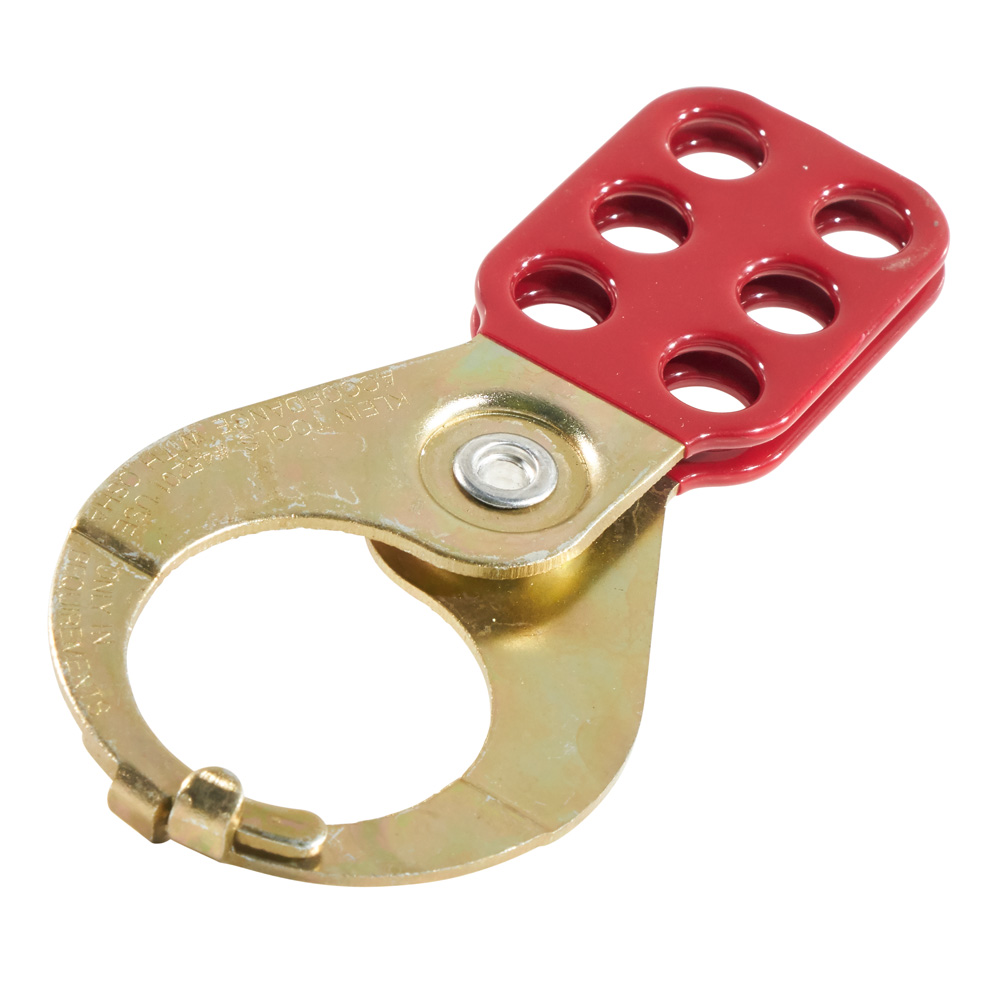

Lockouts, 1-1/2-Inch Hasp, Interlocking Tabs

45201

  • Specifically designed for locking out power sources such as disconnects, switches, and panel boxes
  • Double interlocking hasp of tempered steel with patented interlocking tabs for extra security
  • Hasps are bright zinc-plated
  • Riveted construction
  • Six-hole locking bodies coated with red vinyl plastic
  • Holes will accept up to 5/16-Inch (8 mm) diameter shackles

锁定,1-1 / 2英寸搭扣,互锁标签

45201

  • 用于锁定电源,如断路器,开关和面板盒
  • 双重互锁搭扣钢化钢,并配有互锁接头,更加安全
  • 搭扣明亮镀锌
  • 铆接结构
  • 六孔锁体,涂有红色乙烯基塑料
  • 孔可承受最多5/16英寸(8毫米)直径的钩环
Specifications
Type:
Lockout with Interlocking Tabs
Application:
Specifically Designed for Locking Out Power Sources such as Disconnects, Switches, and Panel Boxes
Special Features:
Double Interlocking Hasp of Tempered Steel with Interlocking Tabs for Extra Security
Overall Length:
8” (203.2 mm)
Overall Height:
0.5” (12.7 mm)
Overall Width:
1.5” (38.1 mm)
Material:
Tempered Steel
Closed Hasp I.D.:
1-1/2” (38.1 mm)
Locking Holes:
6 Coated in Red Vinyl Plastic
NEMA Color:
Red
Weight:
4.0 oz (113 g)
UPC:
092644452017
WARNINGS
  • Use only in accordance with OSHA requirements.
产品规格
类型:
使用联锁选项卡锁定
应用:
用于锁定电源,如断开连接,开关和面板盒
特殊功能:
钢制双重联锁搭扣,配有联锁卡舌,确保安全性
总长度:
8”(203.2 mm)
总体高度:
0.5英寸(12.7毫米)
总宽度:
1.5英寸(38.1毫米)
材料:
钢化钢
封闭的搭扣ID:
1-1 / 2”(38.1 mm)
锁定孔:
6涂有红色乙烯基塑料
NEMA颜色:
红色
重量:
4.0盎司(113克)
UPC:
092644452017
警告
  • 仅根据OSHA要求使用。
