POLE MOUNTED SUPPORT ARM WITH CHAIN TIGHTENER
? The Stand Off Support Arm is designed for temporary support of conductors up to 1 1/16” O.D. It is ideal for replacing conductors and insulators, single phase and three phase armless construc-tion. It also provides an excellent means of conductor support when changing crossarms, hardware and performing routine maintenance.
? Constructed of 2 1/2” O.D. foam filled fiberglass
? Fits pole diameters up to 14”
? Easy to install – has spring take up chain tightener
? Conductor holders are adjustable
CAT NO DESCRIPTION MAXIMUM
VOLTAGE
PHASE TO PHASE
LOAD LIMIT
POUNDS
PER HOLDER
LBS

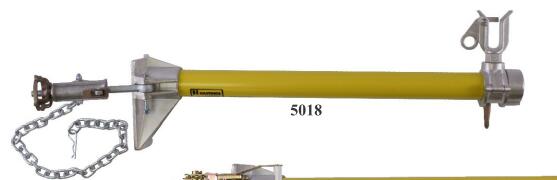

5018 34” OVERALL LENGTH WITH ONE CONDUCTOR HOLDER 15 KV 200 14.0
5019 34” OVERALL LENGTH WITH ONE CONDUCTOR HOLDER AND INSULATOR
34.5 KV 200 15.0
5020 48 1/2” OVERALL LENGTH WITH TWO CONDUCTOR HOLDERS 15 KV 150 17.0
5021 48 1/2” OVERALL LENGTH WITH TWO CONDUCTOR HOLDERS AND INSULATORS? 34.5 KV 150 18.0
