Project Description

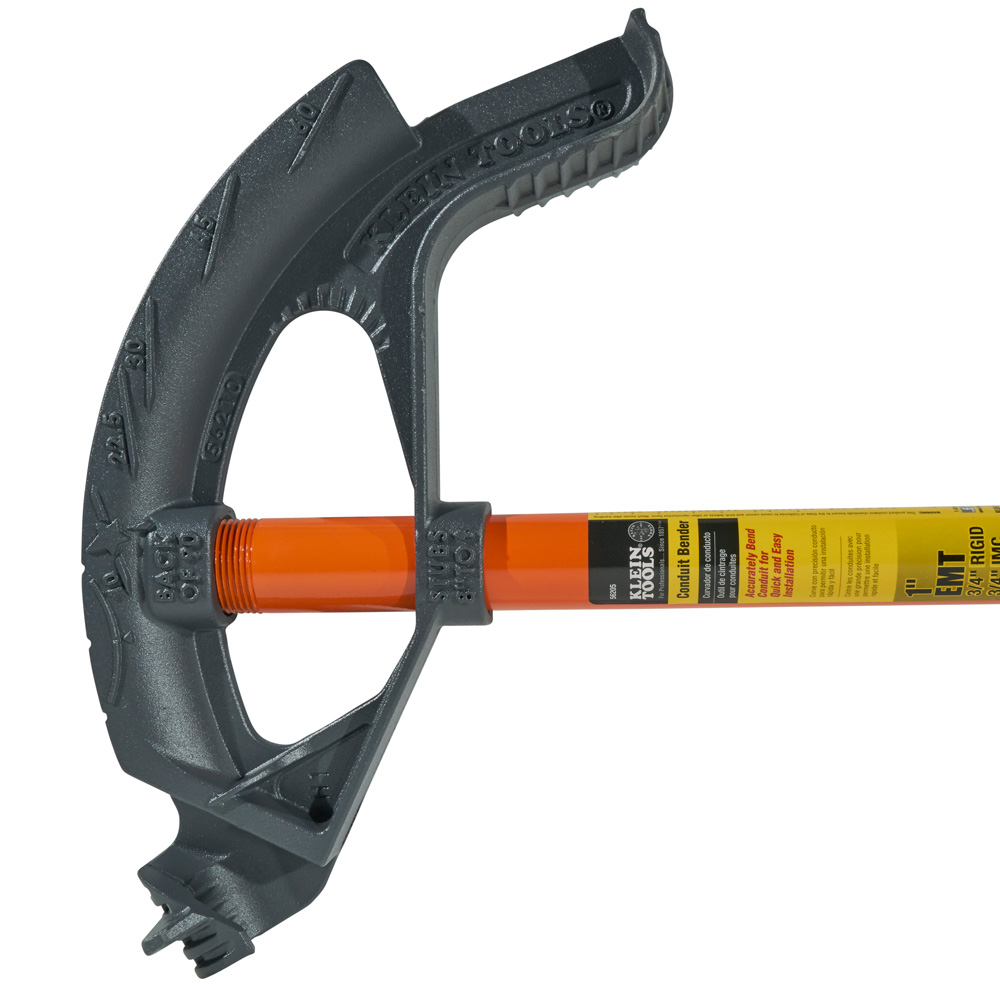

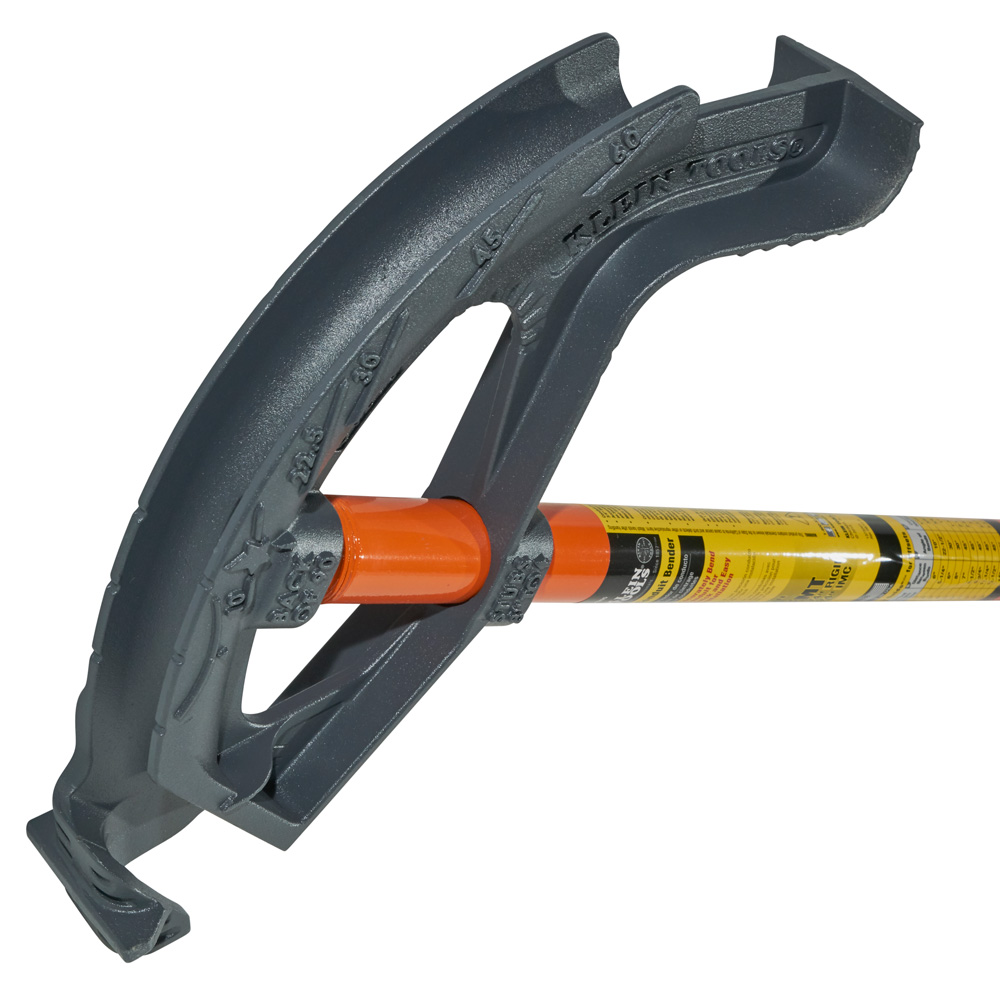

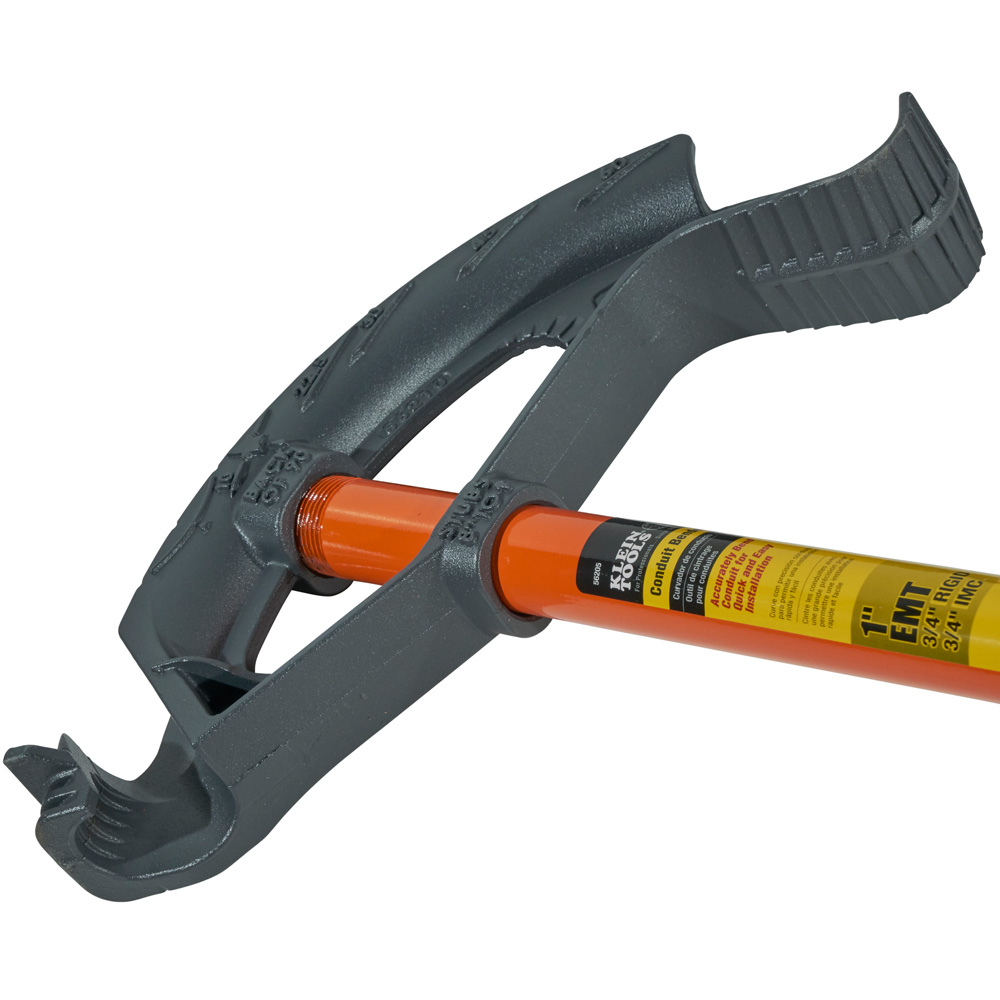

Iron Conduit Bender 1-Inch EMT, Assembled

56205

  • Exclusive design reduces rippling and ovaling of conduit
  • Traditional Benfield head design accurately and consistently performs common bends such as Stub Ups, Offsets, Back-to-Back and Saddle Bends
  • Bold cast-in symbols, degree scales, multiplier scales and center of bend marks help save time on the job
  • Interior hook surface prevents conduit from rolling or twisting during bends
  • Interior clamp securely holds conduit while cutting with hacksaw
  • Wide foot pedal provides excellent stability, leverage and comfort
  • Features angled grooves for extra traction
  • Easily visible arrow for ease of alignment on conduit marks
  • High-strength steel handle features a swaged end for inserting conduit to correct overbends
  • Orange handle is easy to spot on the job site

铁管弯管机1英寸EMT,组装

56205

  • 设计减少了导管的波纹和椭圆形
  • 传统的Benfield头部设计精确且始终如一地执行常见的弯曲,例如Stub Ups,Offsets,Back-to-Back和Saddle Bends
  • 大胆的内置符号,度数刻度,乘数刻度和弯曲中心标记有助于节省工作时间
  • 内部钩表面可防止导管在弯曲过程中滚动或扭曲
  • 内部夹具在用钢锯切割时牢固地固定导管
  • 宽脚踏板提供稳定性,杠杆作用和舒适性
  • 采用倾斜凹槽,带来额外牵引力
  • 易于看见的箭头,便于在导管标记上对齐
  • 高强度钢制手柄具有模锻端,用于插入导管以纠正过度弯曲
  • 橙色手柄很容易在工作现场发现

Constructed with aerospace alloy and virtually indestructible, Klein’s AEROHEADBenders offer the ultimate in performance and durability. The traditional Benfield head style accurately and consistently performs common bends. Cast-in benchmark symbols, degree and multiplier scales help save time on the job.

Specifications
Centerline Bend Radius:
7” (178 mm)
Thinwall/EMT:
1” (25.4 mm)
Rigid/IMC:
3/4” (19.1 mm)
Included:
Handle 51428
Weight:
11.6 lb (5.3 kg)
UPC:
092644562051
WARNINGS
  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.

Klein的AEROHEA弯管机采用航空航天合金制造,几乎坚不可摧,具有很好的性能和耐用性。传统的Benfield头部风格精确且始终如一地执行共同的弯曲。嵌入式基准符号,度数和乘数比例有助于节省工作时间。

产品规格
中心线弯曲半径:
7英寸(178毫米)
薄壁/ EMT:
1”(25.4 mm)
刚性/ IMC:
3/4”(19.1 mm)
包括:
处理51428
重量:
11.6磅(5.3千克)
UPC:
092644562051
警告
  • 始终佩戴认可的护目镜。
  • 使用安全的工作位置以避免失去平衡。
