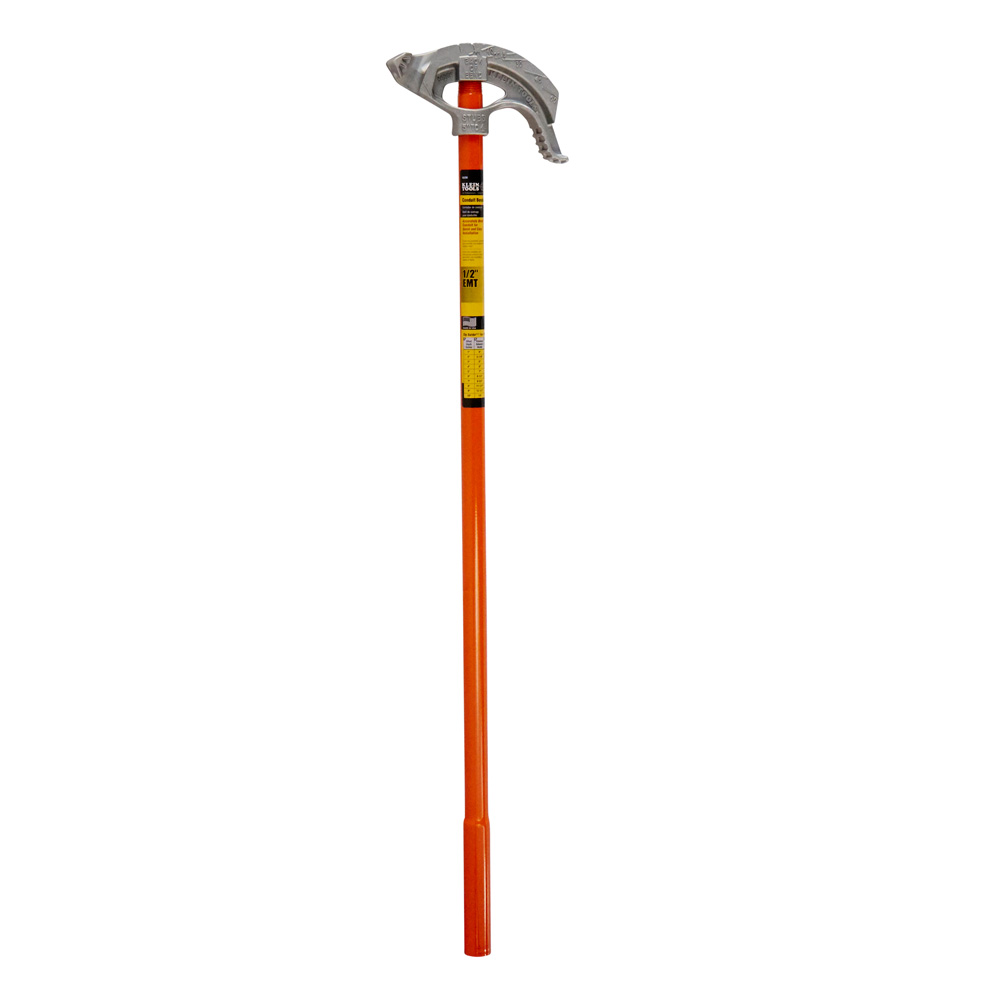

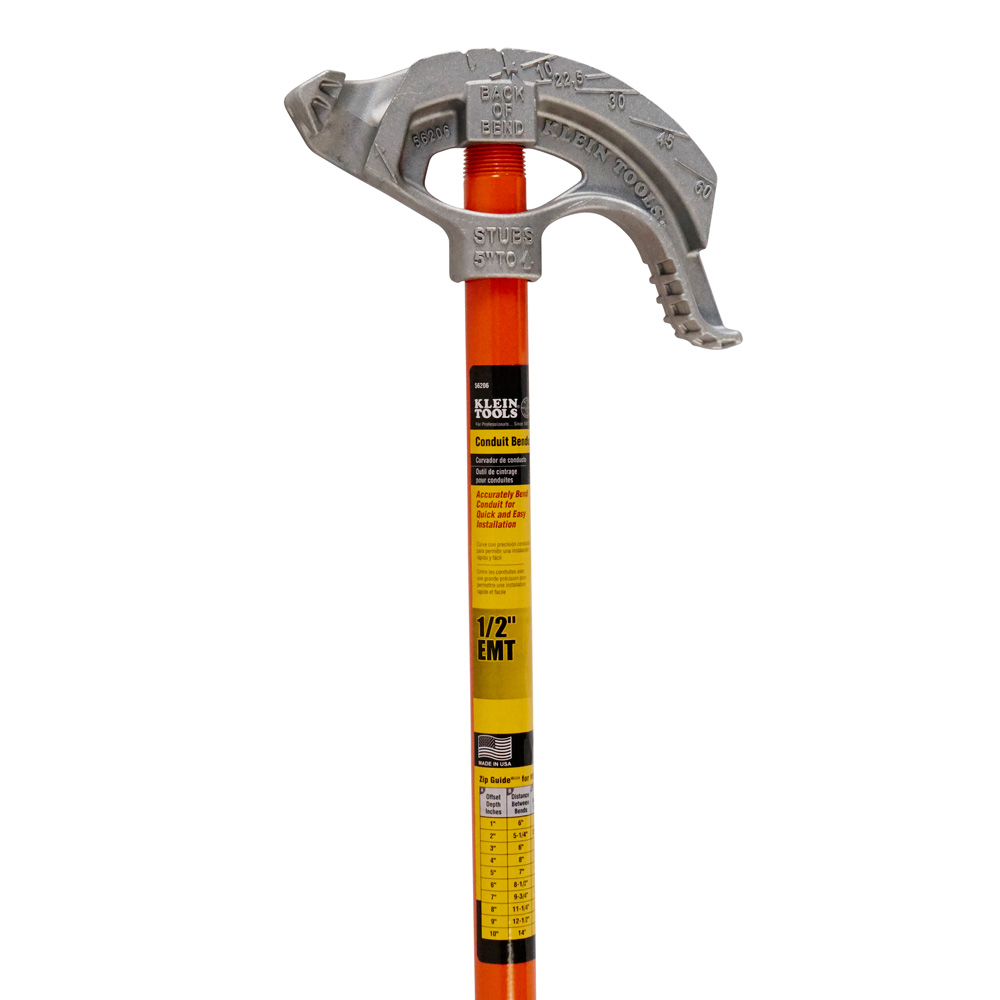

Aluminum Conduit Bender 1/2” EMT

56206

  • The traditional Benfield head design accurately and consistently performs common bends such as Stub Ups, Offsets, Back-to-Back and Saddle bends
  • Lightweight, die-cast aluminum construction
  • Exclusive design reduces rippling and ovaling of conduit
  • Wide foot pedal provides excellent stability, leverage and comfort

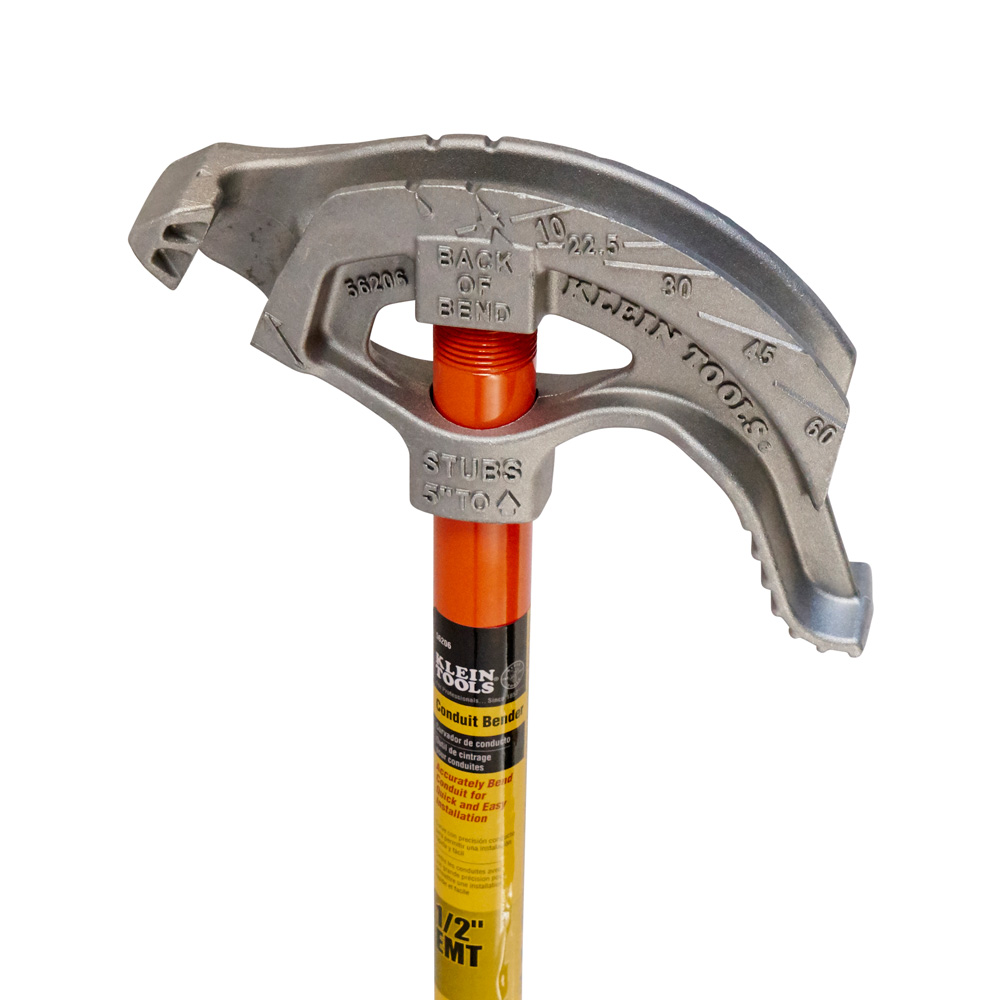

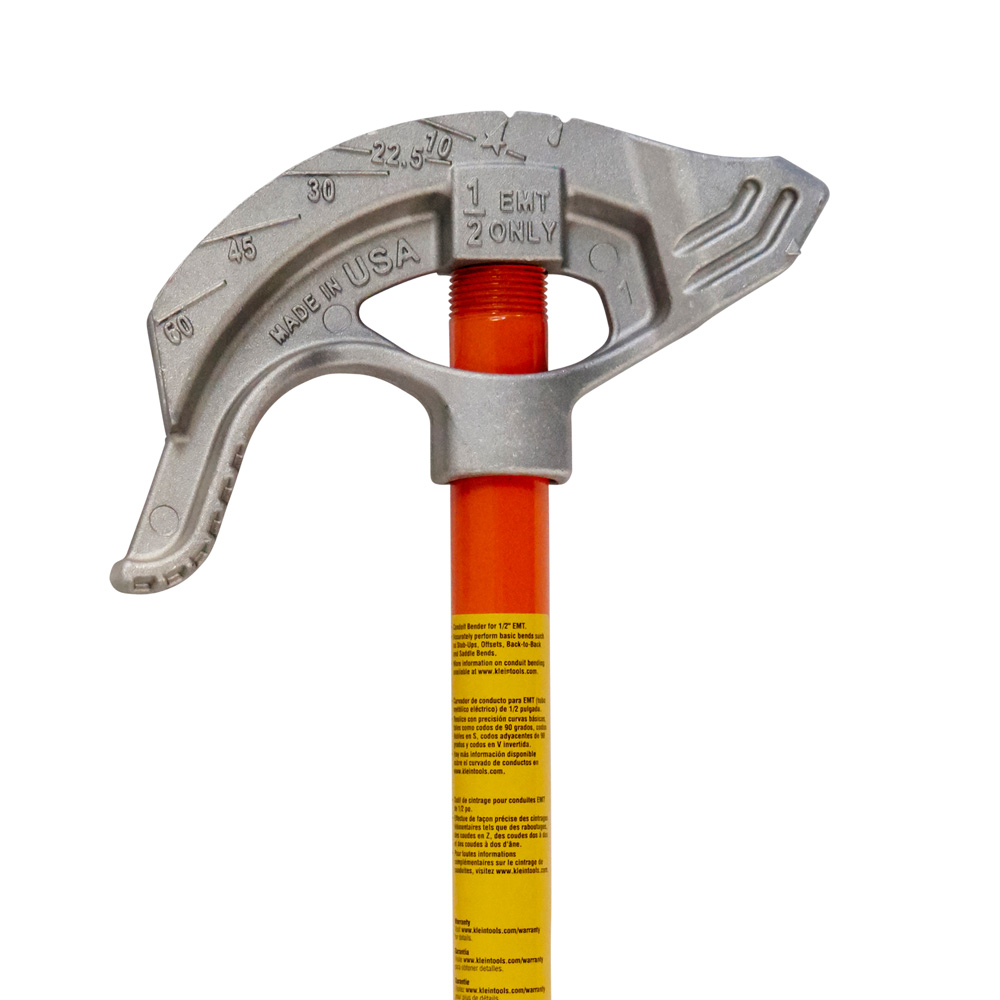

  • Bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job
  • Easily visible arrow for alignment on conduit marks
  • Interior clamp securely holds conduit while cutting with hacksaw
  • Interior hook surface prevents conduit from rolling or twisting during bends

铝导管弯曲机1/2”EMT

56206

  • 传统的Benfield头部设计精确且始终如一地执行常见的弯曲,例如Stub Ups,Offsets,Back-to-Back和Saddle bends
  • 轻质压铸铝结构
  • 设计减少了导管的波纹和椭圆形
  • 宽脚踏板提供稳定性,杠杆作用和舒适性
  • 大胆的投入基准符号,度数标度和乘数标度有助于节省工作时间
  • 易于看见的箭头,用于在导管标记上对齐
  • 内部夹具在用钢锯切割时牢固地固定导管
  • 内部钩表面可防止导管在弯曲过程中滚动或扭曲

Perform accurate conduit bends such as Stub Ups, Offsets, Back-to-Backs and Saddles repeatedly with this aluminum conduit bender. The wide foot pedal provides excellent stability and features angled grooves for extra traction. The bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job.

Specifications
Centerline Bend Radius:
5” (127.0 mm)
Thinwall/EMT:
1/2” (12.7 mm)
Included:
Handle 51427
Weight:
4.4 lb (2.0 kg)
UPC:
092644562068
WARNINGS
  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.

使用这种铝制弯管机重复执行准确的管道弯曲,例如Stub Ups,Offsets,Back-to-Backs和Saddles。宽脚踏板提供稳定性,并具有倾斜的凹槽,可提供额外的牵引力。大胆的内置基准符号,度数标度和乘数标度有助于节省工作时间。

产品规格
中心线弯曲半径:
5”(127.0 mm)
薄壁/ EMT:
1/2”(12.7 mm)
包括:
手柄51427
重量:
4.4磅(2.0千克)
UPC:
092644562068
警告
  • 始终佩戴认可的护目镜。
  • 使用安全的工作位置以避免失去平衡。
