Project Description

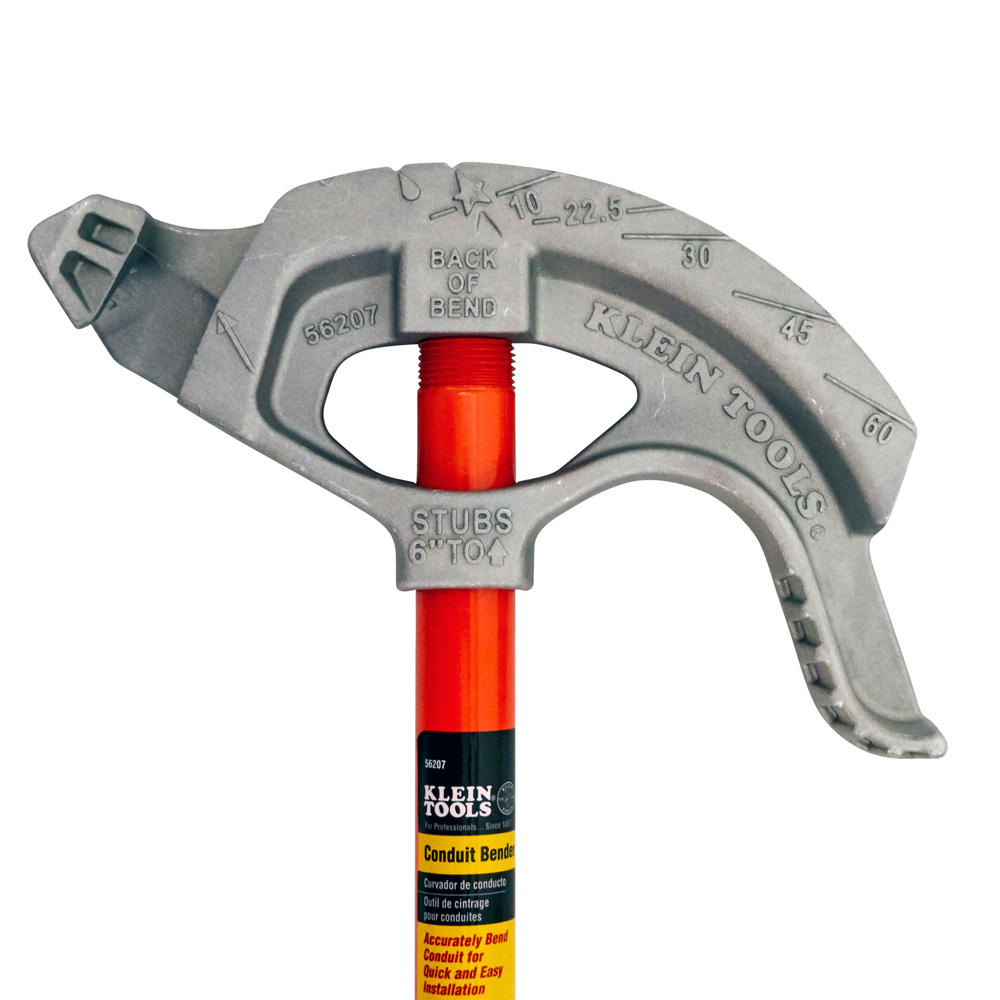

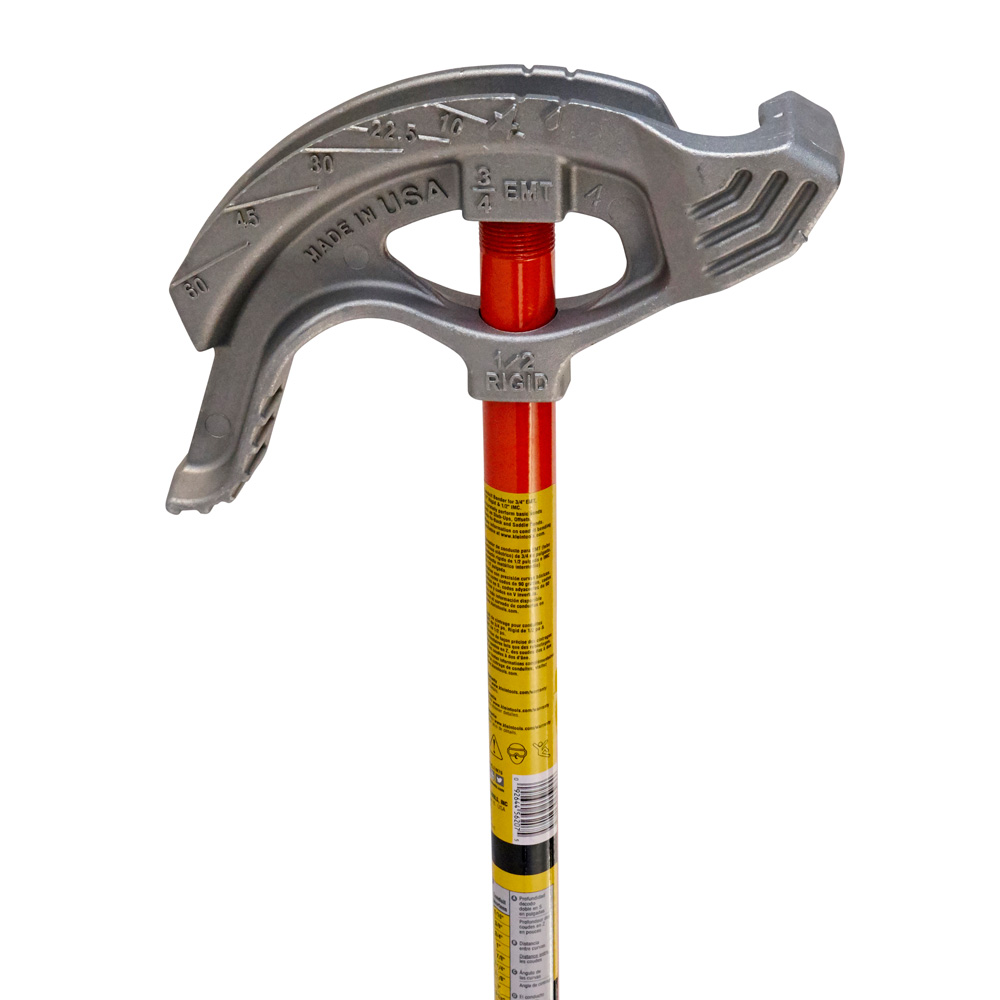

Assembled Aluminum Bender 3/4-Inch EMT

56207

  • The traditional Benfield head design accurately and consistently performs common bends such as Stub Ups, Offsets, Back-to-Back and Saddle bends
  • Lightweight, die-cast aluminum construction
  • Exclusive design reduces rippling and ovaling of conduit
  • Wide foot pedal provides excellent stability, leverage and comfort
  • Bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job
  • Easily visible arrow for alignment on conduit marks
  • Interior clamp securely holds conduit while cutting with hacksaw
  • Interior hook surface prevents conduit from rolling or twisting during bends

组装铝弯曲机3/4英寸EMT

56207

  • 传统的Benfield头部设计精确且始终如一地执行常见的弯曲,例如Stub Ups,Offsets,Back-to-Back和Saddle bends
  • 轻质压铸铝结构
  • 设计减少了导管的波纹和椭圆形
  • 宽脚踏板提供稳定性,杠杆作用和舒适性
  • 大胆的投入基准符号,度数标度和乘数标度有助于节省工作时间
  • 易于看见的箭头,用于在导管标记上对齐
  • 内部夹具在用钢锯切割时牢固地固定导管
  • 内部钩表面可防止导管在弯曲过程中滚动或扭曲
Specifications
Centerline Bend Radius:
6” (152.4 mm)
Thinwall/EMT:
3/4” (19.1 mm)
Rigid/IMC:
1/2” (12.7 mm)
Included:
Handle 51427
Weight:
5.4 lb (2.5 kg)
UPC:
092644562075
WARNINGS
  • Always wear approved eye protection.
  • Use a safe work position to avoid loss of balance.
产品规格
中心线弯曲半径:
6”(152.4 mm)
薄壁/ EMT:
3/4”(19.1 mm)
刚性/ IMC:
1/2”(12.7 mm)
包括:
处理51427
重量:
5.4磅(2.5千克)
UPC:
092644562075
警告
  • 始终佩戴认可的护目镜。
  • 使用安全的工作位置以避免失去平衡。
