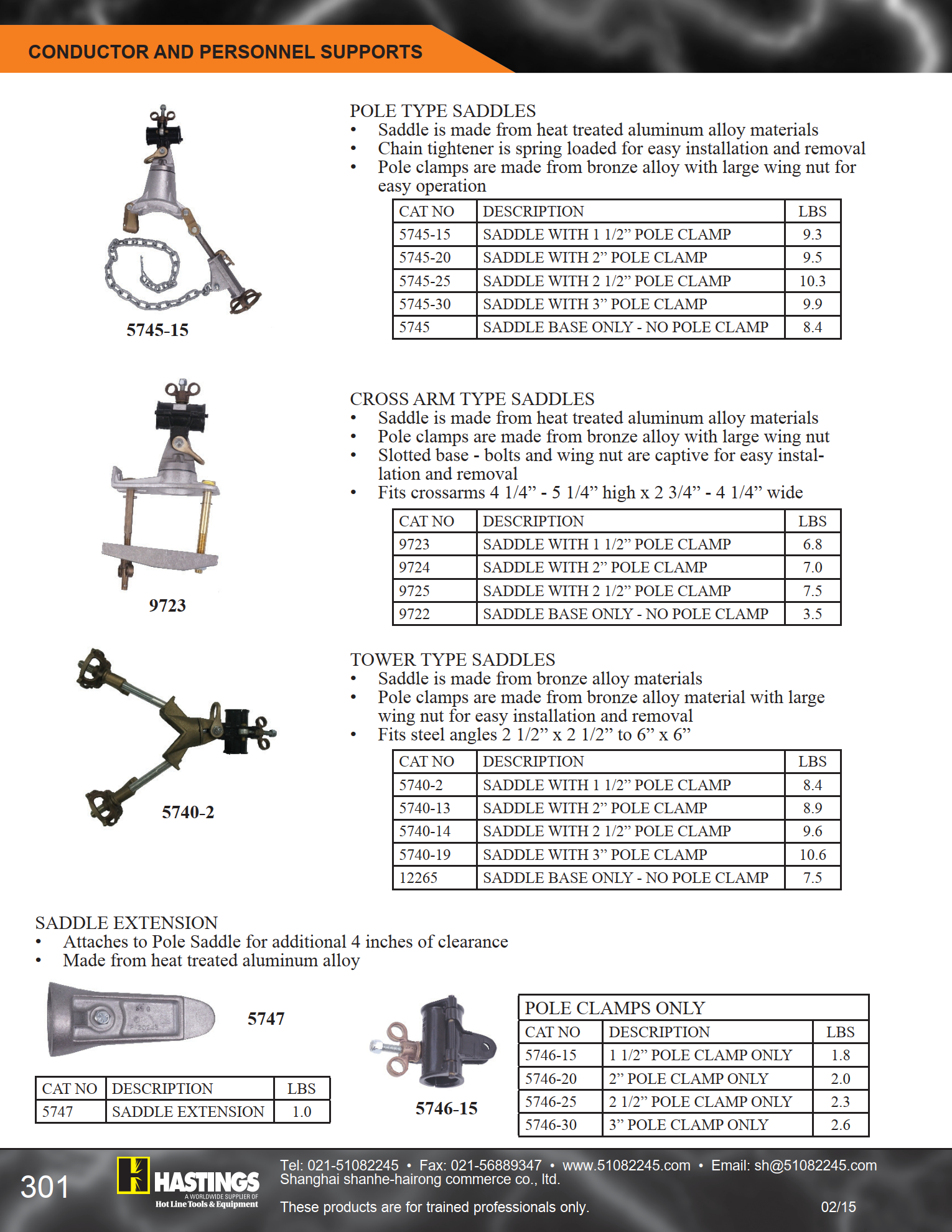

POLE TYPE SADDLES
Saddle is made from heat treated aluminum alloy materials
Chain tightener is spring loaded for easy installation and removal
Pole clamps are made from bronze alloy with large wing nut for easy operation
POLE CLAMPS ONLY
CAT NO DESCRIPTION LBS
5746-15 1 1/2” POLE CLAMP ONLY 1.8
5746-20 2” POLE CLAMP ONLY 2.0
5746-25 2 1/2” POLE CLAMP ONLY 2.3
5746-30 3” POLE CLAMP ONLY 2.6
SADDLE EXTENSION
Attaches to Pole Saddle for additional 4 inches of clearance
Made from heat treated aluminum alloy
CAT NO DESCRIPTION LBS
5747 SADDLE EXTENSION 1.0
CROSS ARM TYPE SADDLES
Saddle is made from heat treated aluminum alloy materials
Pole clamps are made from bronze alloy with large wing nut
Slotted base – bolts and wing nut are captive for easy instal-lation and removal
Fits crossarms 4 1/4” – 5 1/4” high x 2 3/4” – 4 1/4” wide
CAT NO DESCRIPTION LBS
9723 SADDLE WITH 1 1/2” POLE CLAMP 6.8
9724 SADDLE WITH 2” POLE CLAMP 7.0
9725 SADDLE WITH 2 1/2” POLE CLAMP 7.5
9722 SADDLE BASE ONLY – NO POLE CLAMP 3.5
TOWER TYPE SADDLES
Saddle is made from bronze alloy materials
Pole clamps are made from bronze alloy material with large
wing nut for easy installation and removal
Fits steel angles 2 1/2” x 2 1/2” to 6” x 6”
CAT NO DESCRIPTION LBS
5740-2 SADDLE WITH 1 1/2” POLE CLAMP 8.4
5740-13 SADDLE WITH 2” POLE CLAMP 8.9
5740-14 SADDLE WITH 2 1/2” POLE CLAMP 9.6
5740-19 SADDLE WITH 3” POLE CLAMP 10.6
12265 SADDLE BASE ONLY – NO POLE CLAMP 7.5
