Standard Cable Cutter, 25-Inch
63041
- Lightweight, yet efficient shear-type cutting of 1-3/8-Inch diameter, 500 Cu, and 750 Al
- Replaceable hook-jaw blades grab and hold cable while shear-cutting action makes clean cuts
- Exceptionally strong fiberglass handles with heavy vinyl grips for comfort and slip resistance
- Heavy-duty pins in head serve as blade-stops
- Jaws are forged tool steel with black-oxide finish for long life
- Beveled tips assure positive mating, and hinge on a rugged bolt with a pin-set nut to maintain proper blade tension
- Make a clean, even cut for ease in fitting lugs and terminals
- Not designed for cutting steel or ACSR
- Available with rubber sleeves (Cat. No. 63041TH)
标准电缆剪,25英寸
63041
目前有现货一把,需要的请尽快与我们联系。订货时如无现货,订货周期正常为4-6周。
- 轻巧但高效的剪切型切割,直径1-3 / 8英寸,500 Cu和750 Al
- 可更换的钩爪刀片可抓住并固定电缆,而剪切动作可实现清洁切割
- 坚固的玻璃纤维手柄,重型乙烯基手柄,舒适性和防滑性
- 头部的重型销用作刀片止动件
- 钳口是锻造工具钢,具有黑色氧化处理,使用寿命长
- 斜面尖端确保正向配合,并使用销钉螺母铰接在坚固的螺栓上,以保持适当的刀片张力
- 制作干净,均匀的切口,便于安装接线片和端子
- 不适用于切割钢或ACSR
- 可提供橡胶套(货号63041TH)

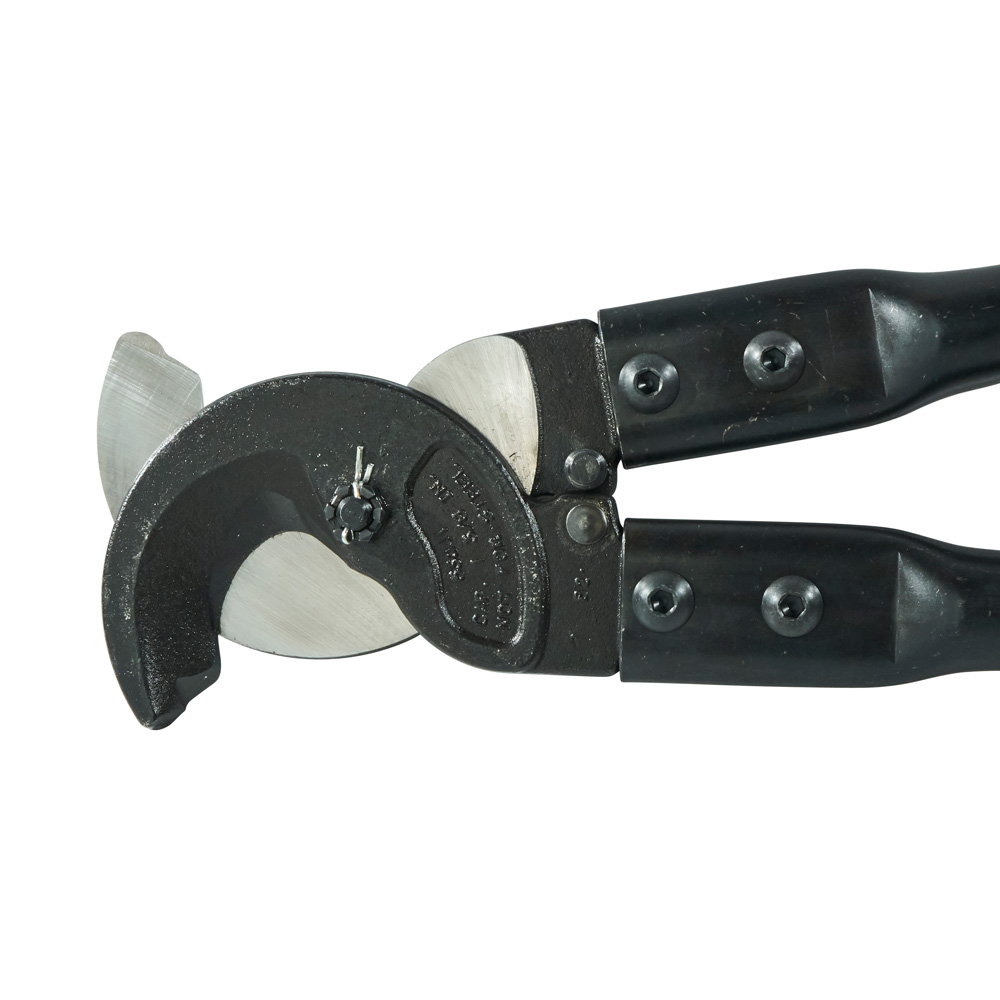

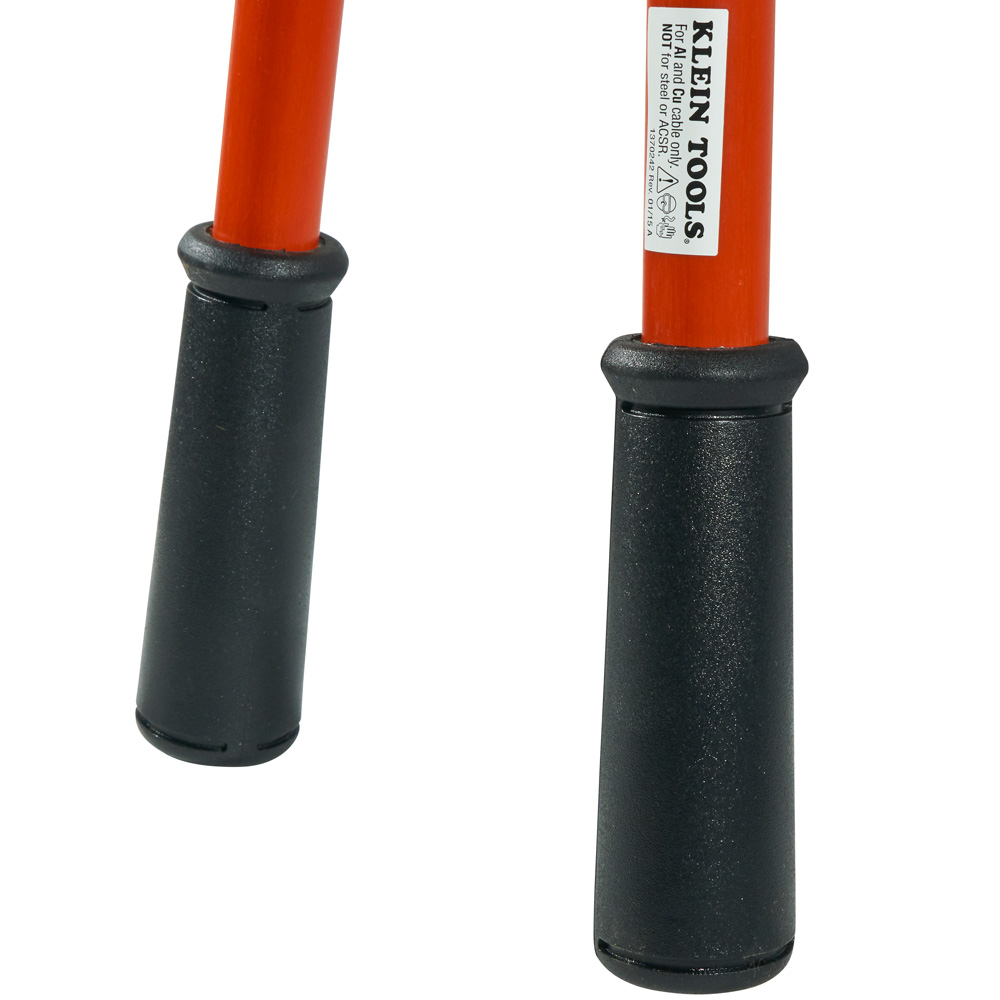

Klein Tools Standard Cable Cutters are lightweight, yet efficient. They feature replaceable hook-jaw blades that grab and hold cable while the shear-cutting action makes clean cuts. The jaws are made of forged tool steel with a black-oxide finish for long life. The exceptionally strong fiberglass handles have heavy vinyl grips for added comfort and slip resistance.
Specifications
Soft Cable Maximum Capacity:
1-3/8” (34.9 mm) Diameter
MCM Cable Maximum Capacity:
MCM 500 Copper, 750 Aluminum
Replacement Blade:
63081
Overall Length:
25.5” (647.7 mm)
Weight:
5.3 lb (2.4 kg)
UPC:
092644630415
WARNINGS
- Always wear approved eye protection.
- NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
- Do NOT use to cut steel or ACSR.
Klein Tools标准电缆剪轻巧,高效。它们具有可更换的钩爪刀片,可抓住并固定电缆,同时剪切切割动作可实现清洁切割。钳口由锻造工具钢制成,具有黑色氧化处理,使用寿命长。坚固的玻璃纤维手柄具有重型乙烯基手柄,增加了舒适性和防滑性。
产品规格
软电缆最大容量:
1-3 / 8”(34.9 mm)直径
MCM电缆最大容量:
MCM 500铜,750铝
替换刀片:
63081
总长度:
25.5英寸(647.7毫米)
重量:
5.3磅(2.4千克)
UPC:
092644630415
警告
- 始终佩戴认可的护目镜。
- 没有绝缘。塑料浸渍或滑动塑料手柄不用于防止电击。
- 切勿用于切割钢材或钢芯铝绞线。
